Aweta E8 Электронная сортировочная машина для огурцов

Aweta E8 grading machine for cucumbers.

• Cucumber sorting machine by weight
• Computer with push buttons

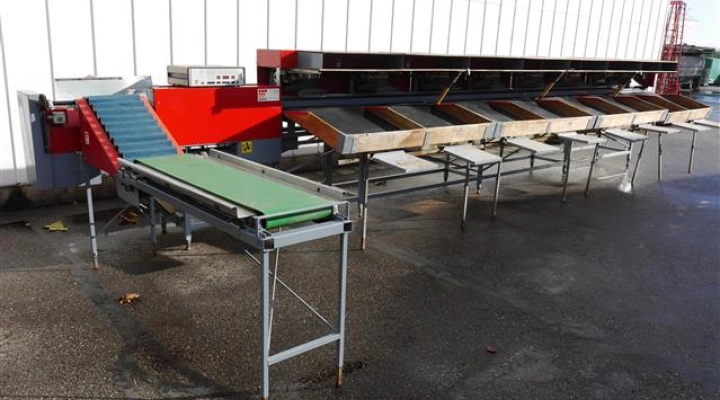

About Aweta E8

The Aweta E8 electronic grading machine is a straight machine with the feed elevator at one end (optional left of right handed). The machine grades the cucumber by weight into maximum of seven classes. The distance between the feed elevator discharge and the grader conveyor is only 4 cm and it is impossible for the cucumbers to fall from the machine during the production run. A unique system of rotating paddles gently sweeps the cucumbers from the moving conveyor into the appropiate grade collection table

The Aweta E8 has been designed with very few moving parts and is, therefore, extremely quiet in operation and has the minimum amount of maintenance requirement.

Seven weight grade classes beteween 20 and 1500 grammes can be selected and pre-set on the electronic weighing unit console by simple turning a dial. If required, two adjacent grade collection trays can be selected for identical weights.

Specifications of Aweta E8

• Capacity per hour:  Max. 5500 pieces
• Length of cucumbers:  Max. 50 cm
• Sorting system / range:  Electronic weighing / 20 - 1500 grammes
• Accuracy: To within +/- 3 grammes

Dimensions of Aweta E8

• Machine: (L x W x H)  840 x 140 x 150 cm (without tbles 85 cm wide)
• Working height: ttables 85 cm
• Weight: 600 kg
