Описание:

6-полосная сортировочная машина Aweta с разгрузчиком воды Stas bin

Aweta 6 lane fruit sorting machine

Complete with Stas bin robot waterunloader with buffer system

Aweta Cup G DV-CDW 6-25+1 grading machine

• Suitable for fruits as apples, pears and peppers
• Sorts on size, colour and weigth
• 6 lanes
• 21 exits
• Aweta Troodon sorting software
• Pre-singulator belts in V shape
• Brush singulator
• Brushing unit that can turn the fruit, so the fruit can fall side ways from the singulator in the cups. (To protect the neck of the pears from damage)
• Right to left (exits on left side)
• Capacity: 6000 kg - 9000 kg / hour
• Excluding packing conveyors or tables on the exits
• Shortening the machine is possible
• Year 2011

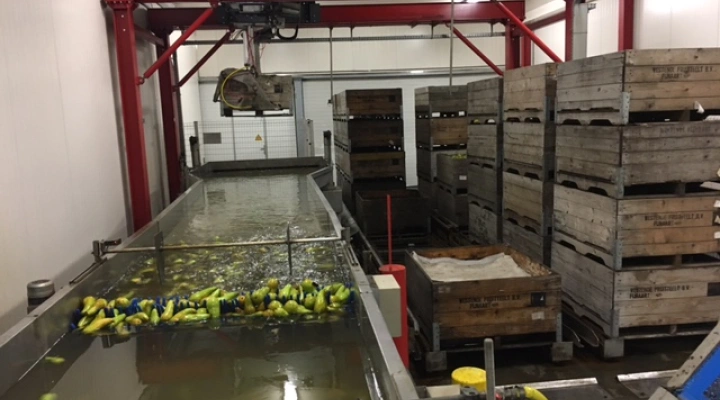

Stas bin robot water unloader

• Suitable for apples and pears
• Buffer of 24 full boxes (2 times 3 stacks of 4 high)
• Buffer of 24 empty boxes (2 times 3 stacks of 4 high)
• Buffer system can be (un)loaded from the front and the back
• Portal unloader with scissor lift, and possibility to turn the bins
• Lifting floor for sinking products, such as pears
• Water channel, with unloading bin in the ground
• Finger roller to control the flow for pears
• Conveyor that discharges the fruit from the water on the dryer
• Mesh conveyor for getting the waste out of the water
• Dryer / conveyor
• Disc conveyor
• Pumps
• Year 2011

For more information see the video of this complete fruit sorting installation.

On request we can send you a CAD or PDF file with all the dimensions of the machine.
