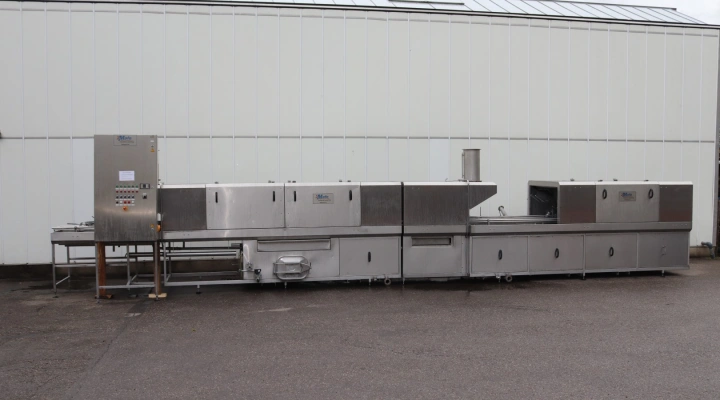

Промышленная машина для мойки лотков и ящиков Mafo с сушкой 340MGN + 370MA

Mafo 2-line industrial tray and cratewasher with A dryer 340MGN + 370MA

This machine is built in accordance with the requirements of the EC machine directive 98/37-CE and therefore has a "CE marking".

Cleaning takes place according to the following processes:

Input: a powered table, length 1.5 meters, for setting up the crates and trays.

Main wash: The tank is filled with hot water from the hot water system (± 40ºC). A large amount of water is sprayed at a correctly adjusted temperature through nozzles on all sides of the products to be cleaned. A cleaning agent can be added to the water. so that water and energy consumption remain limited. The spray pattern is adapted to the products to be cleaned and ensures optimal cleaning results.

Recirculated rinse: to save water, the rinse water is recirculated. A tank with ± 250 liters is filled with clean warm water at ± 40ºC. It is kept at a washing temperature of ± 60ºC with 1 heating element of 10 kW. The water circulates back into the tank through a filter drawer. The rinse water is refreshed by means of automatic tank filling. A relaxant can be added to the rinse water to improve the blow-off result.

Blow-off unit:

Here, cold air is blown over the washed products by precisely adjusted air knives to blow off the remaining adhering moisture as much as possible. However, the end result depends on the product form, use of a relaxant in the rinse and the temperature of the rinse water.

TECHNICAL DESCRIPTION OF THE MACHINE.

Dimensions [meter]:

• Total L x W x H: ± 10.1 x 1.4 x 1.6 m
• W x H tunnel passage: ± 0.8 x 0.4 m
• Entry and exit height: ± 0.9 m

The crates / trays are cleaned bottom up.

1. Classification
   1. Imports
      1. 1. 1.5 meter powered table
         2. Control box for start / stop transport
2. Main wash section mafo 340M
   1. LxWxH = 3.4 x 1.2 x 1.6m
   2. 1 stainless steel centrifugal pump, 11 kW, 90,000 liters / hour, 3 bar
   3. 1 level monitor, as dry-running protection for the pump
   4. 6 spray rings, ± 100 adjustable stainless steel nozzles
   5. 1 tank, capacity 400 liters
   6. 1 automatic tank filling, via level guard and solenoid valve
   7. 1 hot water coil, controlled by thermostat and solenoid valve
   8. 1 filter drawer with mesh width of 1.5 mm
   9. 2 cleaning hatches (1 on each side)
3. Recirculated Final Rinse
   1. 1 rinse line with flat jet nozzles
   2. 1 tank content ± 200 Liter
   3. 1 automatic tank filling for automatic filling of the tank
   4. 1 x 10kW electric heating for rinse temperature of ± 60ºC
   5. 1 pump, 0.75 kW 1300 l / h, 3 bar
   6. Water for the final rinse is supplied at ± 40ºC
4. Vapor extraction
   1. 1 extractor hood on the input side of the washing machine
   2. 1 fume hood on the outfeed side of the washing machine
   3. 2 axial fans 0.37 kW, 1,500 m3 / hour, in stainless steel tube L = 1m, φ250mm, suitable for delivery head up to ± 5 meters
5. Blow-off section mafo 370MA
   1. L x W x H: ± 3.7 x 1.4 x 1.6 m
   2. 1 tunnel (length 2.3 m) over the knives, partly removable as with the washing machine
   3. 1 exhaust fan, 7.5 kW, air: 4,000 m3 / h. (Material; steel-lacquered)
   4. 7.5 m. Air knives for all-round blowing off of the products (number depends on the product shape)
   5. The blow-off result can be ± 95%, but depends on the temperature of the rinse water, the use of a relaxation agent and the product form
6. Scale track
   1. 1 stainless steel chains with flights and guide profile
   2. 1 tensioning station for the chain
   3. 2 sliding bars next to the chain
   4. 2 fixed side guides
   5. 1 pivotable hold-down grid
7. Crate Track
   1. 1 stainless steel chains with flights and guide profile
   2. 1 tensioning station for the chain
   3. 2 sliding bars next to the chain
   4. 2 fixed side guides
   5. 1 from furthest
8. Drive
   1. 1 gearbox with frequency control for a variable transport speed (potentiometer in the cabinet so that it is only adjustable for an authorized person)
   2. 1 slip clutch
9. 1.3 Switch box
   1. Stainless steel
   2. Splash proof according to IP65
   3. Control voltage 24V-AC
   4. Components: Allen Bradley
10. General
    1. Material:
       1. Installation almost completely made of stainless steel 304
    2. Accessibility:
       1. Due to the partly removable tunnel halves, the machine is optimally accessible at maintenance or cleaning work
       2. Stainless steel doors with plastic handle, easily removable around the engine
    3. Compartment
       1. Cleaning hatches in the tank
    4. Manual
       1. A manual, provided with operating and maintenance instructions, electrical diagrams and component specifications are supplied in the Dutch language.
11. Connection values
    1. Electr. Consumption: ± 30 kW
    2. Surge value: 63Amp
    3. Connection values: 400 V, 50 Hz, 3 phases + 0 + earth
    4. Water consumption: ± 100 l / hour (N.B. excl.filling tanks) connection value: 2 x 3/4 "in the entire water supply network
    5. 2 x 2 "combined overflow / drain
    6. Hot water connection: 1 ”
12. Energy consumption at:
    1. Washing temperature of 55ºC
    2. Hot water of ± 40ºC for filling 34kW (gas boiler)

* Dismantled for transport
