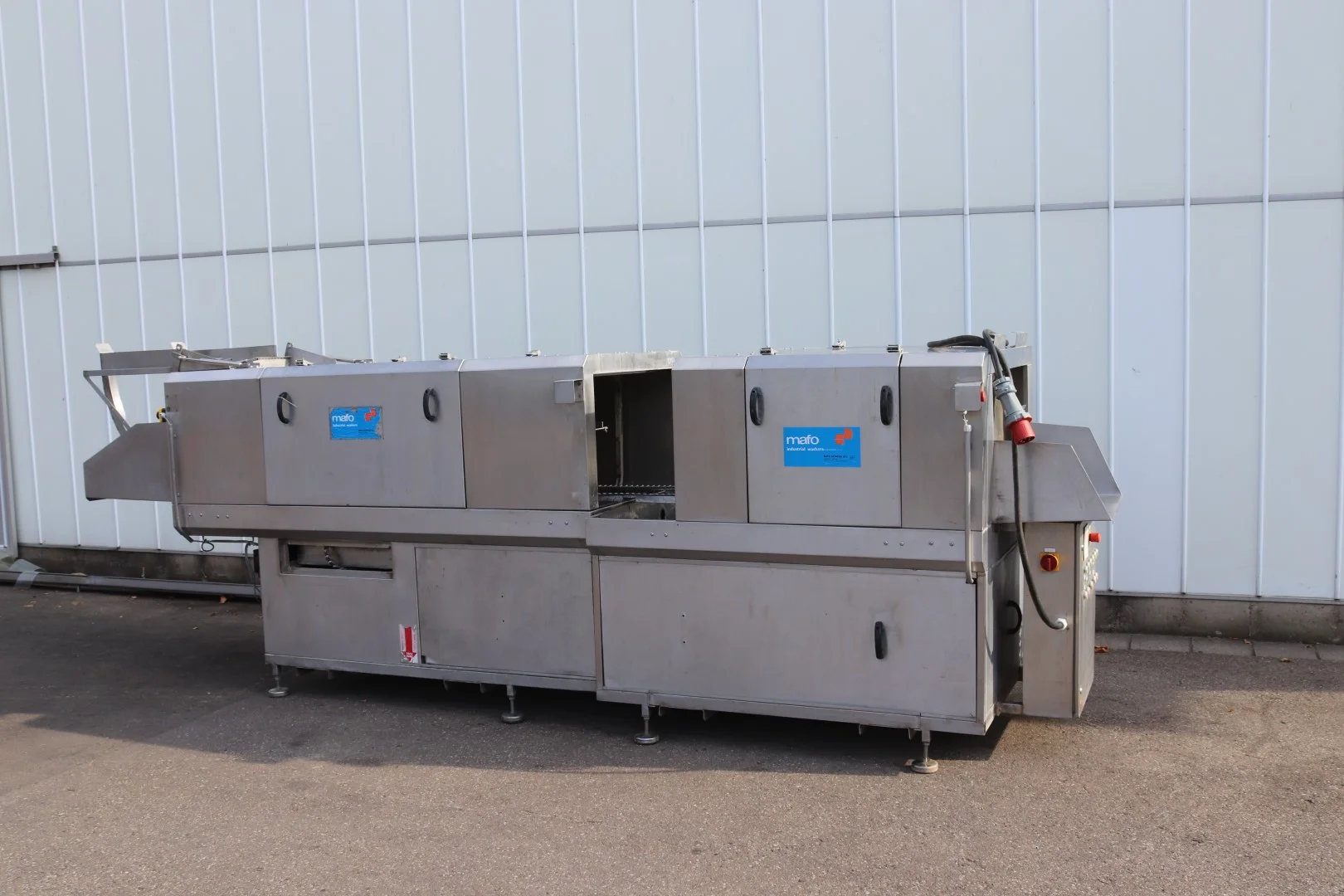

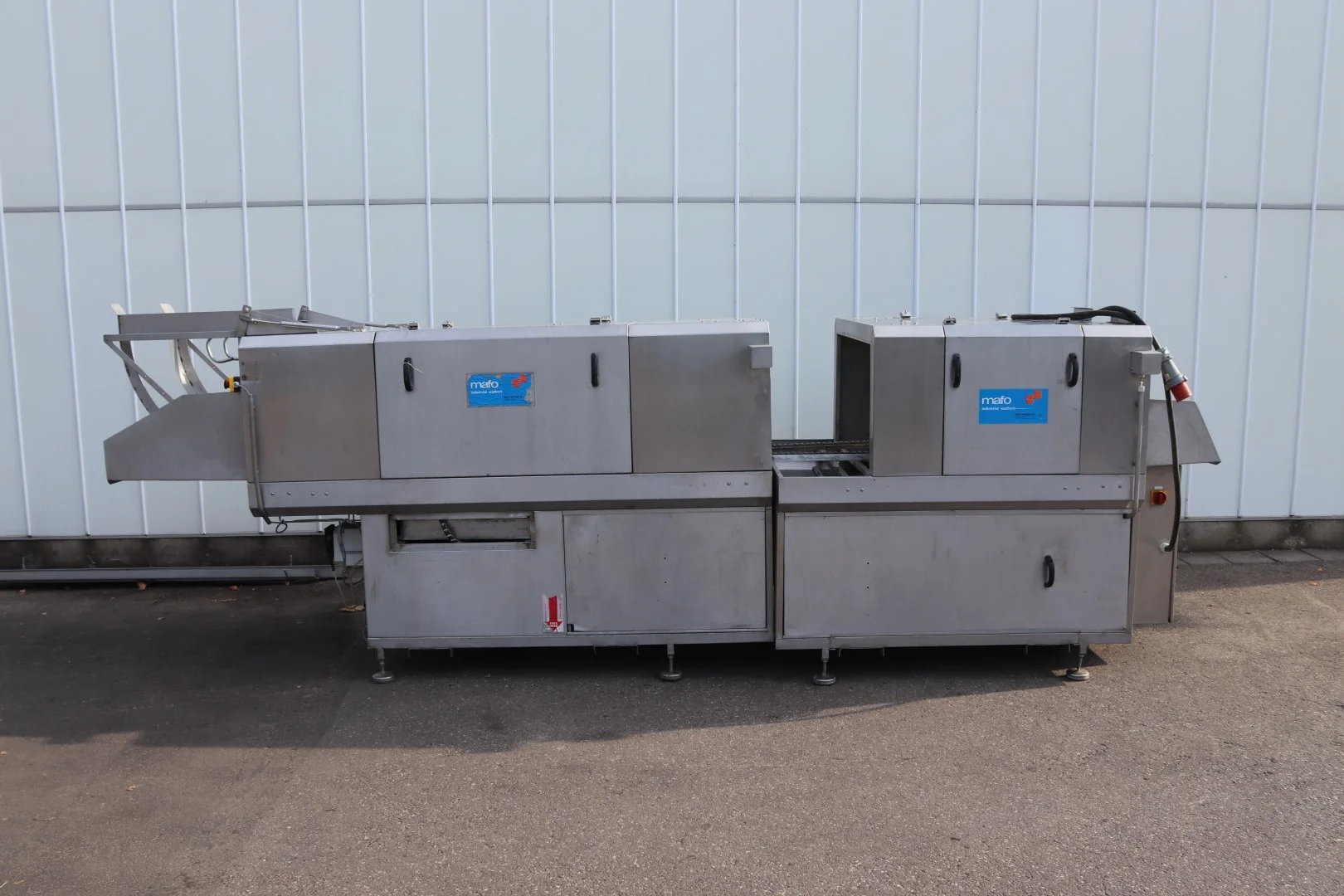

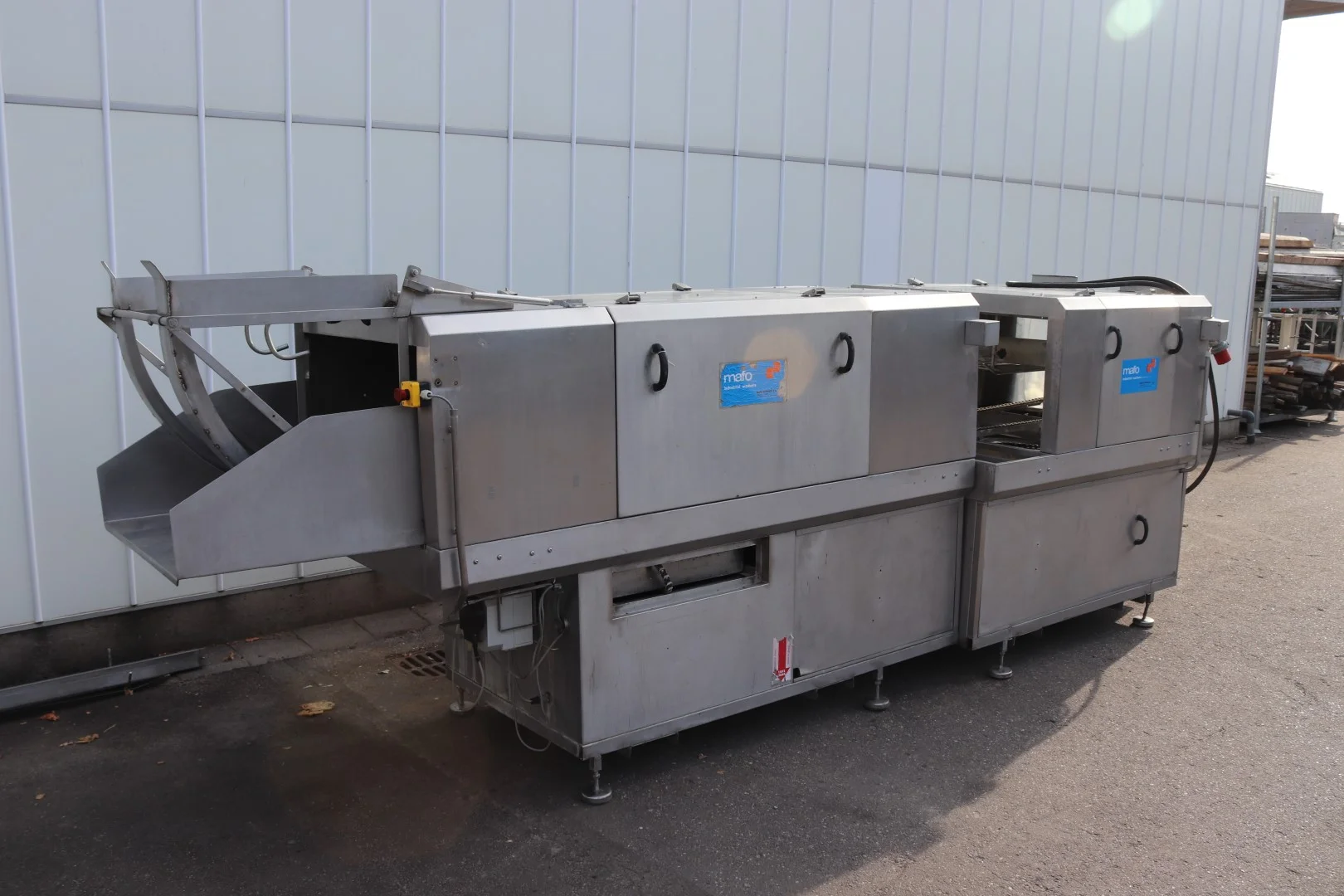

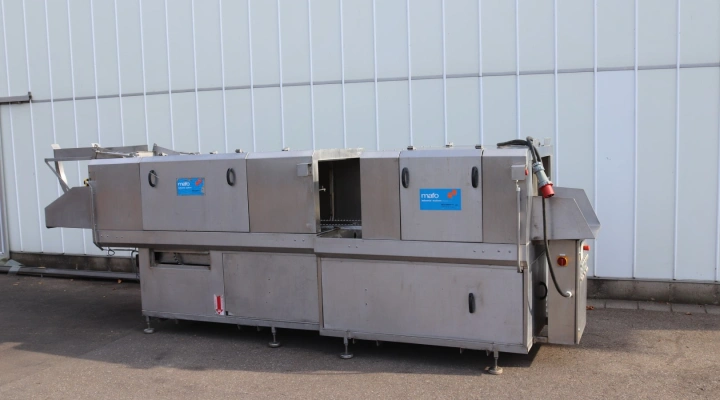

Mafo 230M industrial crate and tray washer with 1,6M dryer

Mafo 230M industrial tray and crate washer with 1,6M Dryer

Capacity
This washing machine is designed for a nominal capacity of maximum 400 crates per hour, but the actual capacity varies with crate sizes and type or amount of soil to be removed from the crates.

Design
The compact modular construction of the machine combines easy operation with a high degree of efficiency. When equipped with a looping track, one person can even operate the machine. The safety of the operator has been one of the major design criteria.

Operation

Water is circulated in the main wash section of the Mafo 230M and filtered before used for washing again. The filter can be cleaned quickly and easily. The water from the separate final rinse section is directed continuously to the main wash tank and this compensates for the loss of water that leaves the machine with the washed products and the loss due to evaporation.

The water in the main wash section is thus constantly refreshed. The result is the reduction of water and energy consumption to a minimum.

Modular
The Mafo 230M, together with the Mafo afblaas 1,6 M form the basis of the Mafo modular system. This modular system offers many possibilities for custom-built solutions

Conclusion
Using stainless steel and other high quality materials results in the lowest the maintenance and service costs of the Mafo 230M. All this makes the Mafo 230M a good investment for your operations

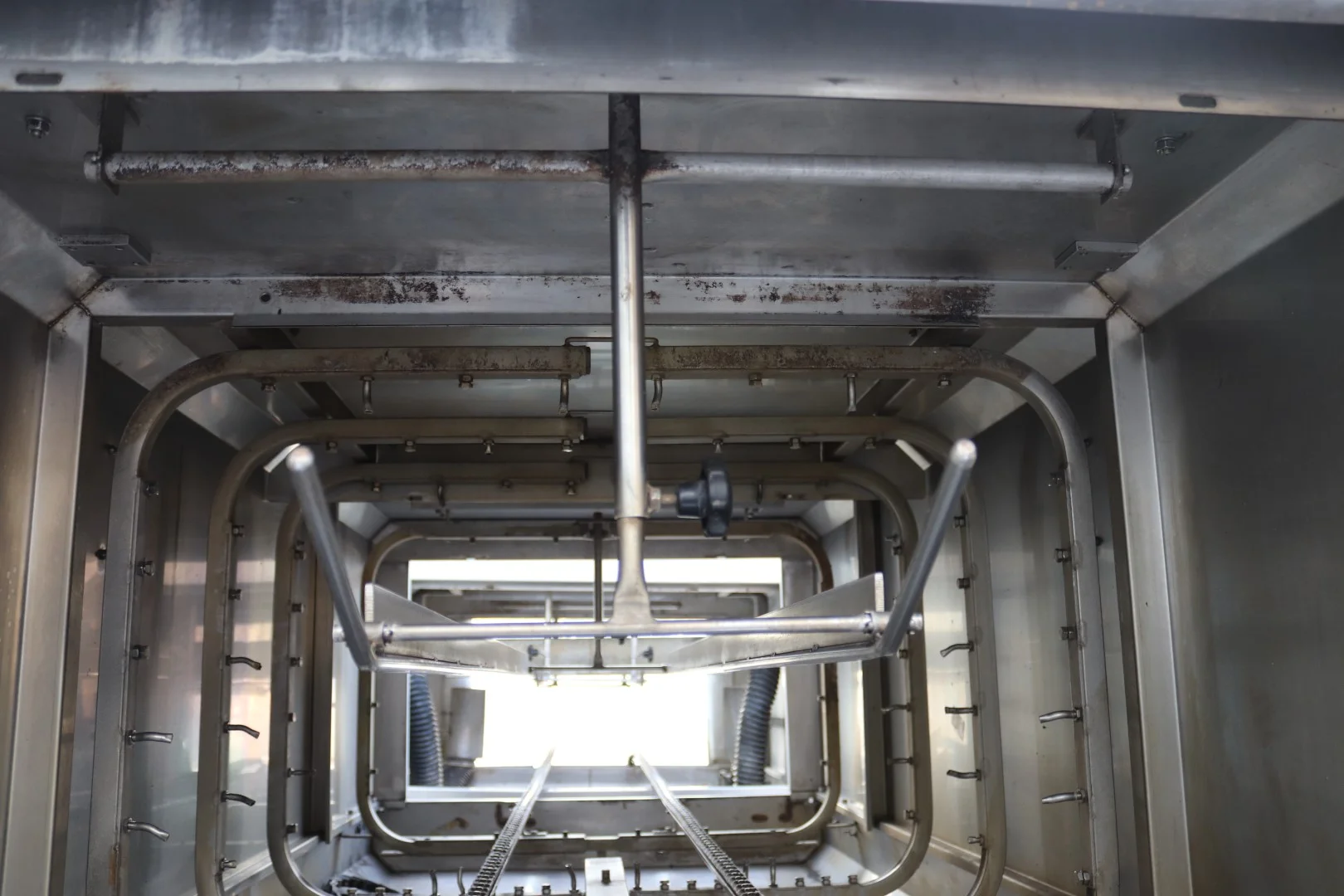

In the main wash zone all contamination is removed thoroughly because of the extremely powerful spraying system.

Suitable for various type of trays and crates.

• Adjustable speed
• Stainless steel

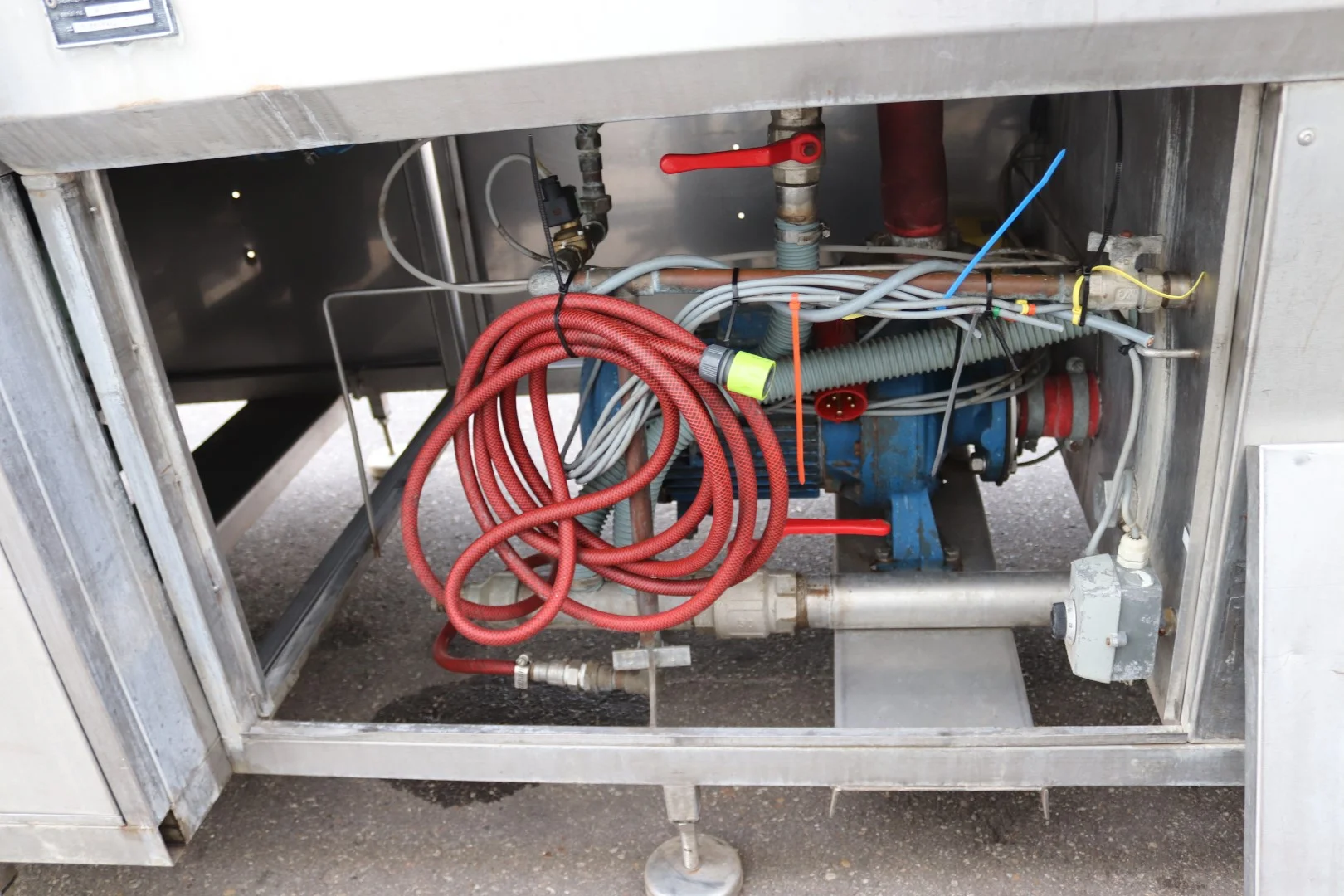

• Circulation pump

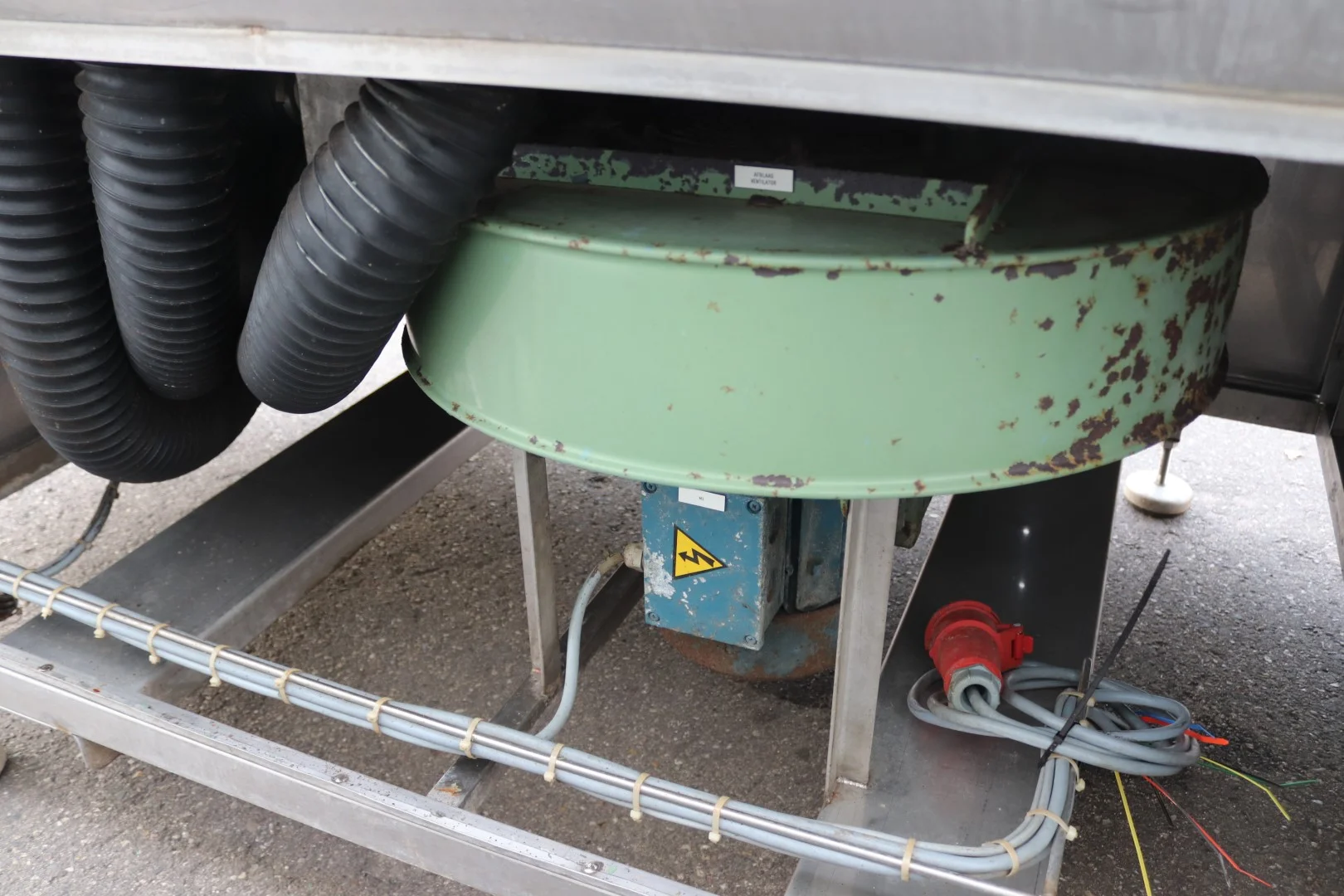

• Dryer

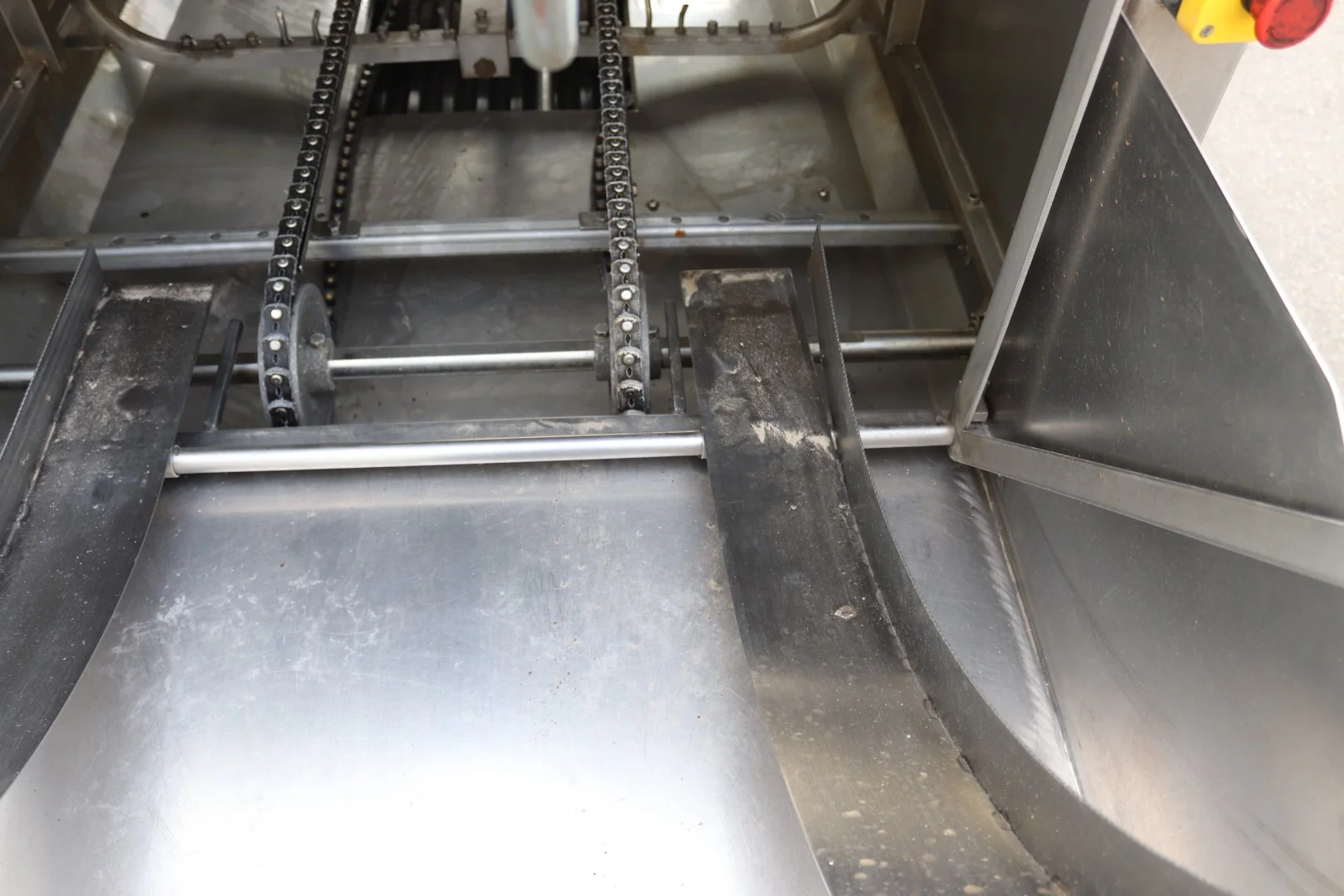

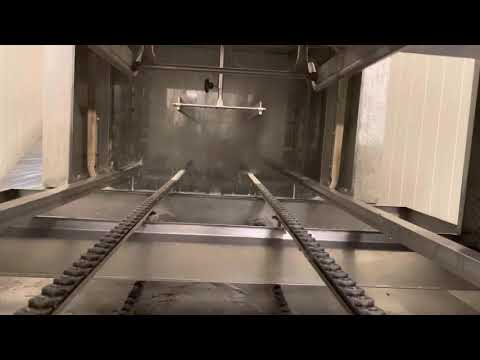

• Motor drive unit with belt transport
• Crate height adjustable, suitable for max. 28 cm high crates
• Crate width adjustable, suitable for max. 60 cm wide crates

* Machine is dismantled for transport
