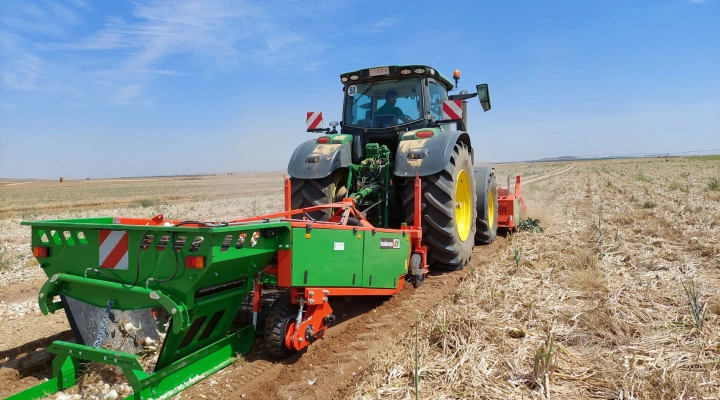

New Holaras UR onion windrowers

The Holaras UR onion windrower picks up onions from the soil with a square-bar digging shaft. Alongside this digging shaft, there are coulter disc blades and a V-shaped plough on each side. Both the coulter disc blades and the plough prevent losses when picking up the onions.

Standaard including:

• Square-bar digging shaft
• Spiral intake roller
• Pressure roller
• Walterscheid PTO
• The onion harvester is supplied as standard with a 3/4” O-ring chain and double bearings for driving the digging shaft.

Would you like to receive a quote for a Holaras UR onion harvester?
Tell us which of the following options and working width you are looking for.

Options:

• Hydraulic bunker incl. driven spreader roller
• Cross tires (2 dw)
• Electric/hydraulic depth control/two buttons
• Set of support wheels, spindle adjustment
• Freewheel coupling
• Foam feed roller
• Twisted digging shaft
• Set of digging shares
• Lighting + marking boards
• Mechanically-driven pressure roller
• All functions electric / hydraulic controlled

No lost harvest

Onions are lifted from the soil by means of a square bar (lifting bar or rod). The counters and V-shaped shares mounted on either side of the square lifting bar eliminate wastage by the first pick-up we b. The rubber intake roller mounted behind the square lifting bar deposits the onions on the agitating web. This shakes off soil and trash and deposits the onions to a second belt, which leaves them via tanker ‘K’ damage free on the ground. After air-drying the onions are ready for safe and smooth collection.
