Descrizione:

Selezionatrice di peso e lunghezza Aweta GSM 10 per cetrioli

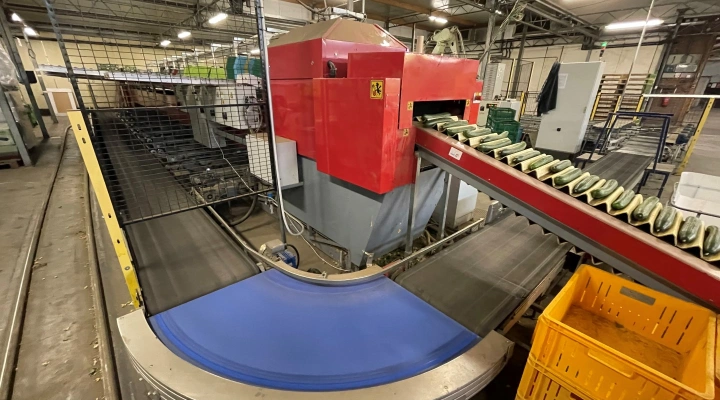

Aweta GS-DV-10 weight and length sorting machine for cucumbers
Complete with discharge system for full boxes to for example a palletizer

• Grades on length and weigth
• 10+1 sortings
• Infeed: Wave elavator belt (excluding flat conveyor)
• Outfeed: 10 turning tables
• Fall breakfall system
• 10 box lifts with chains
• Conveyor of +/- 1200 x 60 cm for the discharge of the full boxes to a palletizer (palletizer is not included)
• PC with Troodon software, version 3.4.3.1. (16/07/2018)
• Capacity max. 20.000 pieces / hour

Including Aweta discharge system for full boxes, containing:

• 10 box lifts with chain conveyors
• Conveyor belt of +/- 1200 cm x 60 cm to palletizer
• Computer that knows which box is on each position
• Optional: curved conveyor (€ 2500,-) and other conveyors (€ 2000,-)

As soon as a box is on the lift, the lift goes down and transports through a chain conveyor belt the box under the machine towards discharge conveyor belt. The computer knows which box is on each position on the conveyor belts and could communicate this to a palletizer.

Machine will be checked and serviced by an engineer before delivery.

The Aweta GS-DV-10 sorting machine have been designed to receive the cucumbers safely and enabling the weighing process to be extremely accurate. The fall-break system guides the cucumbers gently to the tables safeguarding them from falling hard and bruising. The turning receiving tables makes packing very easy and convenient.The accurate weighing system in combination of the camerasizer makes the Aweta cucumber grader a leader in the range of grading. The speed of this weight and length sorting machine is adjustable.
