Descrizione:

Sorma PAL 108D Impianto di pallettizzazione Sorma PAL 108D con 8 pallettizzatori

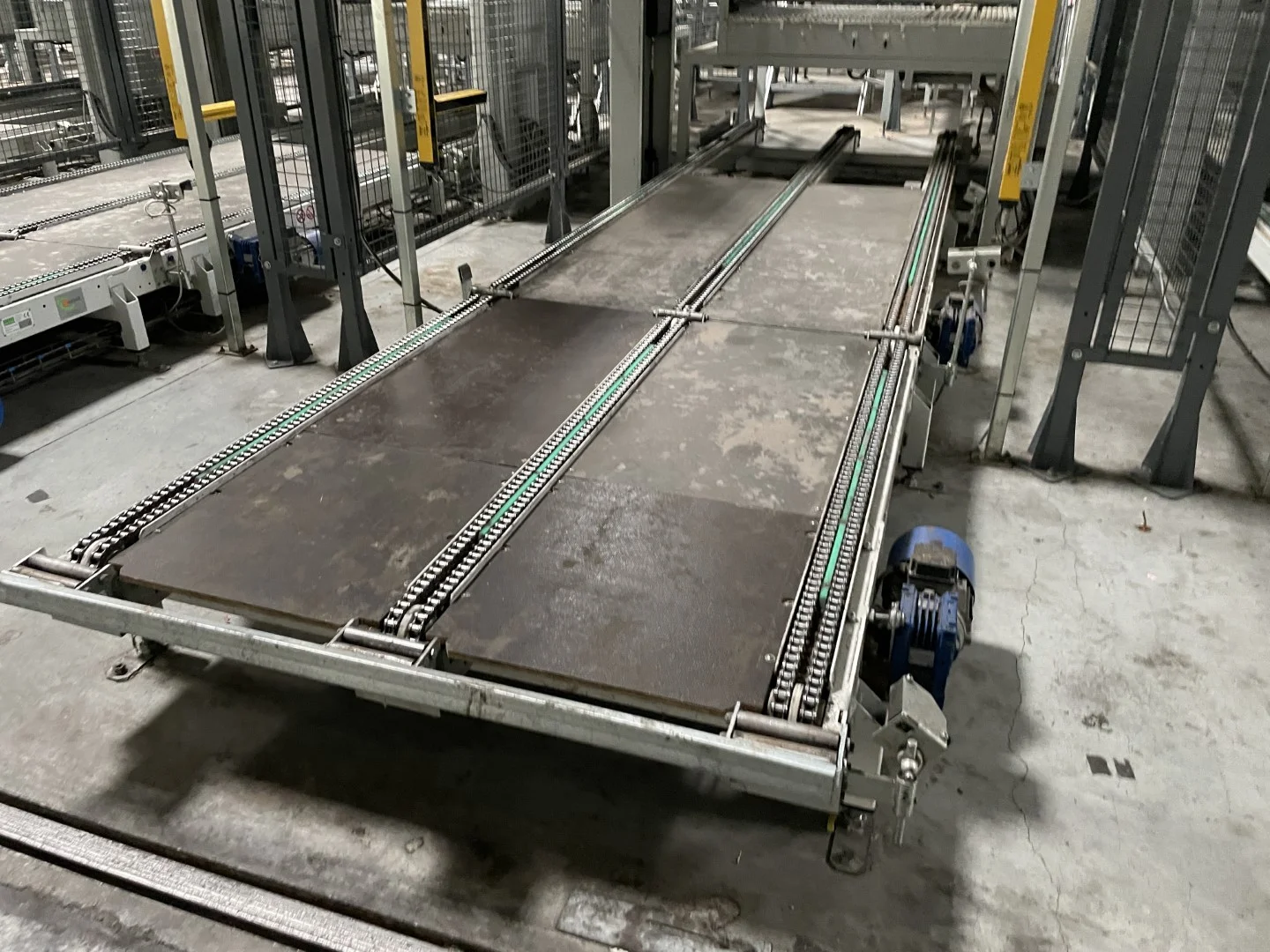

With chain discharge conveyor

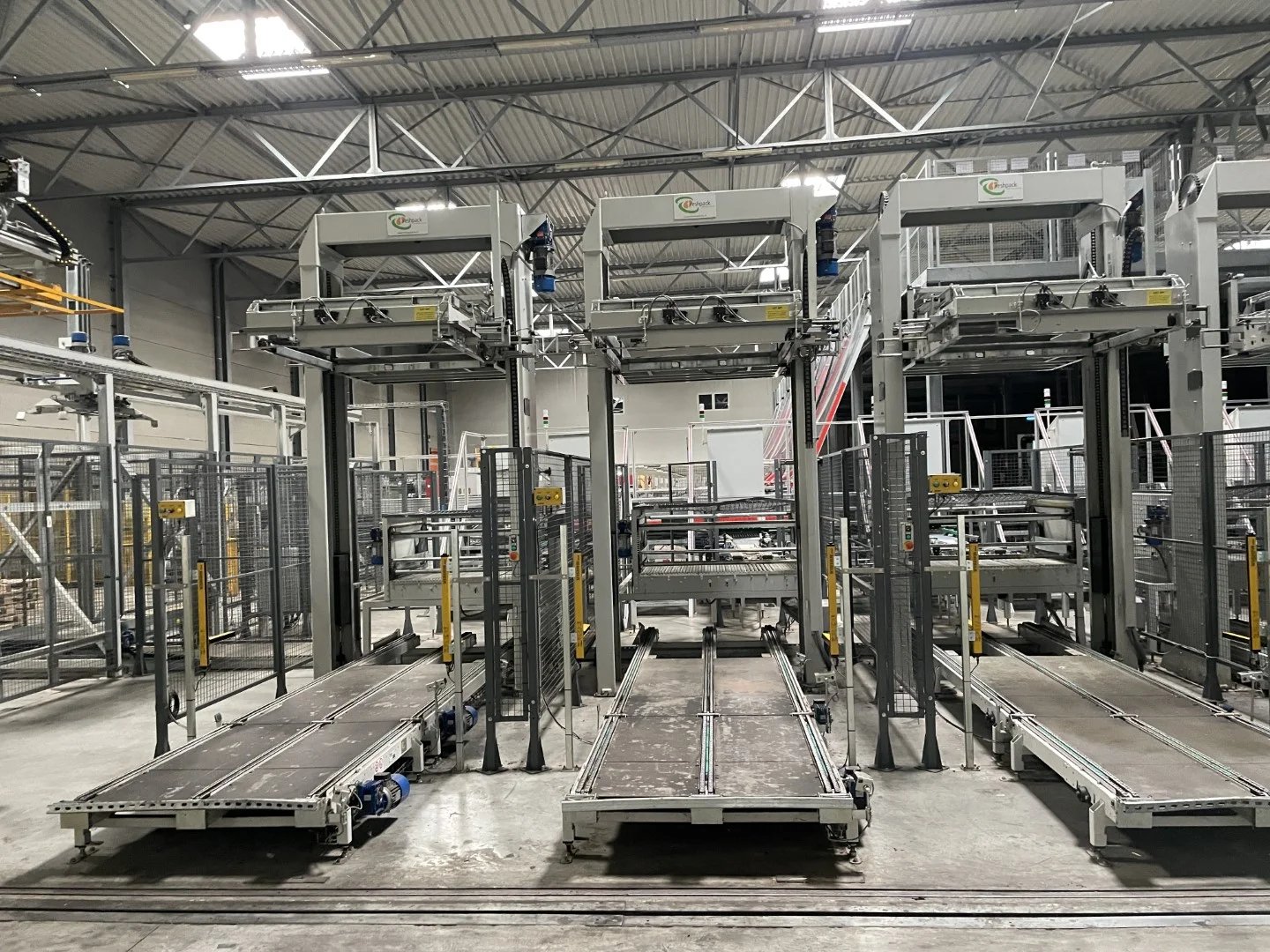

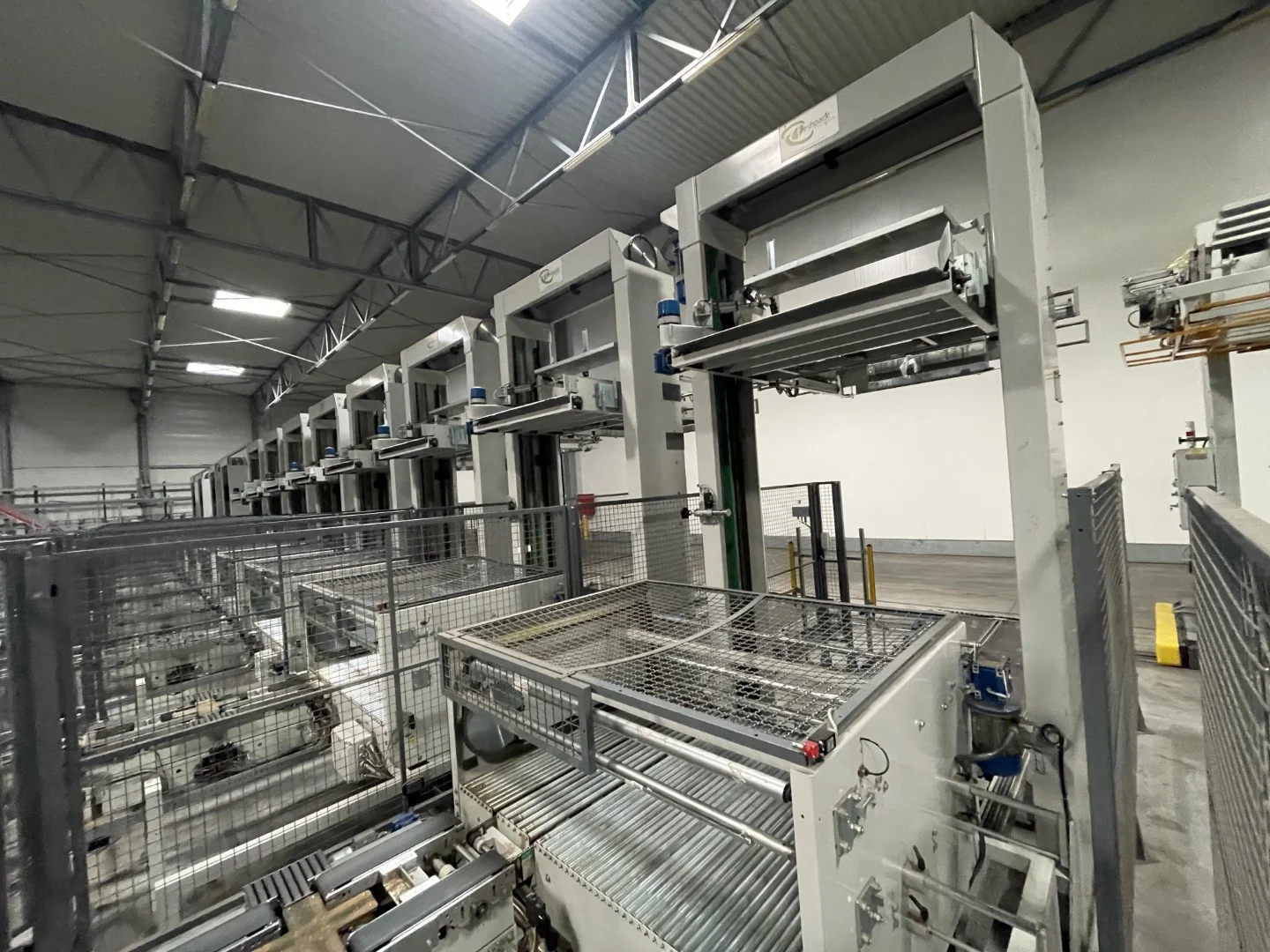

The machines stood in line with 8 machines, automatically feeding and strapping the pallets with corner slats using a mobile shuttle.
This palletiser with chain outfeed conveyor will be sold separately also. And can work as stand alone machine, when they are used without the pallet chain.

PAL-108D at a Glance

• Up to 1180 boxes per hour
• Automatically stacks boxes and crates onto pallets
• Adjustable pre-set configurations
• Retractable plates and pneumatic clamps
• Suits: cardboard boxes and crates, plastic boxes and crates, Wood boxes and crates

PALLETS 100X120
box / plateaux 30 x 50  1180 boxes / hour infeed side 30
box / plateaux 40 x 60  900 boxes / hour infeed side 40
box / plateaux 30 x 40  1120 boxes / hour infeed side 30
PALLETS 80x120
box / plateaux 30 x 40  1180 boxes / hour infeed side 30
box / plateaux 40 x 60  760 boxes / hour infeed side 40
box / plateaux 30 x 50  820 boxes / hour infeed side 30
PALLETS 106x100 (only with PAL-108D version 120x120)
box / plateaux 33 x 50  870 boxes / hour infeed side 33
PALLETS 112x112 (only with PAL-108D version 120x120)
pattern with free vertical mid section
box / plateaux 31 x 50  900 boxes / hour infeed side 31
PALLETS 120x120 (only with PAL-108D version 120x120)
box / plateaux 40 x 60  1000 boxes / hour infeed side 40

Optional:

• The pallet warehouse with feed shuttle for purchases of 3 or more palletisers
• Infeed conveyor of +/- 200 x 50 cm, € 900,- per piece
• Pushers, so all boxes can be feed from one. A scanner recognized the bar code an supplied it to the right palletizer. € 900,- per piece
• Conveyor belts +/- 150 cm x 50 cm between the pushers, € 900,- per piece
• Walkway on top of palletizers (€ 1400,- when ordered 4 palletizers)

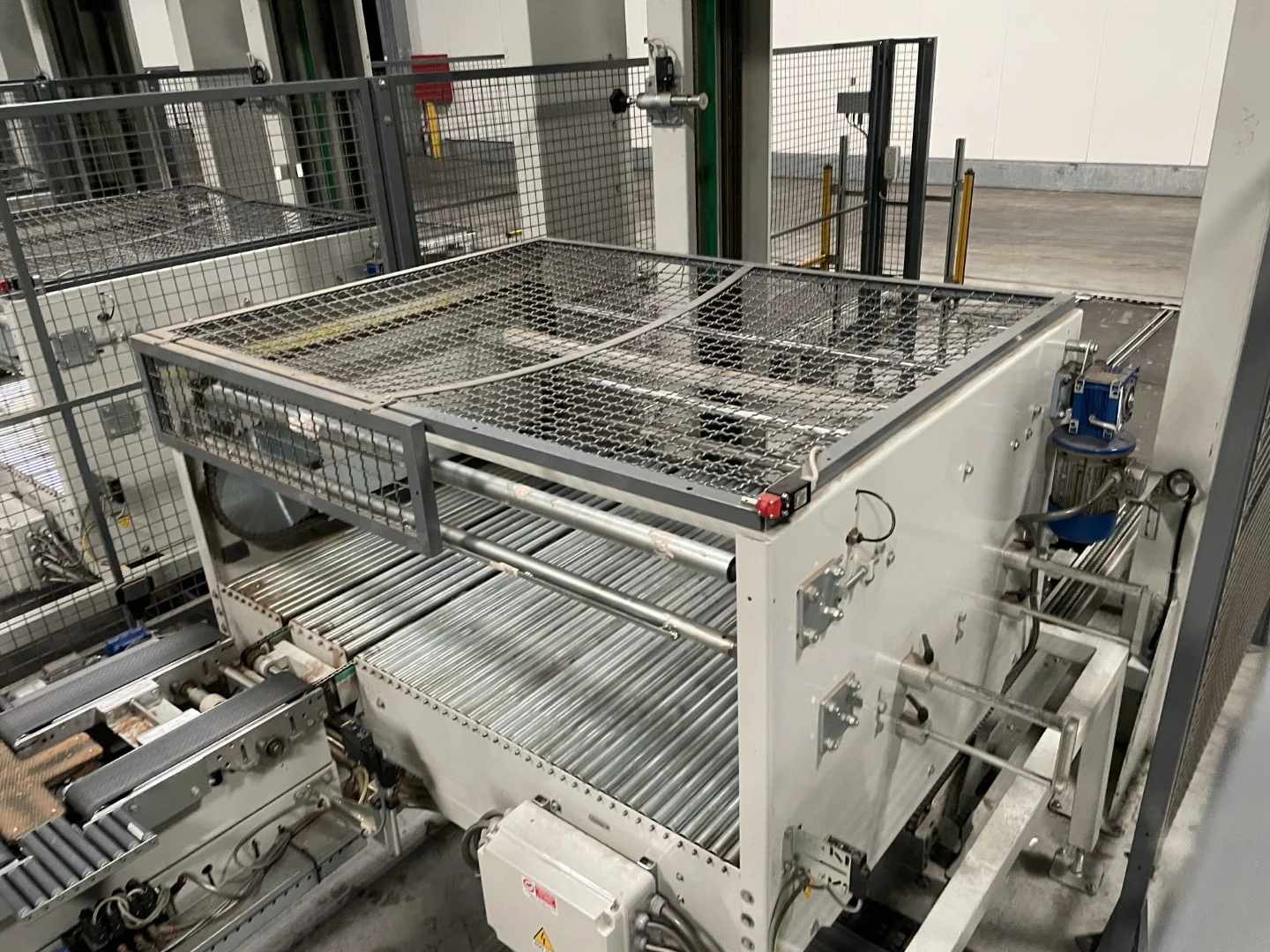

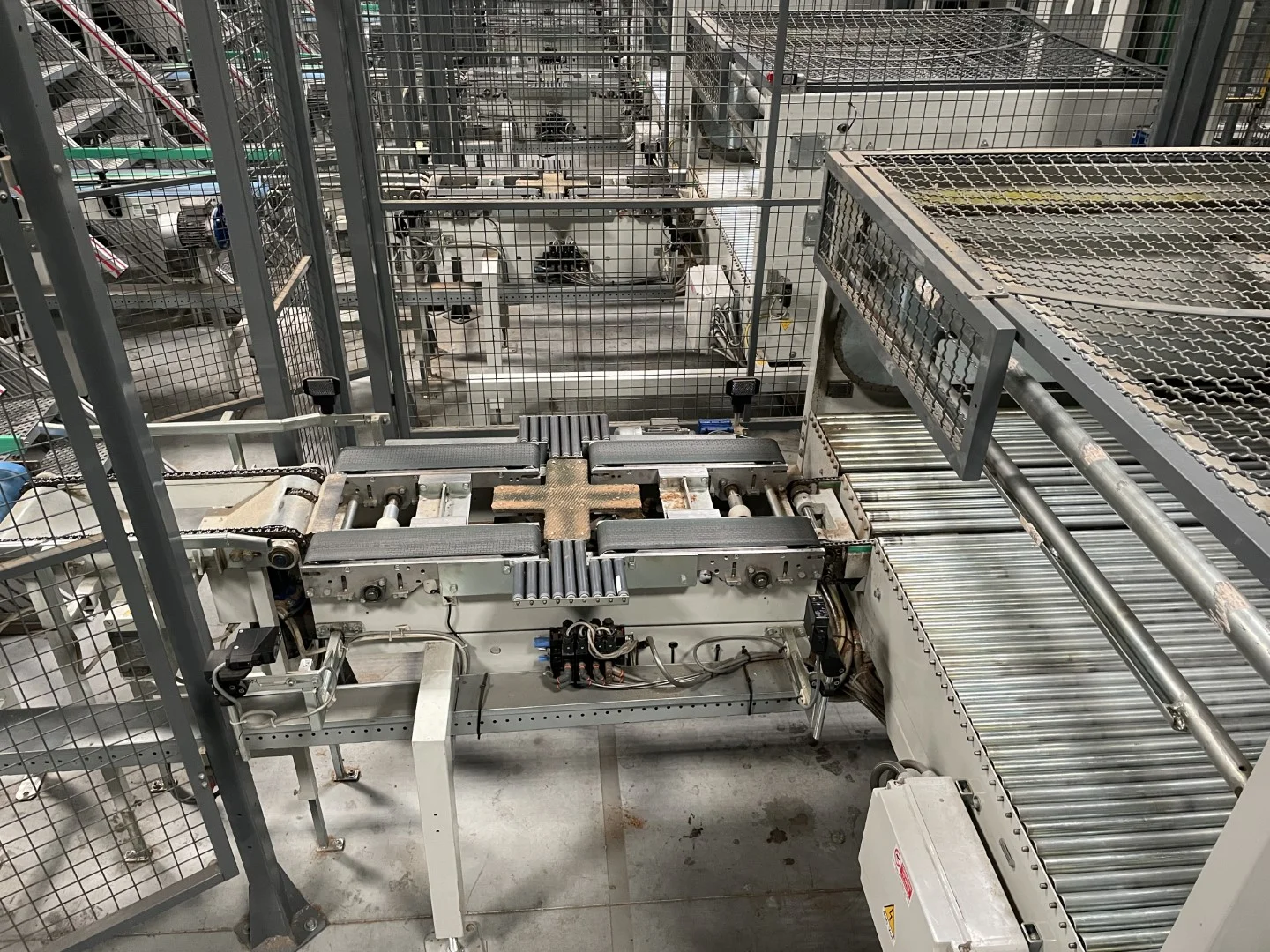

An automatic palletiser that stacks wood, plastic or cardboard boxes and crates onto pallets. The PAL-108D’s rotating infeed and rollers direct the produce into pre-set configurations for stacking.

After each layer is added, a retractable plate and pneumatic clamps move the next layer into position and lower it into the stacking position.

The PAL-108D can be configured to stack heavy, overweight cartons, unstable boxes and crates, export pallets with differing layer configurations.
