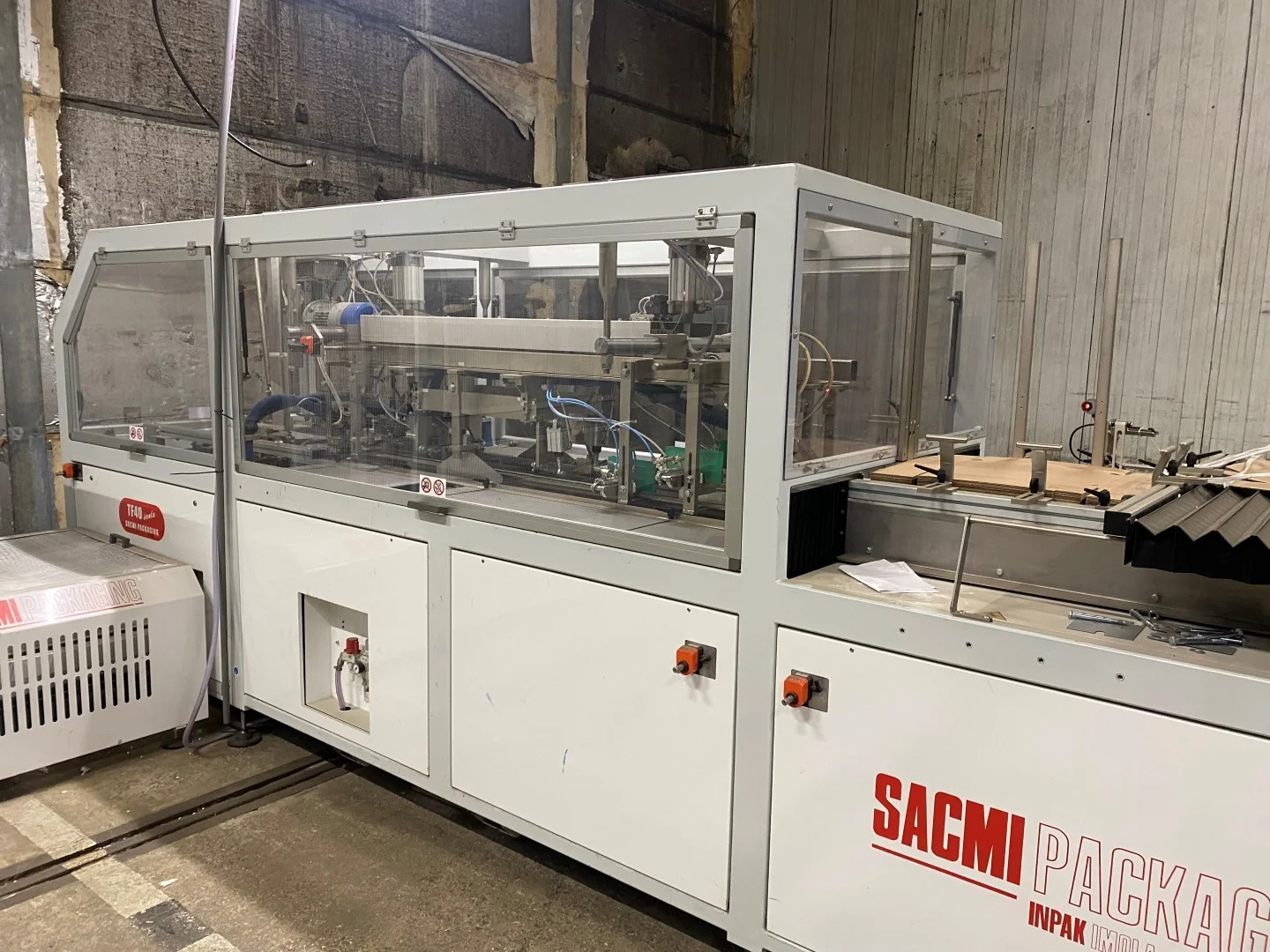

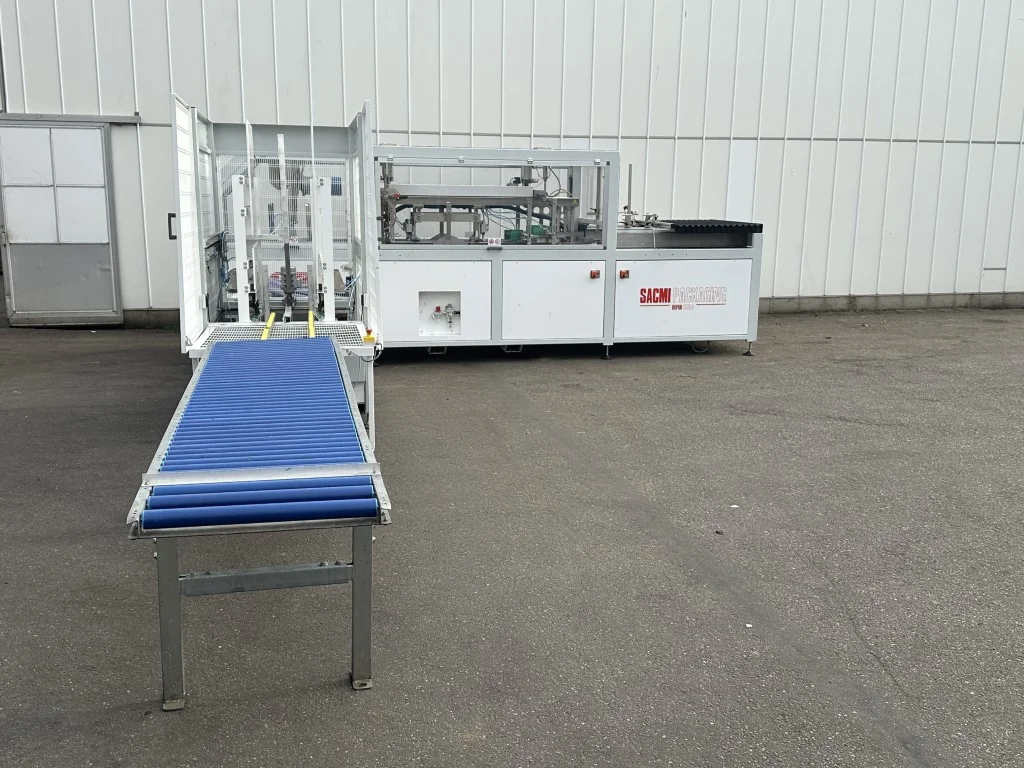

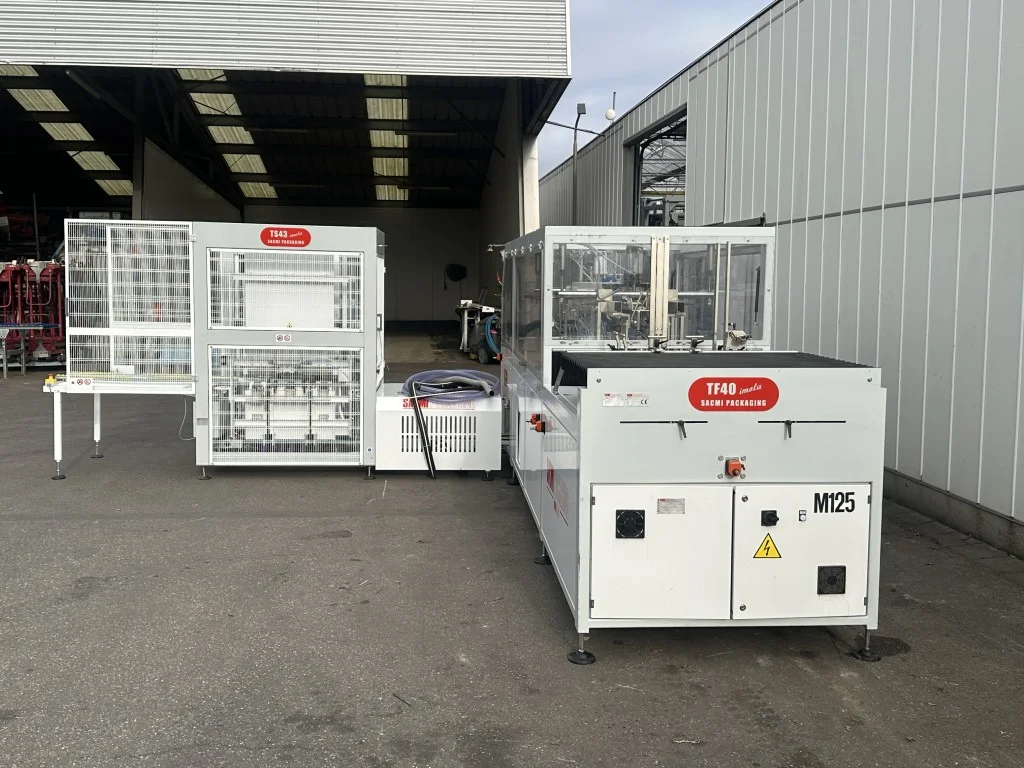

Sacmi TF40 Imola + TF43 stapelaar Plieuse de cartons TF40 avec unité d'empilage TS43

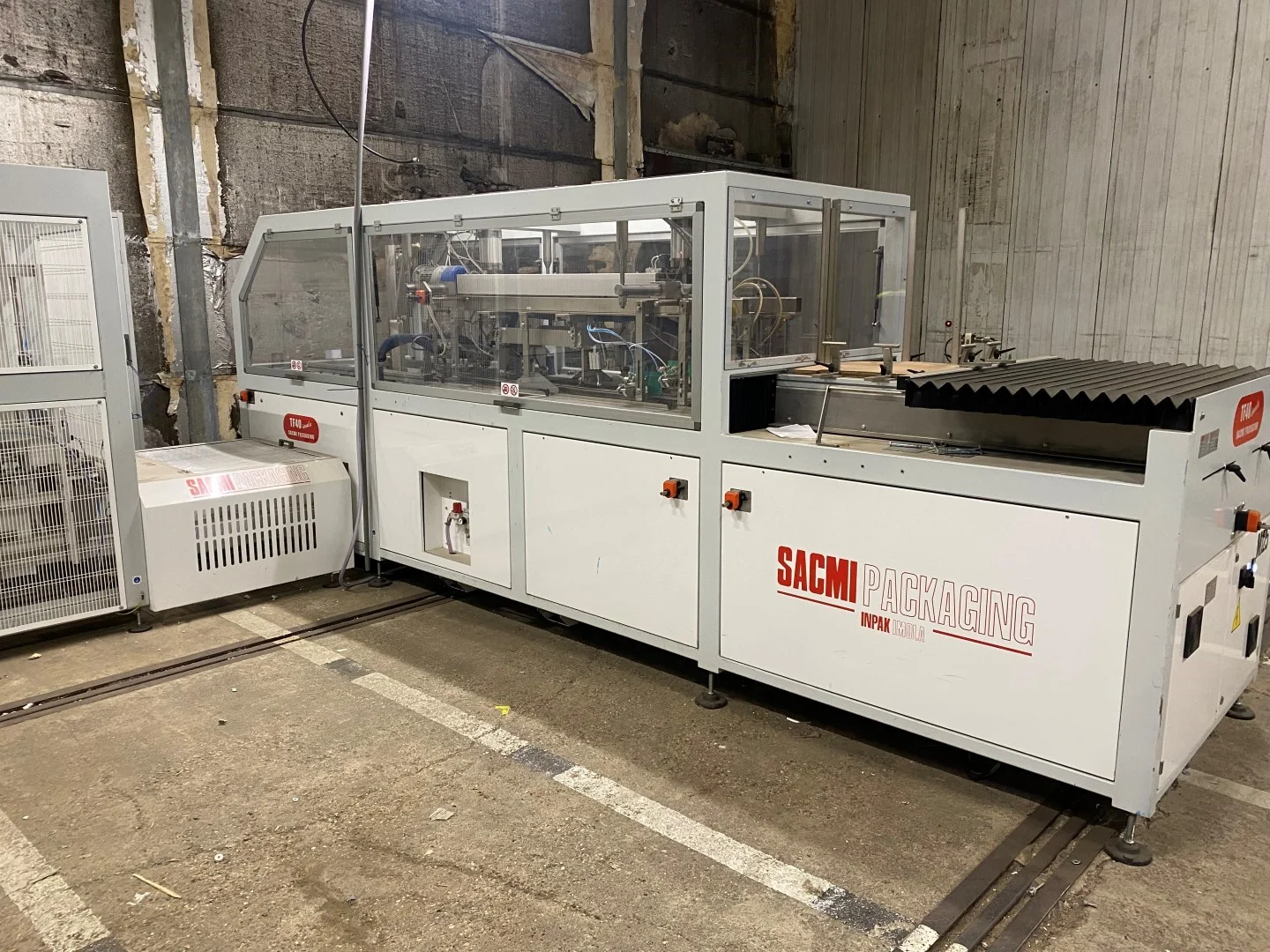

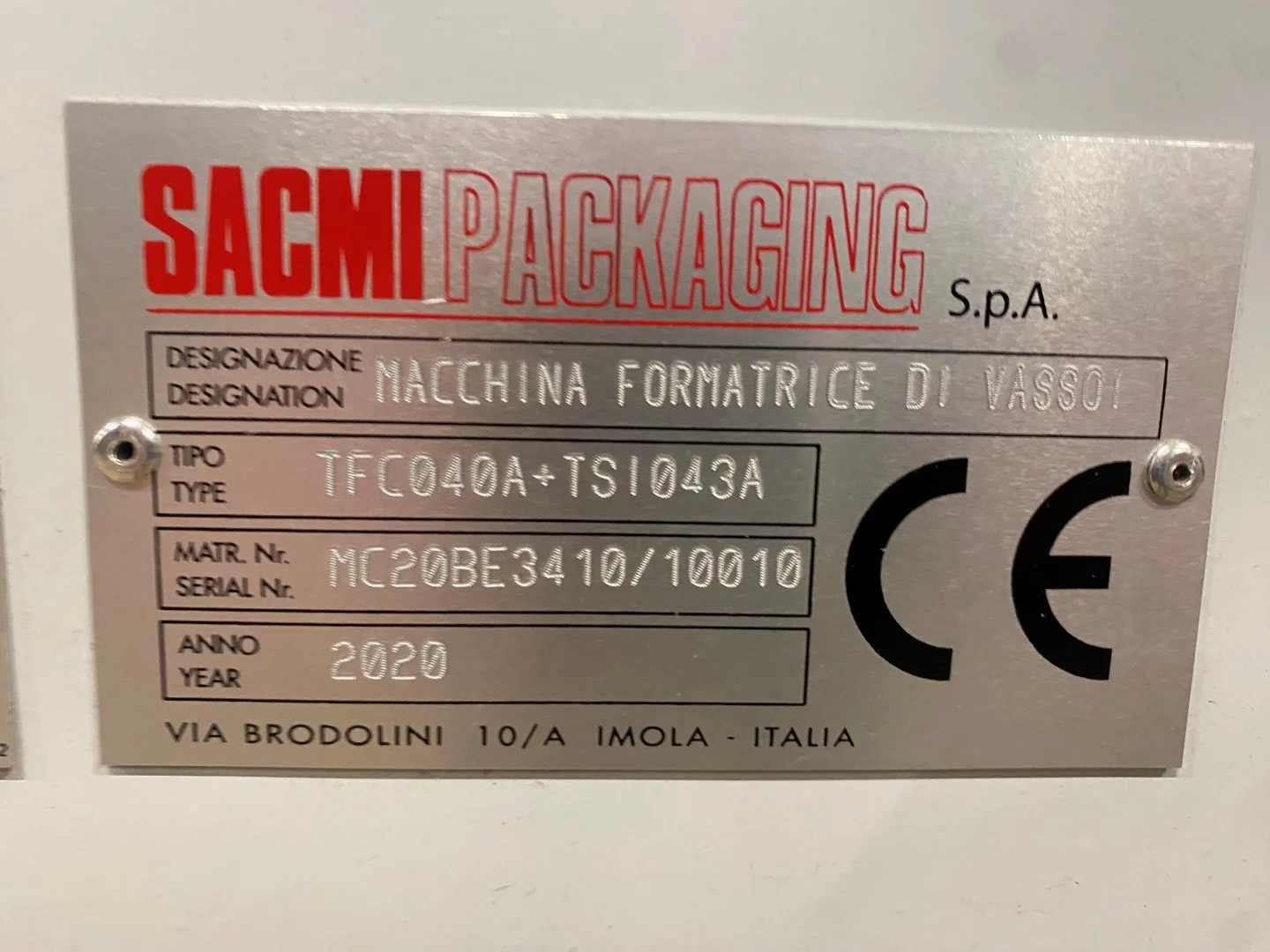

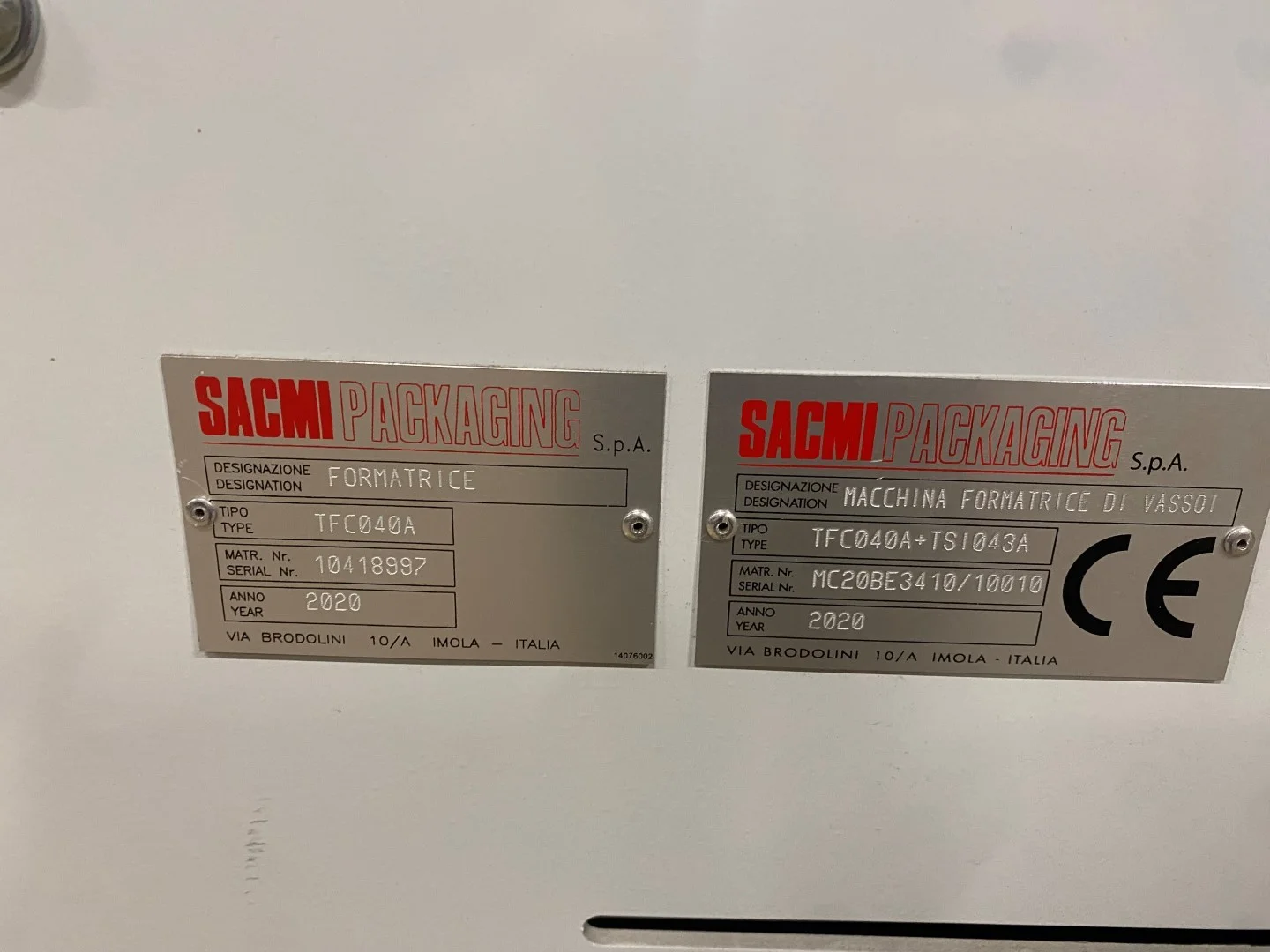

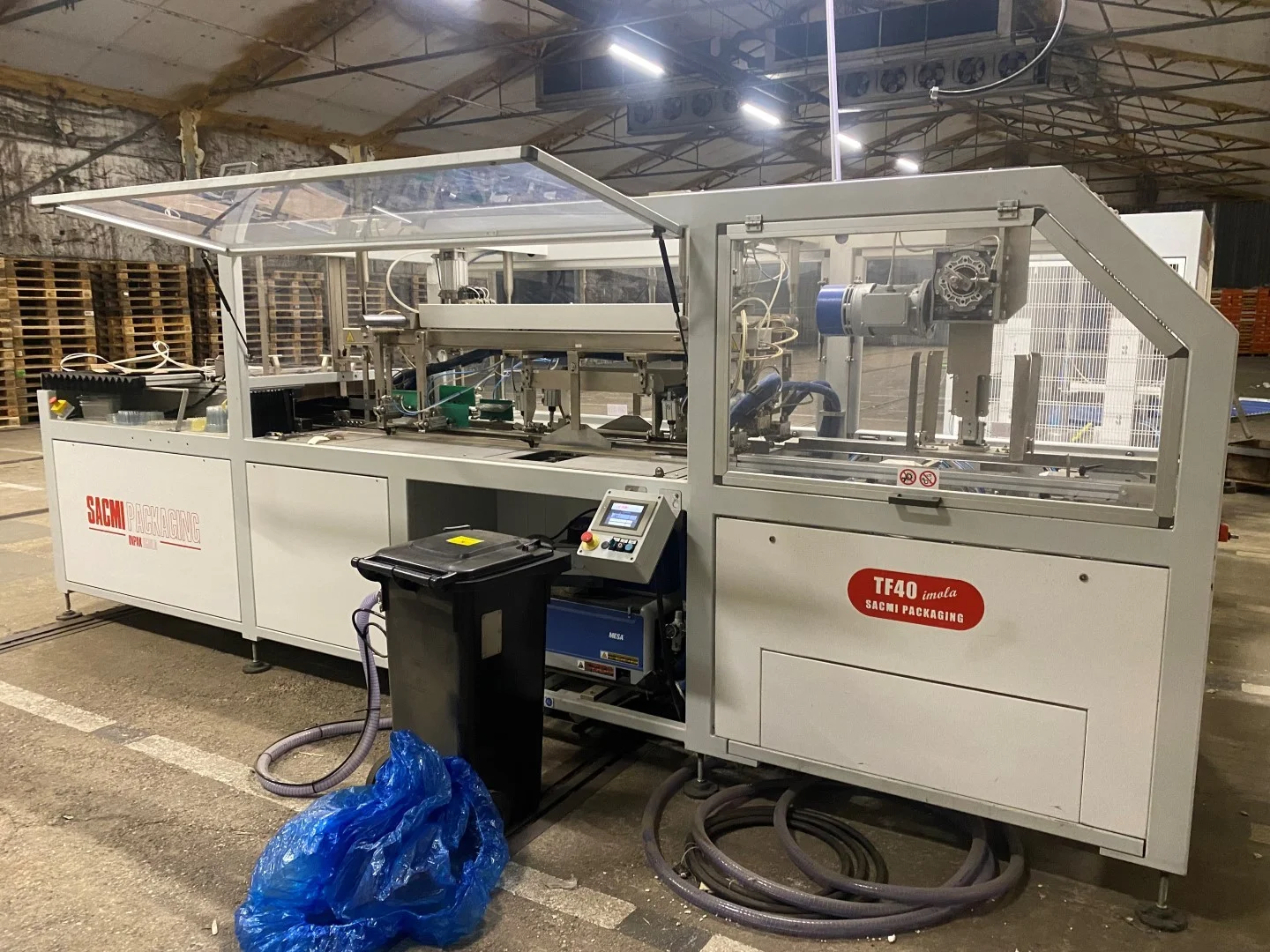

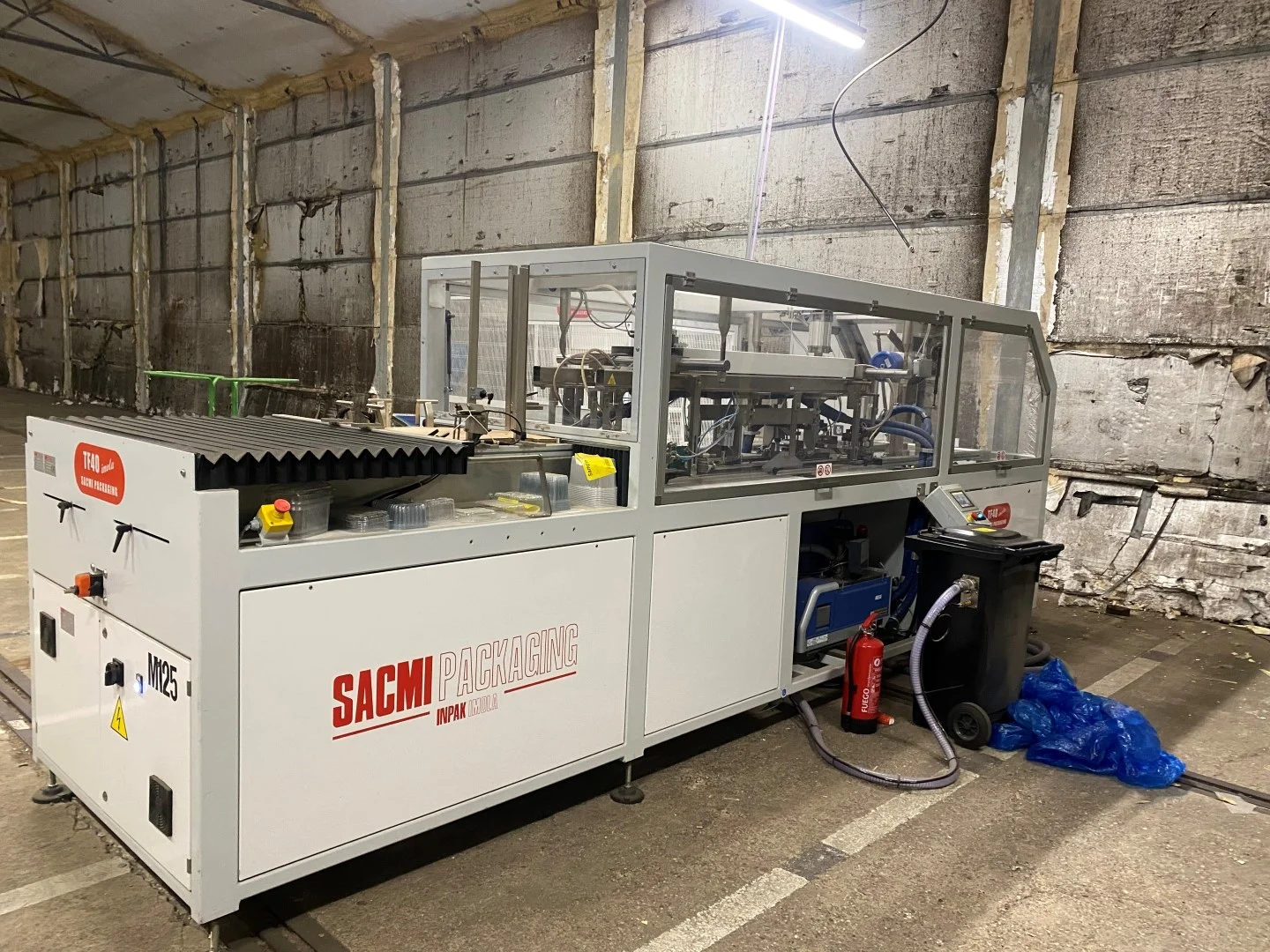

Sacmi TF40: High-Speed Folding and Gluing Machine

The Sacmi TF40 is a powerful and efficient machine for high-speed folding and gluing of boxes. The accompanying stacker ensures an optimized production process.

Key Features

Frame:

• Welded and painted steel frame
• Color: Frame RAL 7035, paneling RAL 9016

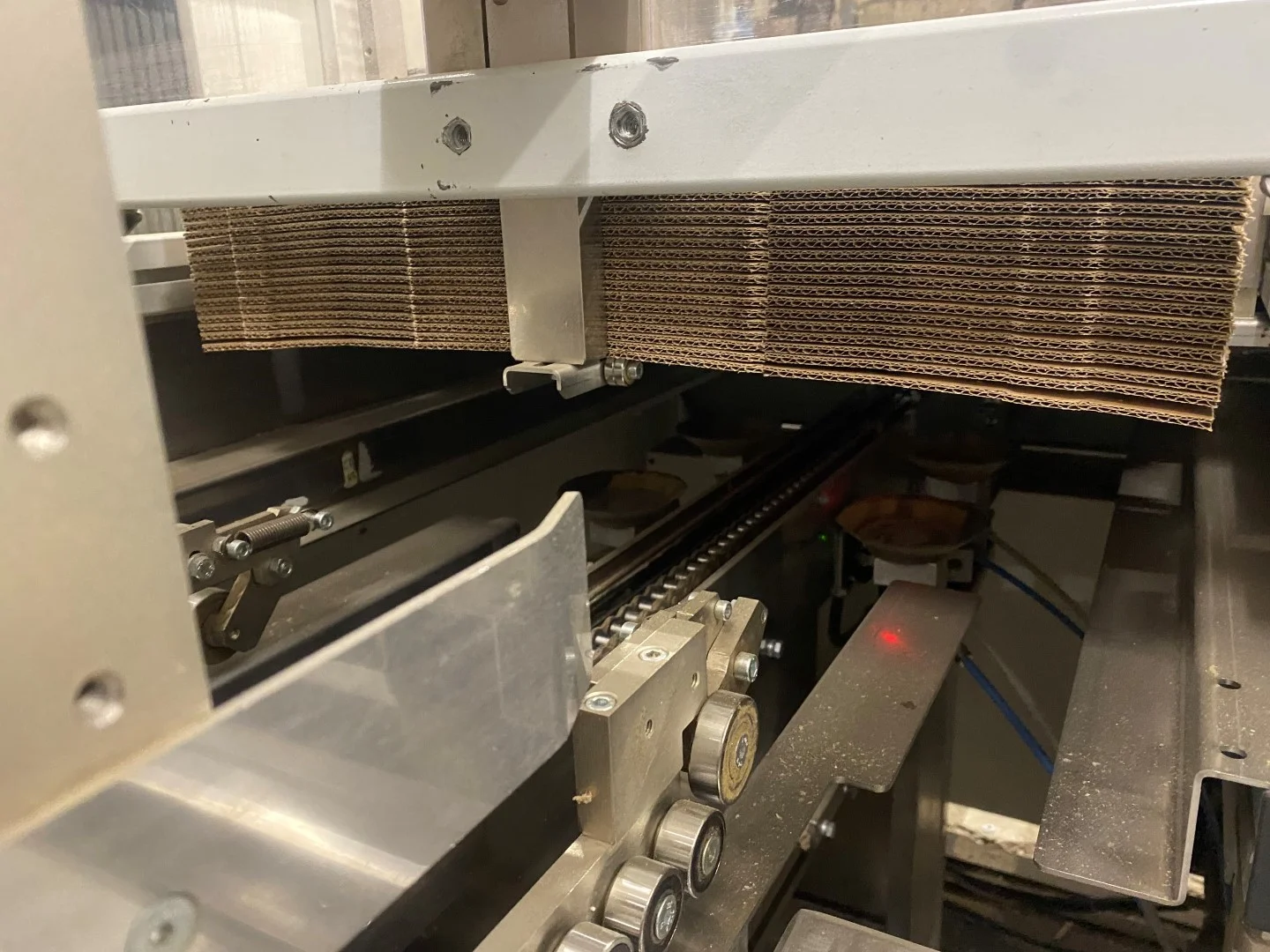

Carton Magazine:

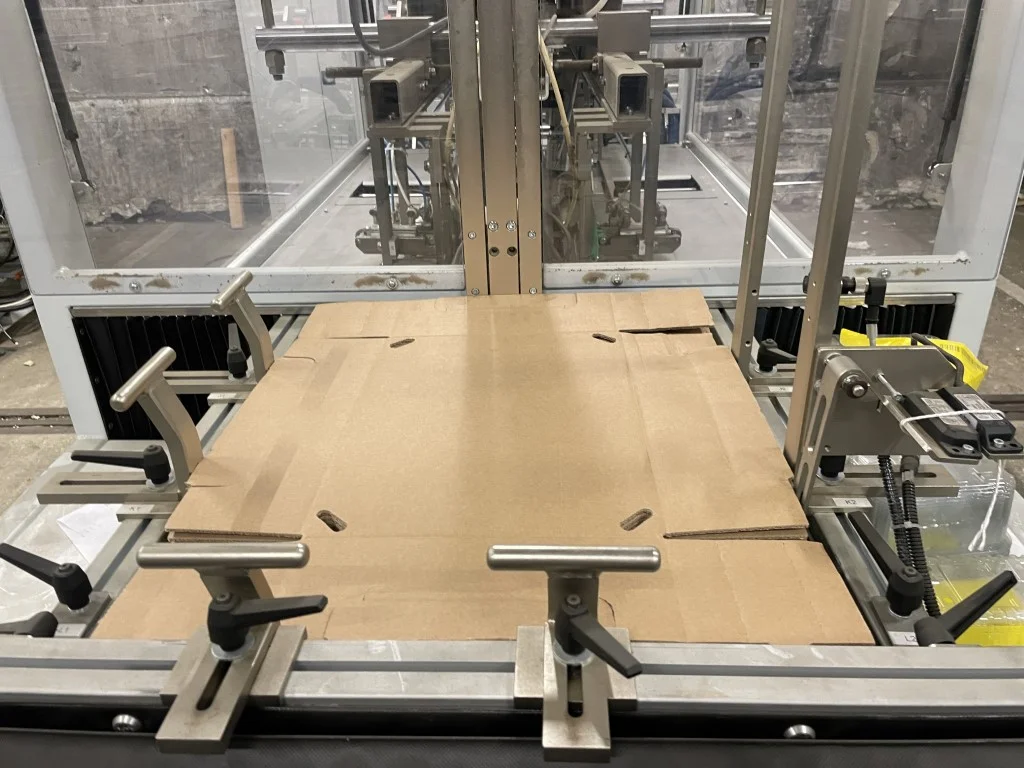

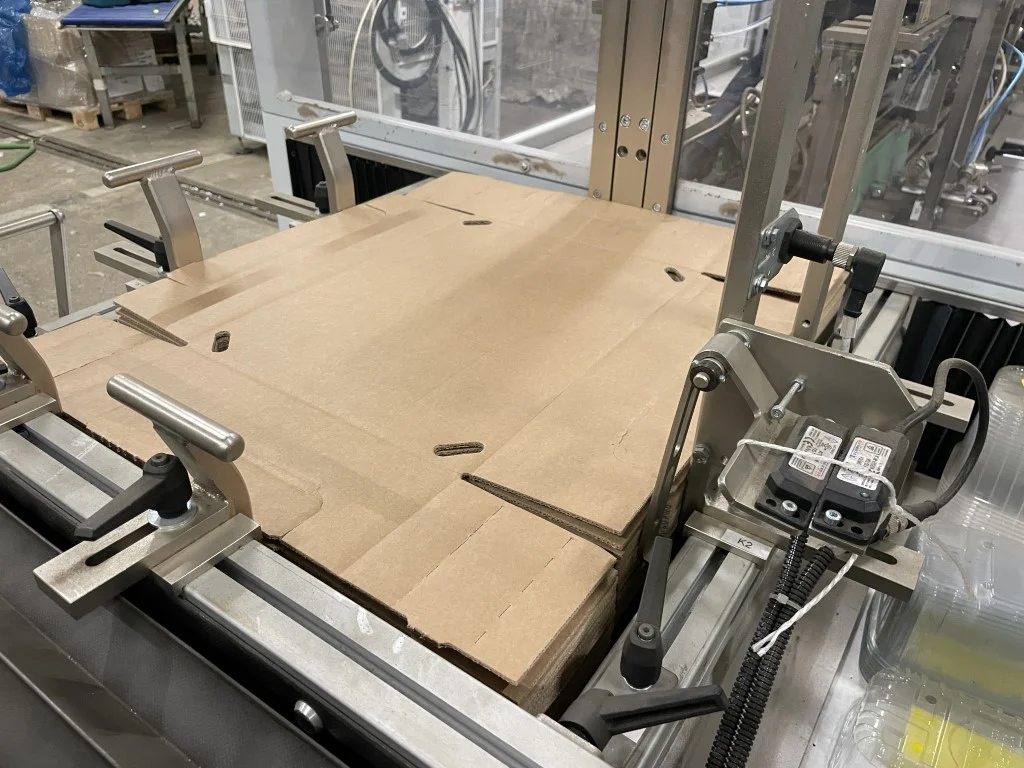

• Horizontal with a height of 800 mm

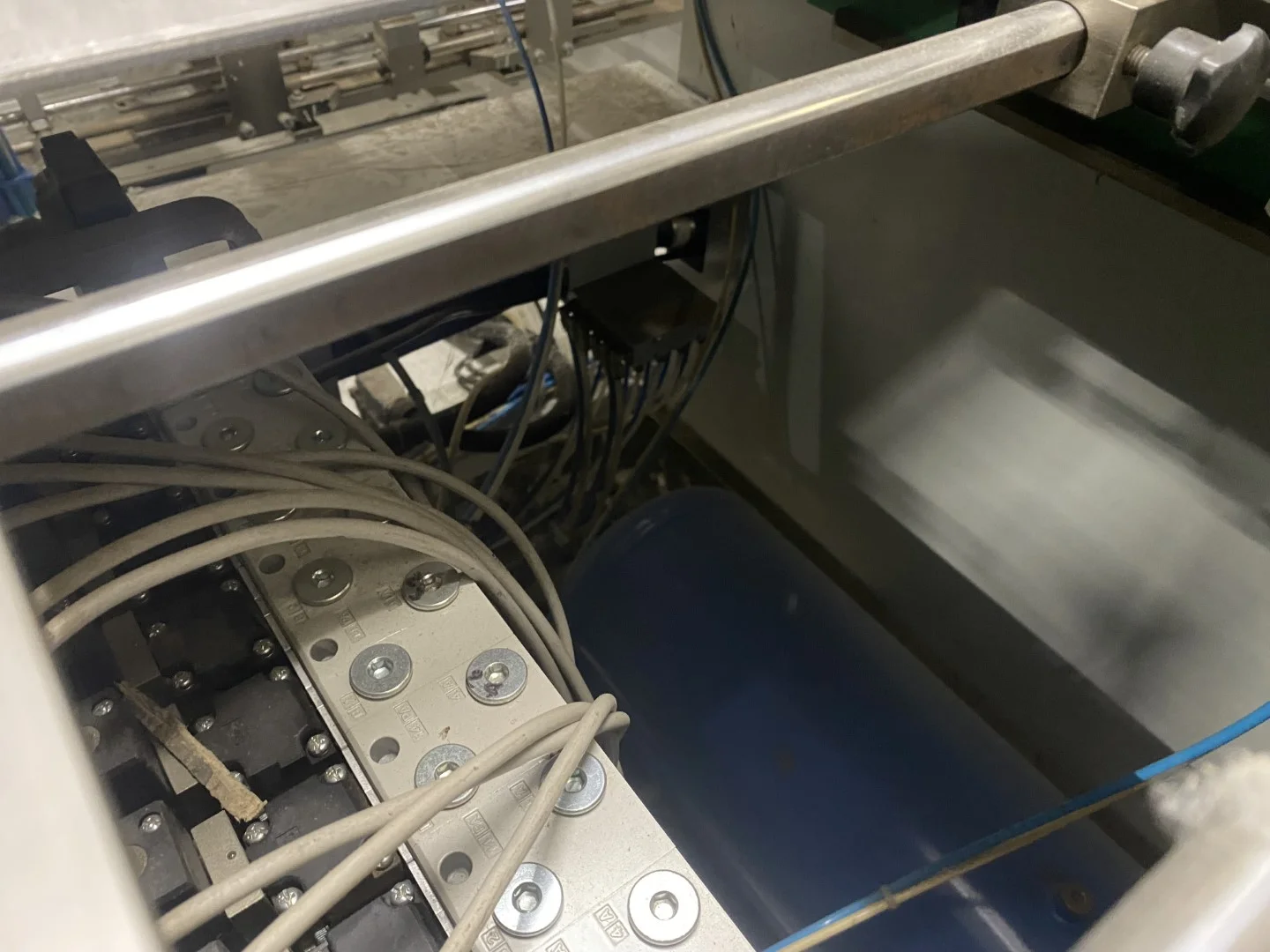

• Carton pickup via vacuum cups, controlled by a Venturi system

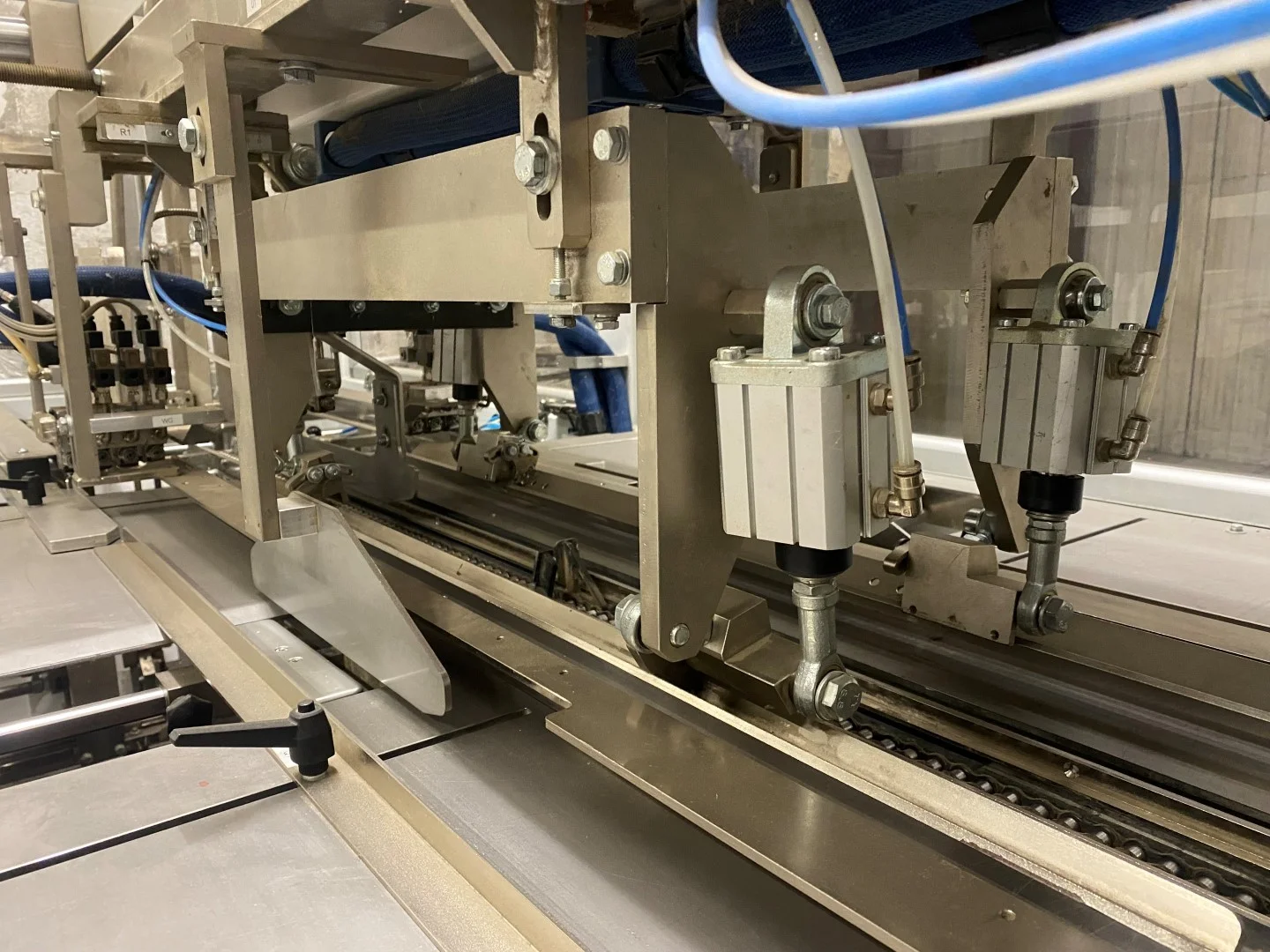

Carton Blank Transport:

• Powered and hooked transport chain

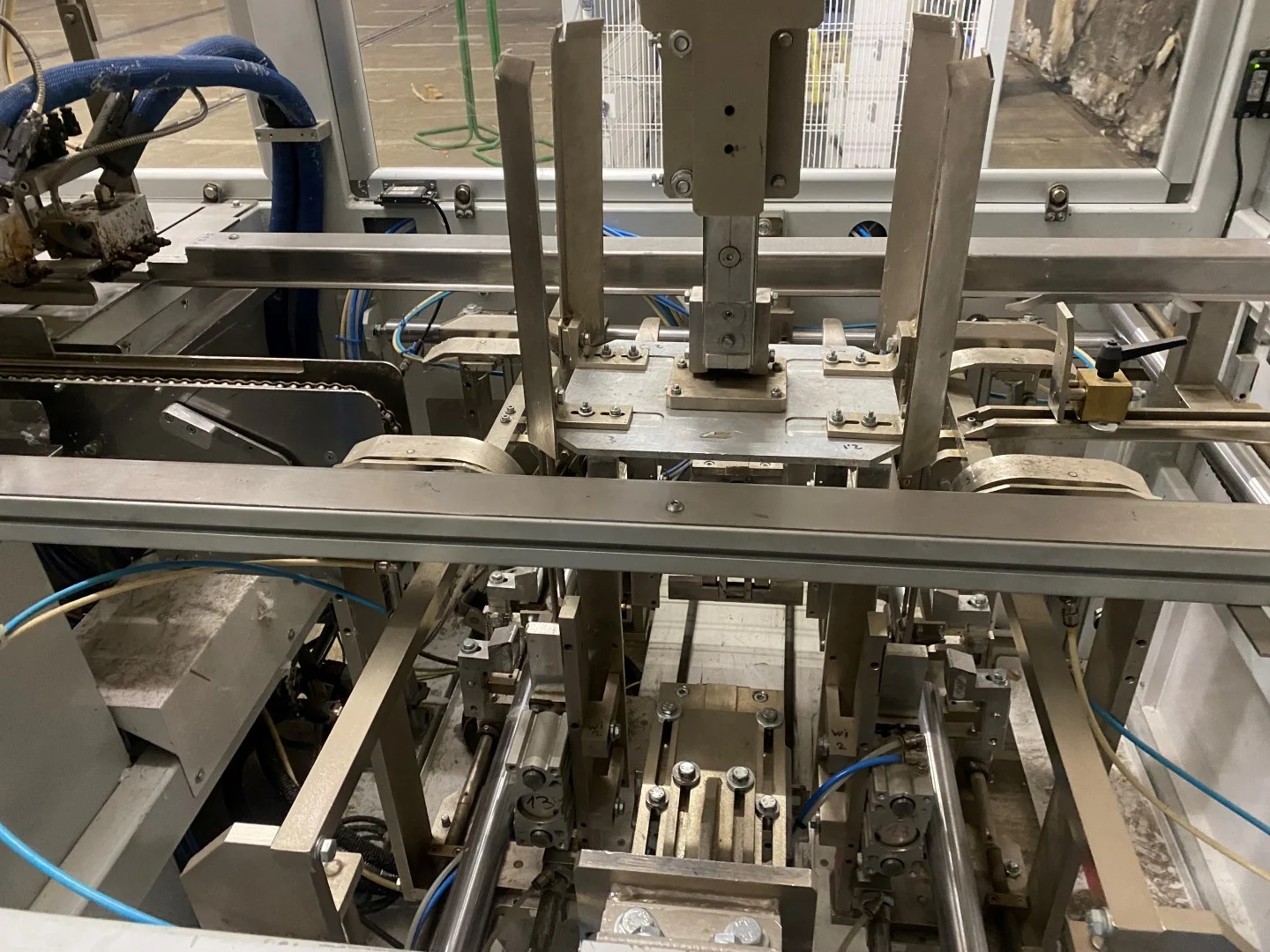

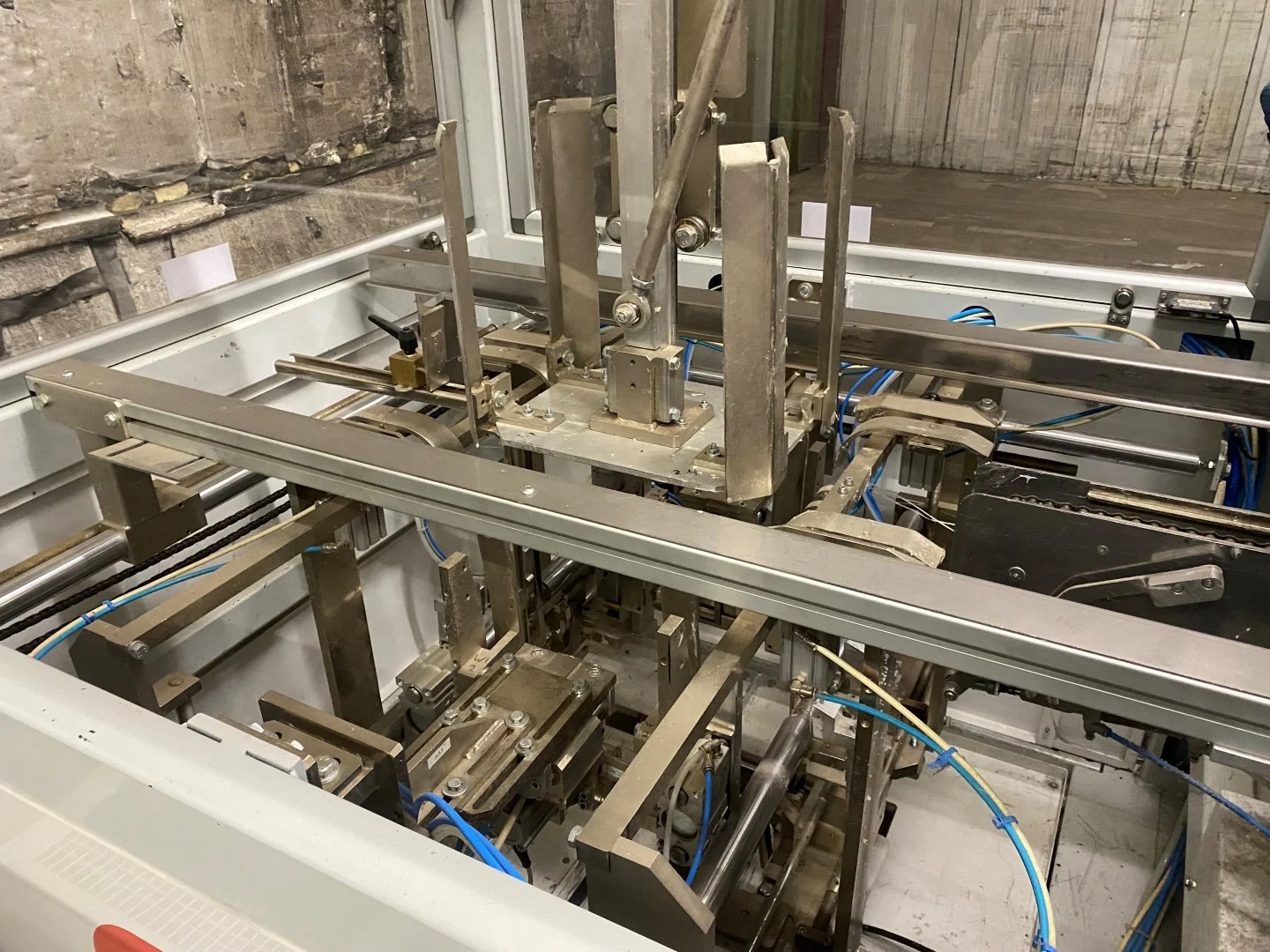

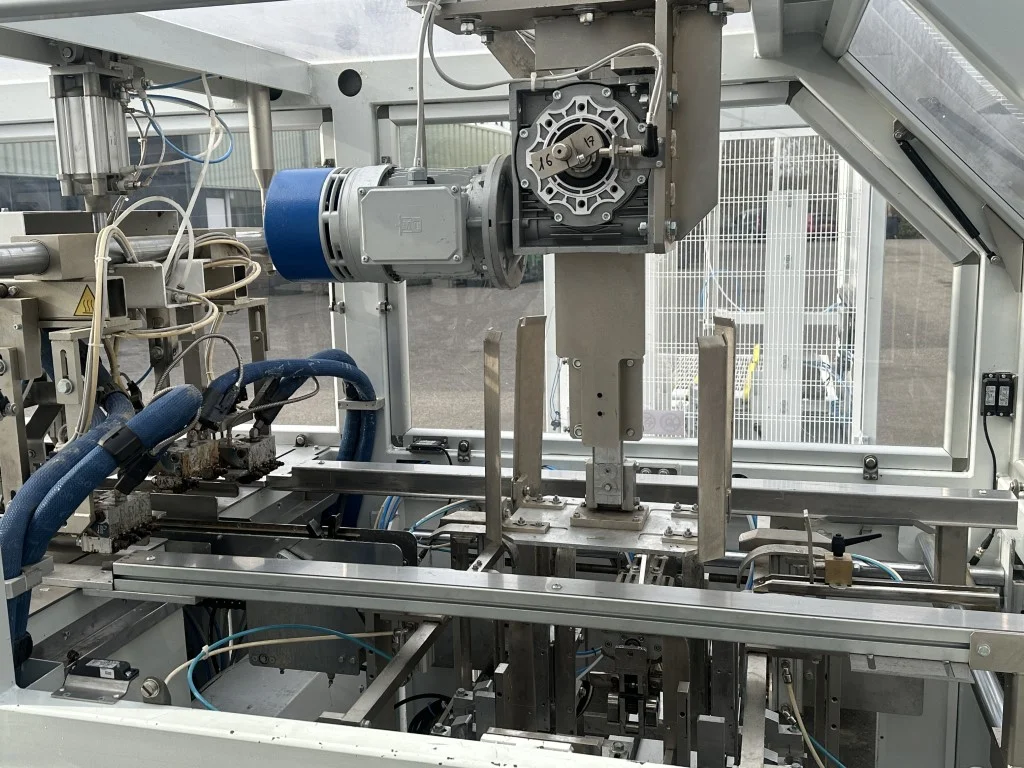

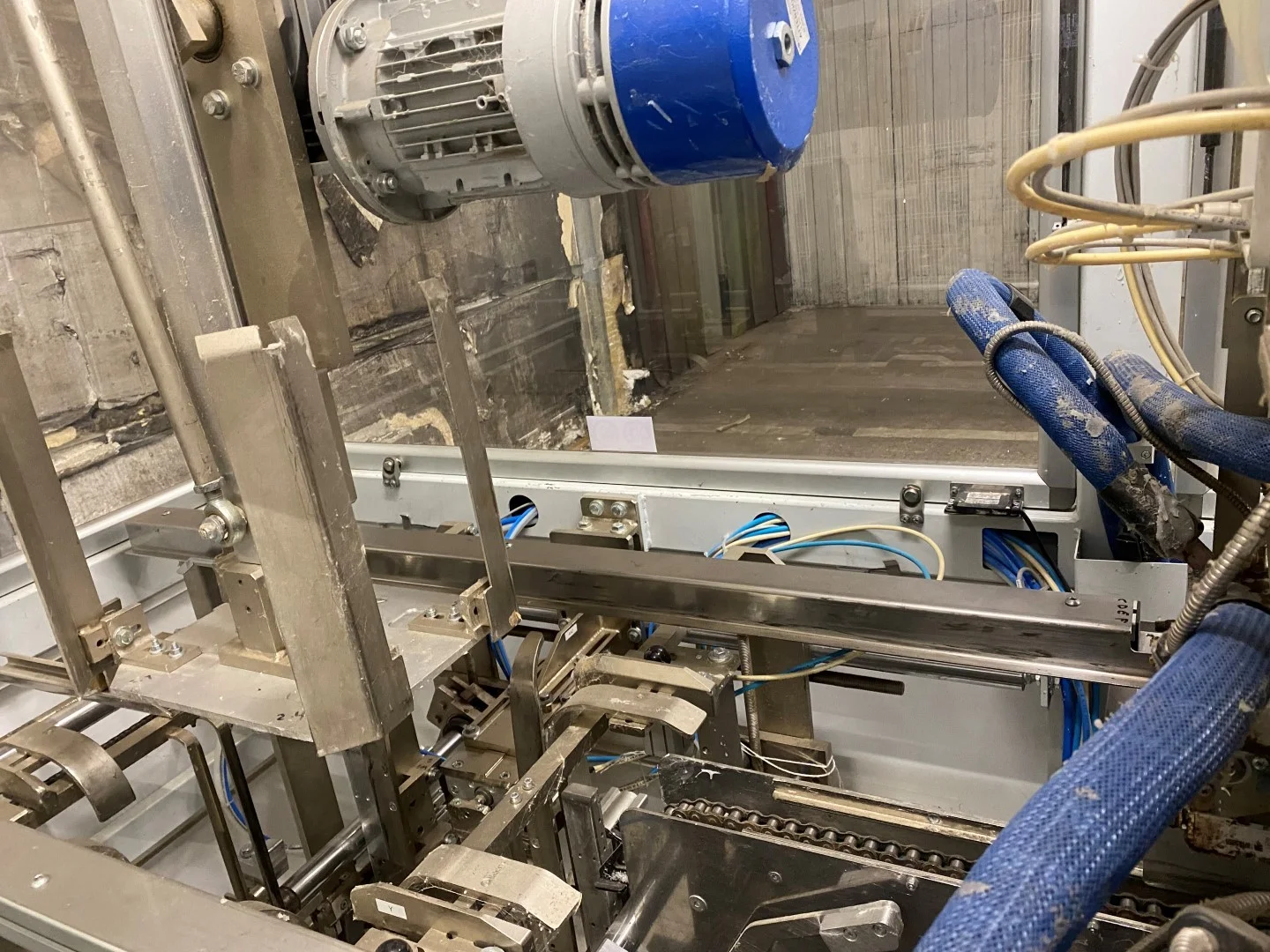

Forming Press:

• Driven by an AC motor
• Quick format change with handwheels and position indicators
• Indexed operation for perfect right angles

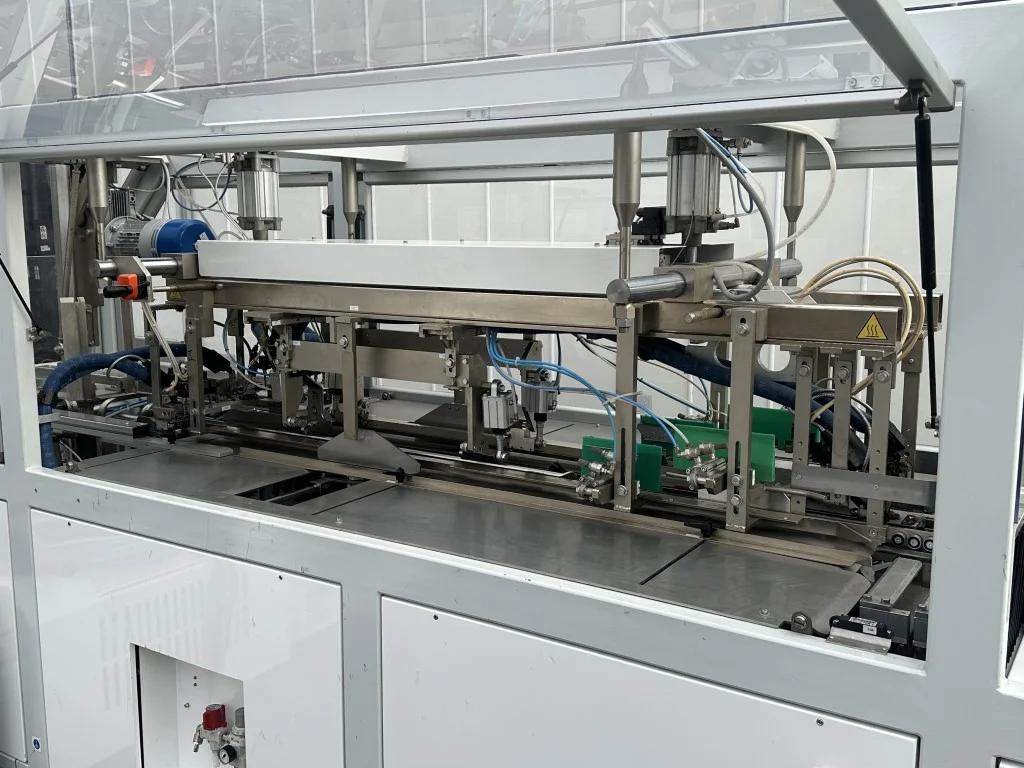

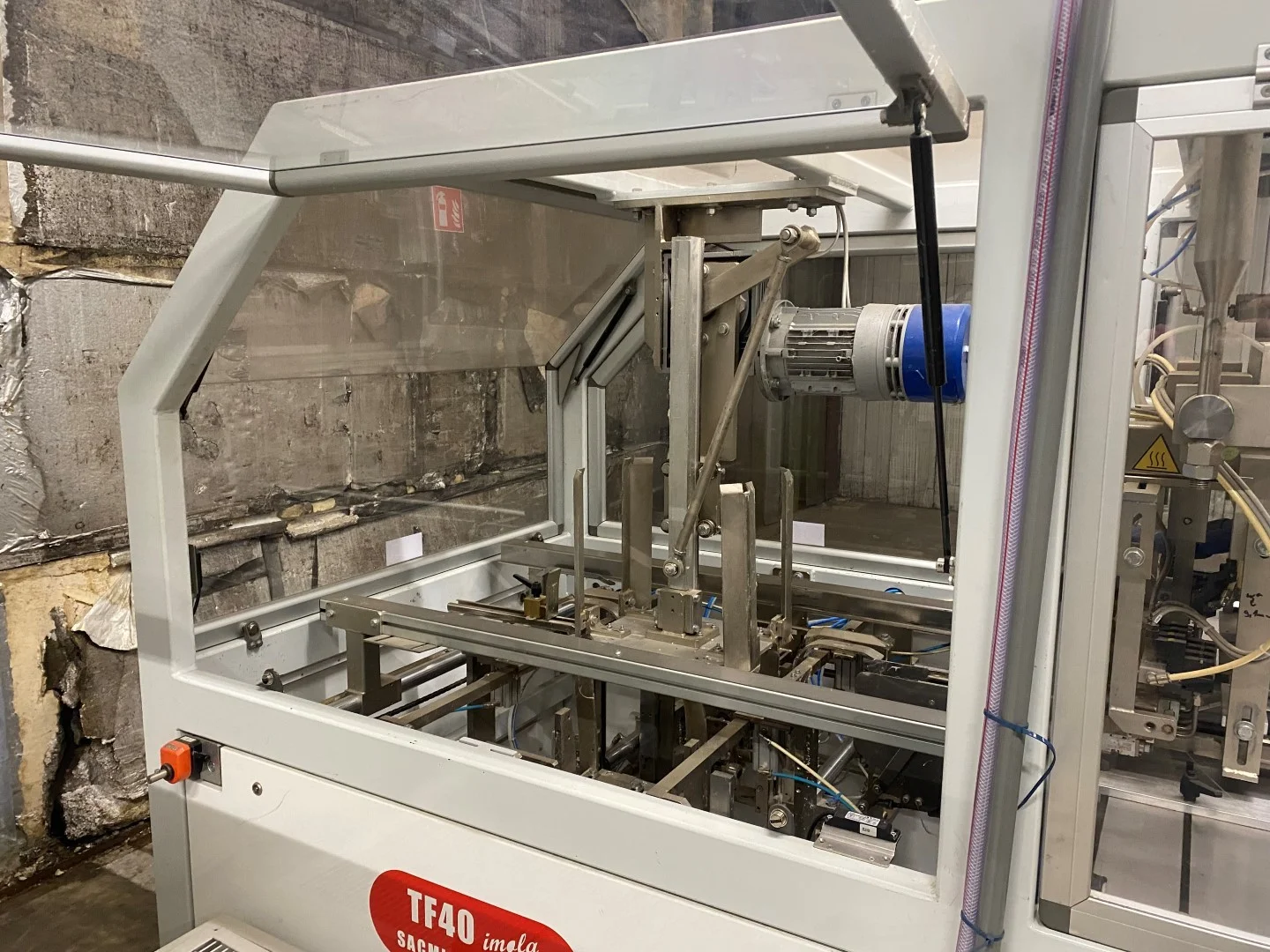

Gluing System:

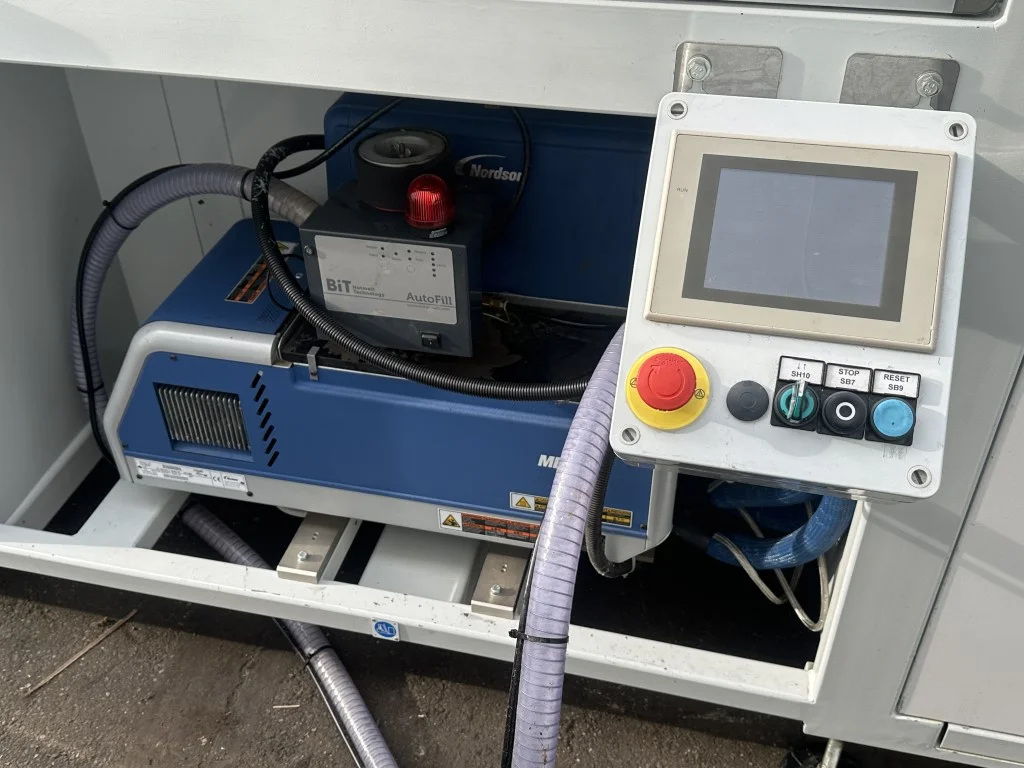

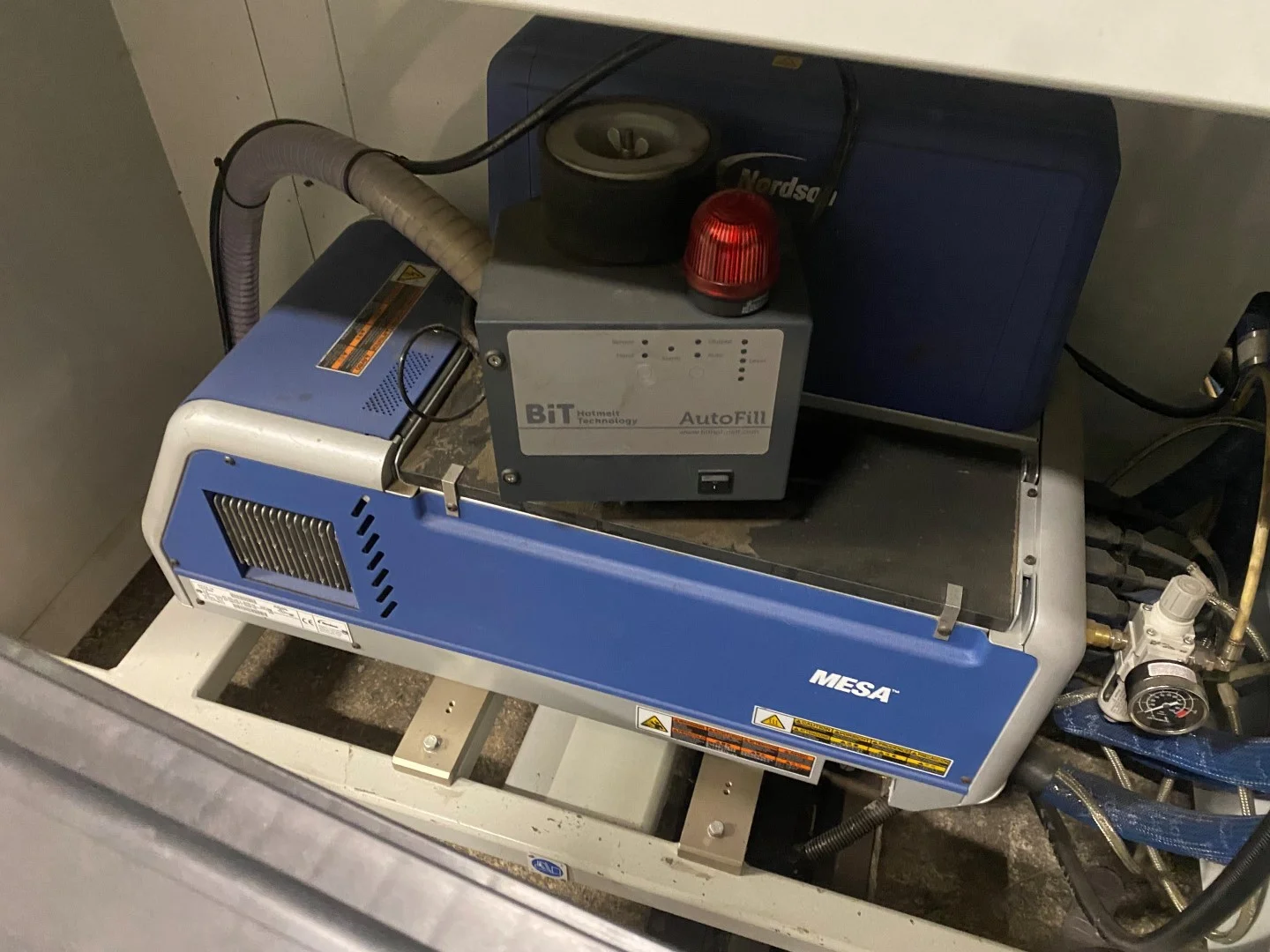

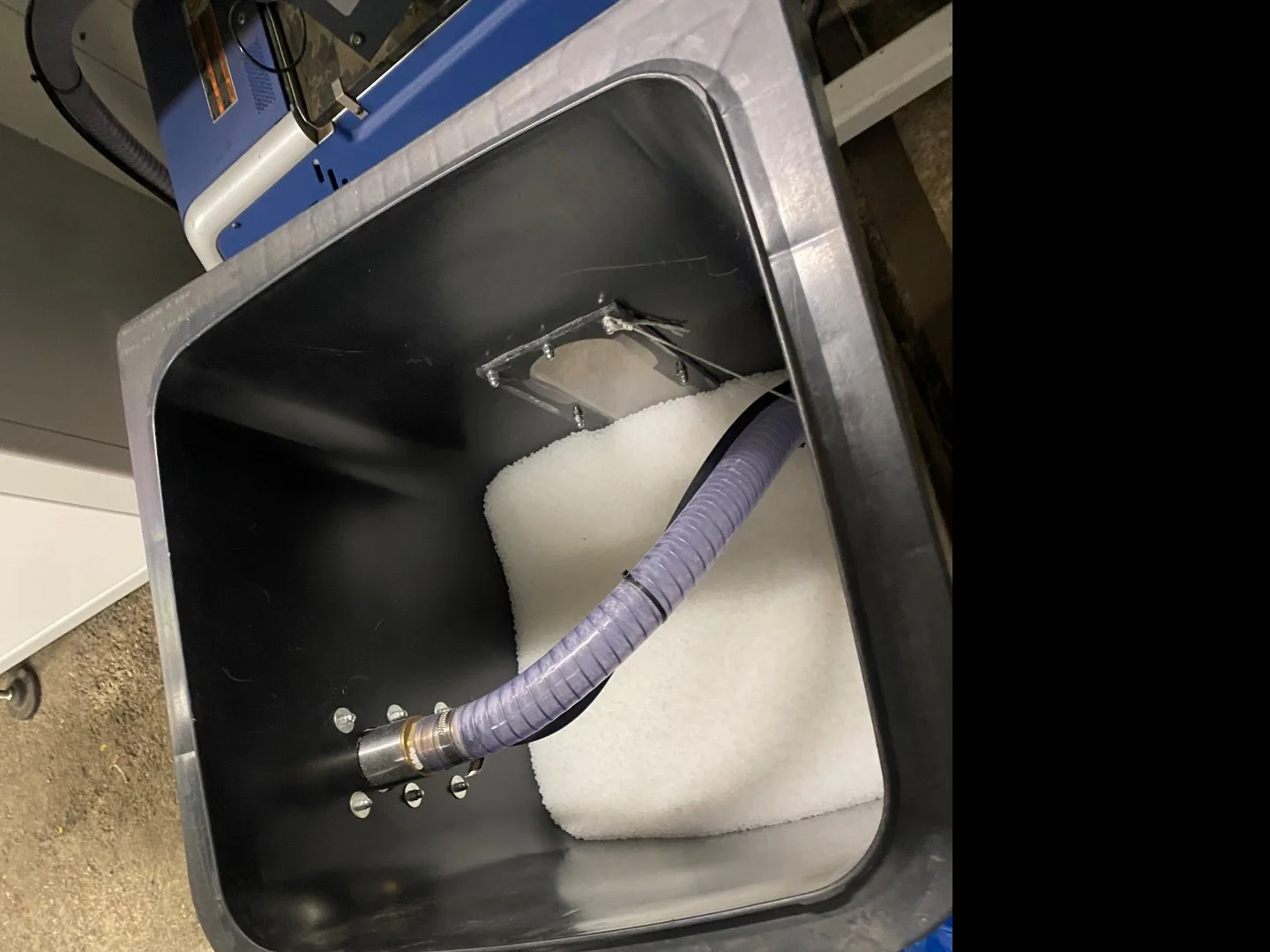

• Nordson MESA 14/6 gluing devices
• Transparent safety covers with an aluminum frame and locked access

User Interface:

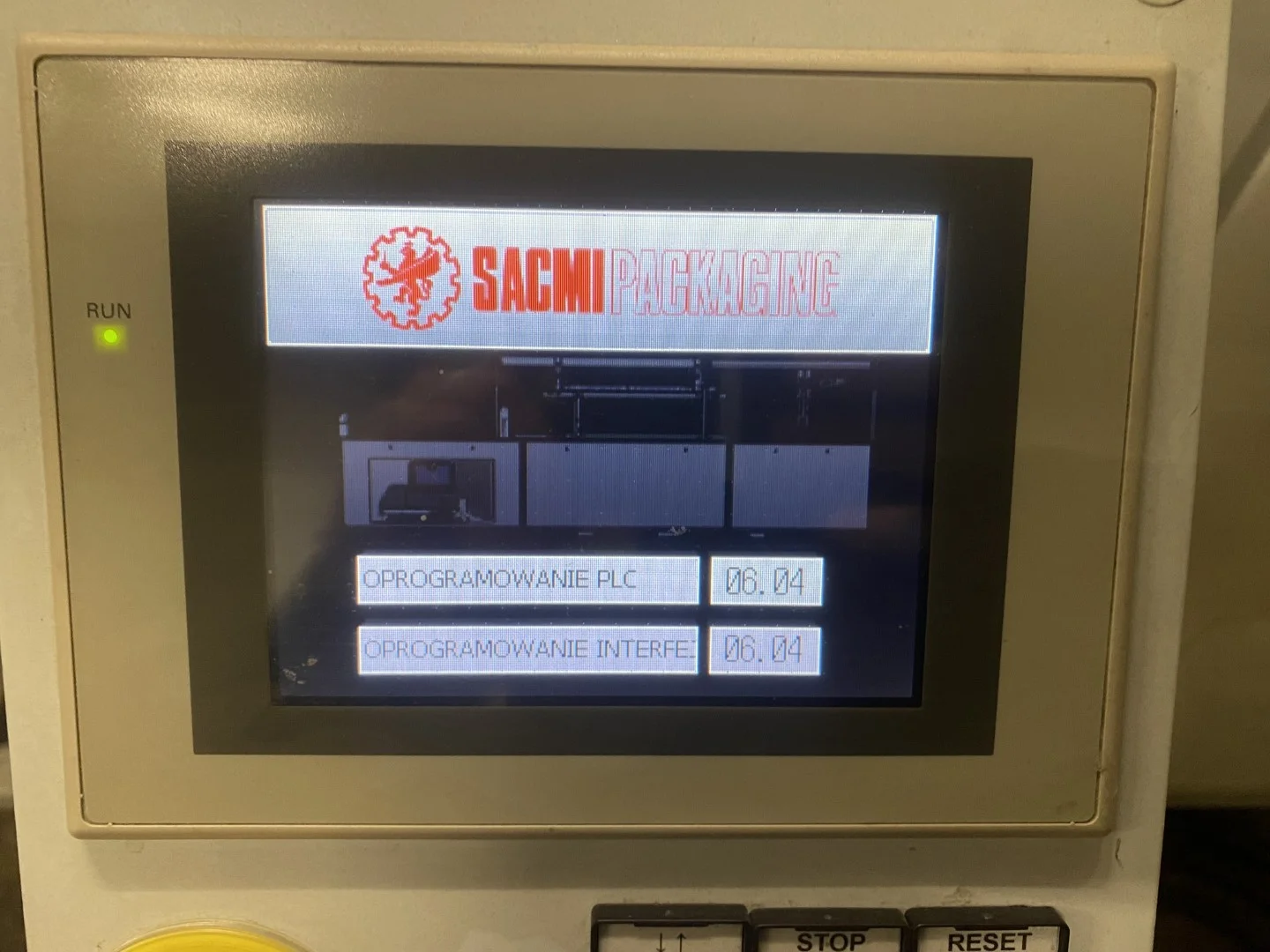

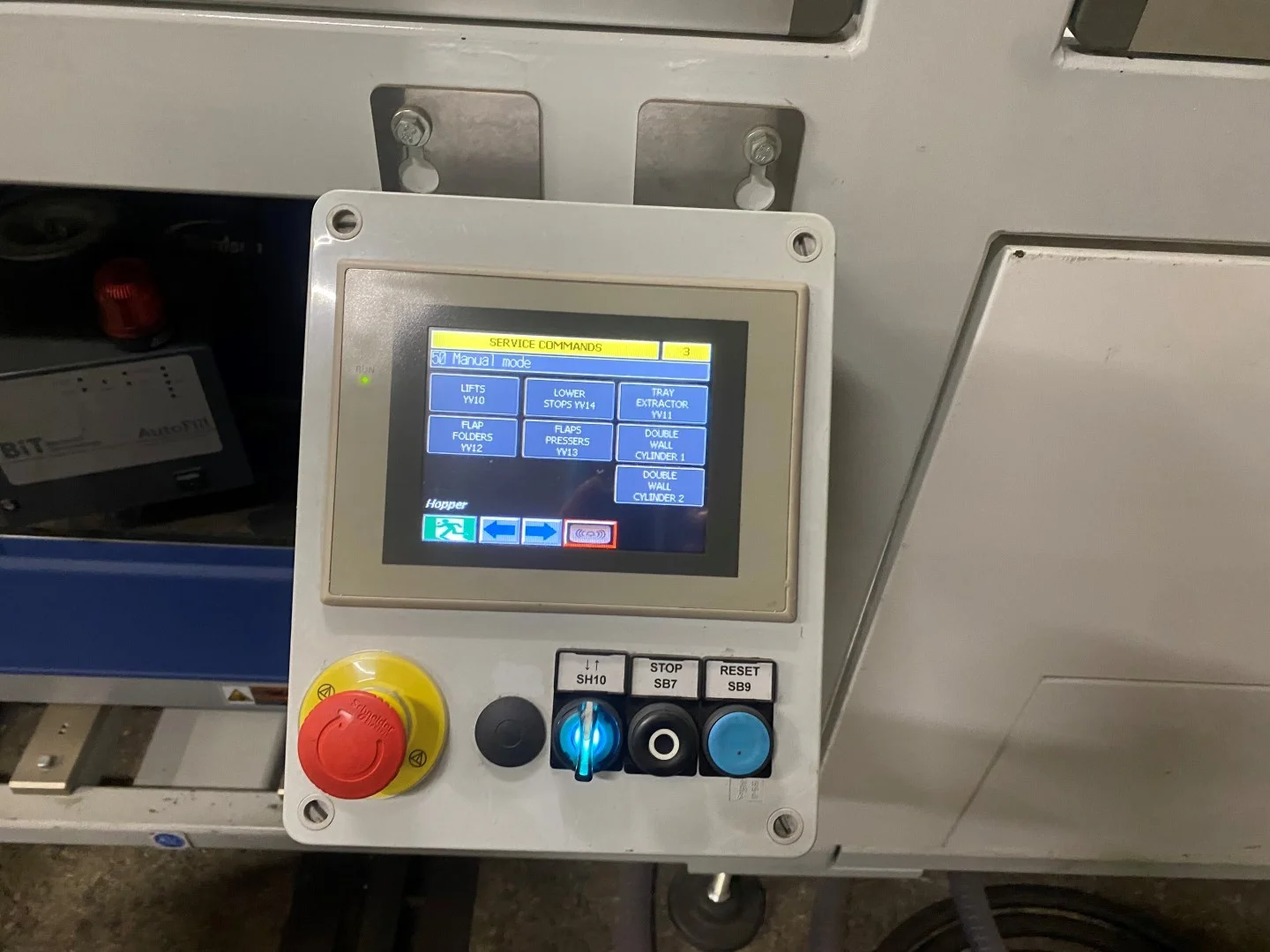

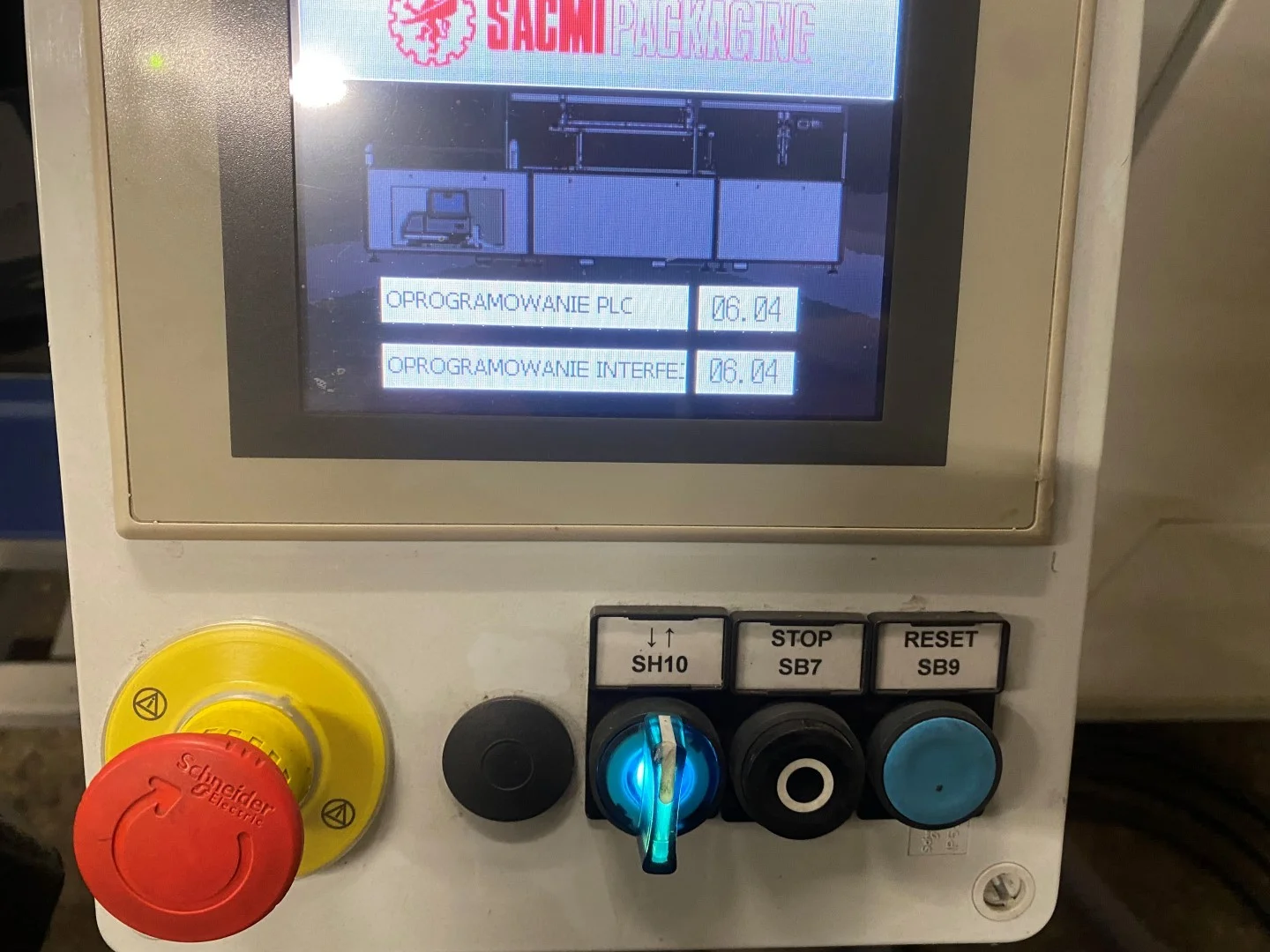

• Touchscreen control panel for easy data input and monitoring

Additional Options

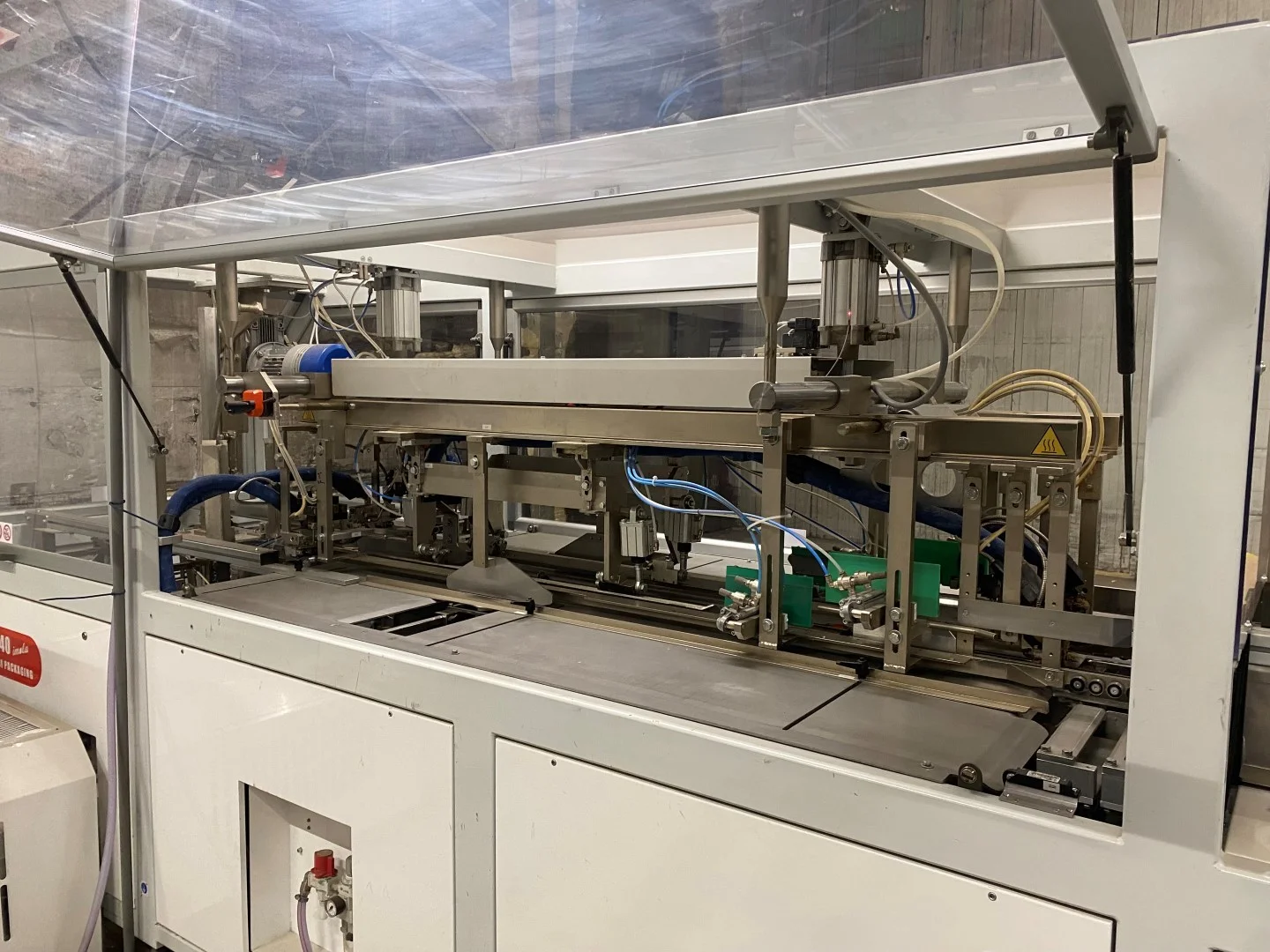

Long Side Doubling Device for Citrus Trays

• Mechanical system for folding and gluing the long sides of the trays
• Pneumatic movement for optimal right-angle control
• Equipped with a pre-folder for better adhesion

Short Side Doubling Device

• Mechanical system for folding and gluing the short sides of the trays
• Pneumatic movement for right-angle control
• Integrated into the TF40 hopper
• Independently adjustable for short side gluing

Additional Glue Gun for Short Side Doubling Device

• Integrated into the existing melting unit
• Separate control via the program with its own output

Closed Corner System

• Standard TF40 forms "open" reinforced corners
• With an optional mechanical device, both open and closed corners can be formed

Glue Saving Kit

• Saves hot melt glue through more efficient consumption
• Controlled via an additional PLC
• Glue lines easily adjustable via the touchscreen

Technical Specifications

• Maximum Speed: 30 cycles/min (depending on size and type of packaging)
• Production Speed: Depending on the shape and size of the trays
• Speed Control: Stepless via inverters

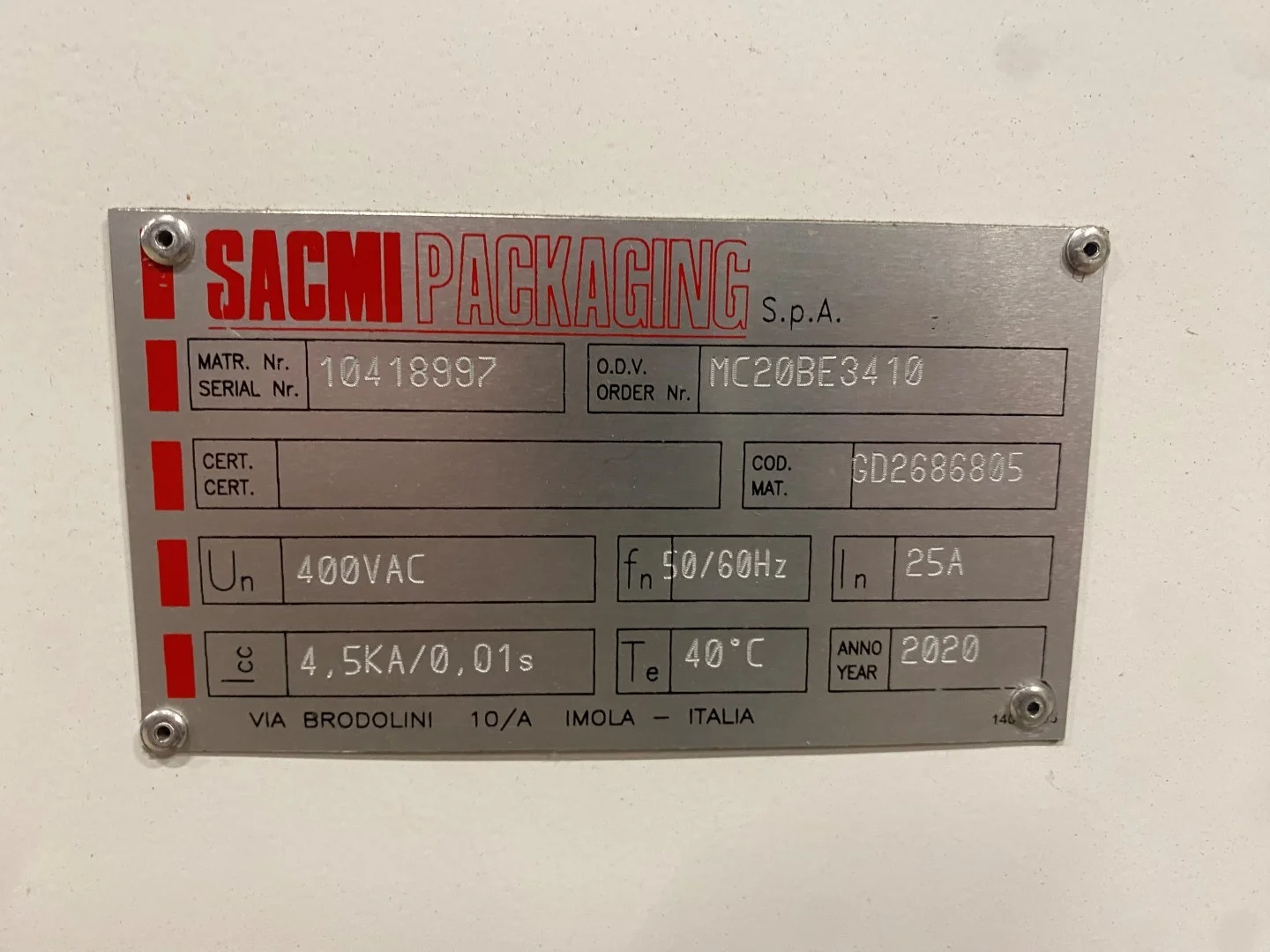

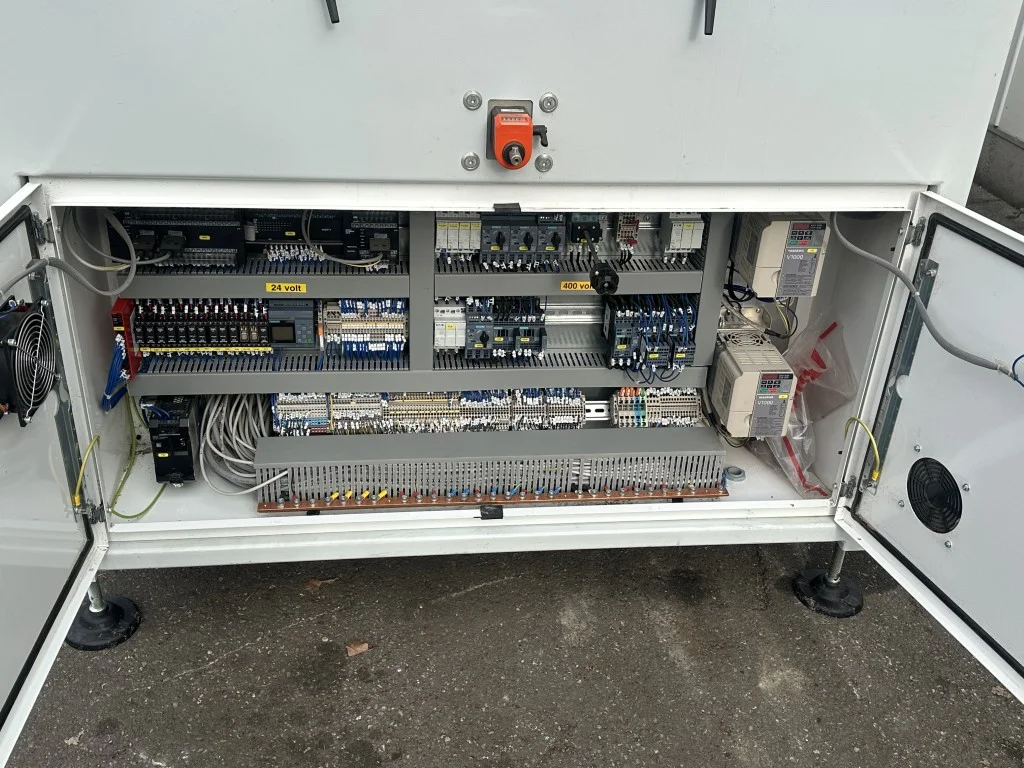

• Electrical Supply: 400V, 50 Hz + GND + N
• Control Voltage: 24 VDC
• Power Consumption: 10 kW

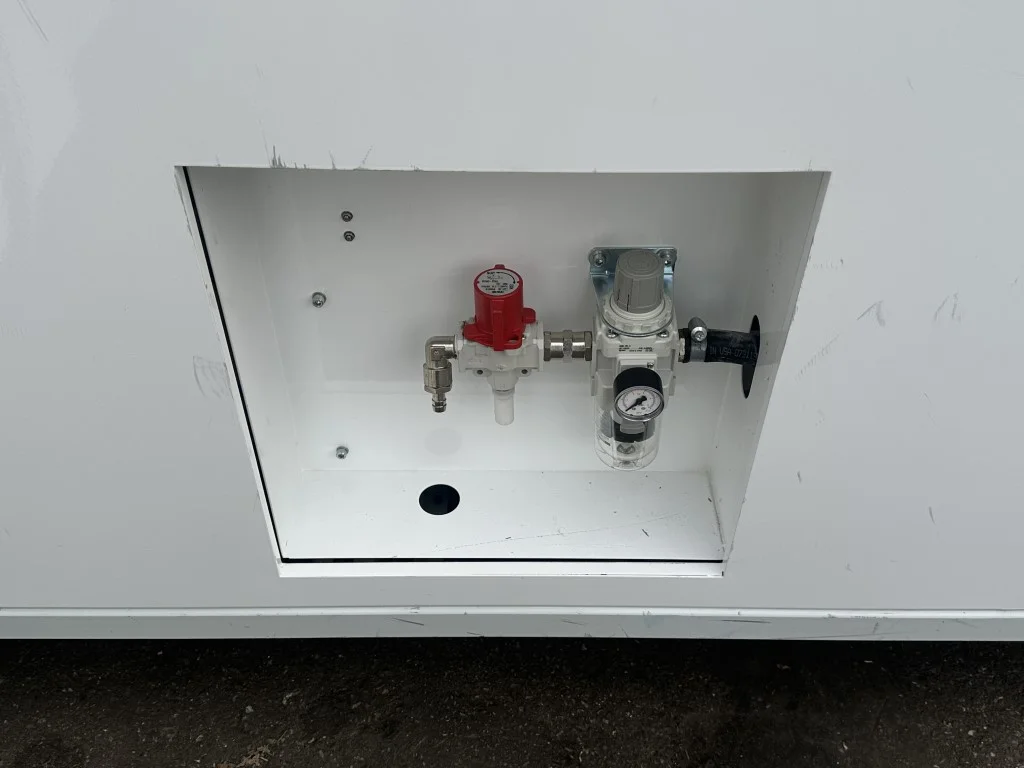

• Compressed Air Connection: 45 NI/cycle at 6 bar
• Weight: 1700 kg
• Operating Temperature: 5°C to 35°C

Processable Formats

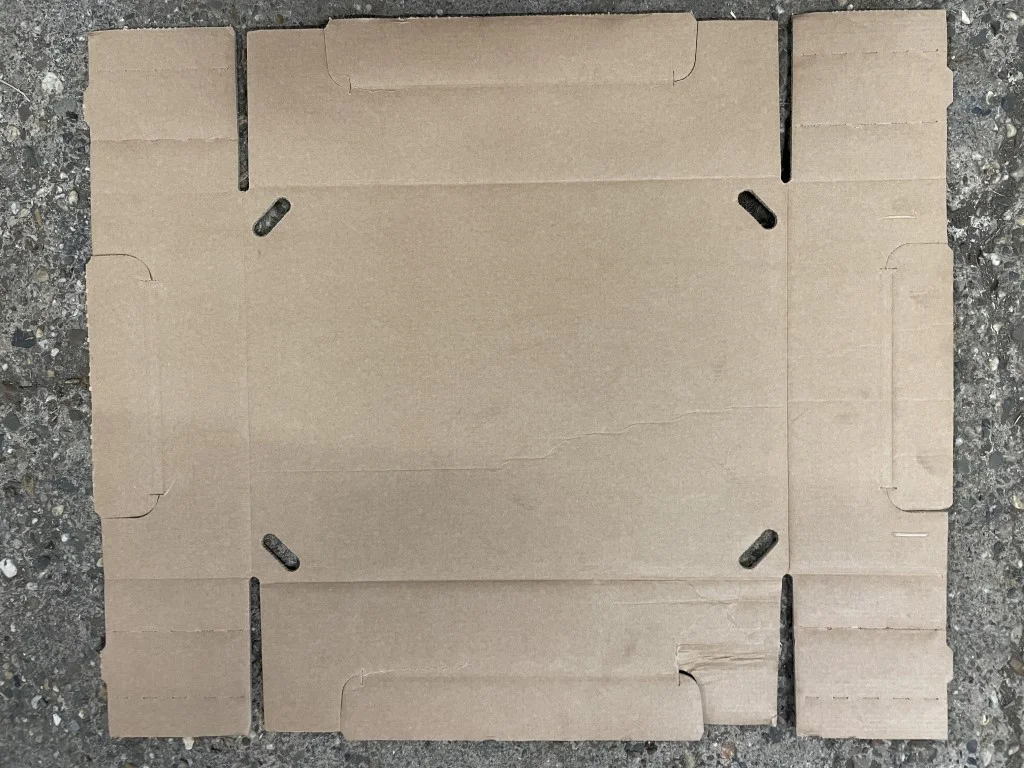

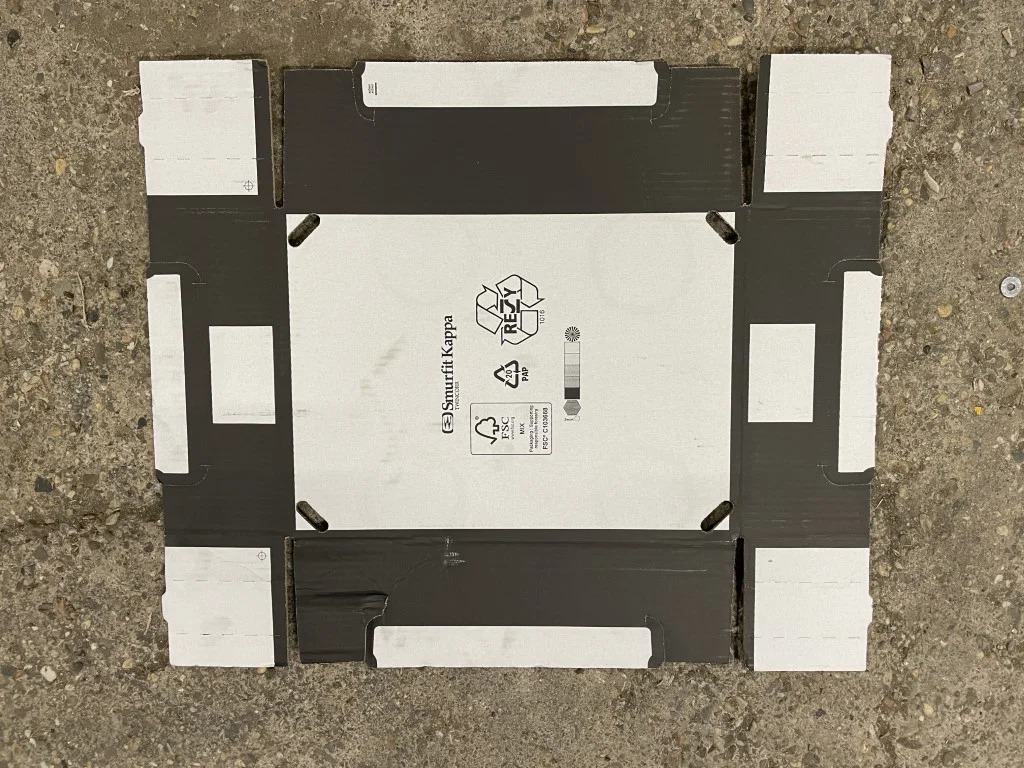

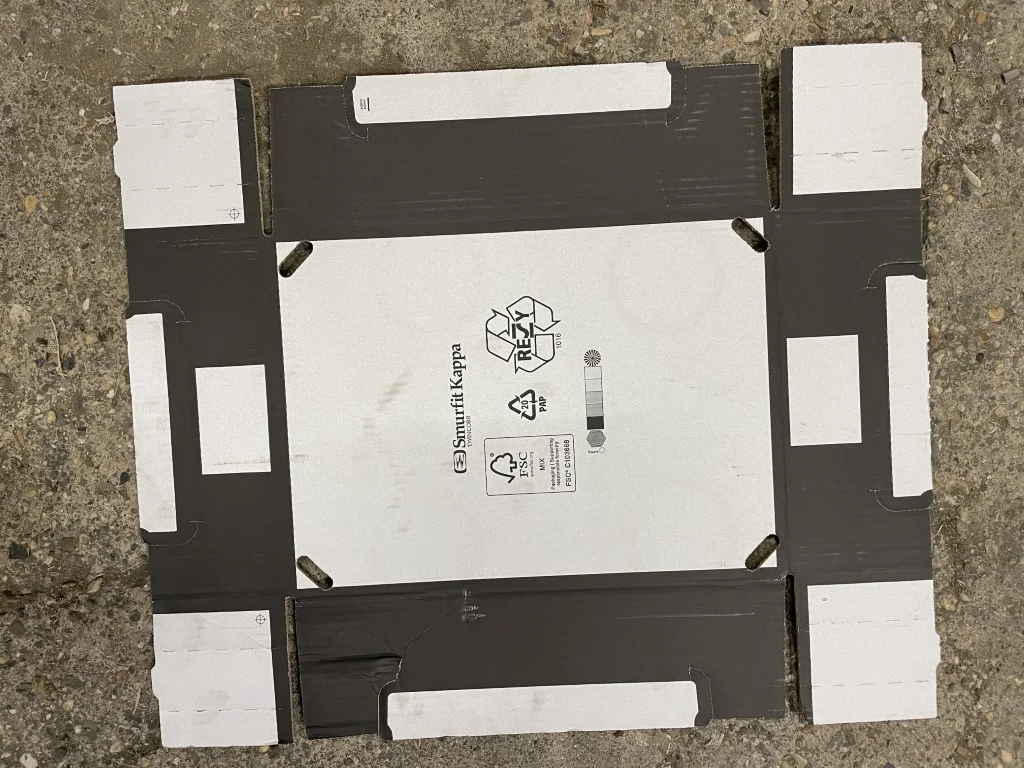

Carton Blanks

• Minimum: 420 x 340 mm
• Maximum: 1300 x 1000 mm

Trays (Platform & Citrus)

• Minimum: 200 x 300 x 60 mm
• Maximum: 600 x 600 x 250 mm

Citrus Tray Features

• Hopper for forming citrus trays and platform plateaux
• Electrically driven forming press with adjustable speed via inverter
• Components for citrus corner forming and short side doubling glueing

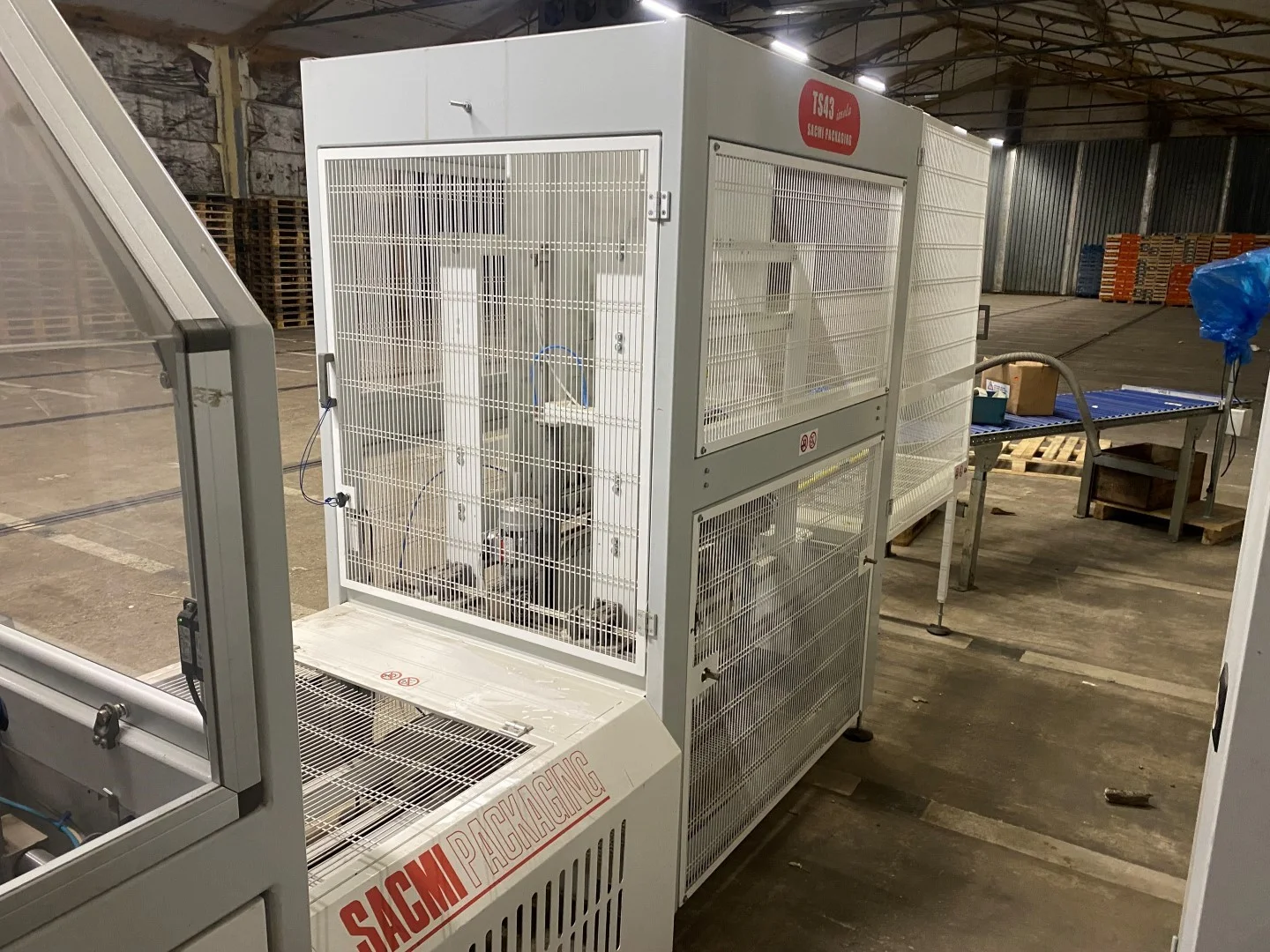

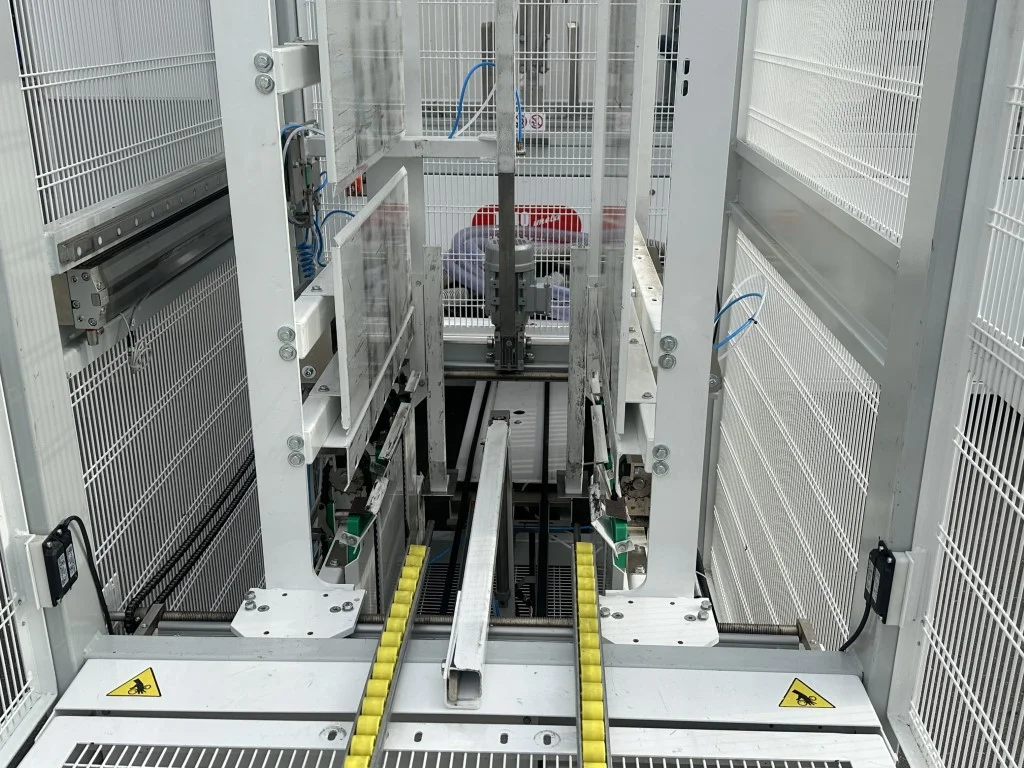

Sacmi TS43 stacker

The Sacmi TS43 is an automatic stacking machine specifically designed for stacking flat trays and flapless boxes. This machine can stack up to 40 boxes per minute, both single and double.

• Several parts

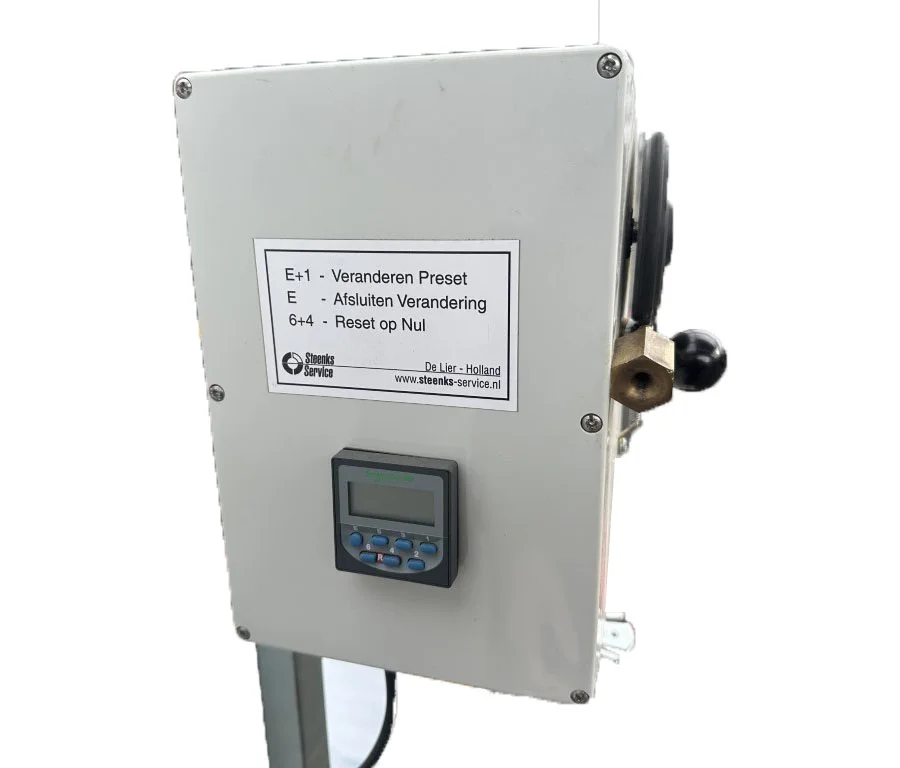

•  including Steenks string machine
