Description:

Compac calibreuse de abricots et prunes

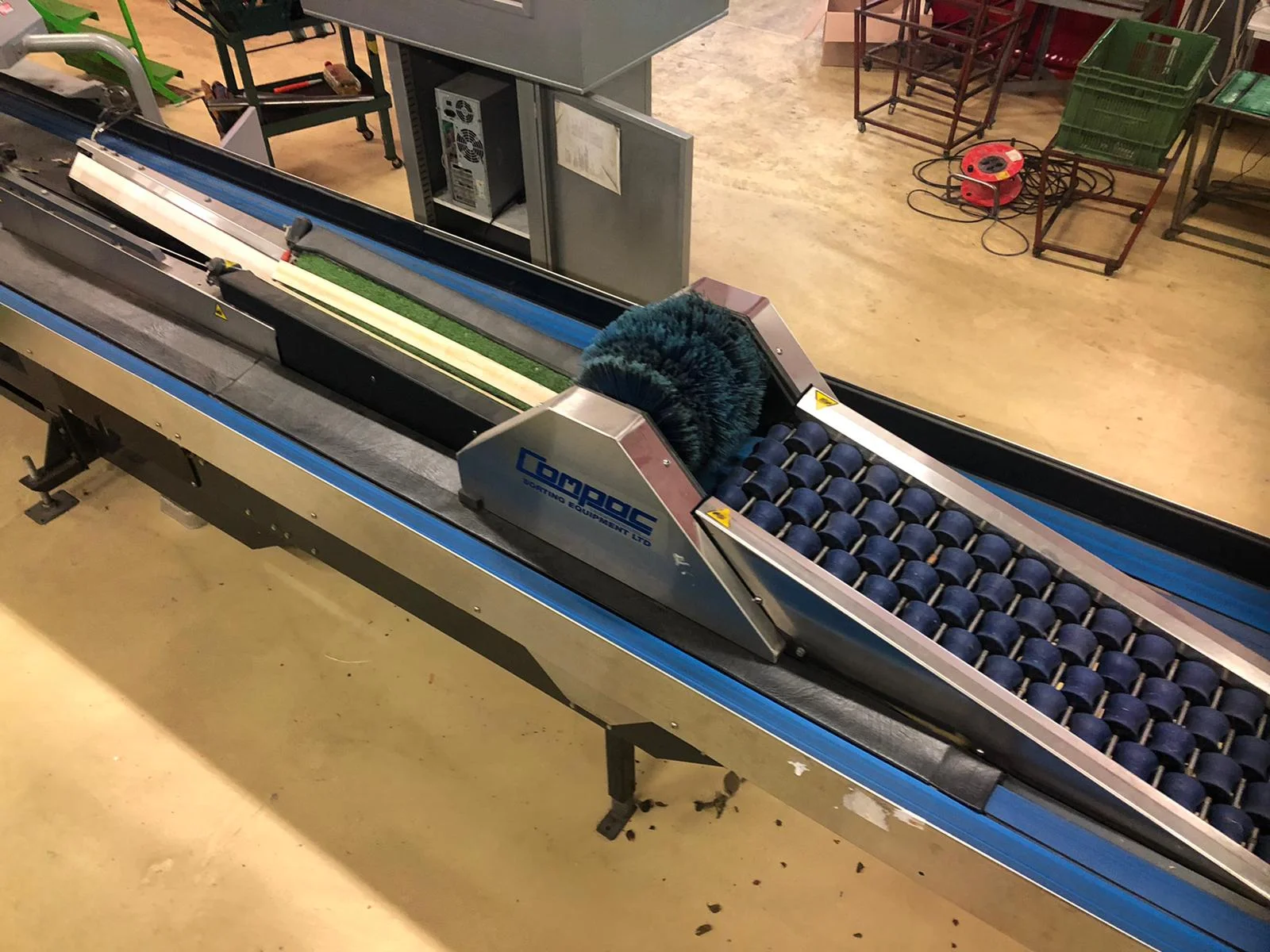

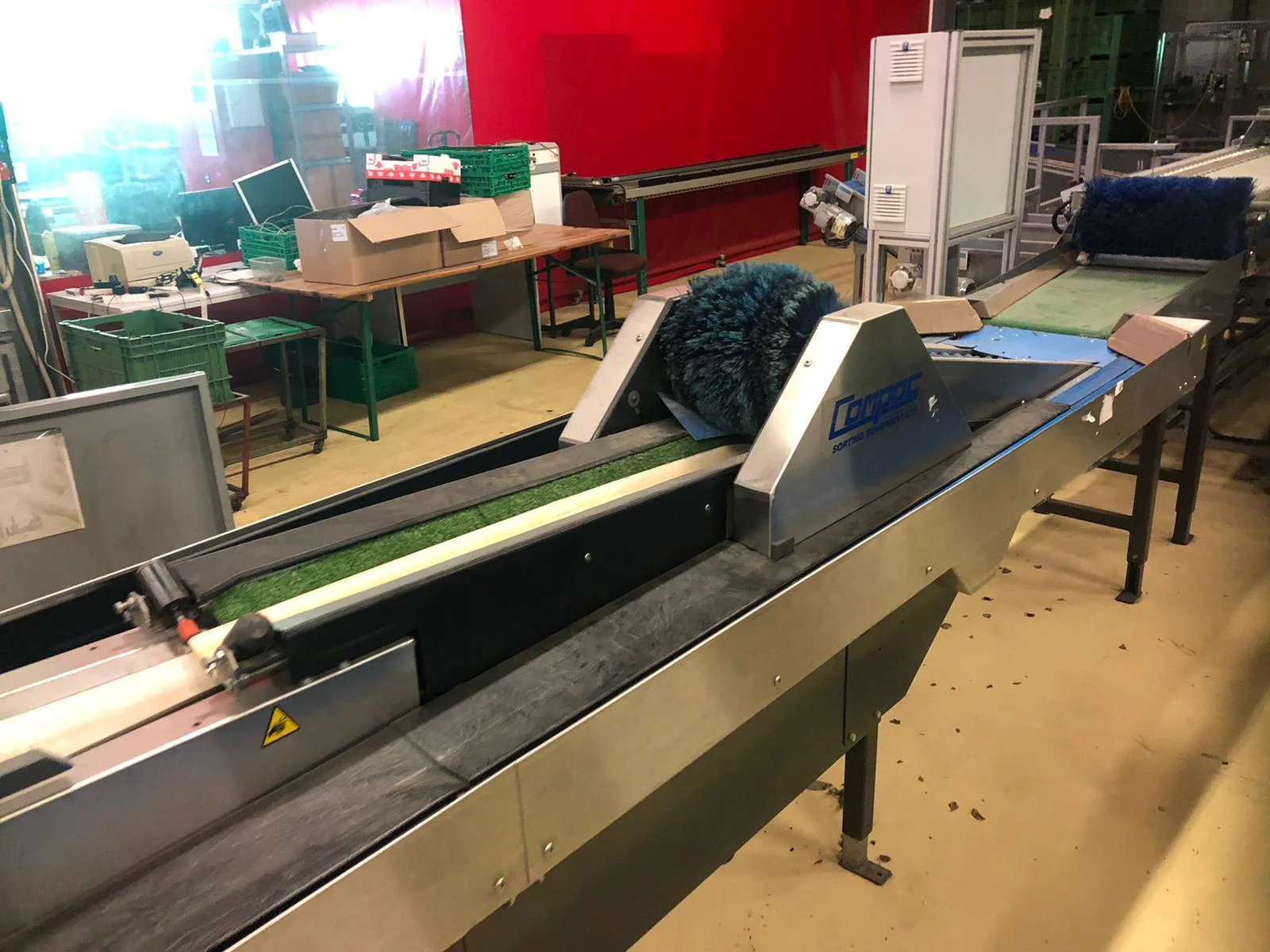

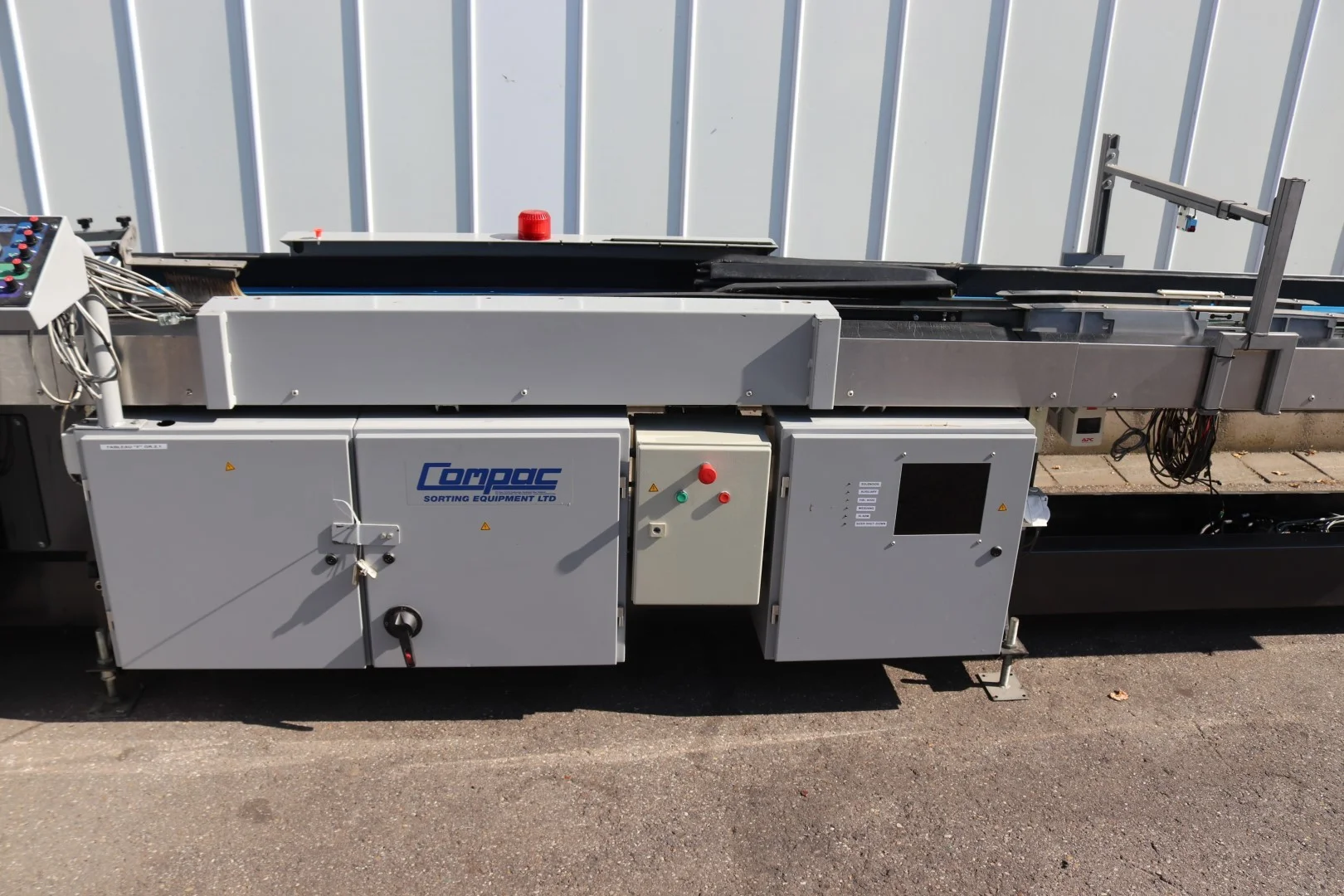

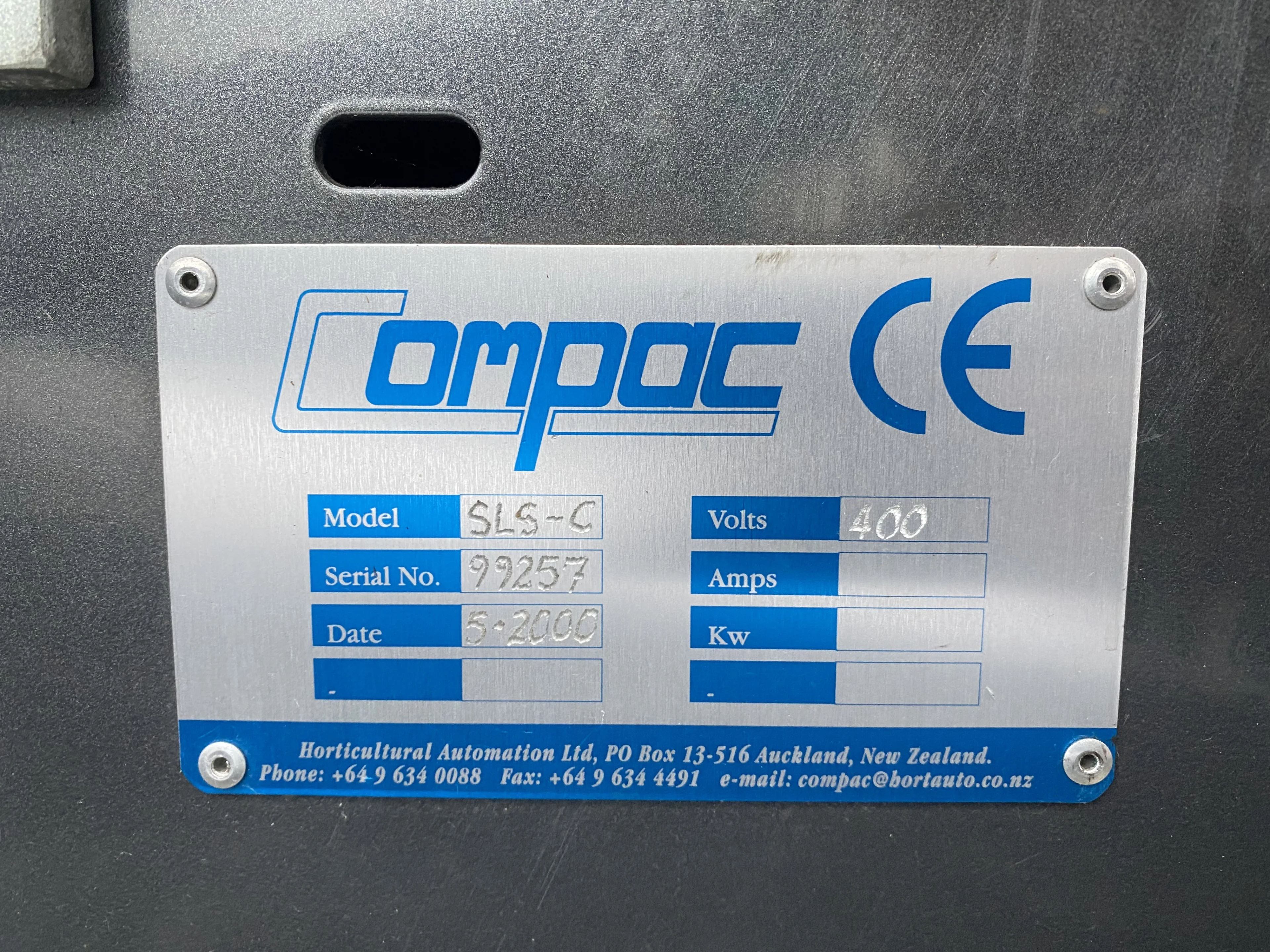

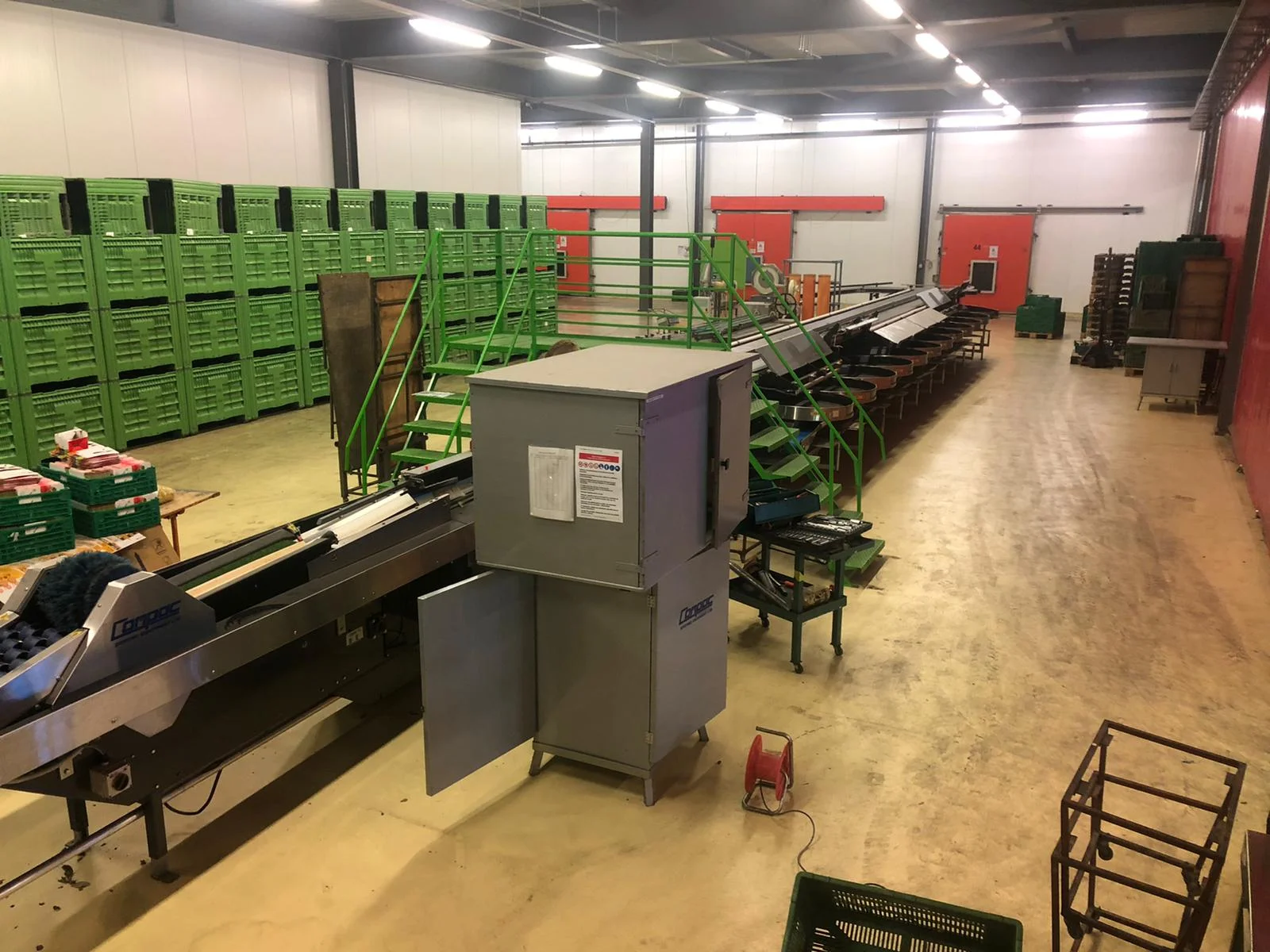

Compac weight grading machine with 1 lane for fruit

Used for apricots / plums (marilles), but also suitable for other type of fruits, such as stone fruit, citrus, tomatoes, avocado, mango, ect.

• 1 lane, high speed
• accuracy of 1 gram

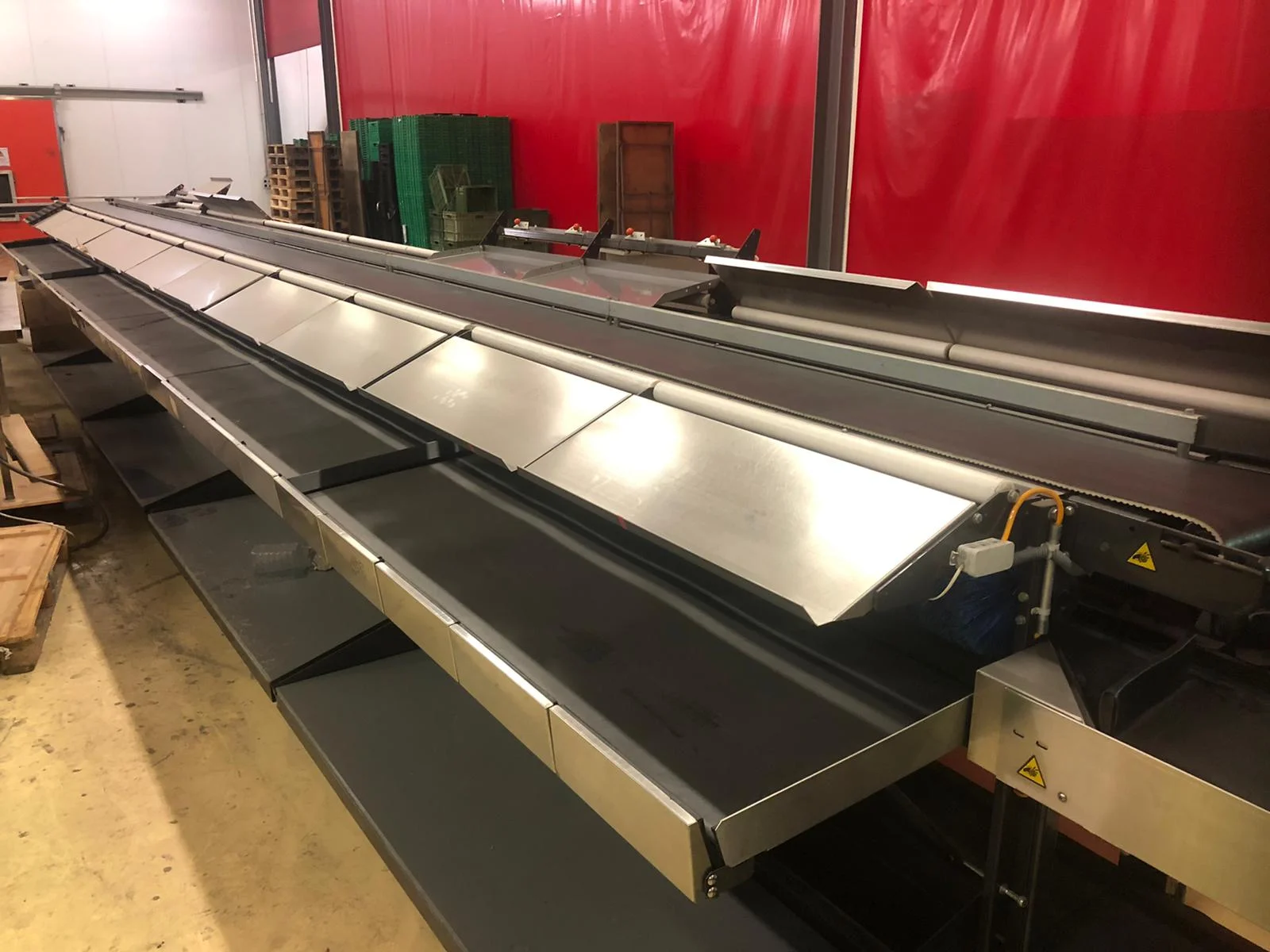

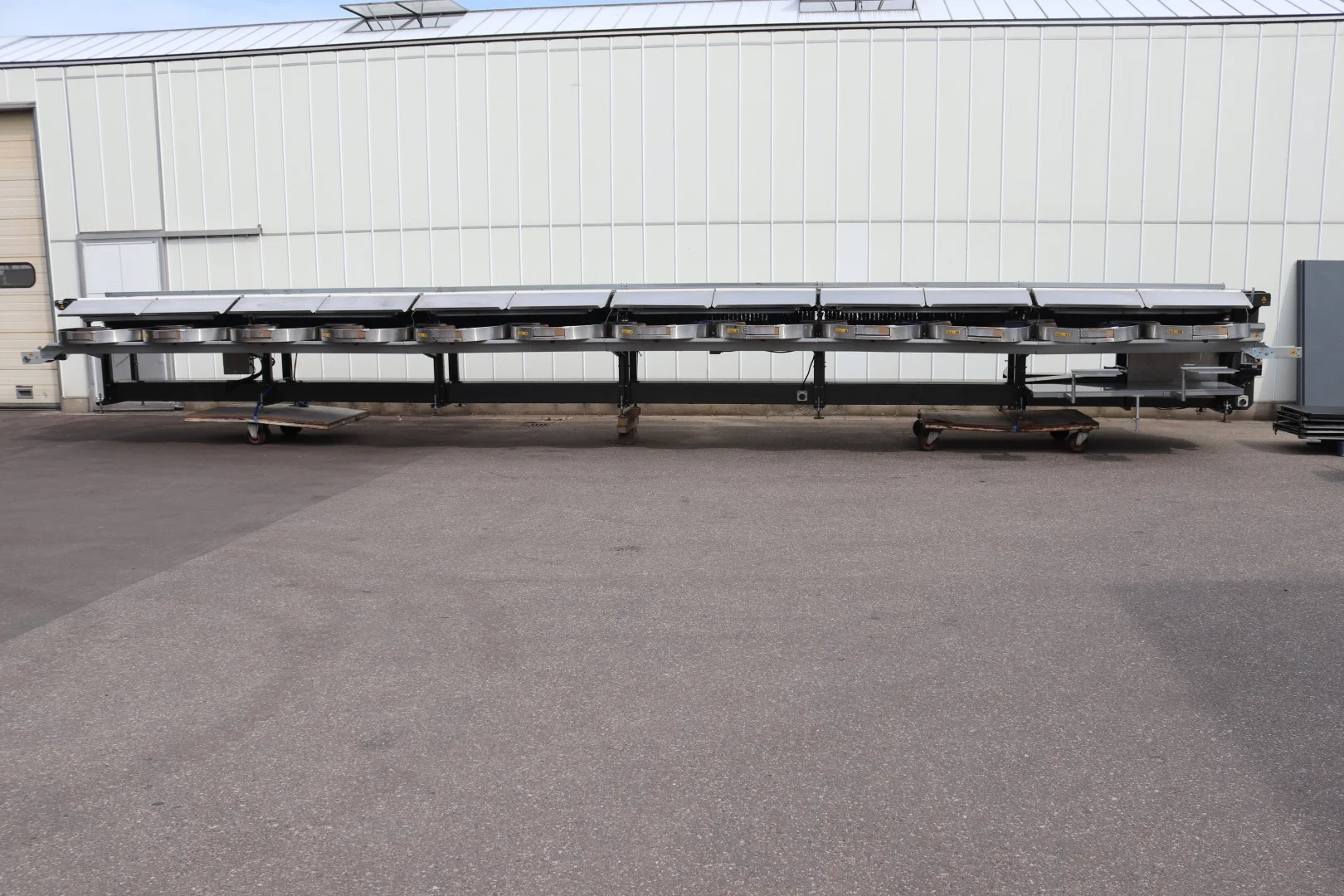

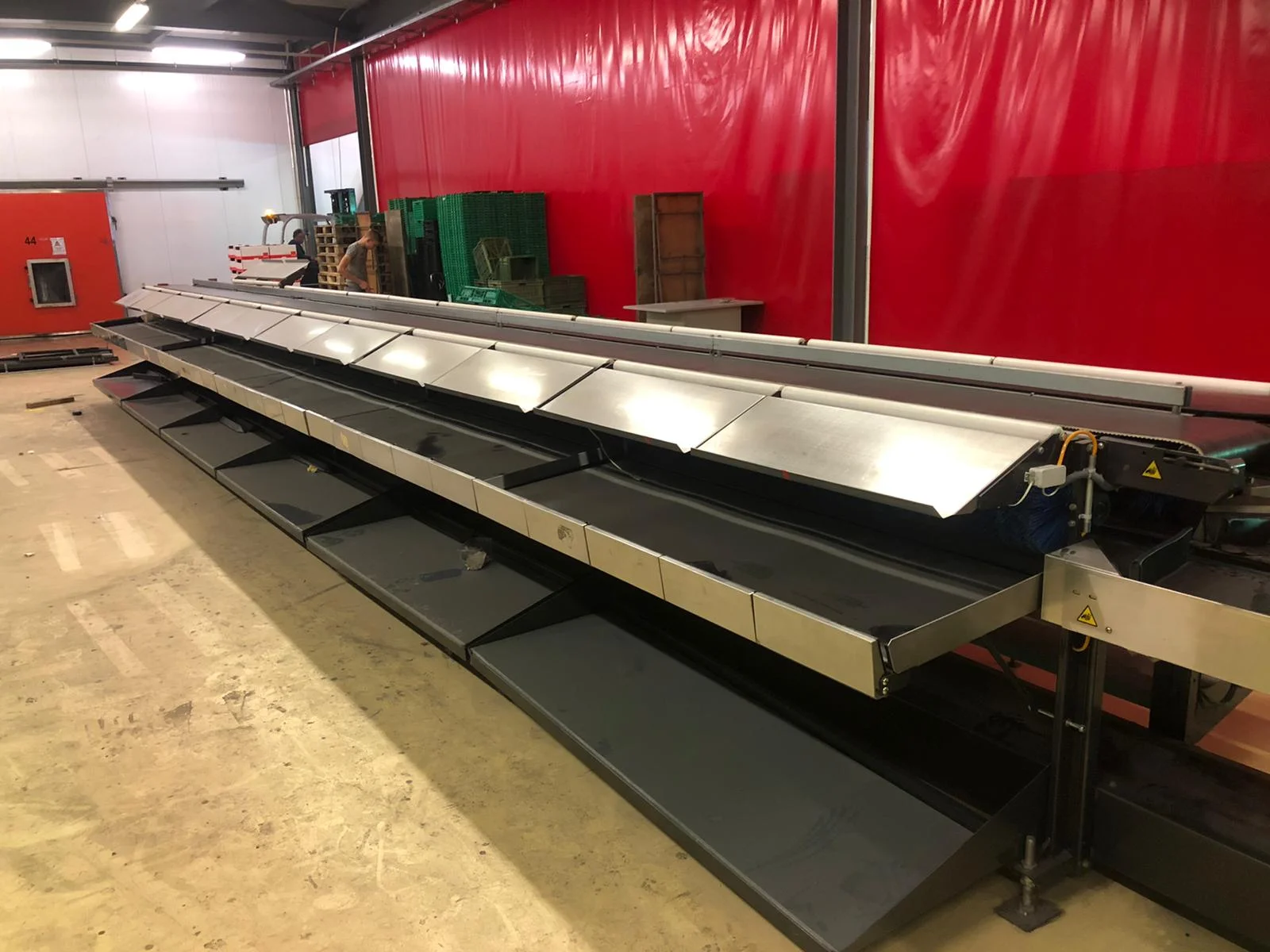

• 2 x 13 exits on both sides

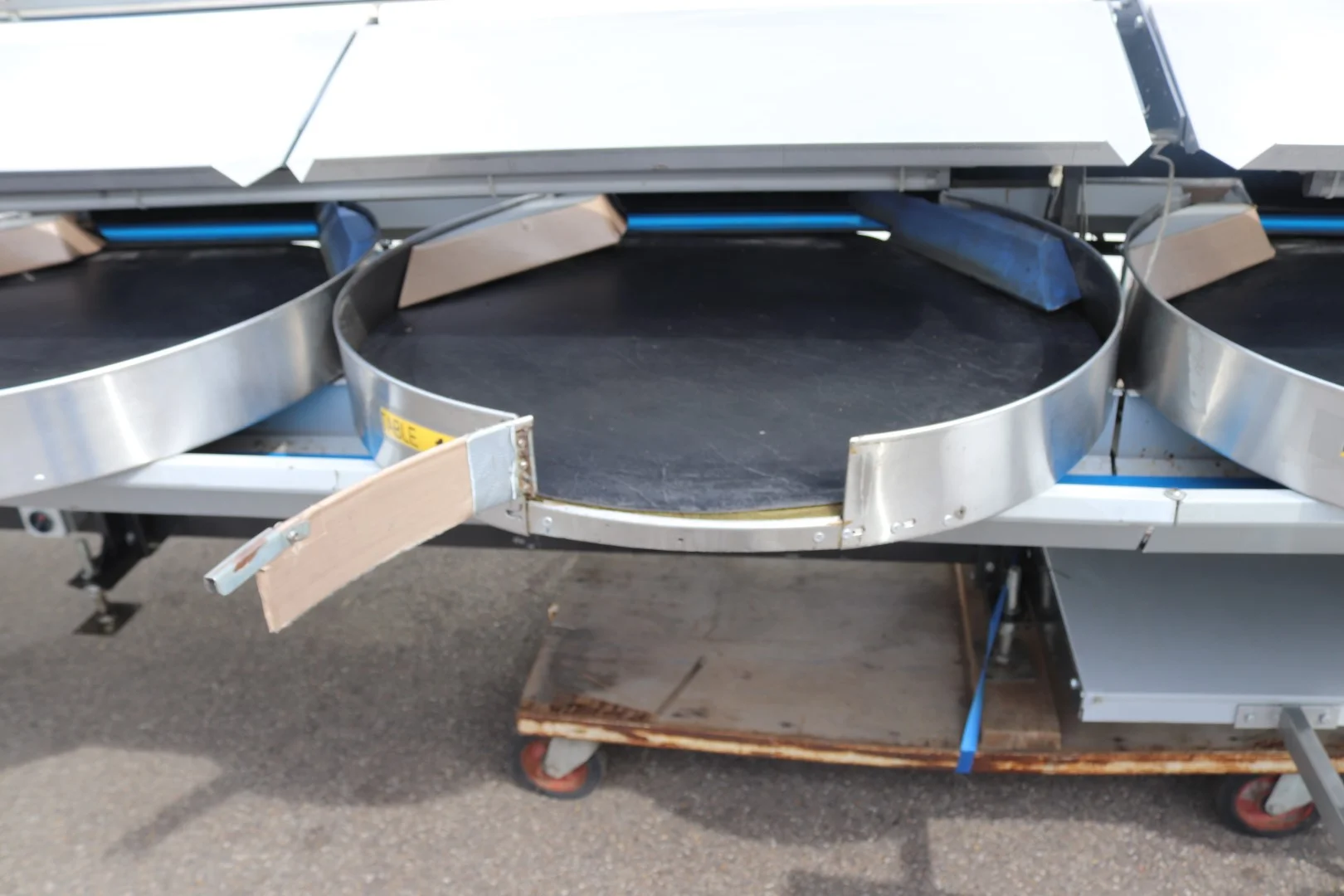

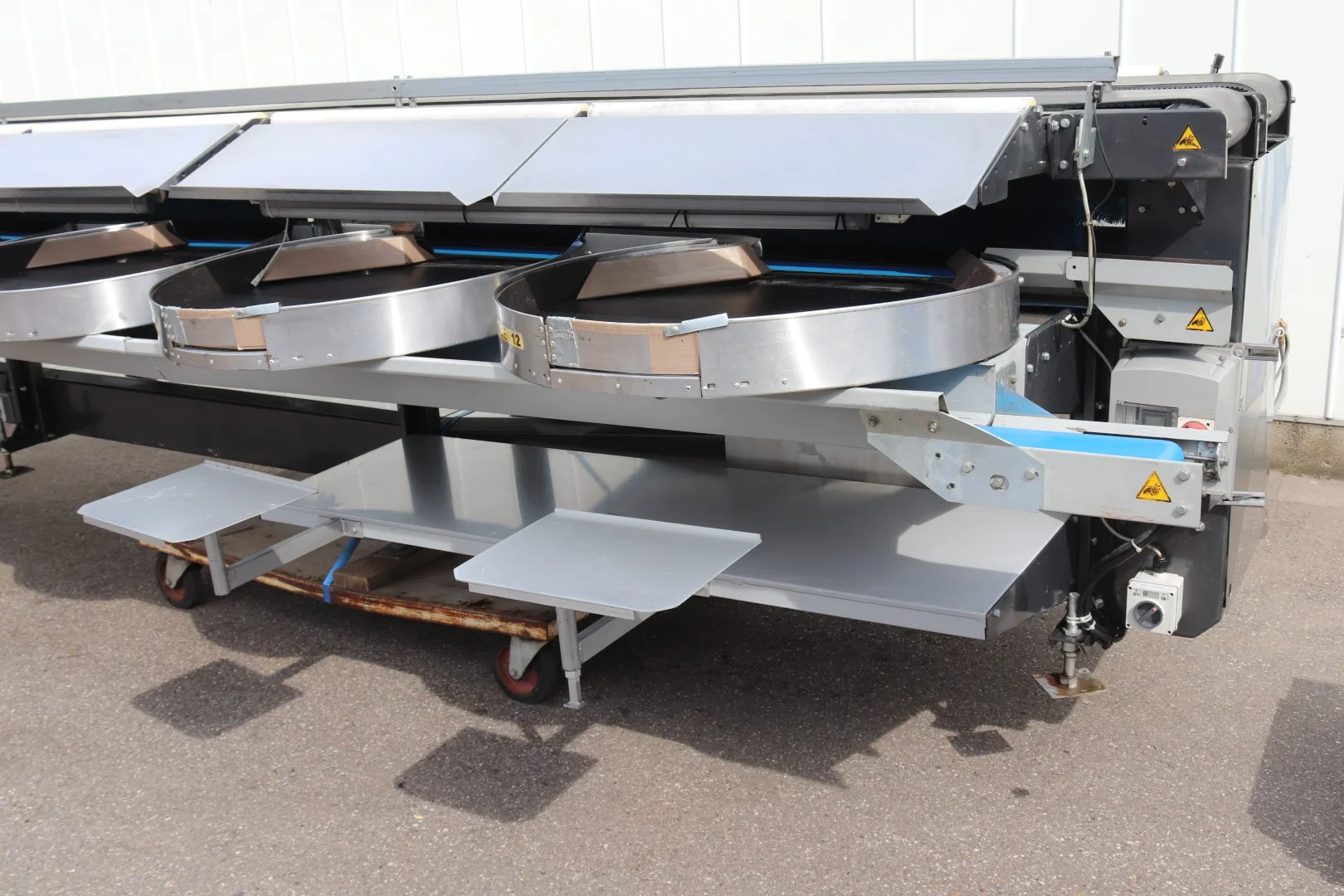

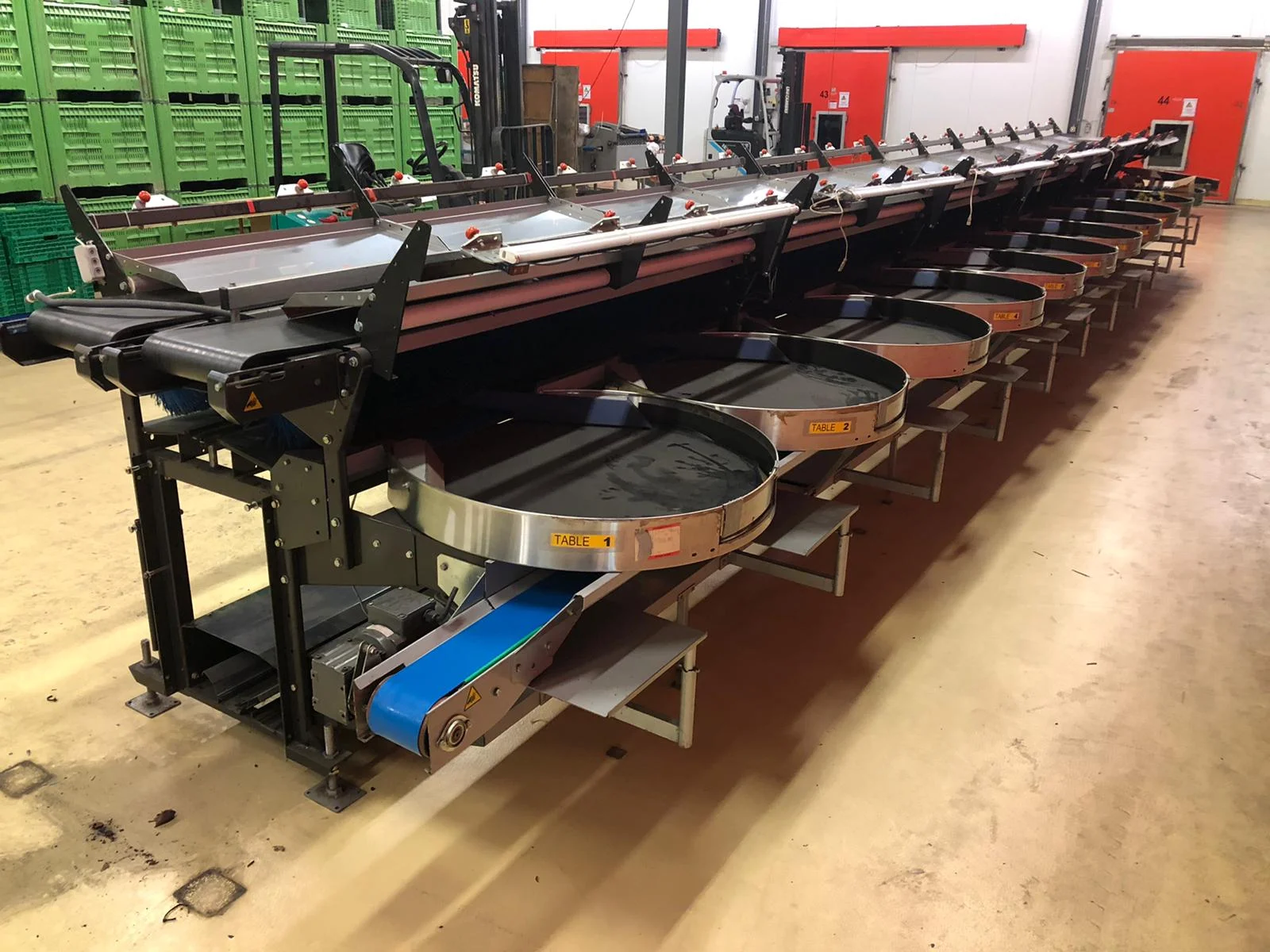

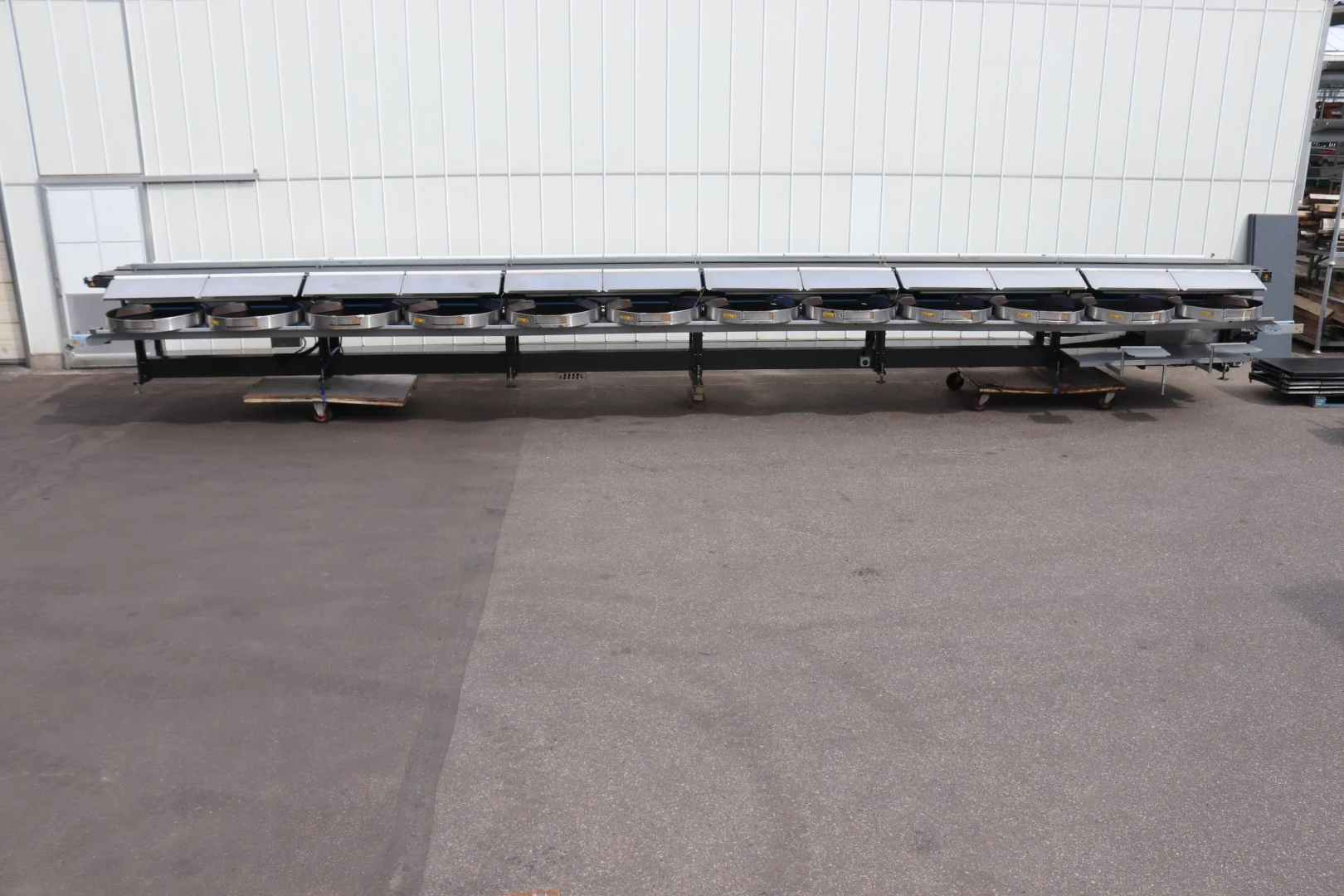

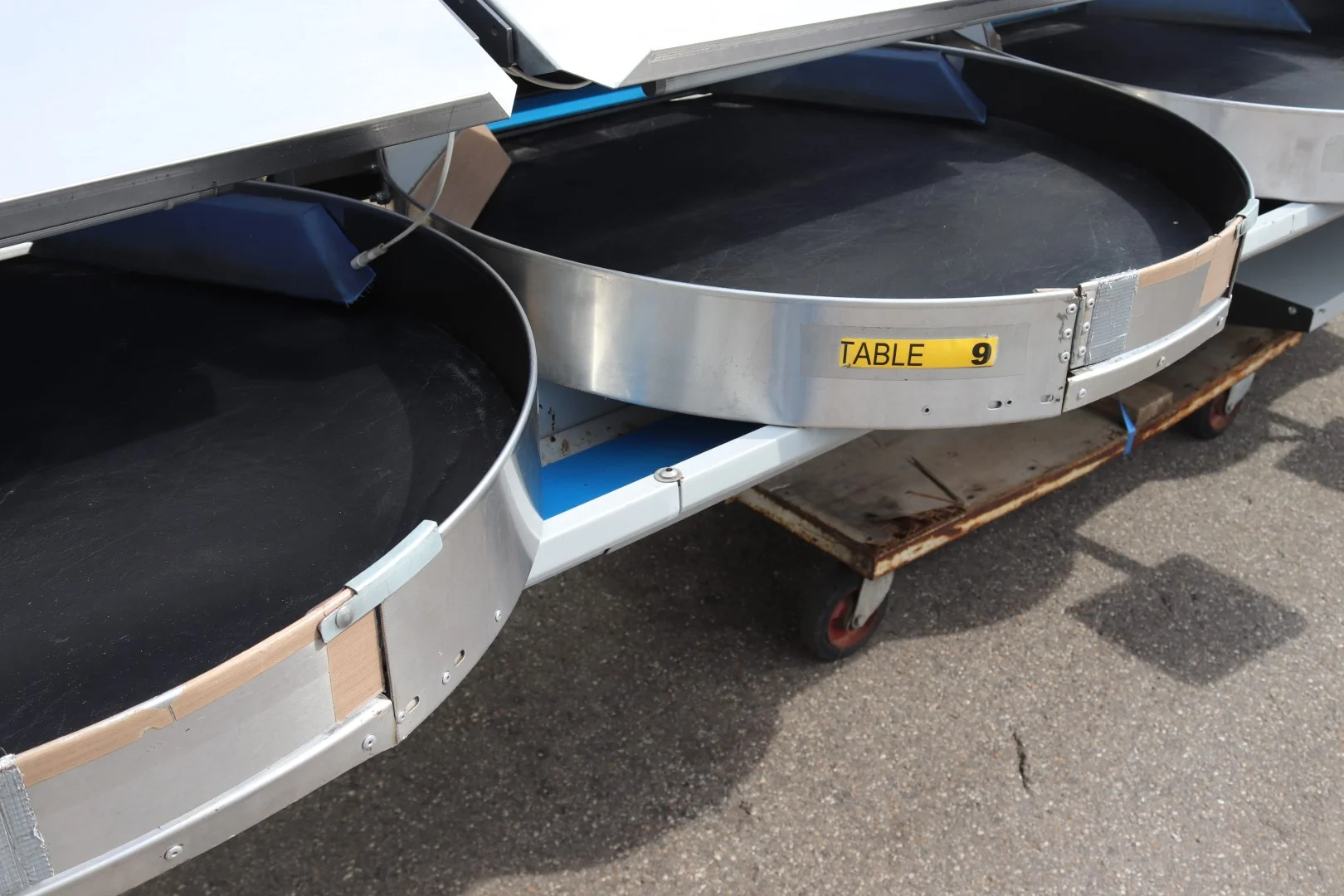

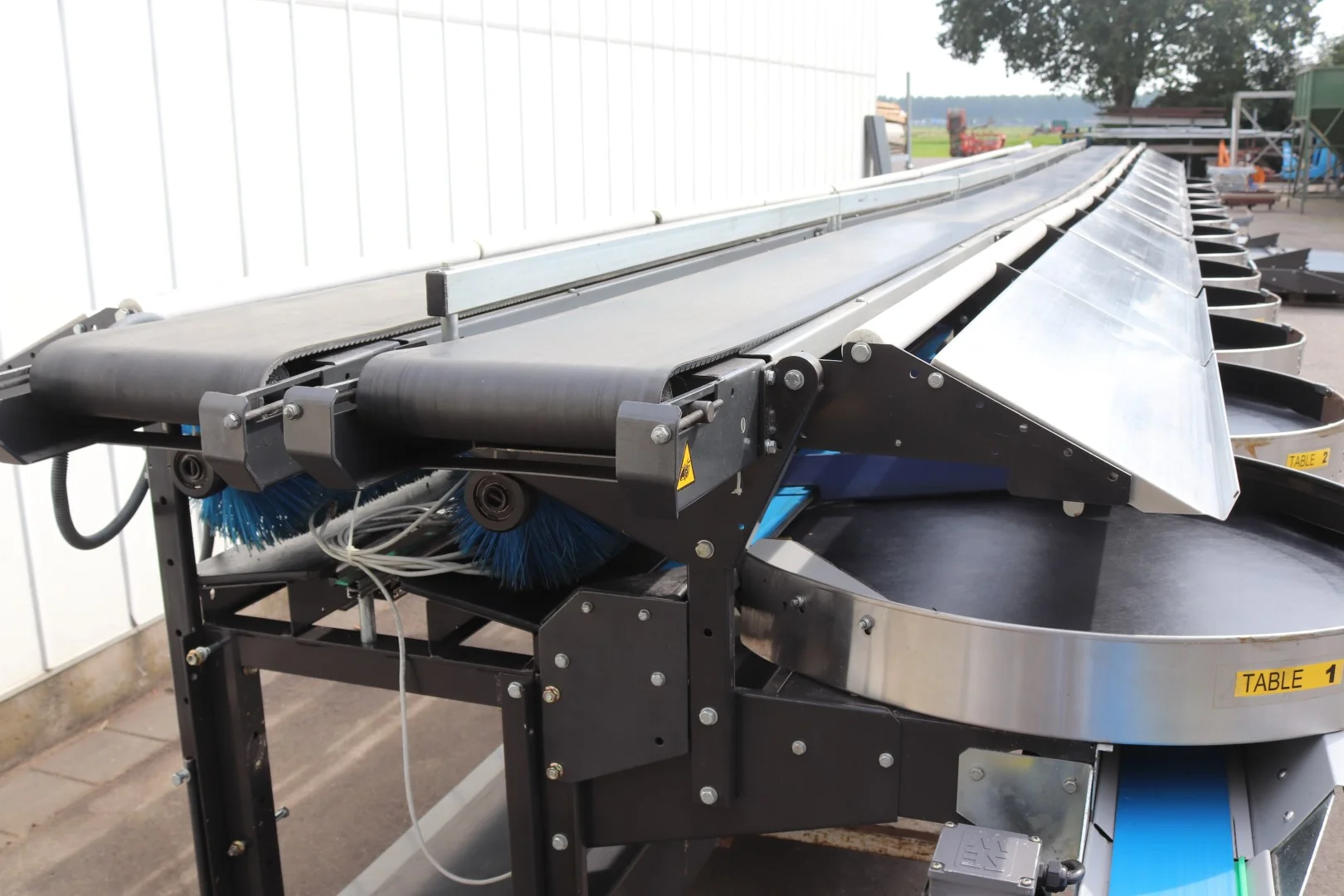

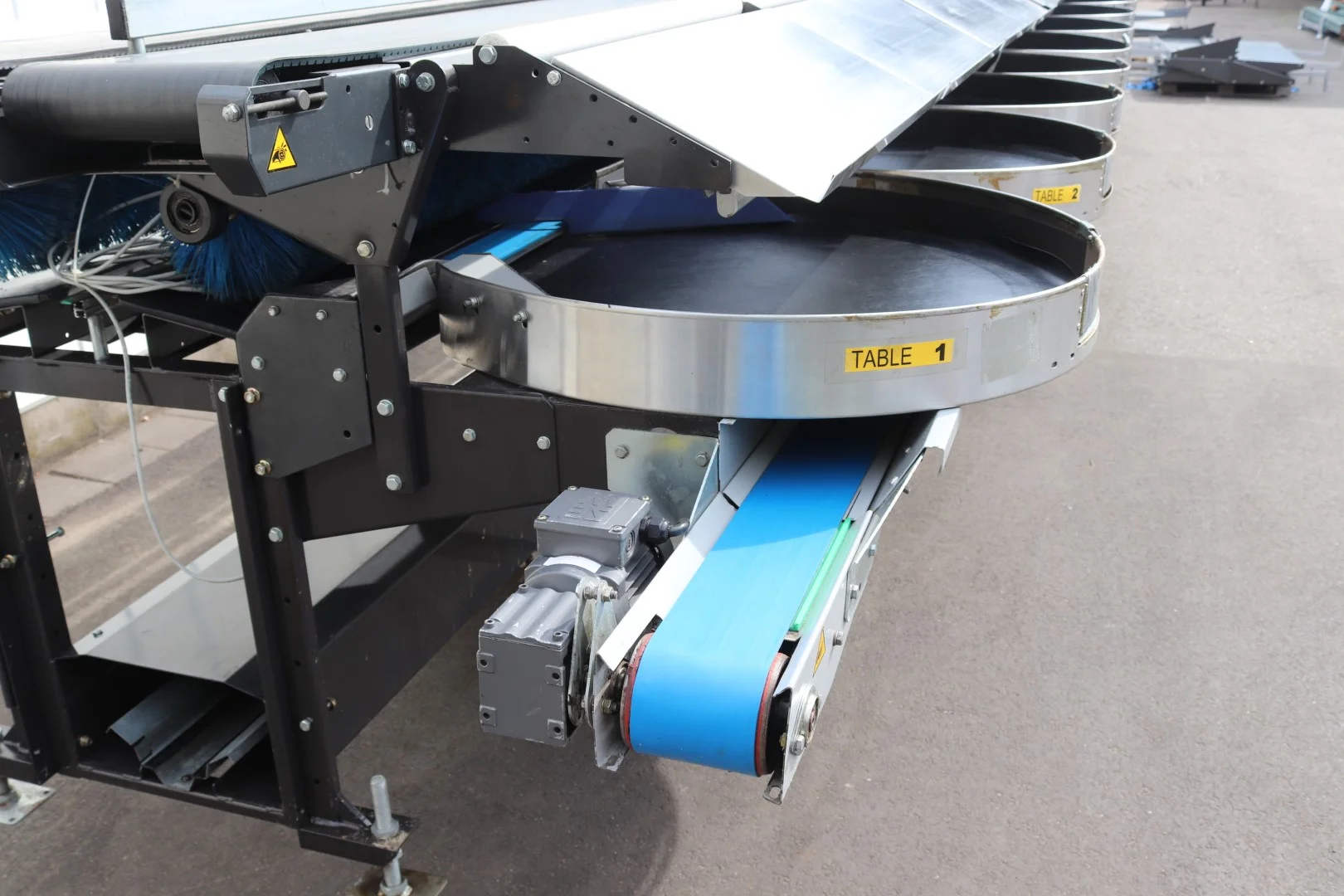

• Turn tables on one side

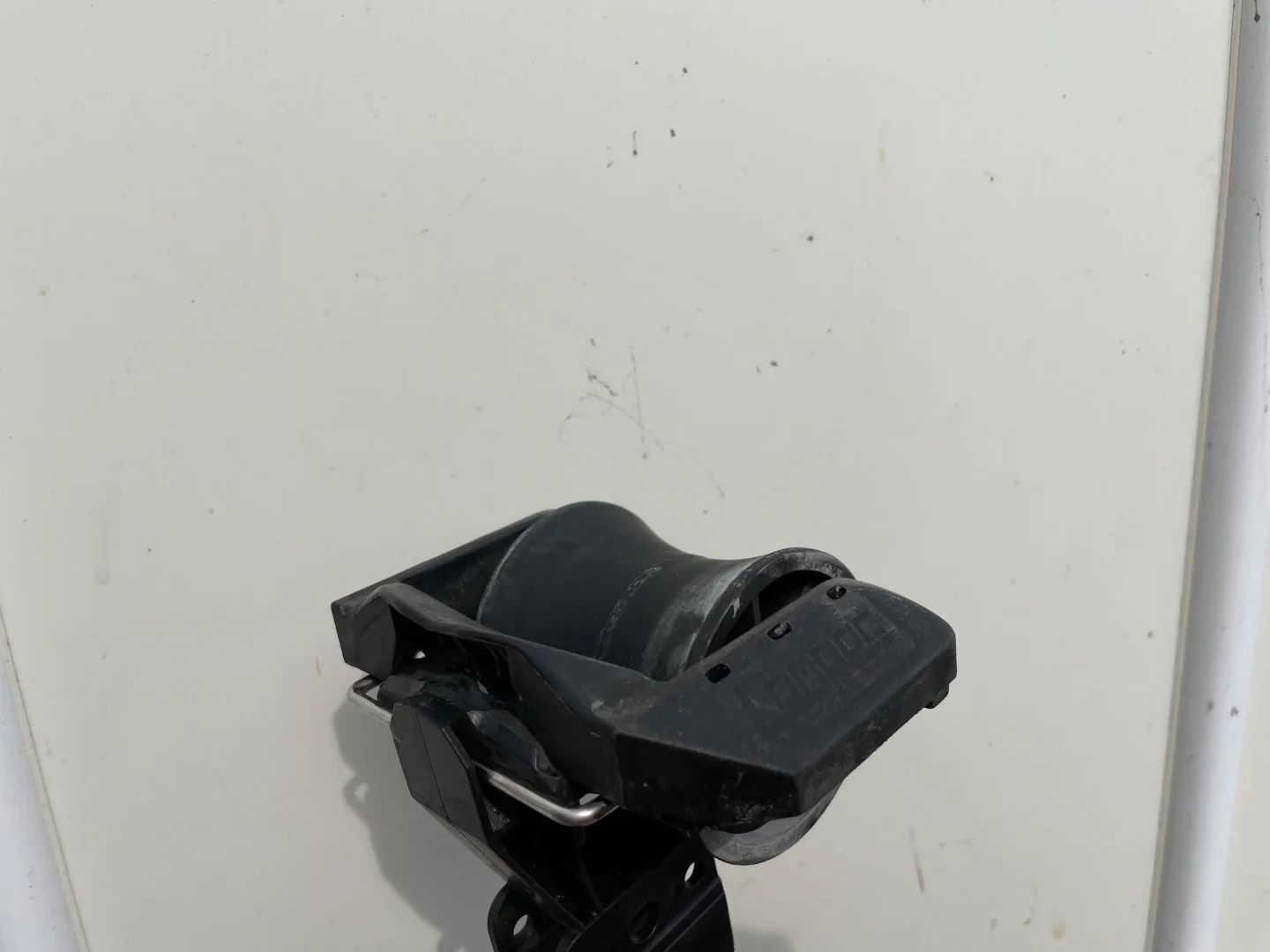

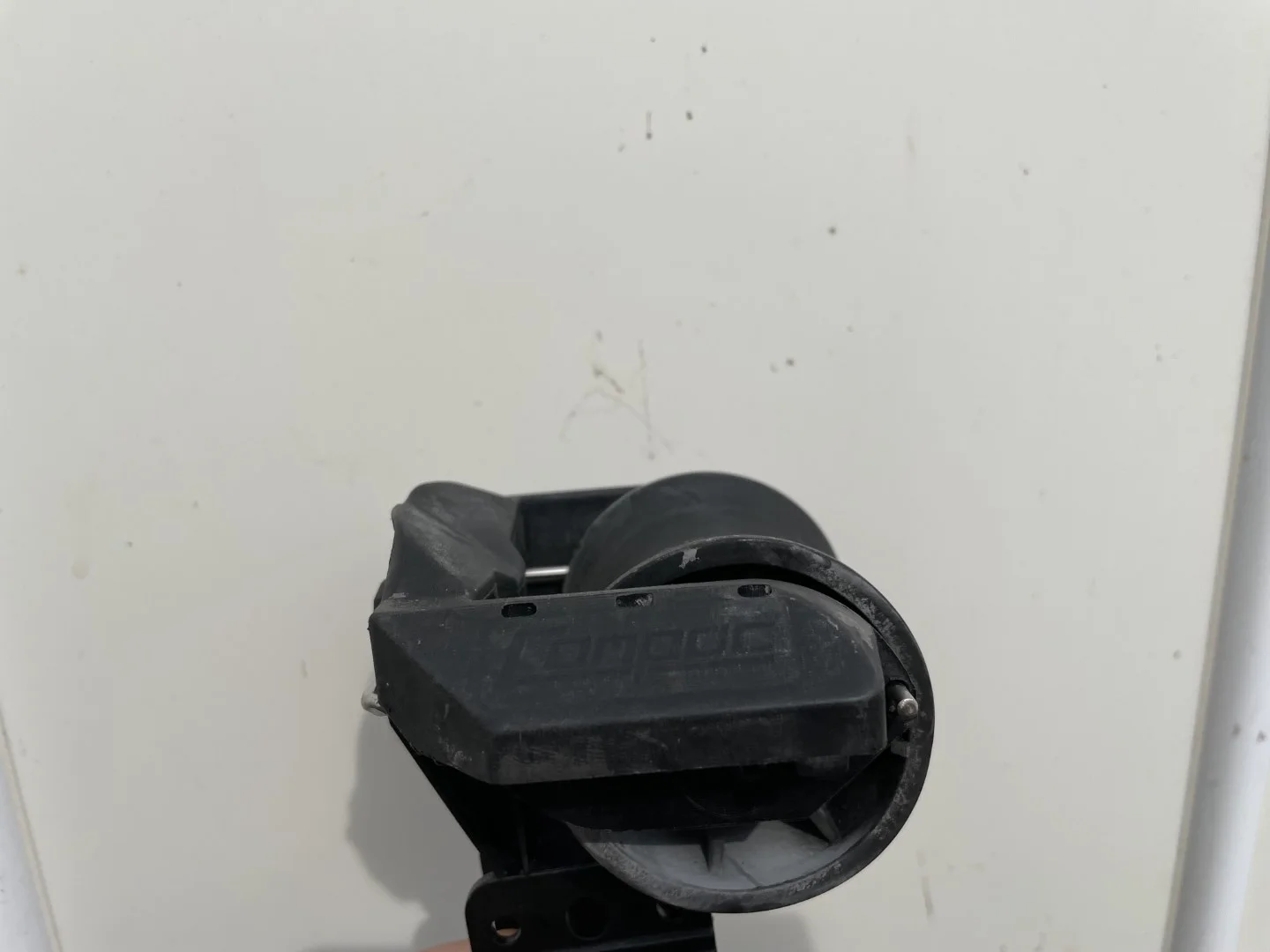

• The sorting diabolo's can be tilted to the left and to the right by the machine
  • Total width of the diabolo 65 mm
  • Outer diameter: 63 mm ø
  • Inner diameter: 53 mm ø

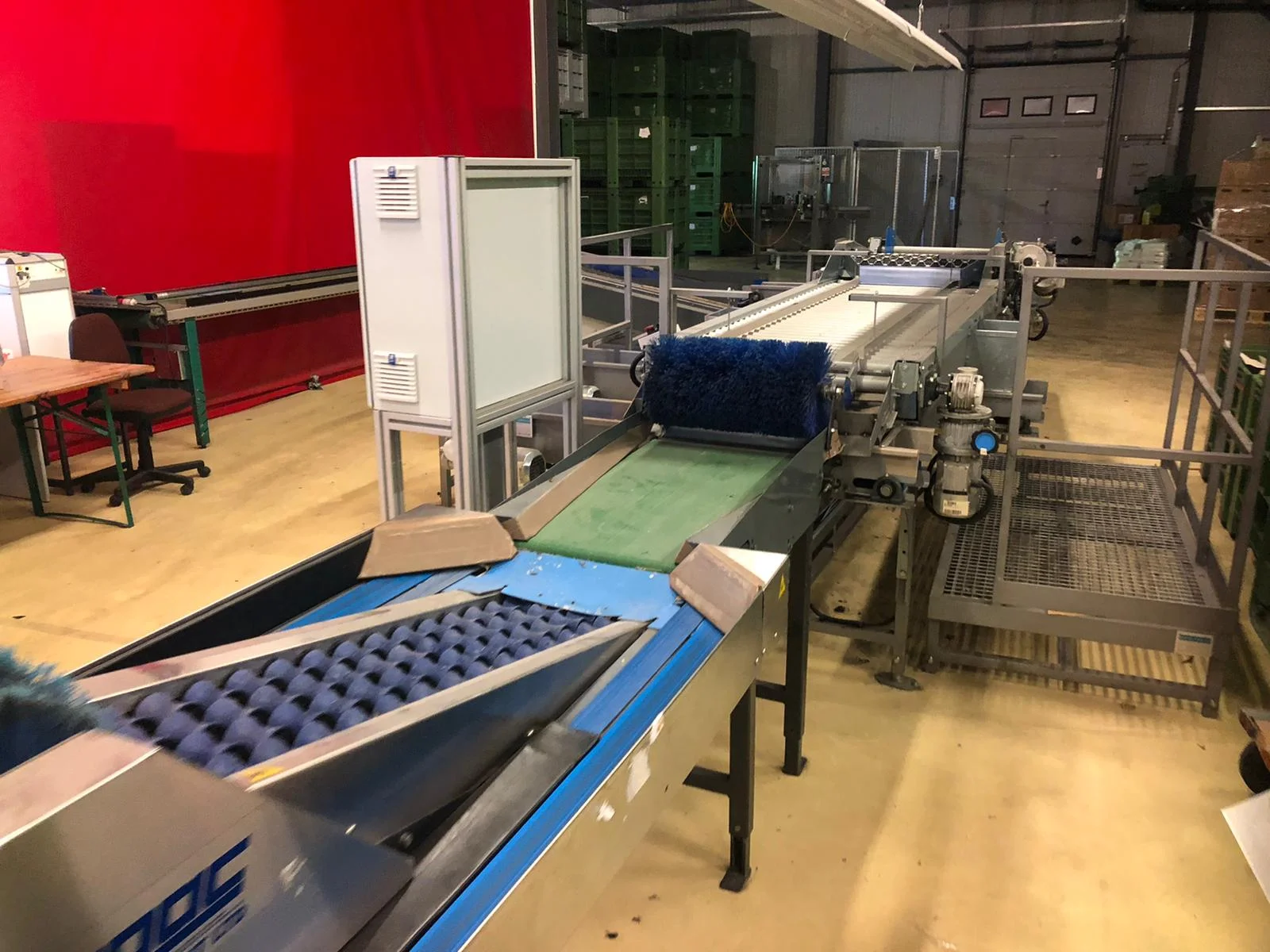

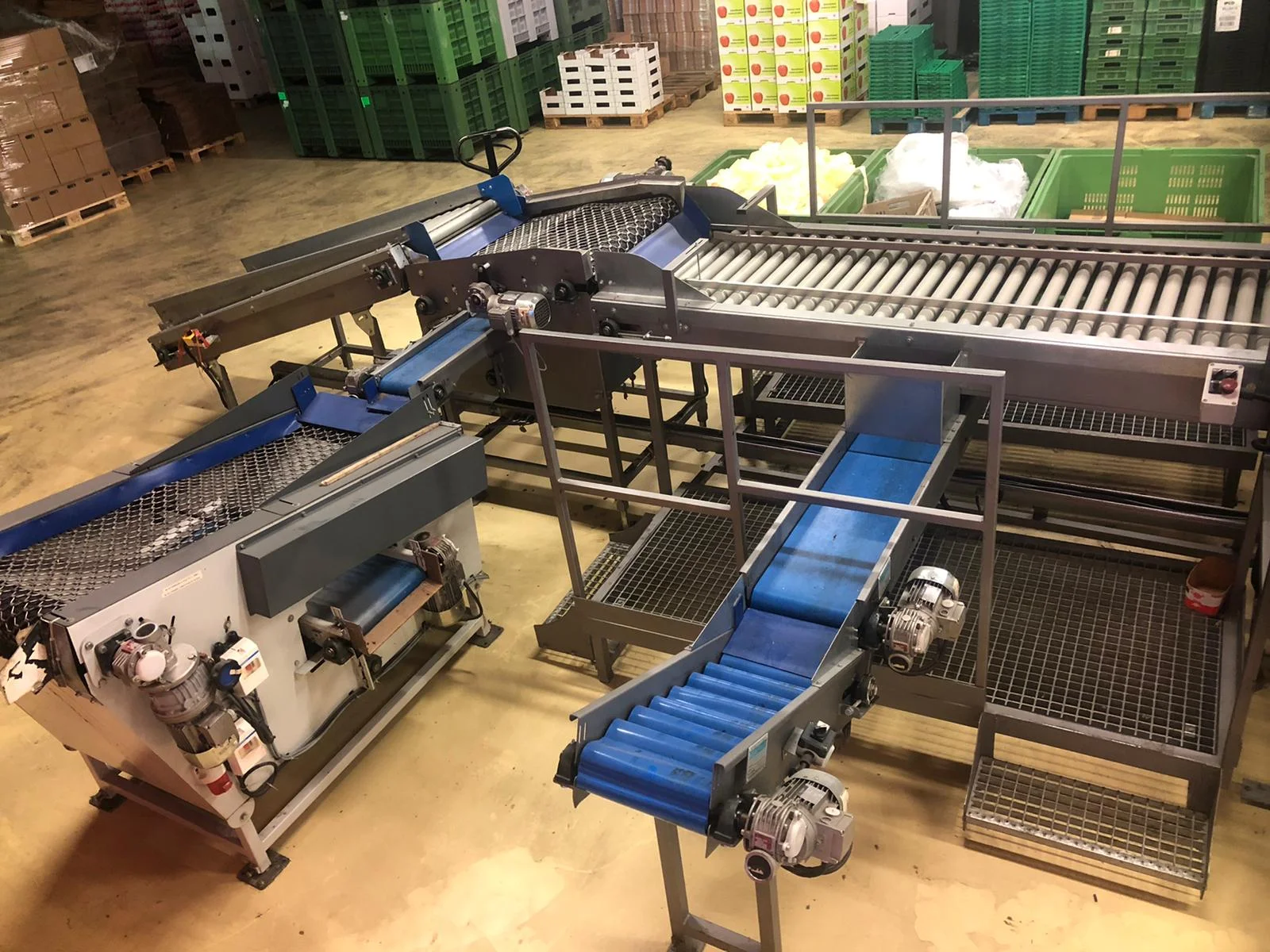

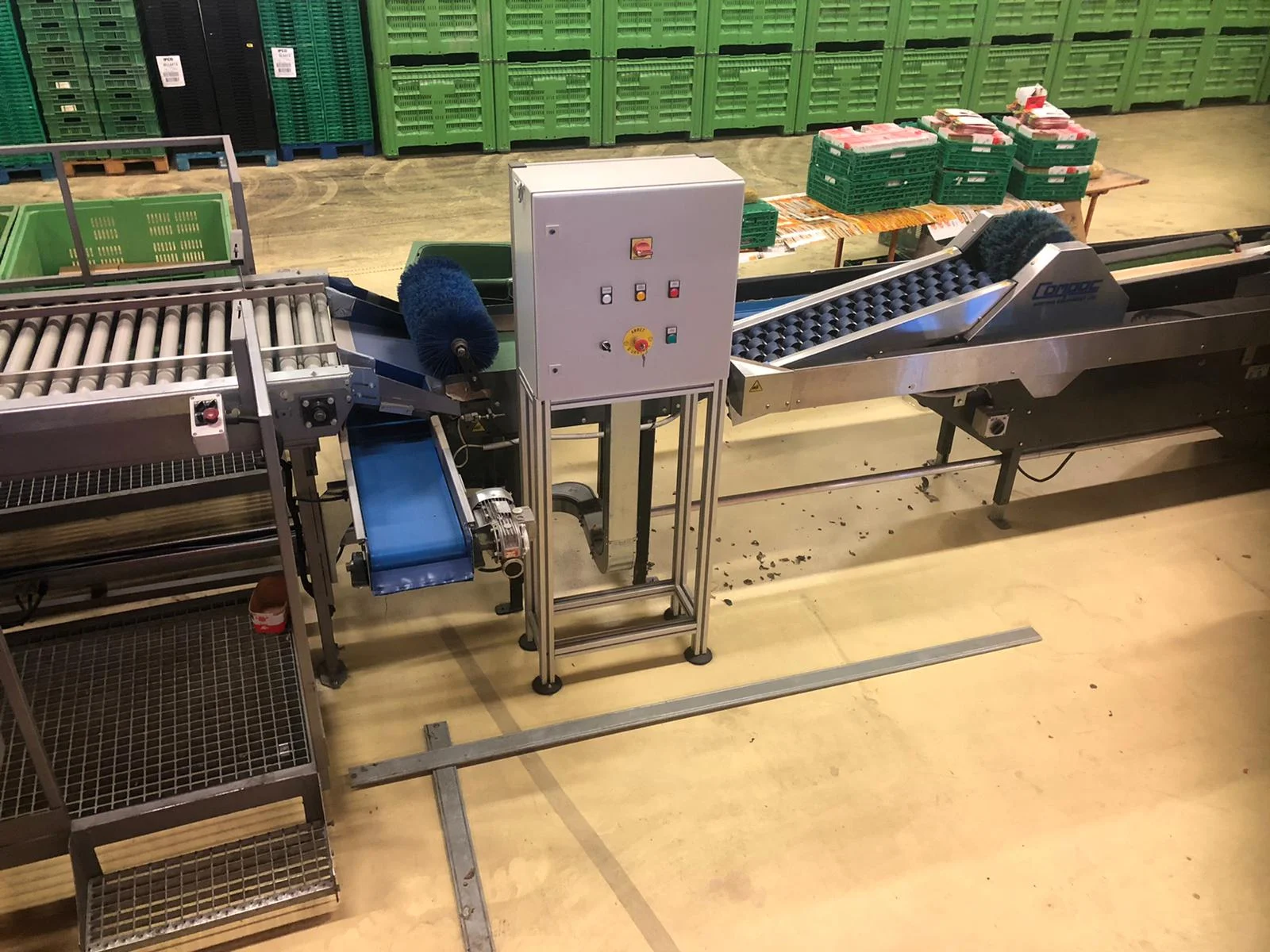

Complete with Manip'Fruits (Sorma France) pre-sorting line:

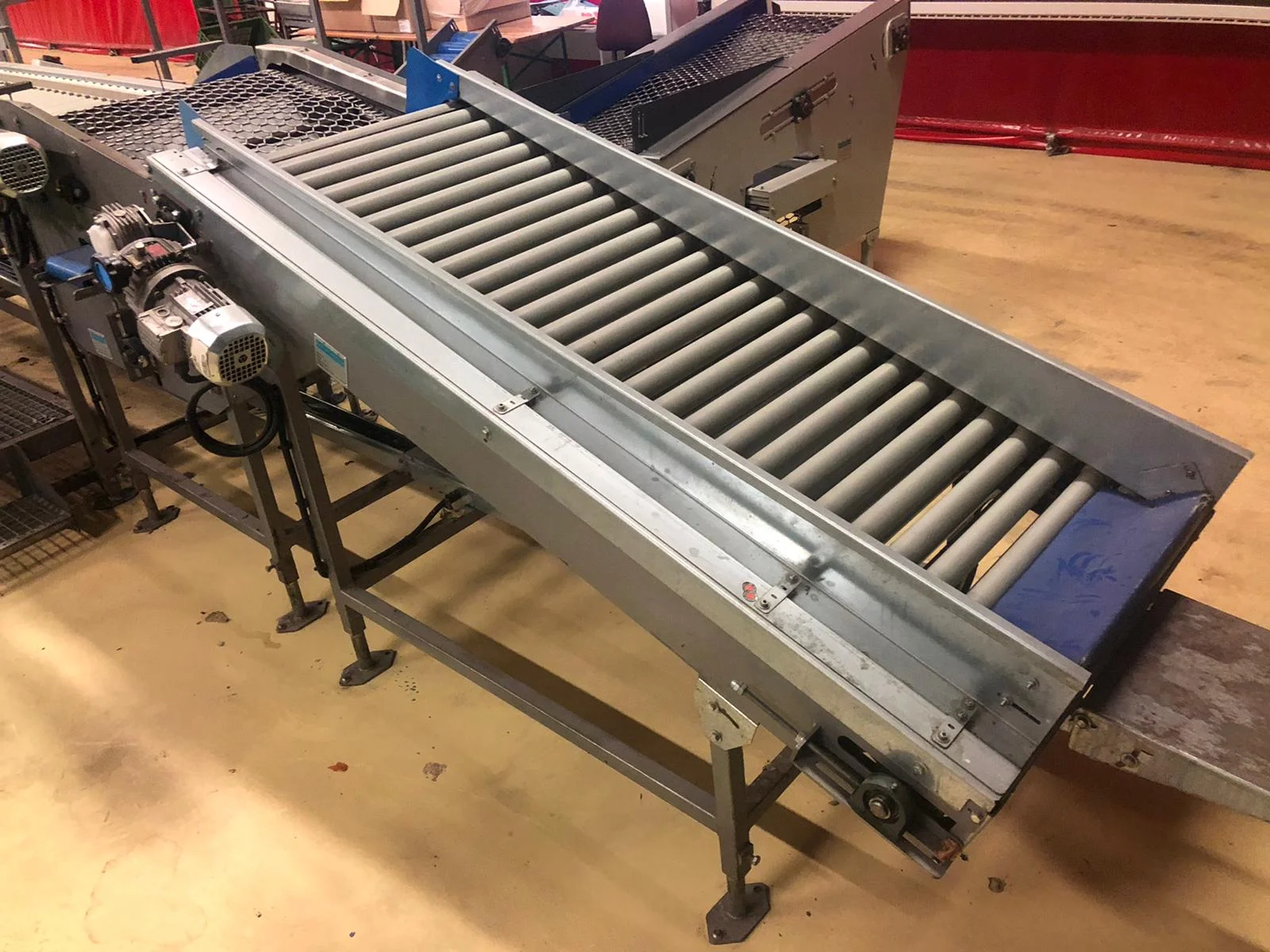

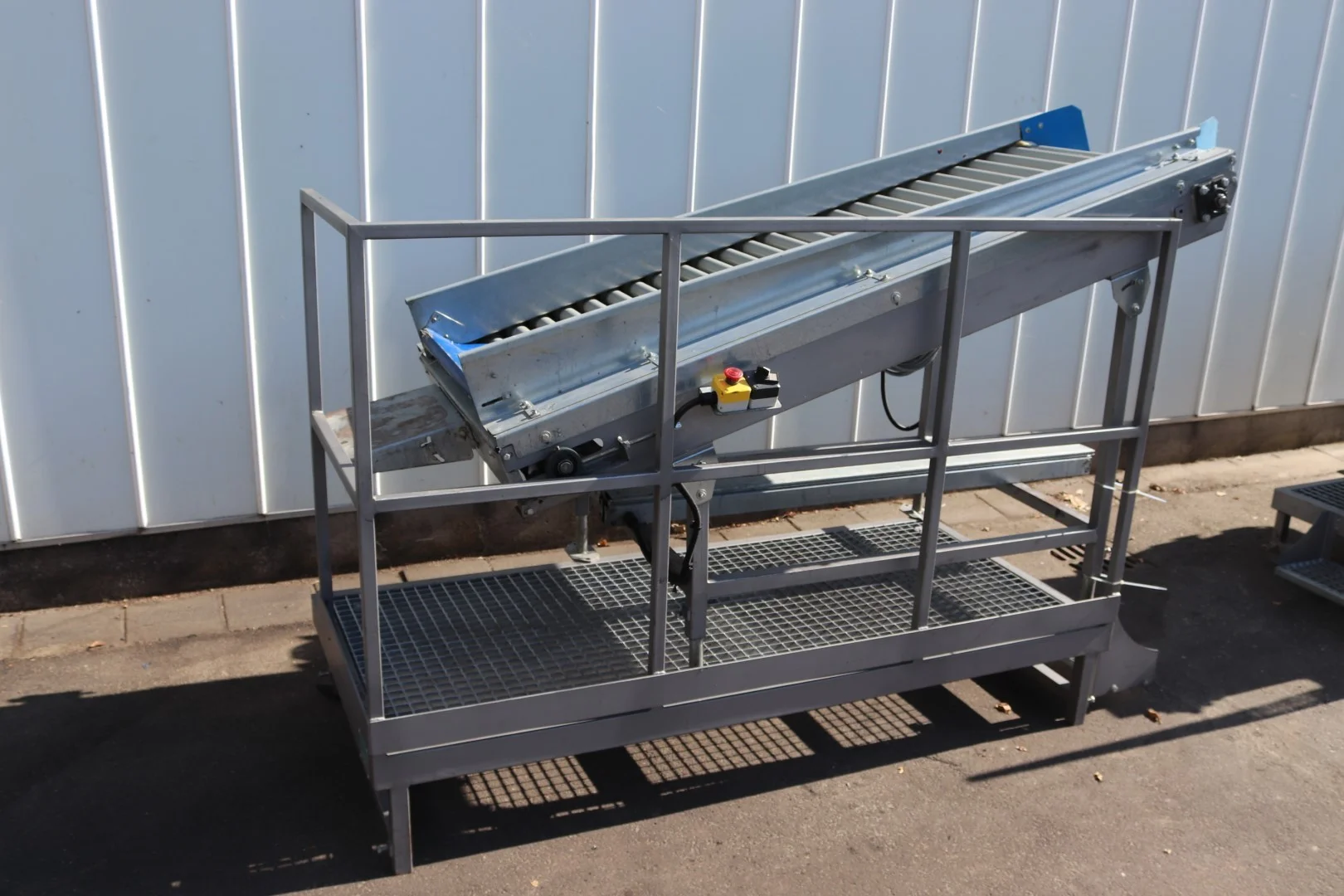

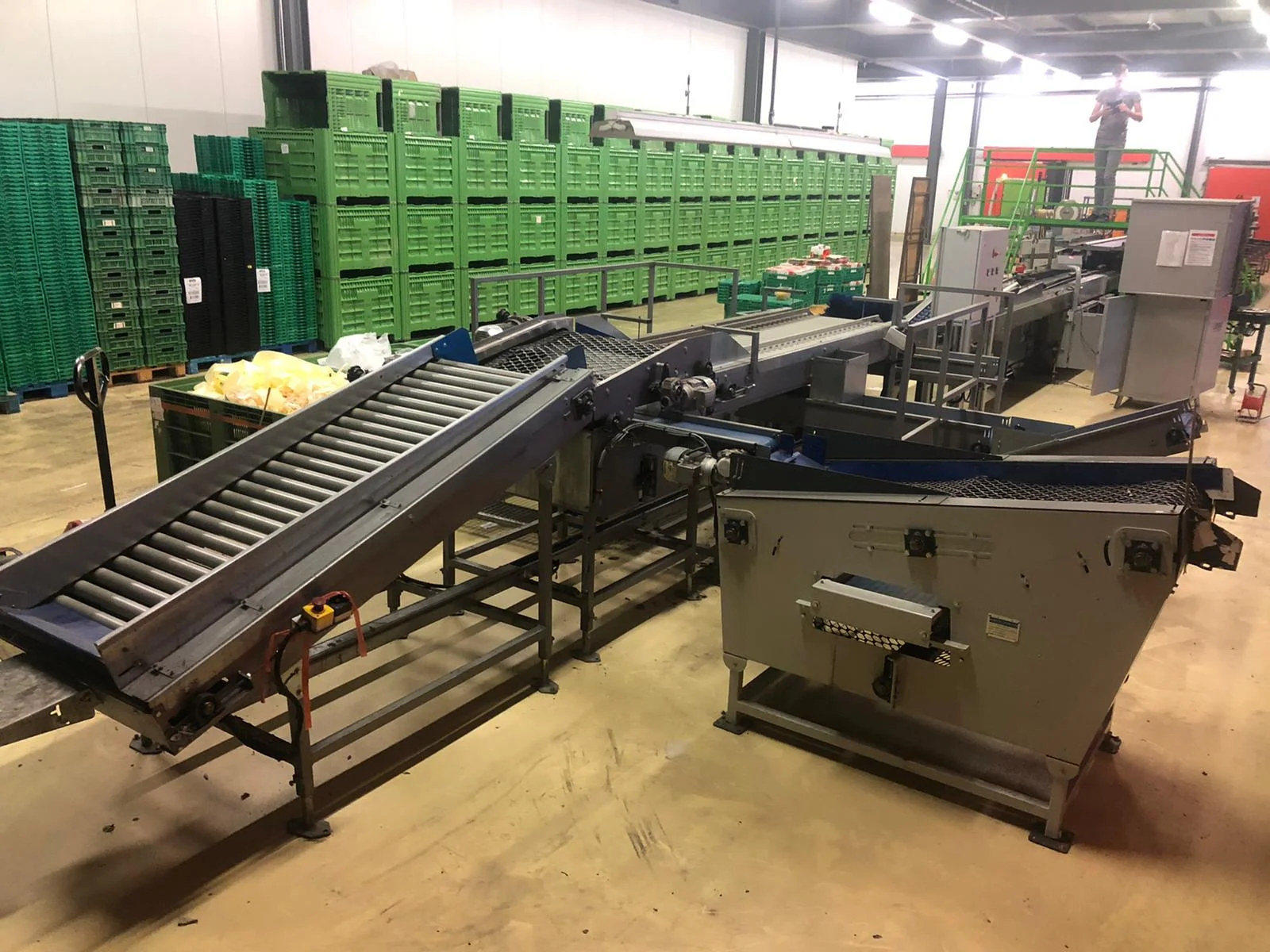

• Roller elevating conveyor 190 x 70 cm, effective width 62,5 cm

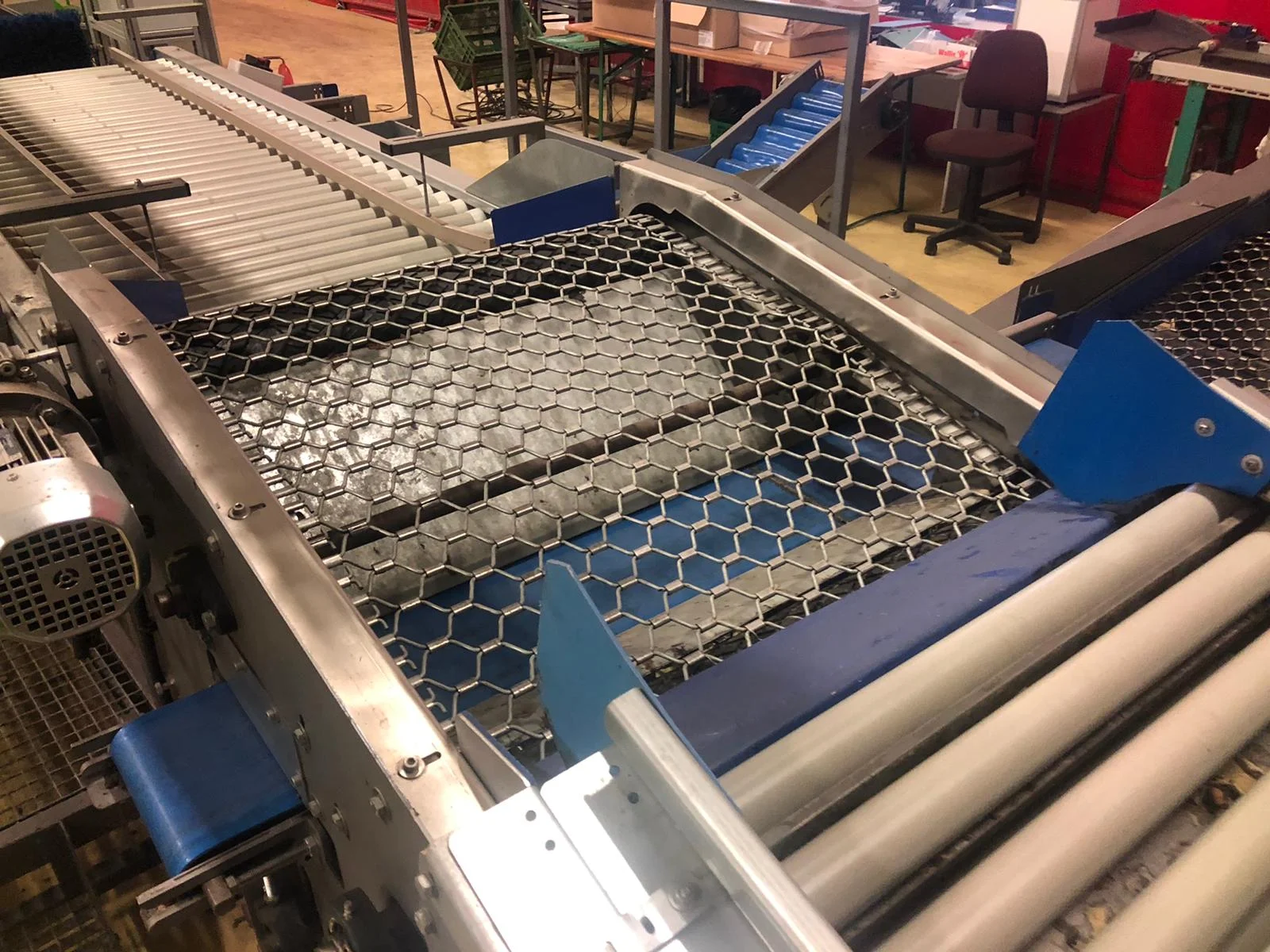

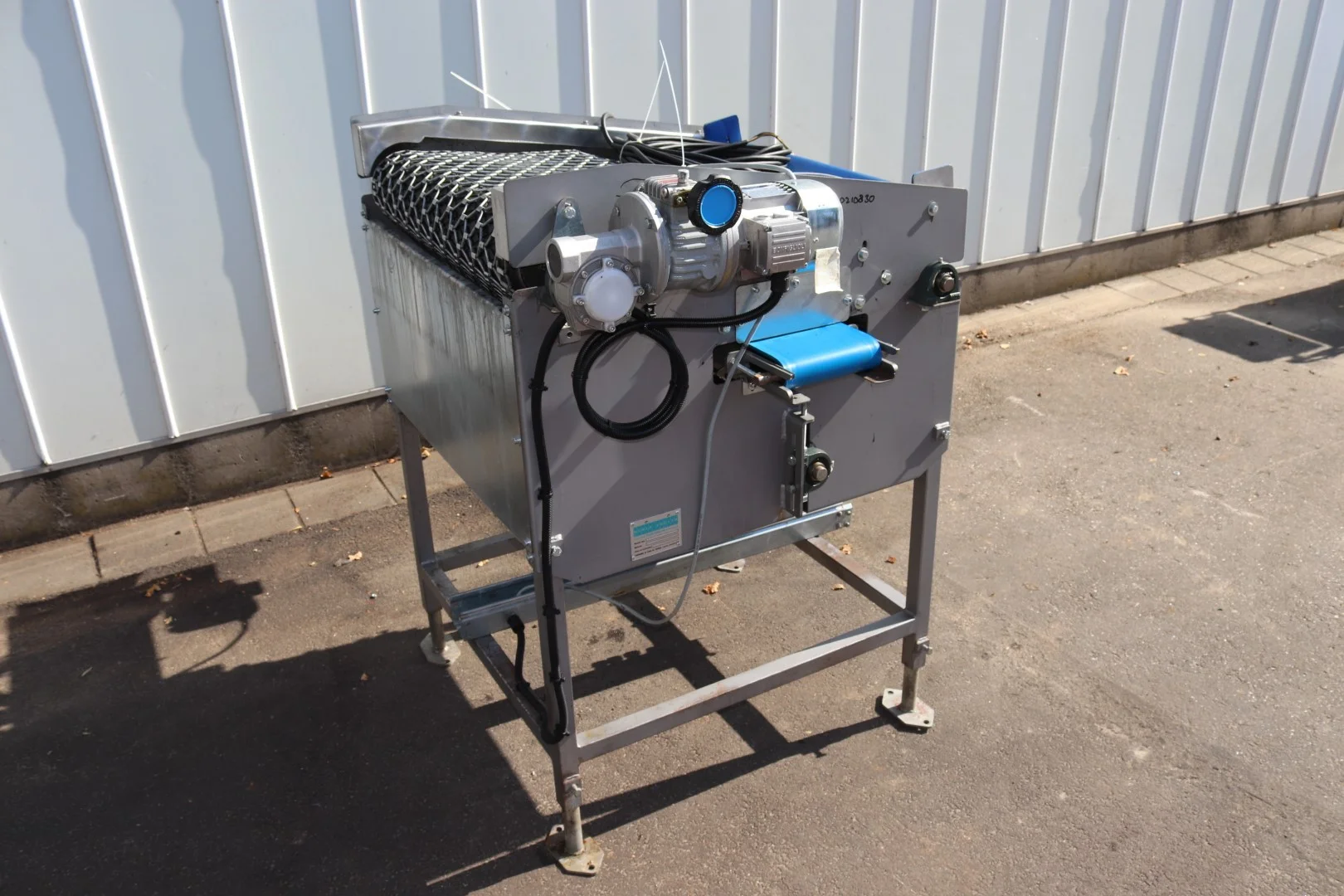

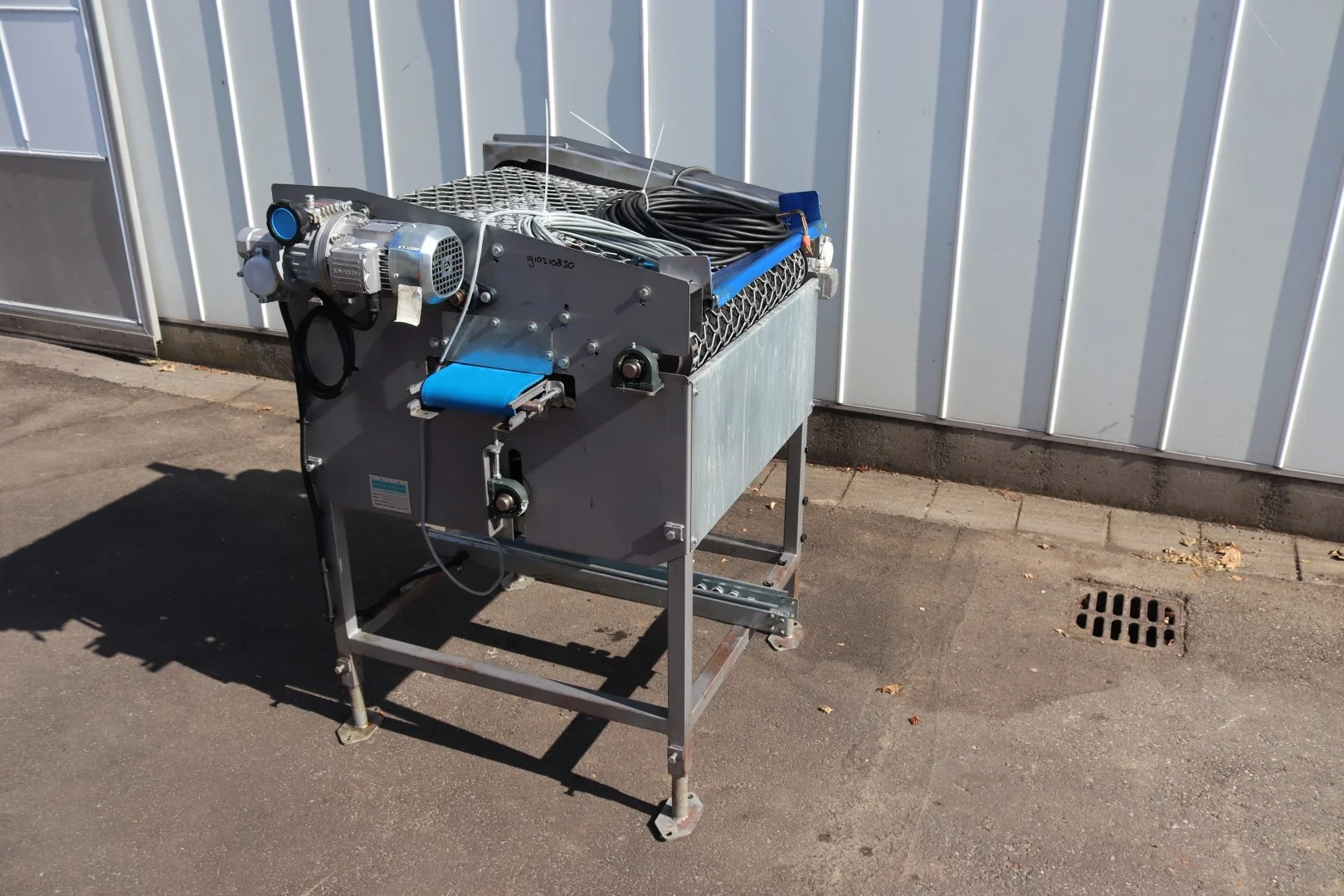

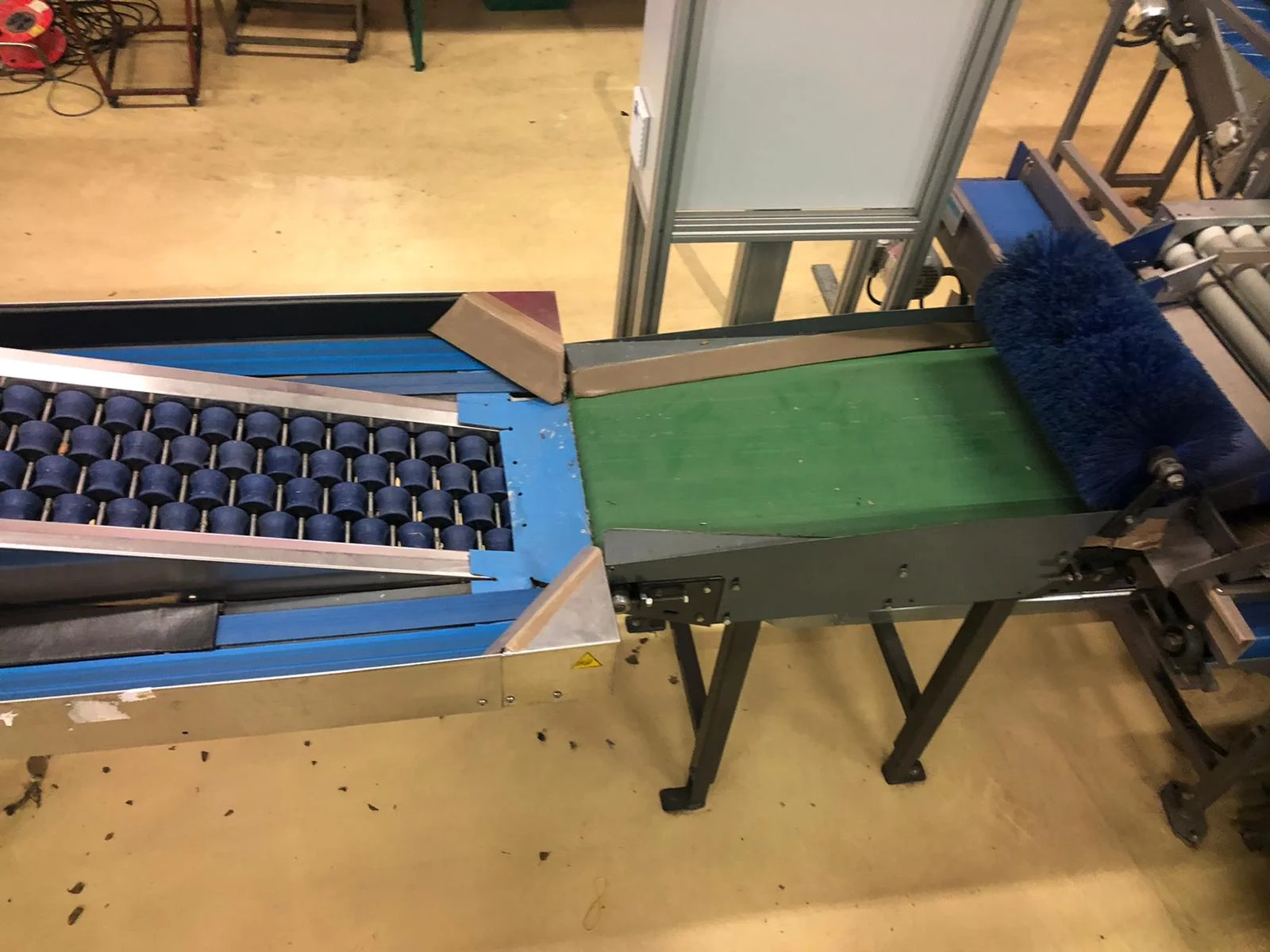

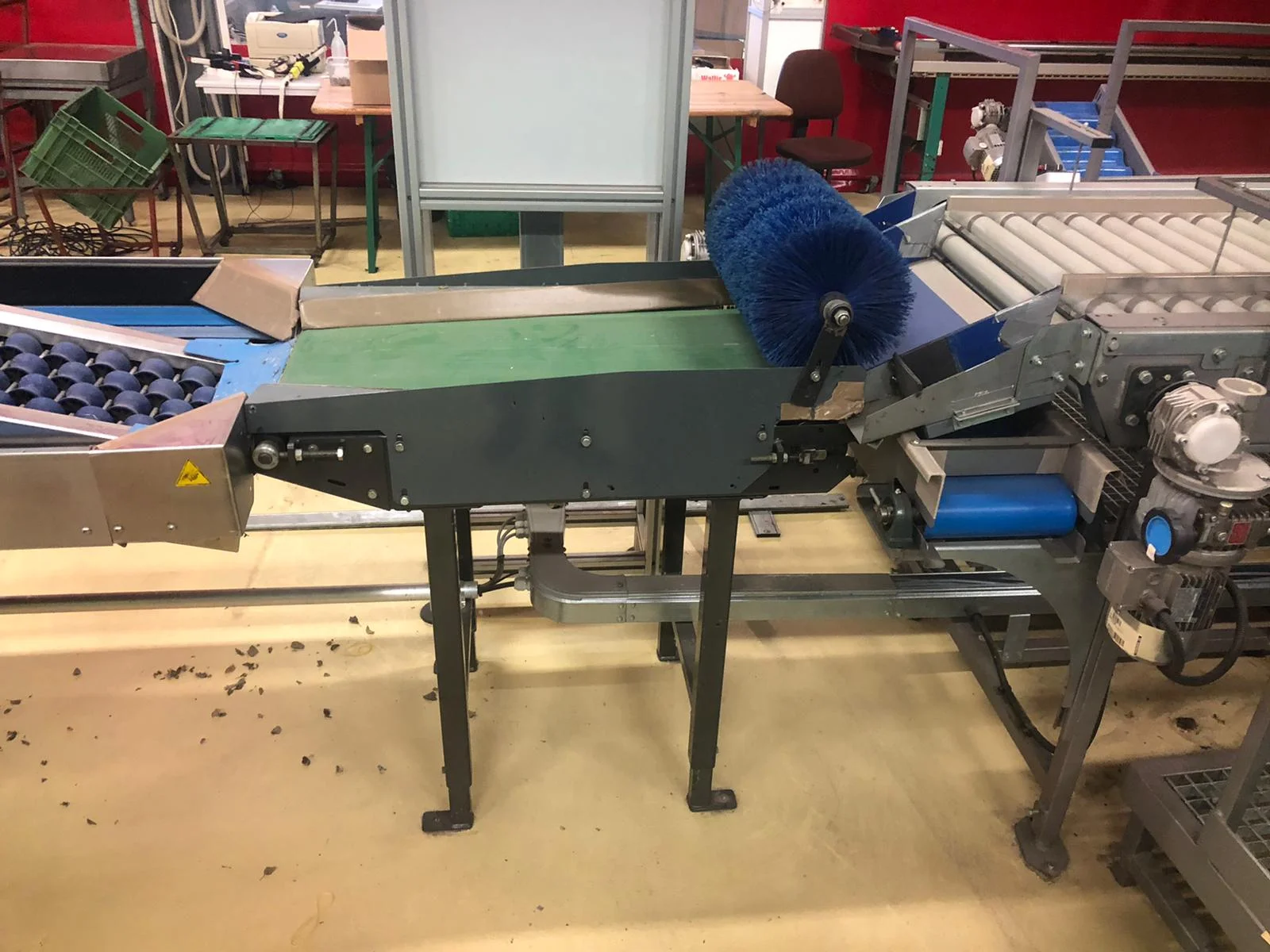

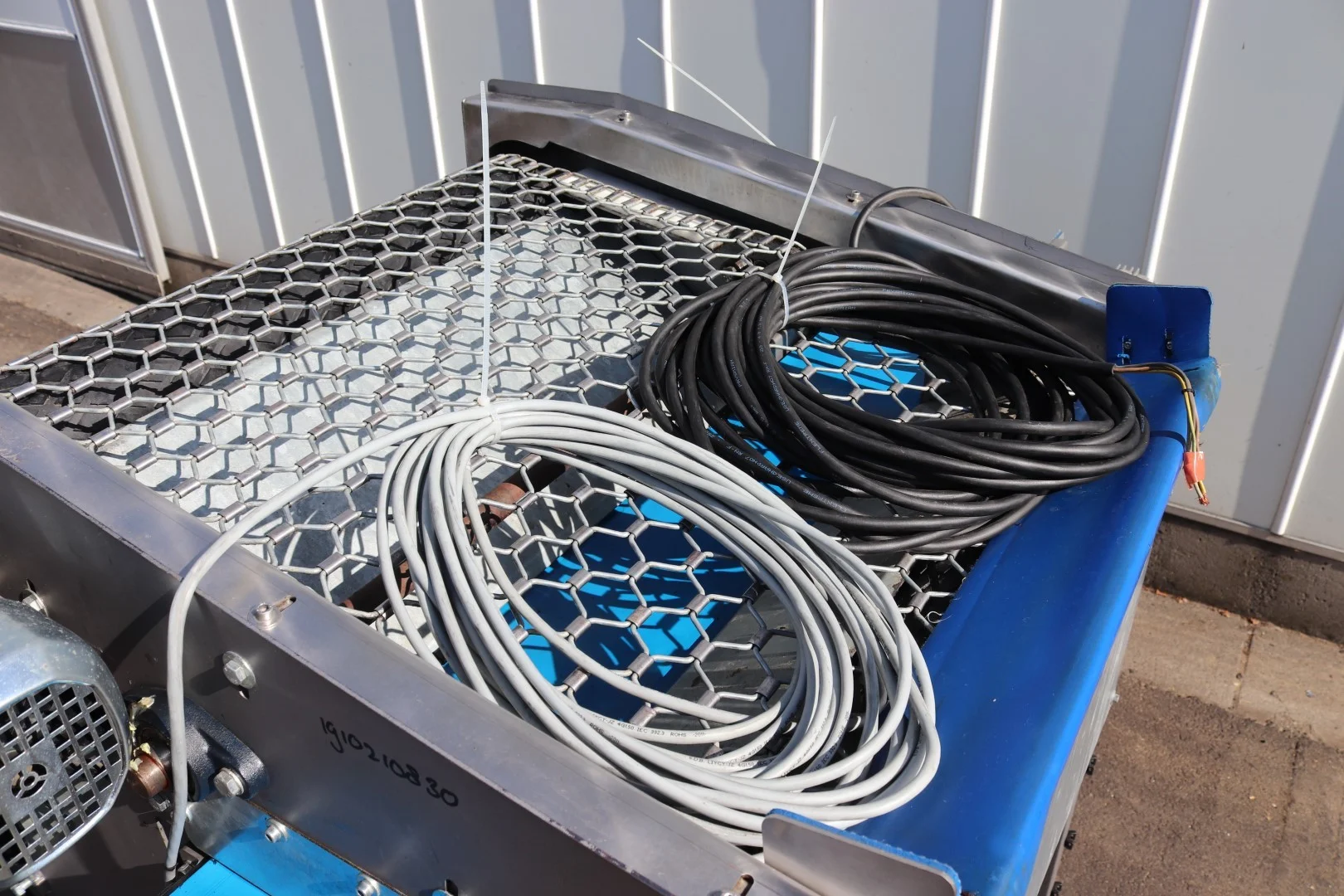

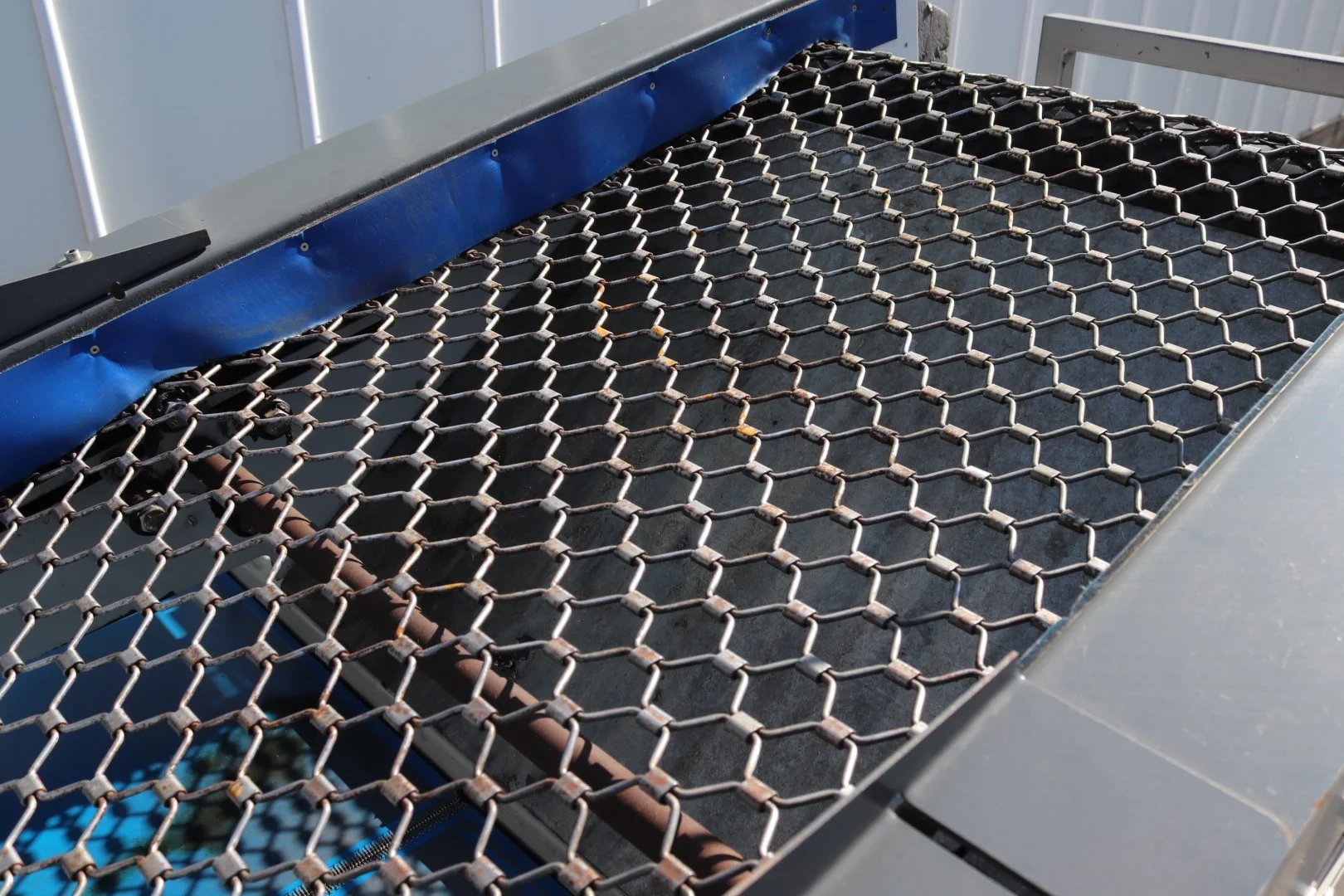

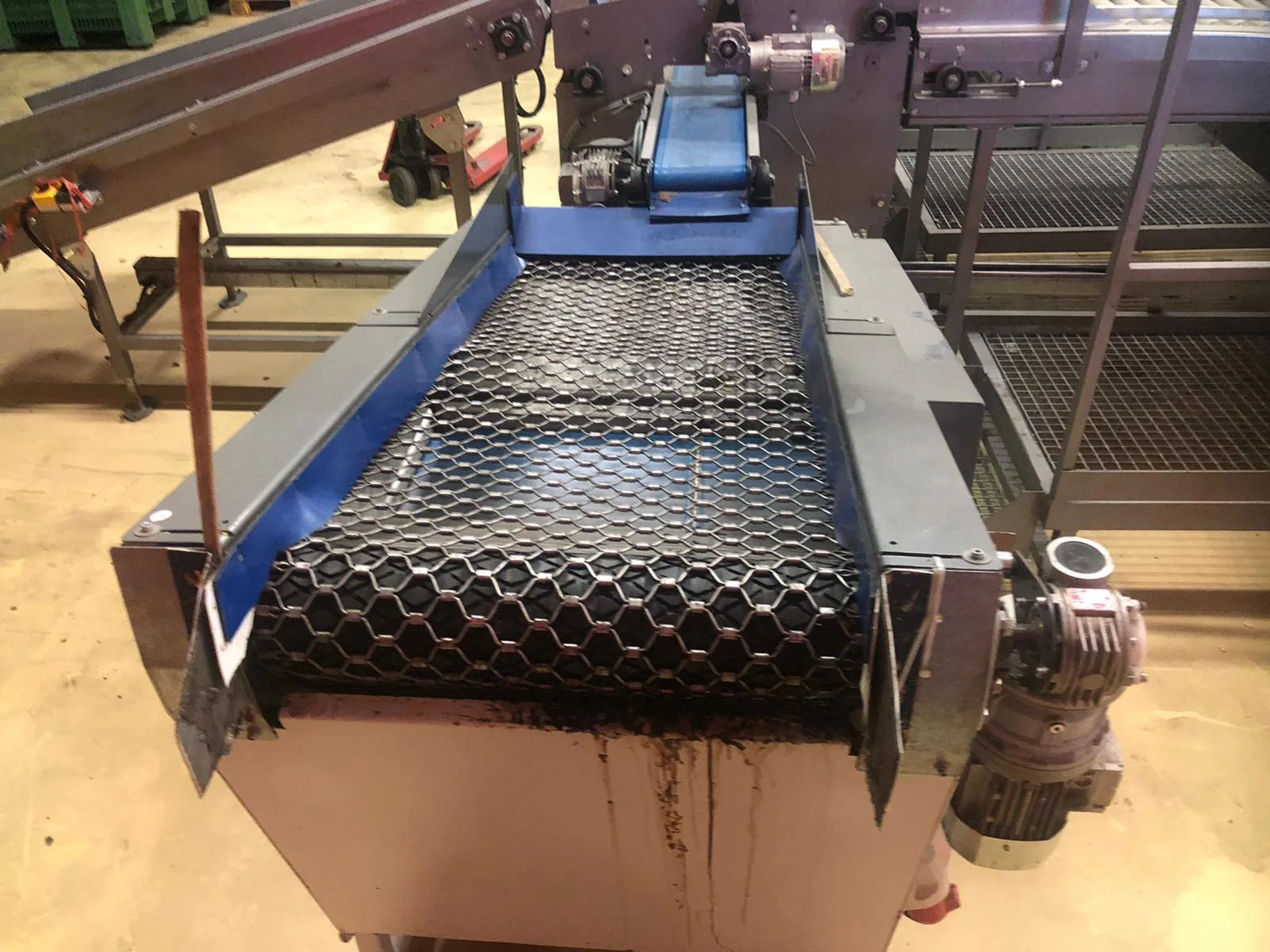

• 2 x small fruit eliminator with mesh-like conveyor (web pre-sorter)
  • Pre-grader 1 for sorting out products up to 40 mm
    • Complete with discharge conveyor 155 x 20 cm
  • Pre-grader 2 for sorting out products up to 35 mm
    • Complete with discharge conveyor 100 x 35 cm

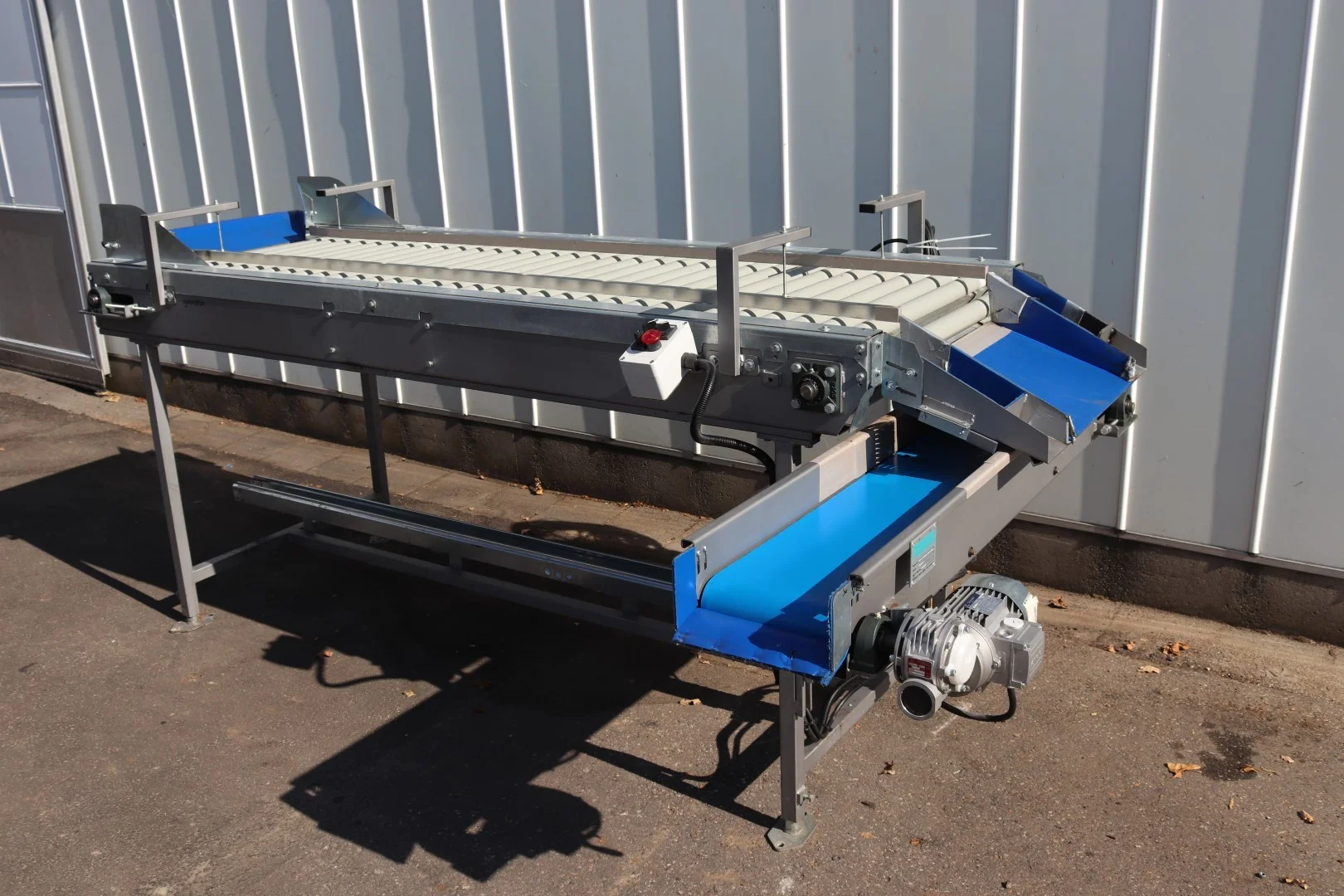

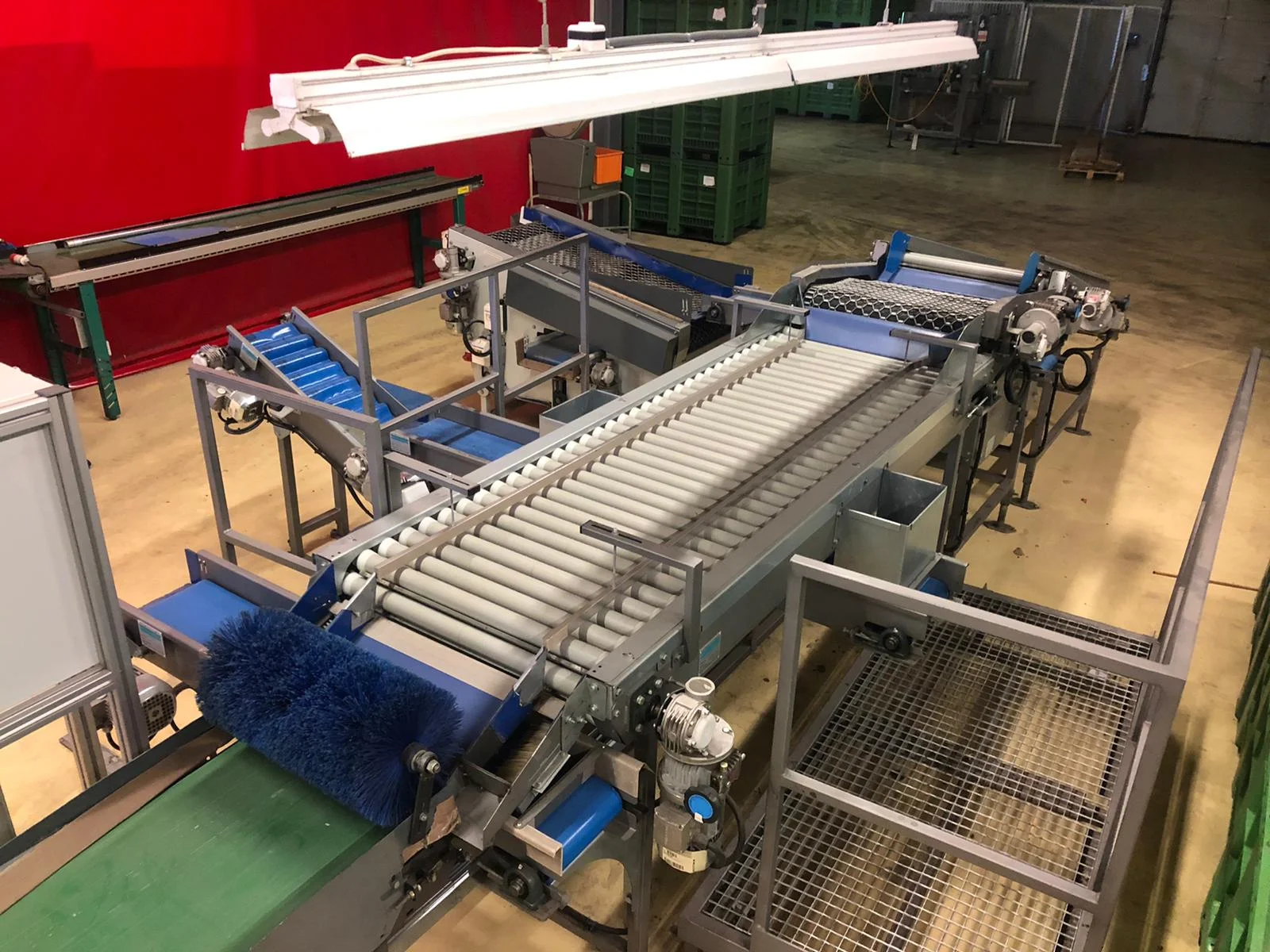

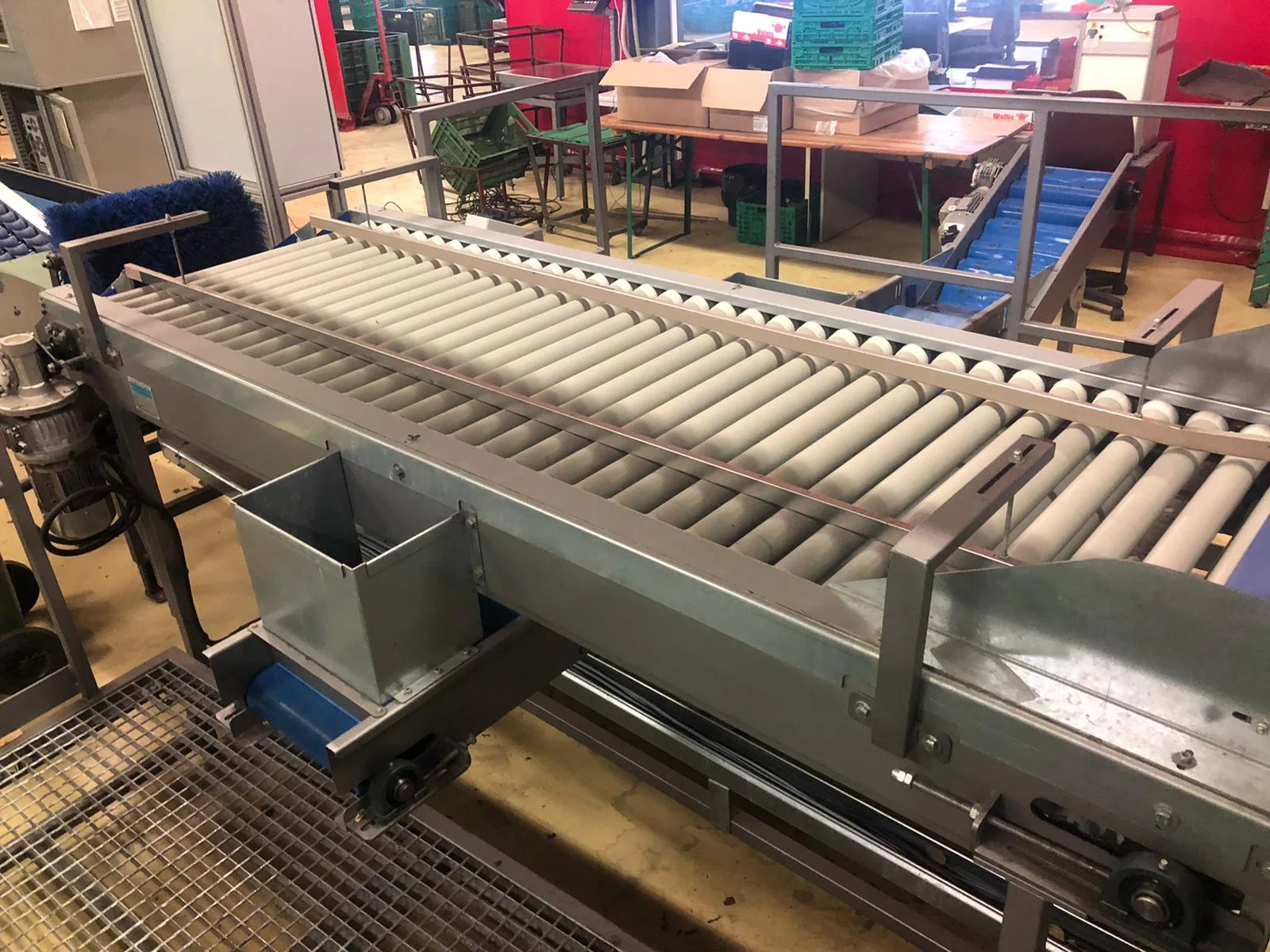

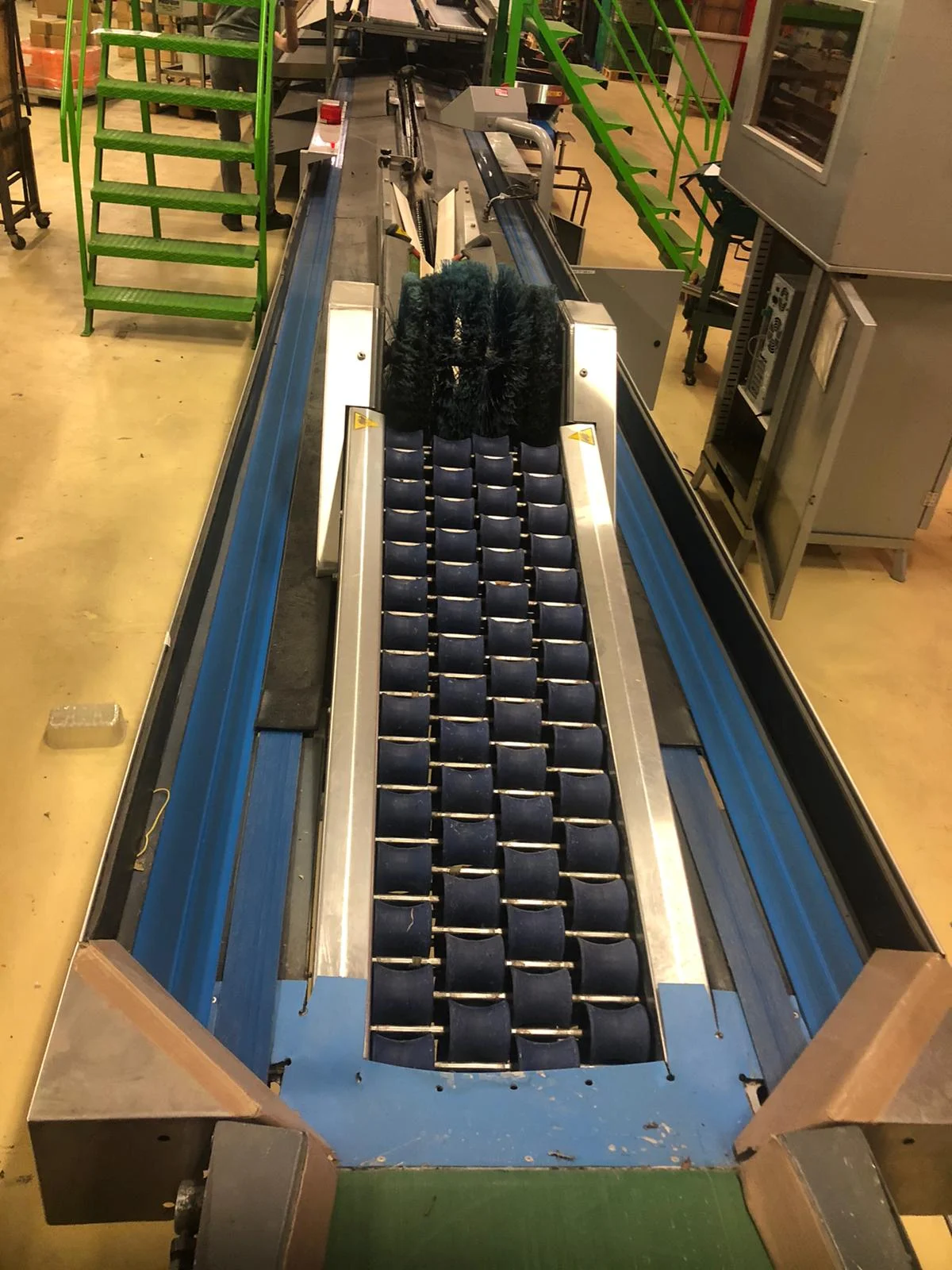

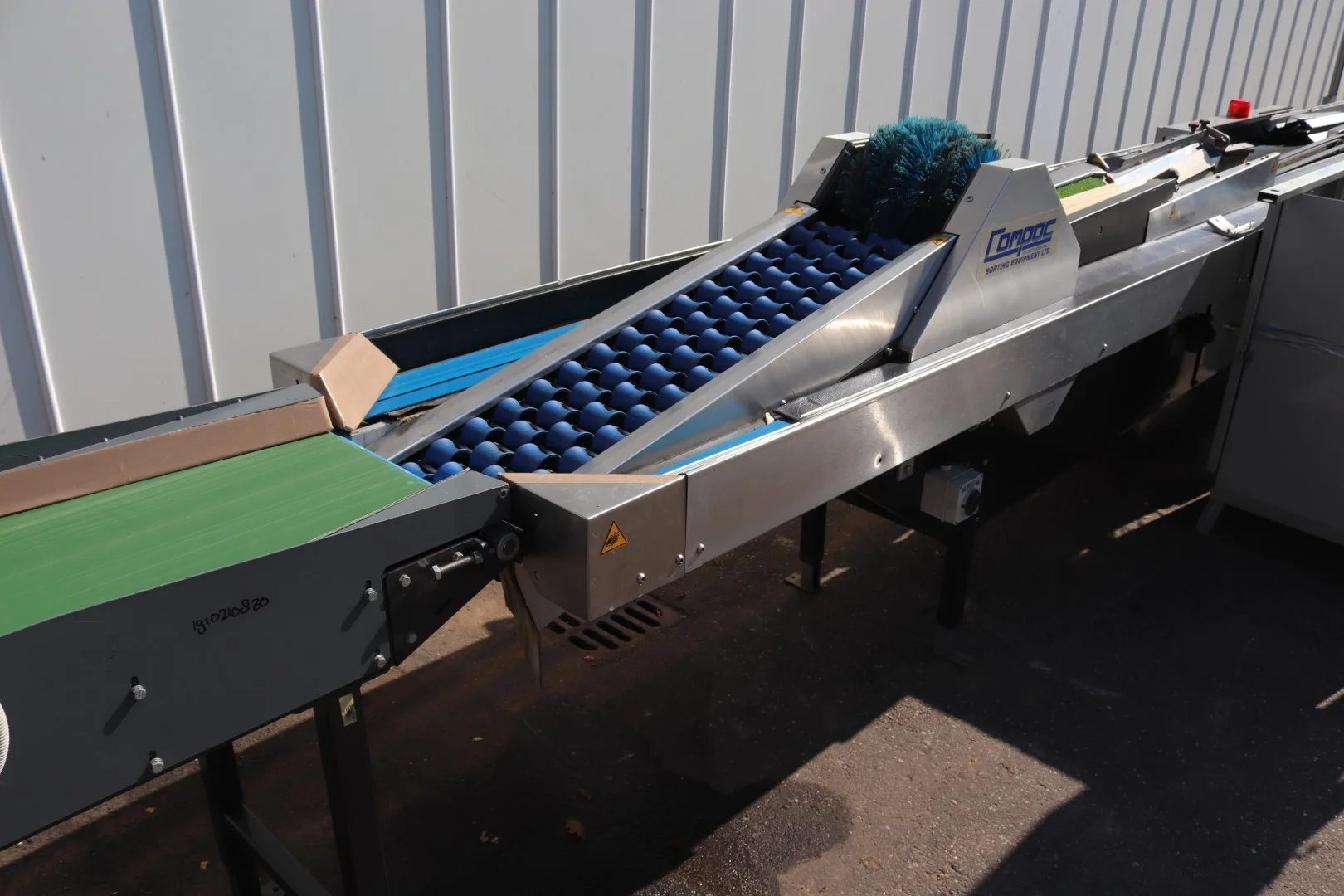

• Roller inspection conveyor 240 x 70 cm, for two grades
  • Complete with 2 discharge conveyors

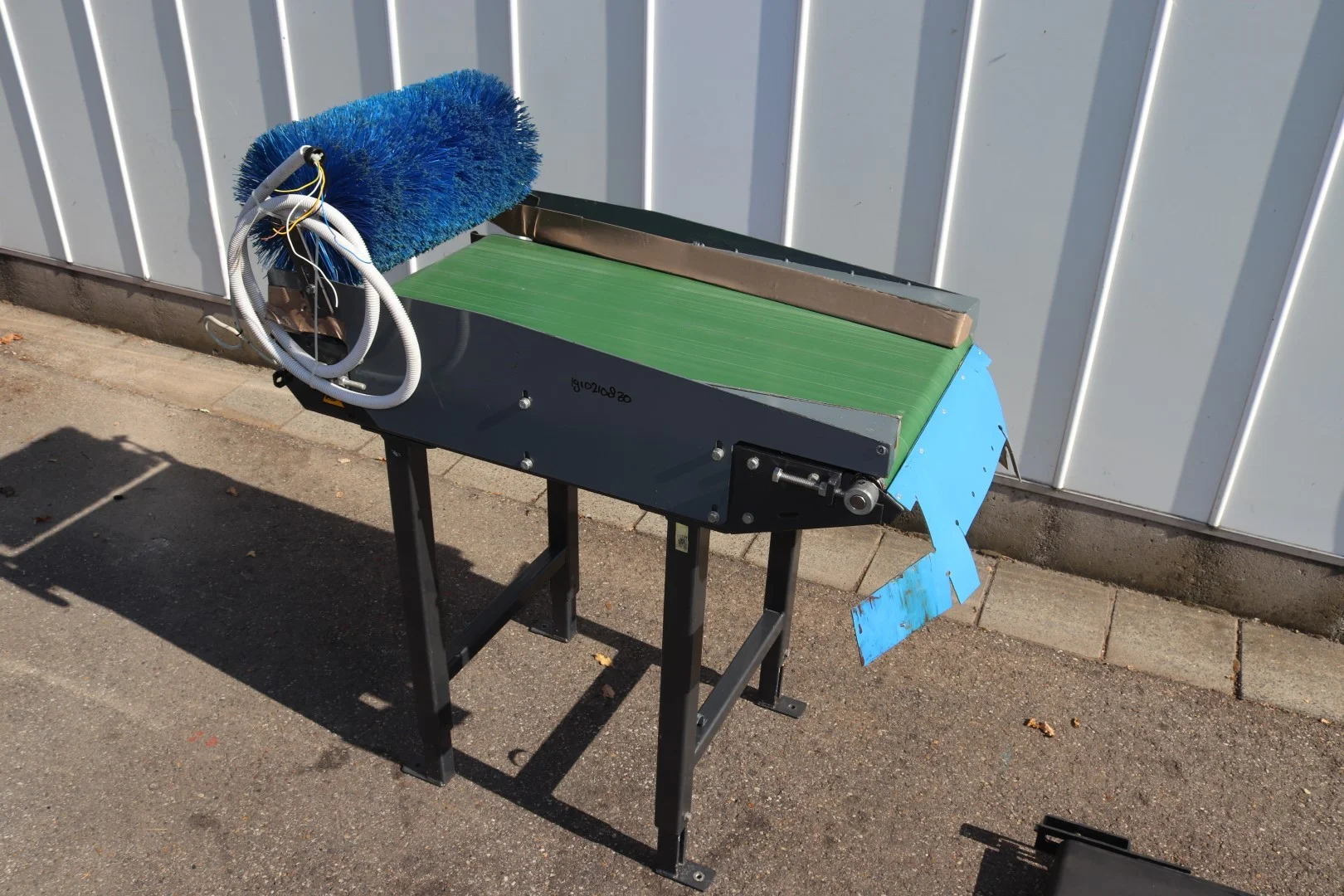

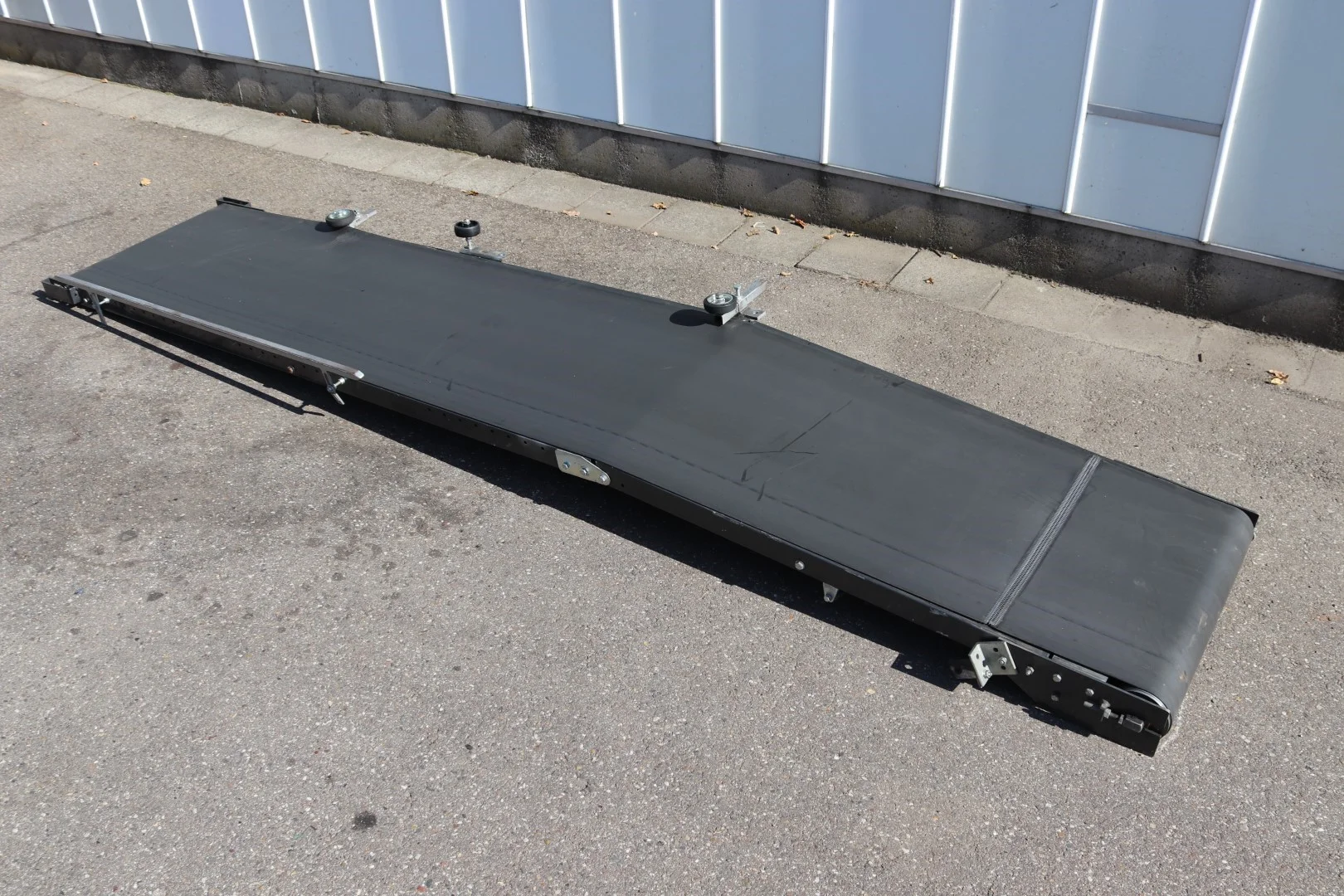

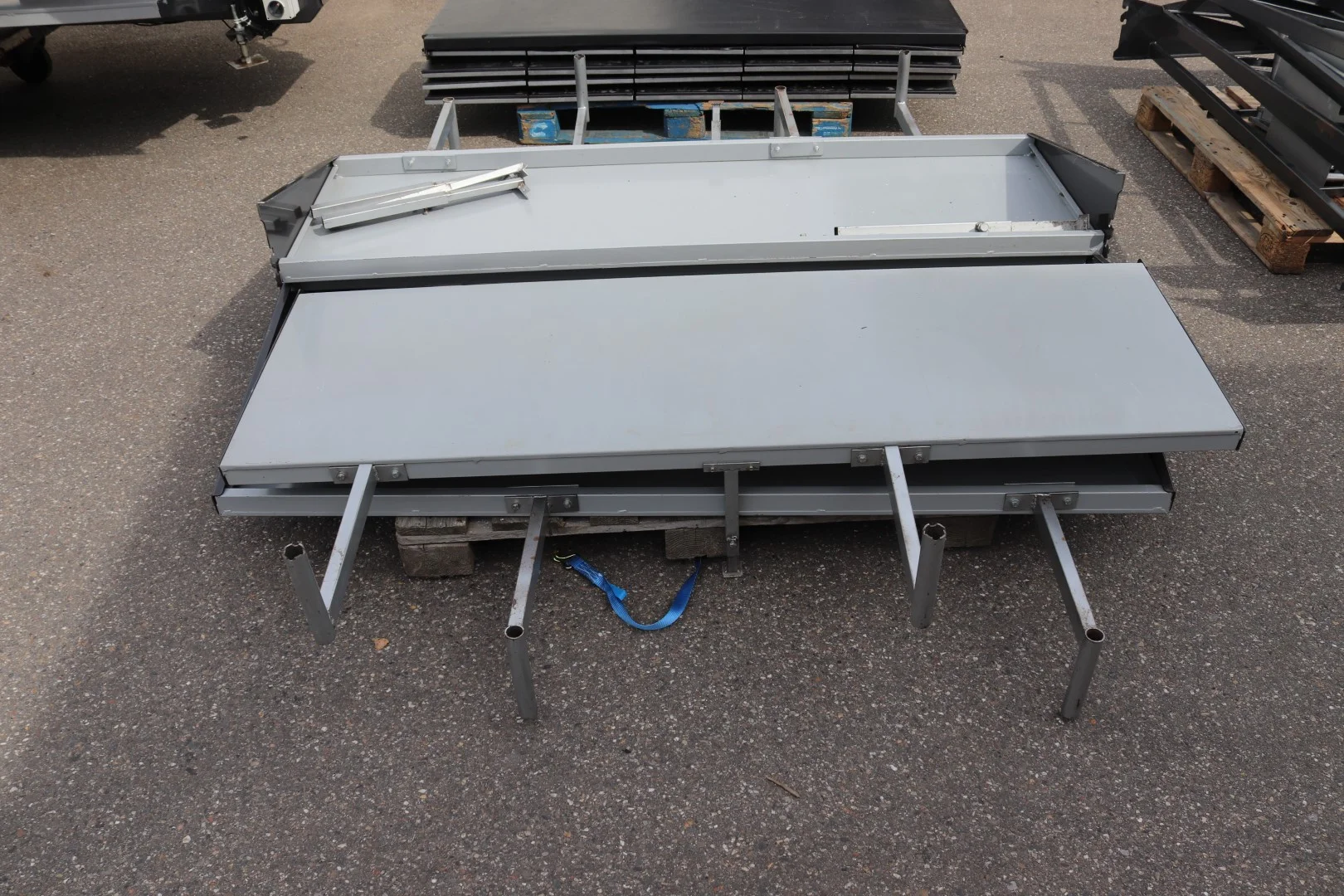

    • Flat conveyor 150 x 25 cm

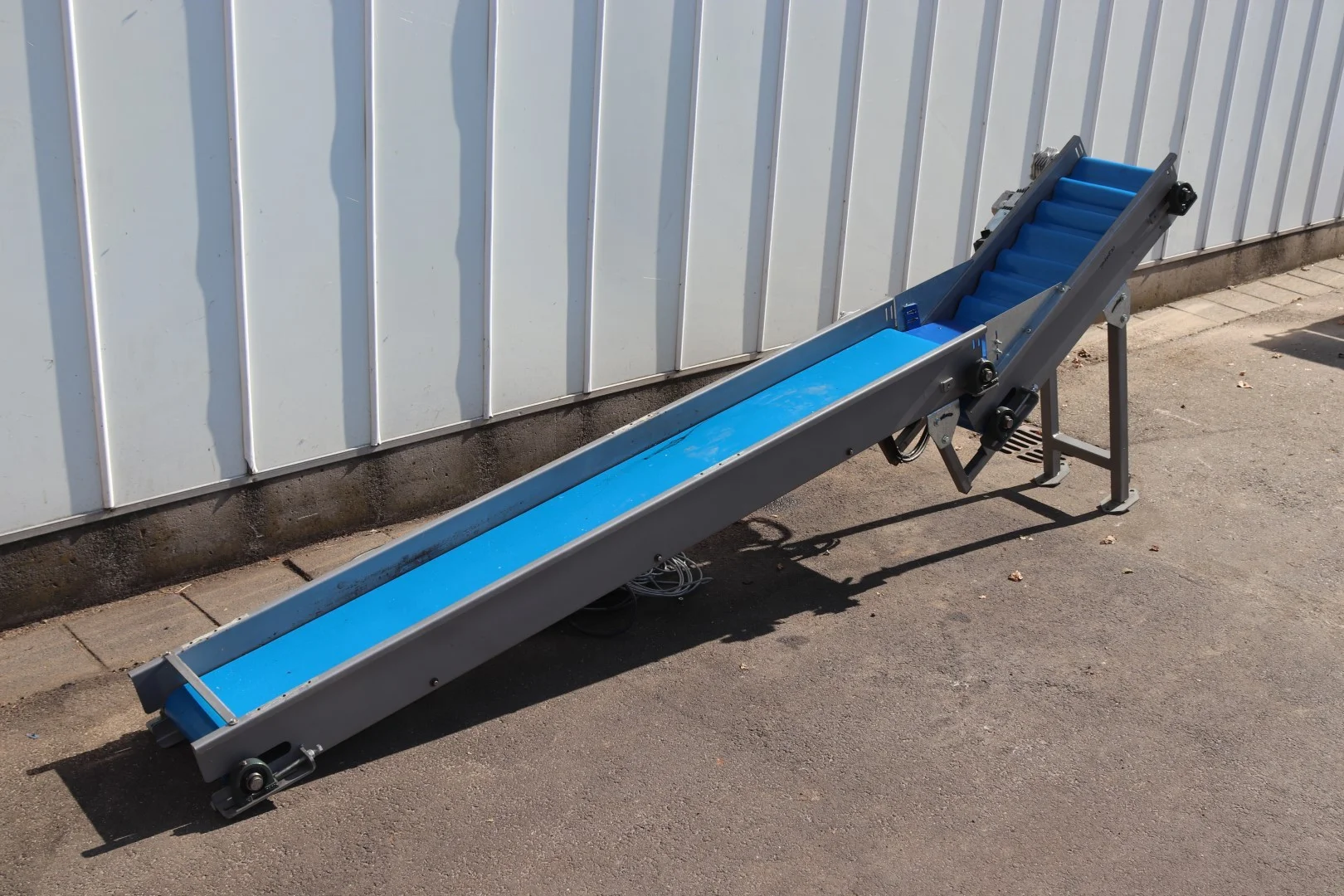

    • Flat conveyor 210 x 30 cm, incl. elevator 95 x 30 cm

The pre-sorting line is constructed in the year 2012

Machine is still in a technical good condition! Because it is only used in a short season of 4 weeks per year.
The previous owner stopped with this business.

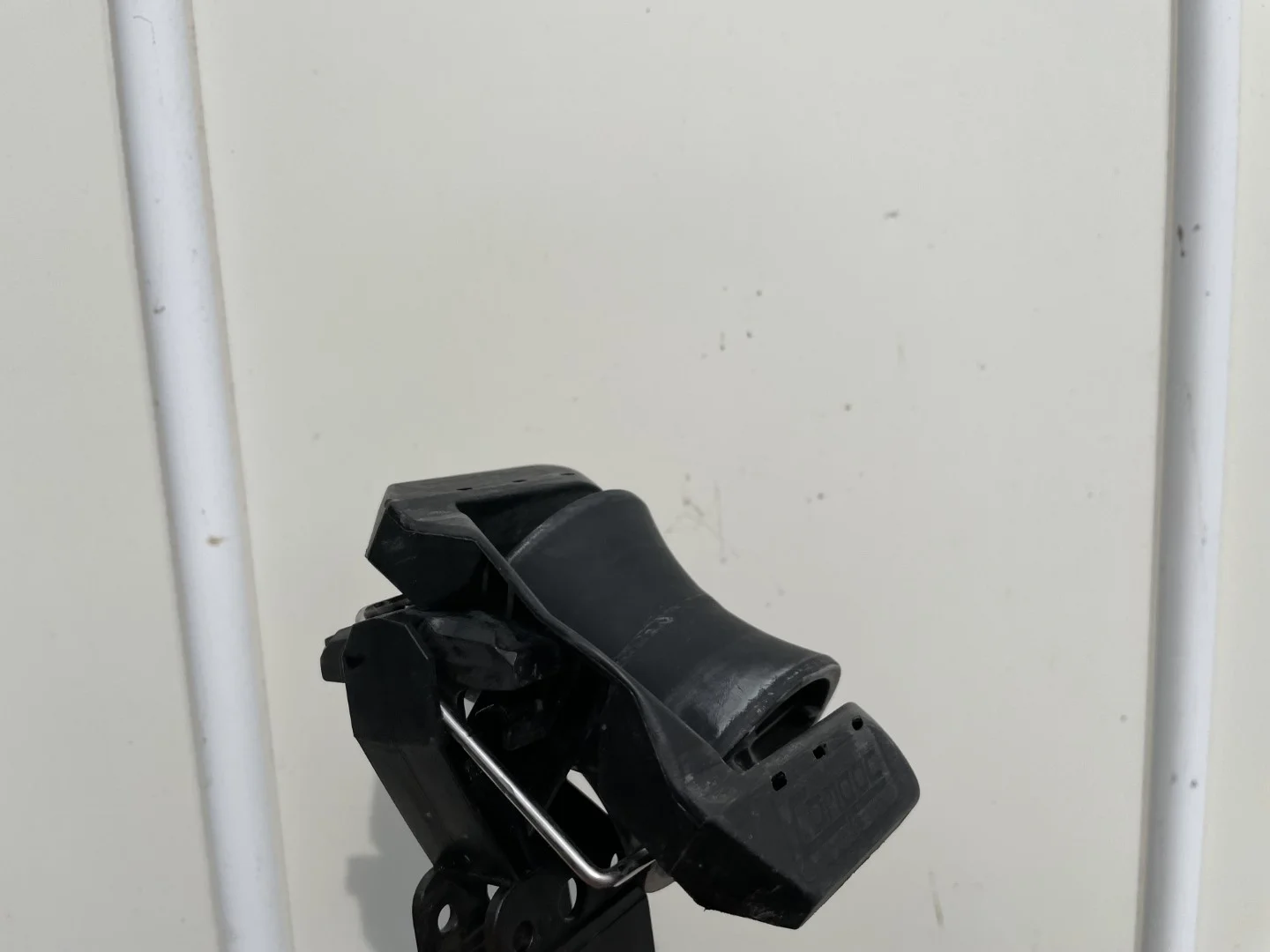

The Compac carriers feature four individual weigh points for improved accuracy and are specifically designed for high speed weighing of produce from 25 to 2000 grams.
Each carrier and load cell runner is measured for over 95% of the weigh cycle, providing maximum opportunity for precision weighing, even at high speeds of 10-15 pieces of produce per second, per lane.

Currently we offer the sorting machine with the pre-sorting line for the above mentioned price, the Compac sorting machine without the pre-sorting line can be sold for €13.500,-. The pre-sorting we currently don't sell loose in single pieces.
