Description:

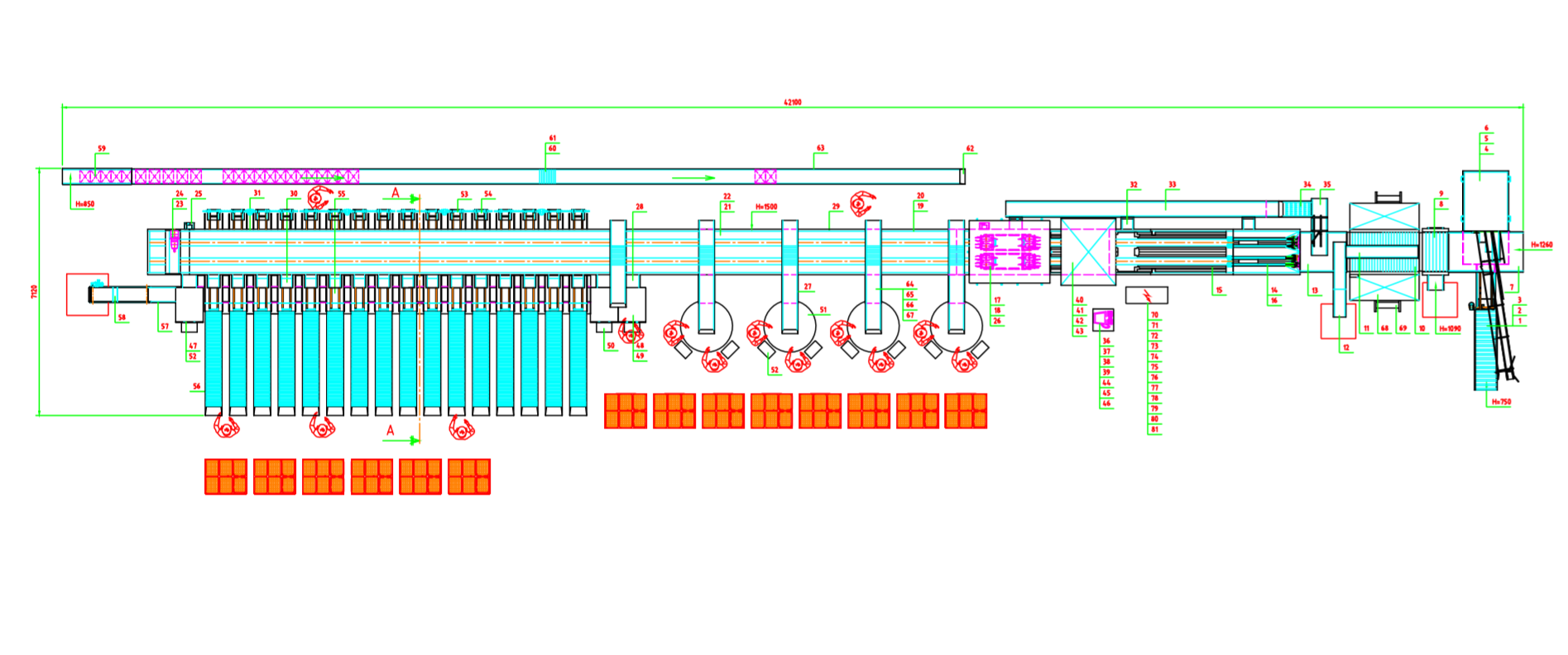

Greefa Smartsort 4 lane grading line

Greefa SmartSort 4 line sorting machine

• Grading on colour, weight and measurements
• 4 line
• 20 exits
• 16 automatic weighing and box filling
• Special transfer unit facilitates speed as much as fruit-friendliness
• Complete with box supply system
• Product dimensions: min. 40 mm - max. 120 mm.
• Capacity +/- 6000 kg / hour for tomatoes

The Greefa Smartsort can be used for various type of fruit and vegetables, such as (beef) tomatoes, bell peppers, citrus fruit, kiwis and stone fruits.

This grading line is from 2014 and is still in very good condition.
Machine is has only done 1500 tons of tomatoes for 3 years. After that the company has stopped produce loose tomatoes, because he switched to vine tomatoes.

Specifications automatic continuous box tipper, CKKL:

• Capacity max.                           : 1200 boxes/hour
• Length of box min./max.           : 470/600 mm
• Width of box min./max.            : 255/400 mm
• Height of box min./max.           : 150/320 mm
• Evacuation height min./max.     : 1200/1350 mm
• Evacuation width                       : 750 mm
• Required compressed air            : 6 bar
• Air consumption                         : 20 l/min (ANR)

Specifications continuous filling units:

• Length of box min./max.             : 300 or 600mm
• Width of box min./max.              : 400 mm
• Height of box min./max.             : fixed height, within 150 - 250mm limit
• Stated dimensions are standard for boxes of 400x600mm and 400x300mm

The machine will be offered in the location where it is now located.
Disassembling and loading of the machine are not included. This can be organized on request.

A video of this machine working can be send to you on request.
