Description:

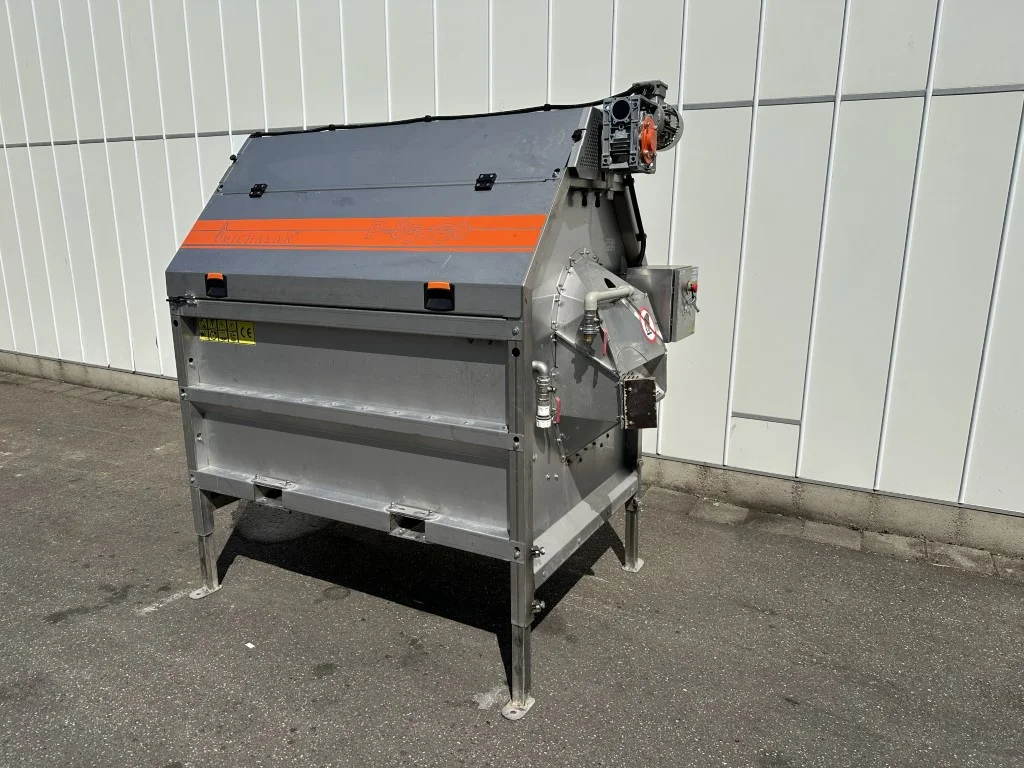

Michalak P-85-150 barrel washing machine

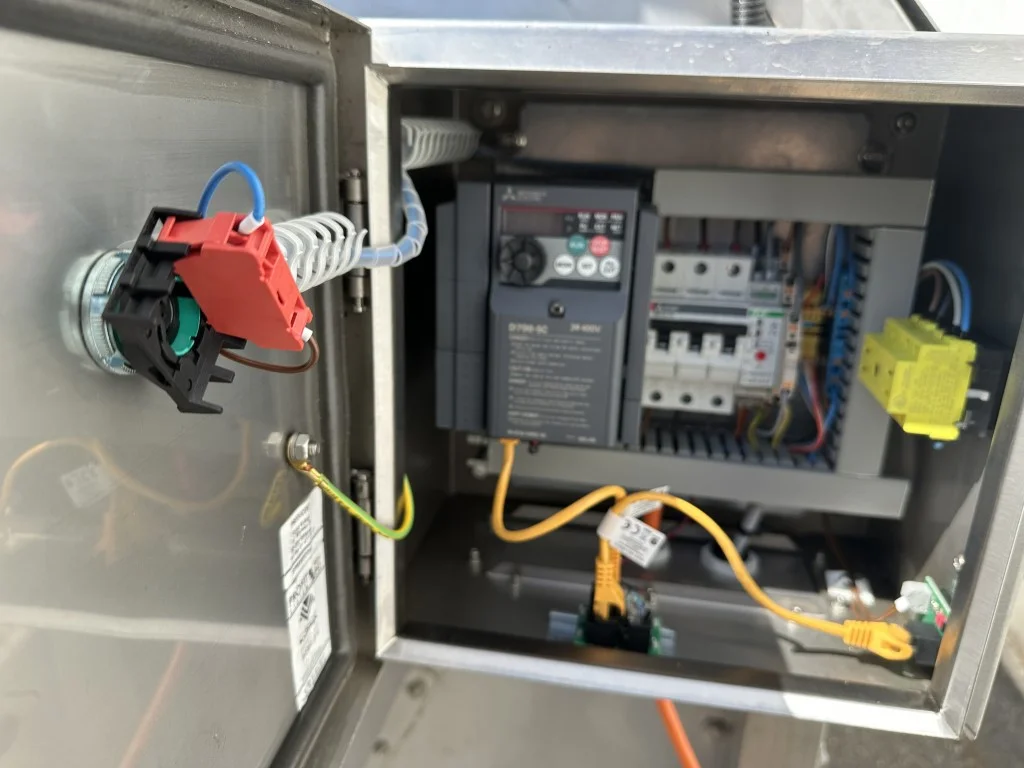

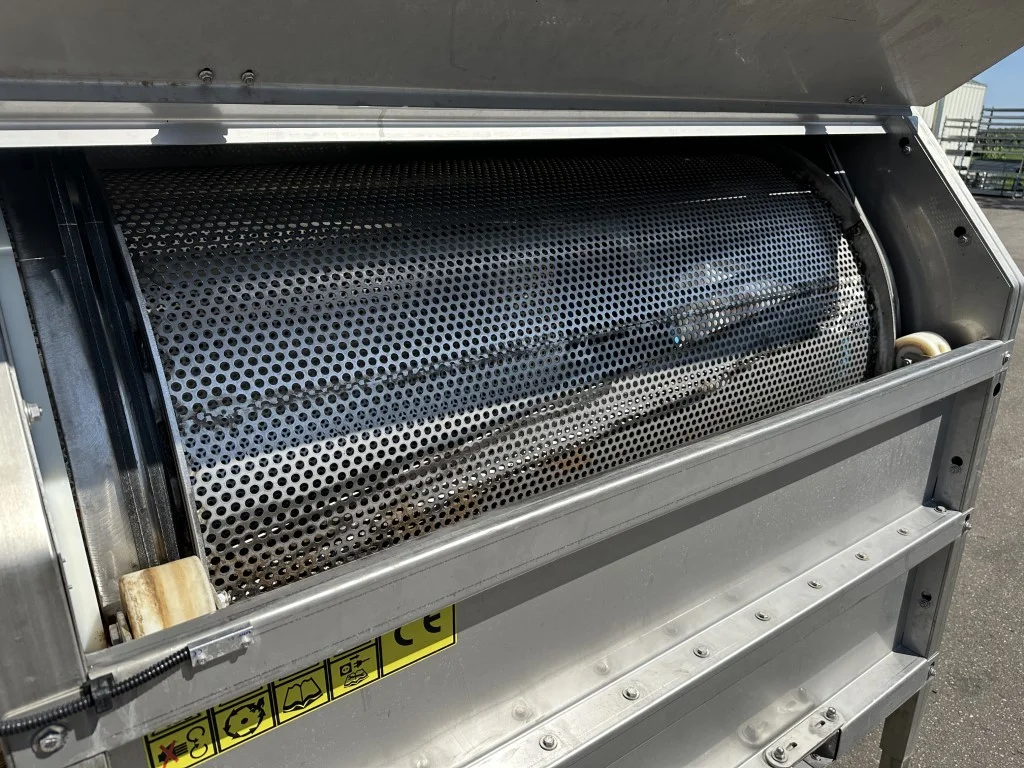

This machine is intended for washing root vegetables in a round metal perforated drum. Washing process can take place in two ways: water bath (the drum is submerged in water) or continuous spraying with clean water. P-85 rinsing machine drum diameter: 85 cm; drum length: 150 cm. External side shields are opened, ensuring easy access to the drum for cleaning purposes. The drum is driven with belts, placed on its both sides, what guarantees optimally long time of using the machine. The machine, in a standard version, is equipped with an inverter for operating speed adjustment; it allows to adjust it to the requirements of a given product, also vegetables of a sensitive structure or skin. The rinsing machine outlet has a special structure with a drip metal sheet and ensures higher work comfort to users. In order to achieve optimal results, the machine is coupled in washing lines with brushing devices (bath type or flat) which will additionally finish washing and polish vegetables.

Basic equipment

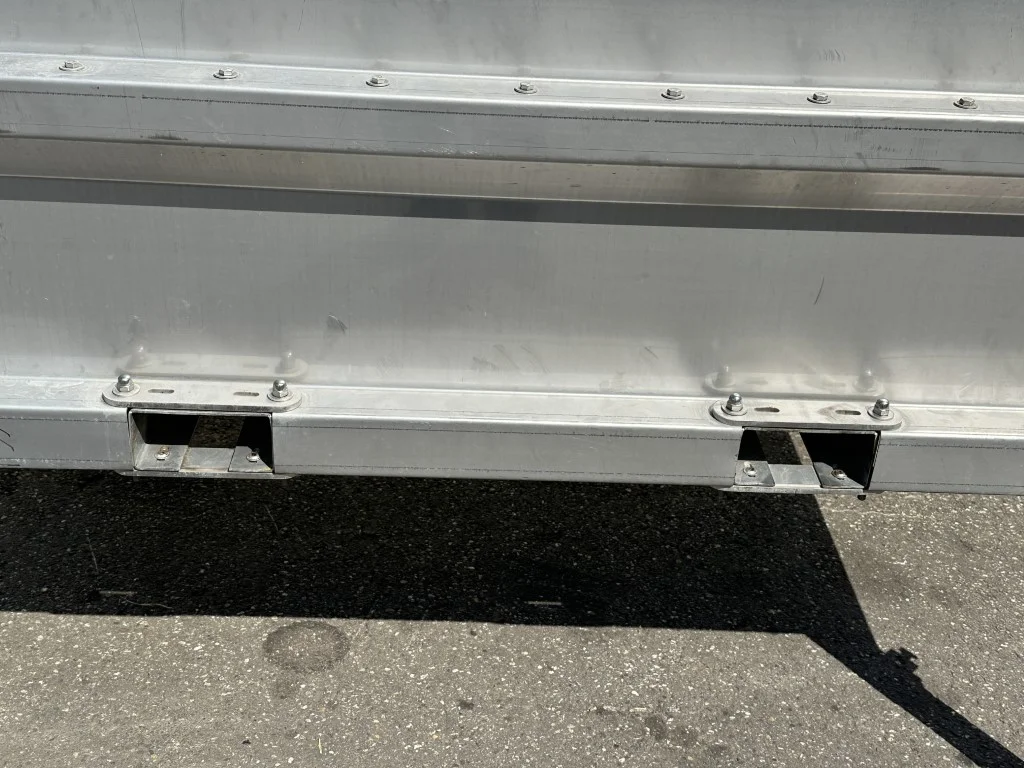

• Stainless steel construction

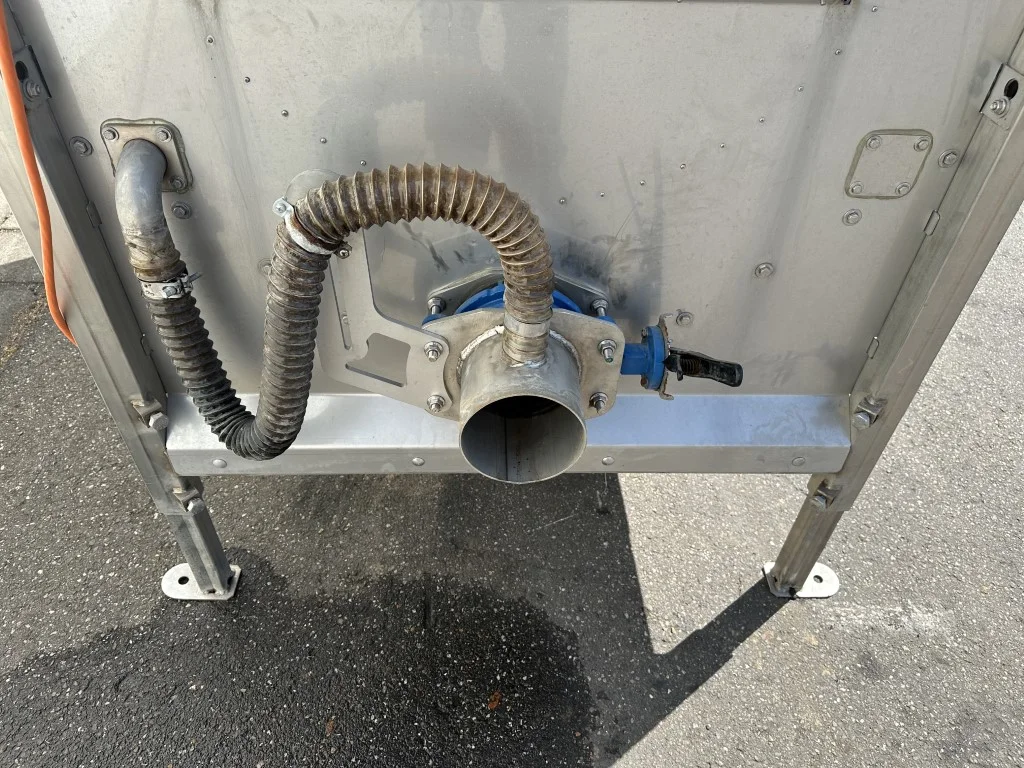

• Drain valve DN 150 opened manually
• In a water bath (gentle and water-saving)
• Bath volume approx. 270 litres
• Washes carrots, parsnips, beets, and root vegetables
• Drum diameter: 850 mm
• Drum length: 1500 mm
• Dimensions (LxWxH): 2.20 x 1.30 x 1.70 m

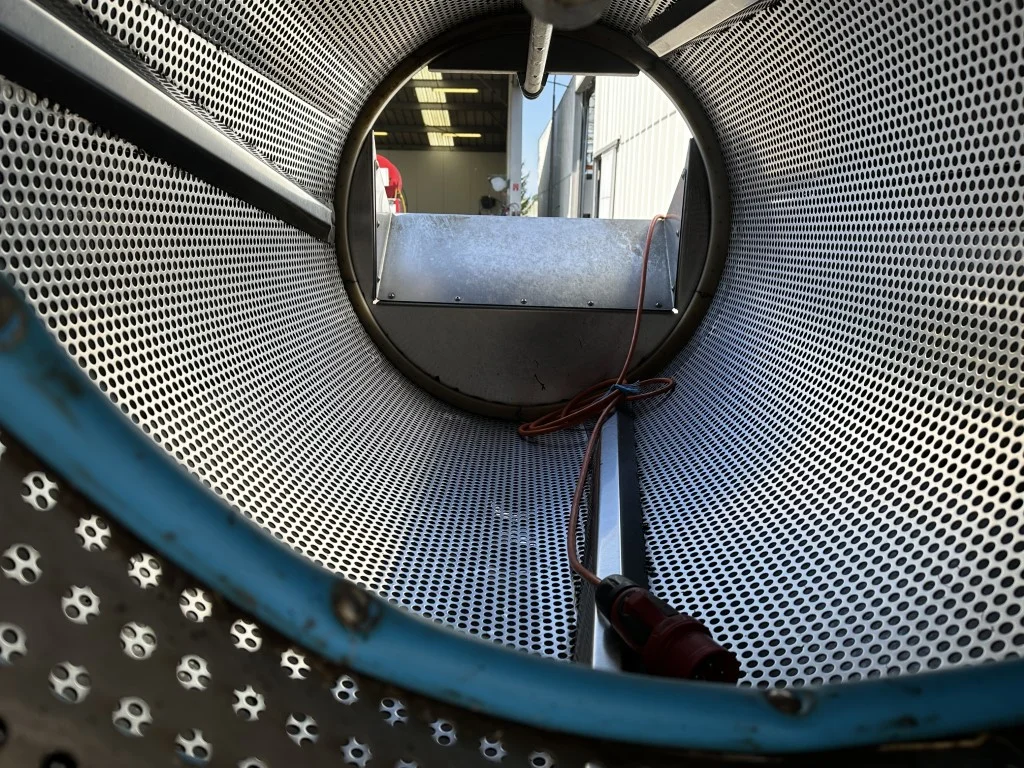

• Stainless steel washing drum

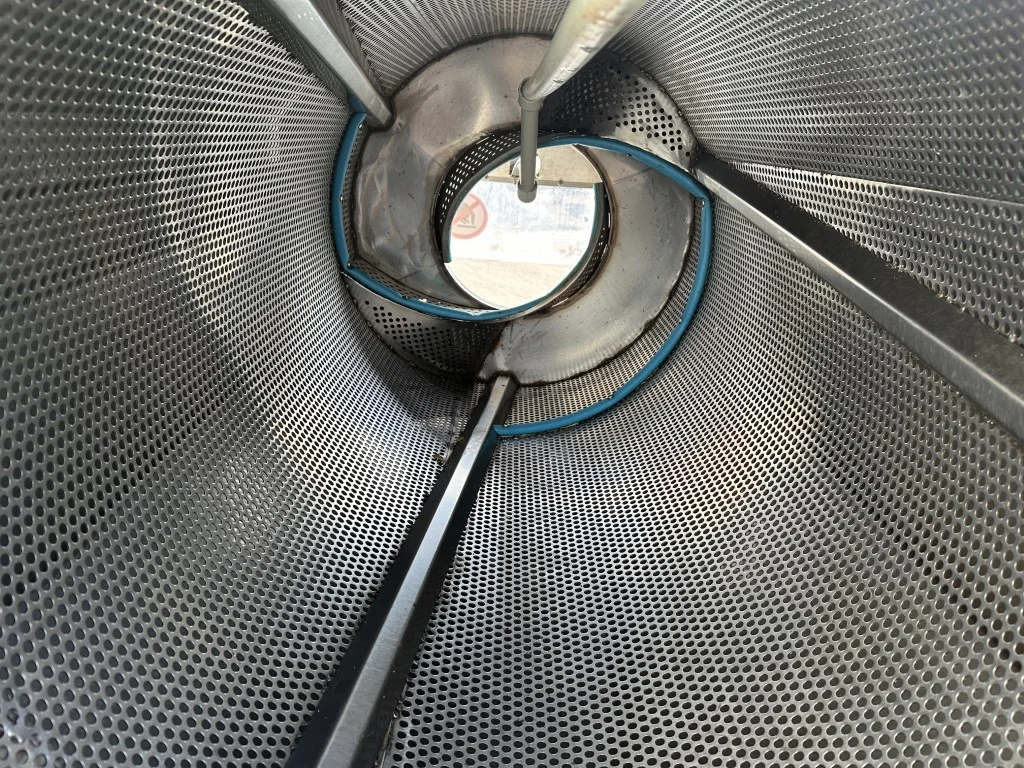

• Holes in drum 10 mm.

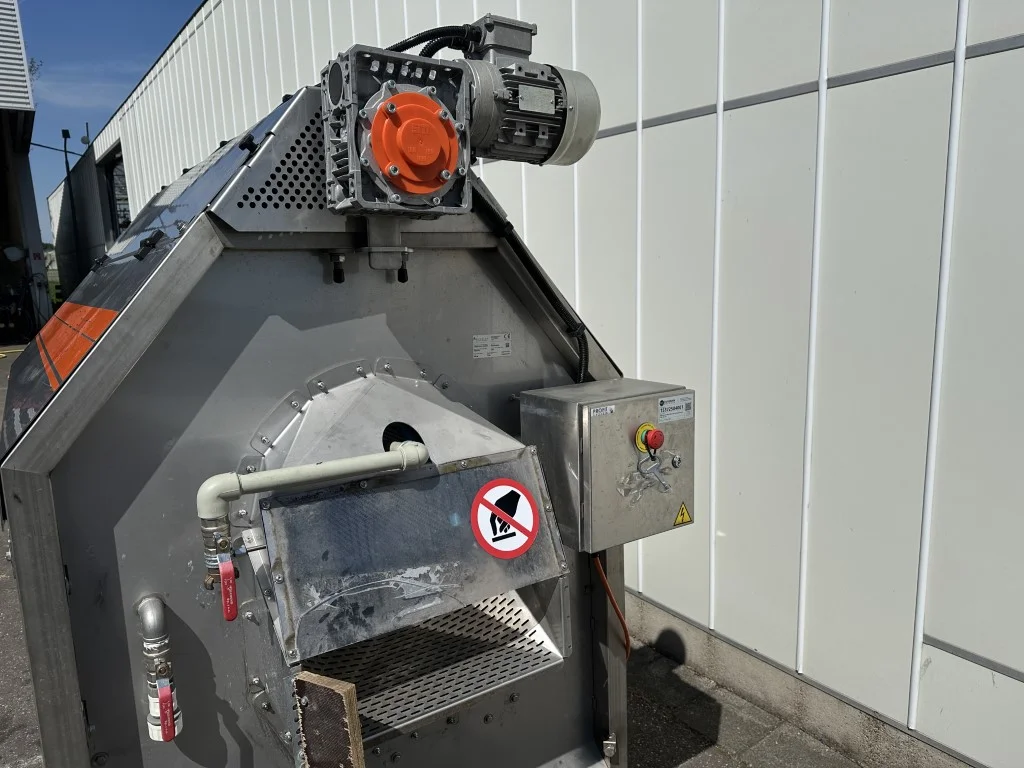

• Variable speed drive with reversible rotation direction
• Automatic drainage

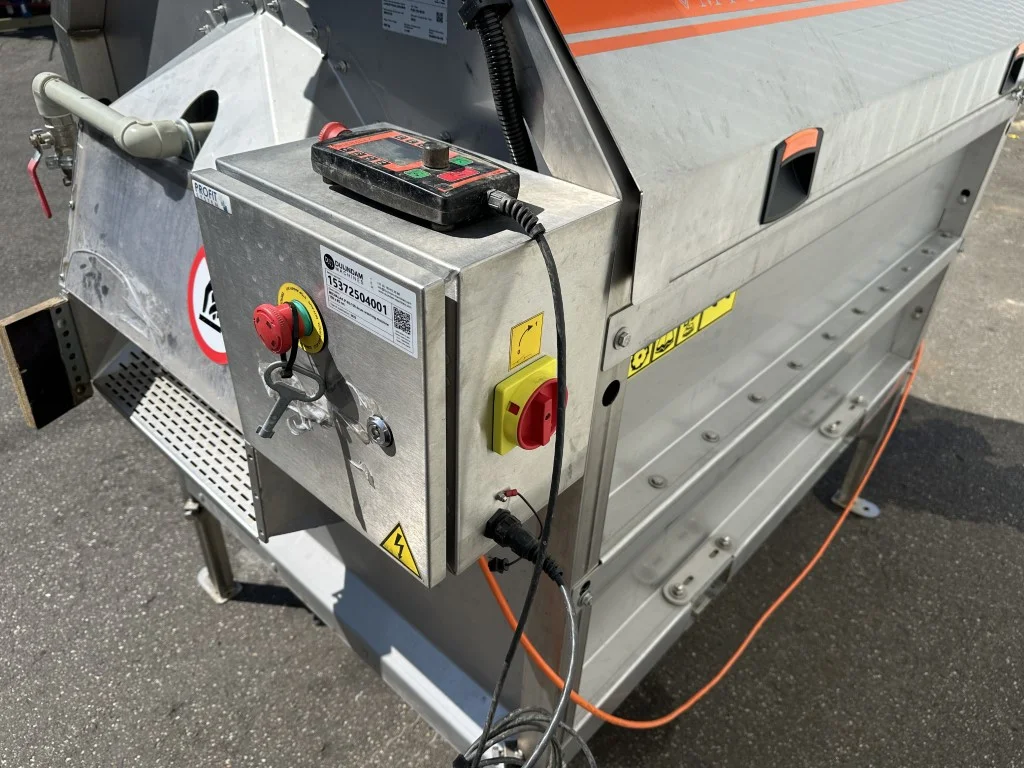

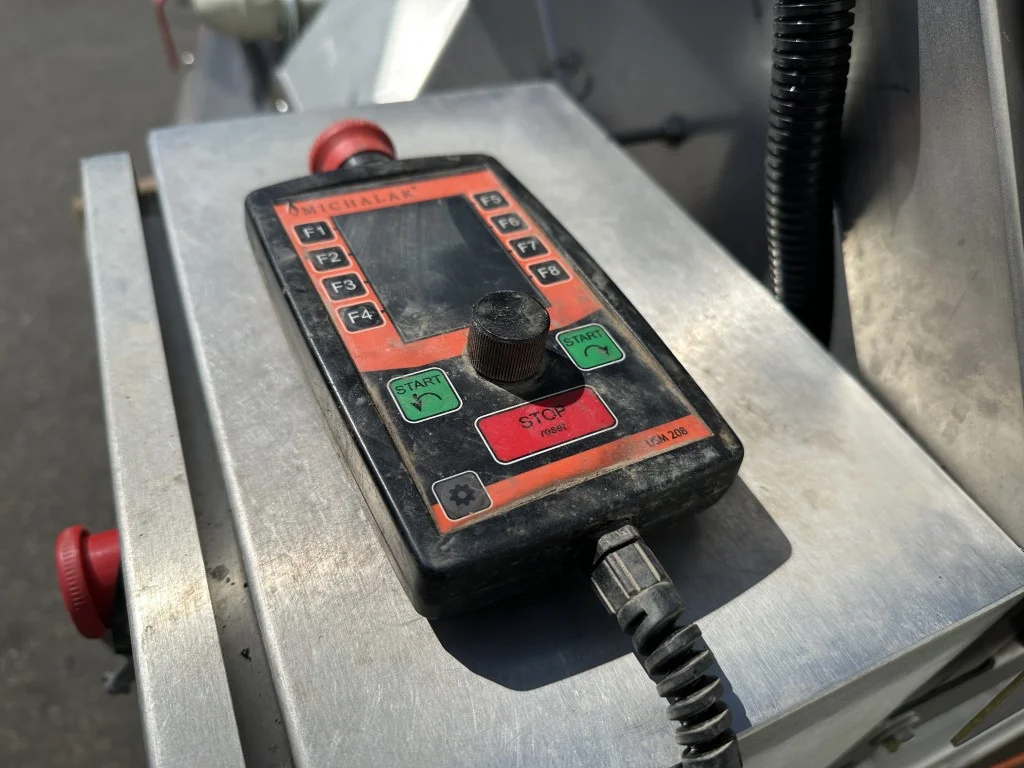

• Programmable washing programs (Mitsubishi PLC)
• Infeed hopper
• Capacity up to approx. 1.5 tons per hour (depending on product and soil type)
• Electrical power: 1.5 kW
