Description:

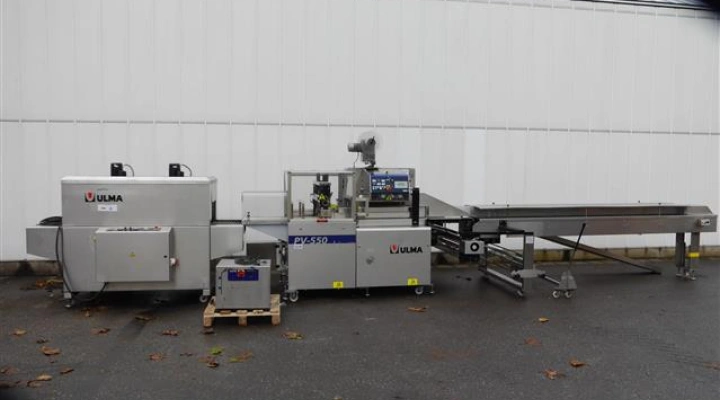

Ulma PV550 shrink wrapping machine with shrink tunnel

Ulma PV-550 SPH I shrink wrapping machine With Ulma TRX 650 X 150 heating tunnel For shrink wrap film.

PV-550 SPH I horizontal shrink wrapping machines form a family of packing machines with a film coil at the lower part of the machine. This is the reason why they are specially recommended for irregular or difficult to drag products.

This model is strong, easy to use and reliable, as all Ulma machines are, but it also is highly versatile in format change and has a wide range of versions which guarantee the perfect adaptation of the machine to the needs of each application.

Their great flexibility and reliability make them a family largely implemented in general food market and specially valuable in agriculture, meat processing, dairy sector, etc. This machine is good for packaging various type of vegetables in shrink wrap, such as cabbage and broccoli.

Features of Ulma PV550 packaging machine for shrink film

• Made of stainless steel and materials protected with anticorrosive treatment.
• Working sense: from right to left.
• Cross-welding with "thread type" welding clamp. "Thread type" longitudinal welding system with conic welding and film cutting rollers, with motor-driven sytem for film remnant winding.
• 550 mm. Wide LSH-type (long welding) cross-welding head.
• Motor-driven regulation of longitudinal welding system height.
• Double autocentring coil support.
• 2 meter-long feeding unit.
• Mould with stretchable former.
• Package length adjustment according to product length.
• "No product", "No package" and "Badly located product in clamps" functions.
• Liquid crystal (LCD) screen for machine parameter adjustment, diagnosis and information of machine state.

Specifications Ulma PV550 shrink wrapper

• Capacity in meters: 12 meter / minute
• Capacity in pieces: 60 packages / minute
• Length of package: Endless
• Product length: Endless
• Product width: 60 - 290 mm
• Product height: 25 - 225 mm
• Type of film: Polymer plastic film / shink film
• Film width: 1200 mm
• Max. diameter film roll: 300 mm
• Max. diameter core of film roll: 76 mm
• Number of programs: 20
• Direction: from recht to left
• 400 Volt
• 9.8 kW
• Pressed air: 6 bar
• Pneumatic usage: 250 liter / minut
• Noice 74 dB
• Year 2011

Specifations Ulma TRX65X15 heating tunnel

• Year: 2011
• kW 38
• Voltage: 400 Volt
• Frequency: 50 Hz
