Description:

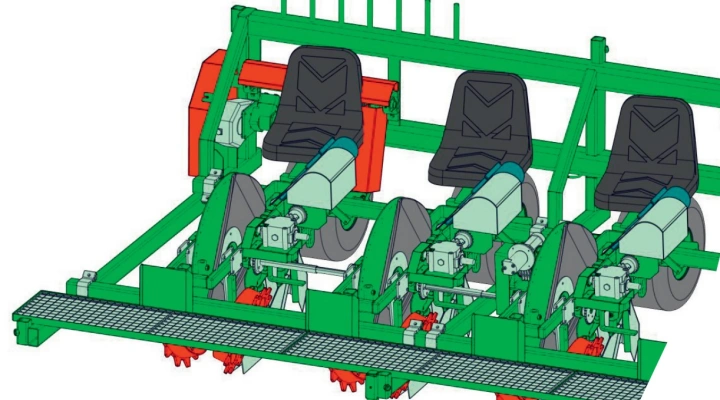

New Basrijs leek planter

New Basrijs BPS leek planter

• Disc planters with feeding belt
• Orbitrol control, hydraulic driven
• Marker set manually operated
• Available in different number of rows
• Cover
• Suitable for planting leeks, both loose and in pots / soil blocks.

Planting principle:

• The plant is placed correctly on the supply belt by the planter.
• The conveyor belt places the leek correctly between a metal disc and a rubber flexible disc.
• The discs bring the leek plant into the plought / coulter and it is released.
• Immediately the plant is pressed firmly by the pressure wheels.
• The machine runs on wheels which determine the speed of the planting discs driven by the tractor hydraulics by means of a chain transmission, so that the disc speed remains the same as the driving speed.
• Planting distance is determined by the chain transmission between disc and feed belt.

Benefits of Basrijs leek planting machine:

• Good working positoin.
• Weight of the planting person doesn’t influence pressing of the plants.
• Less spare parts needed.
• Easy adjustable machine.
• Narrow furrow which promotes plantgrowth.
• Plant is kept just shortly during earthing up, so less chance of planting tilt.
• Planting shallow at 5 cm planting depth.
• Minimal row distance 45 cm.
• Plant distance in the row from 7 till 10 cm. (With other conveyor belts this can be wider)
• Maximum planting depth 15 cm, normally 12 cm in wide furrow of 5 cm depth.
• Capacity: Approx. 3000 plants per man per hour depending of the plants.

Machine will be delivered with plantsock with wide furrowformer, so the plant is planted into a furrow which is earthed up afterwards (by hoeing for example). Further the machine has an adjustable planting board with a box rack and an optional walking platform.

Cover:

• Top side white
• Front, rear and sides green with glass insert
• Front side fixed, sides sliding and rear side rollable

The planters have the following widths at 60 cm row distance:

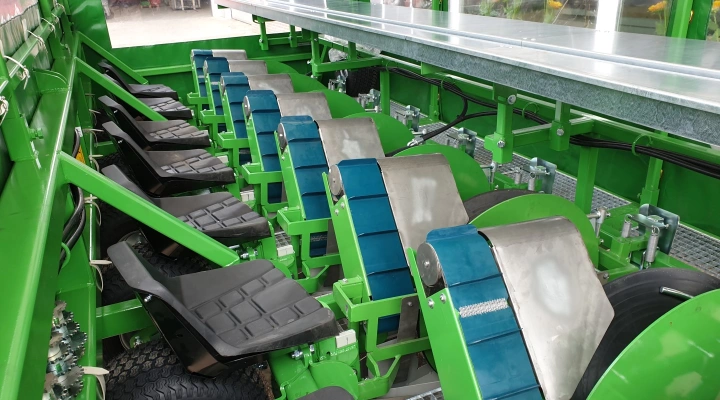

• 4 rows x 60 cm, 280 cm
• 5 rows x 60 cm, 340 cm
• 6 rows x 60 cm, 400 cm
• 7 rows x 60 cm, 460 cm
