Description:

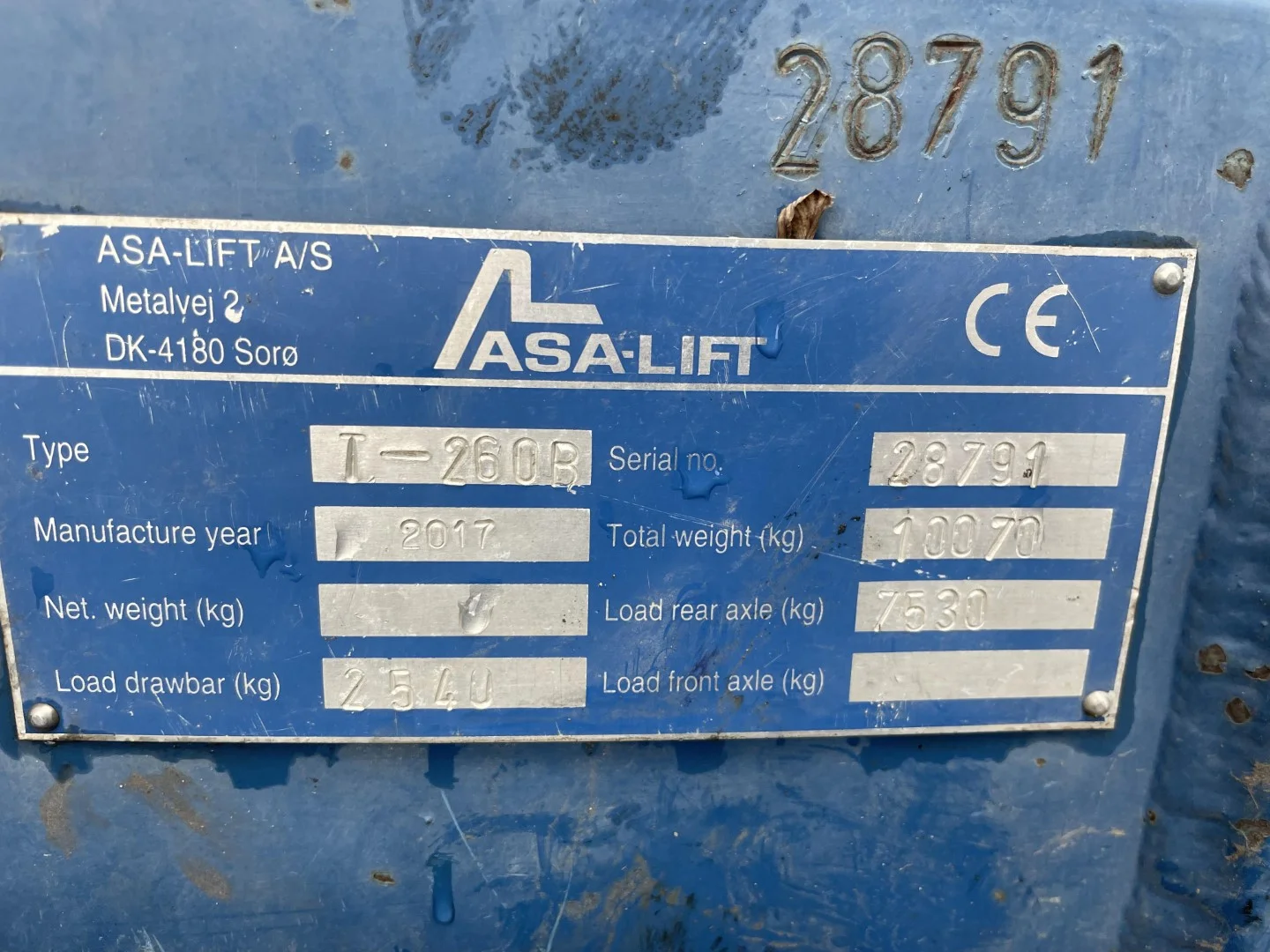

Asa-Lift T260-B

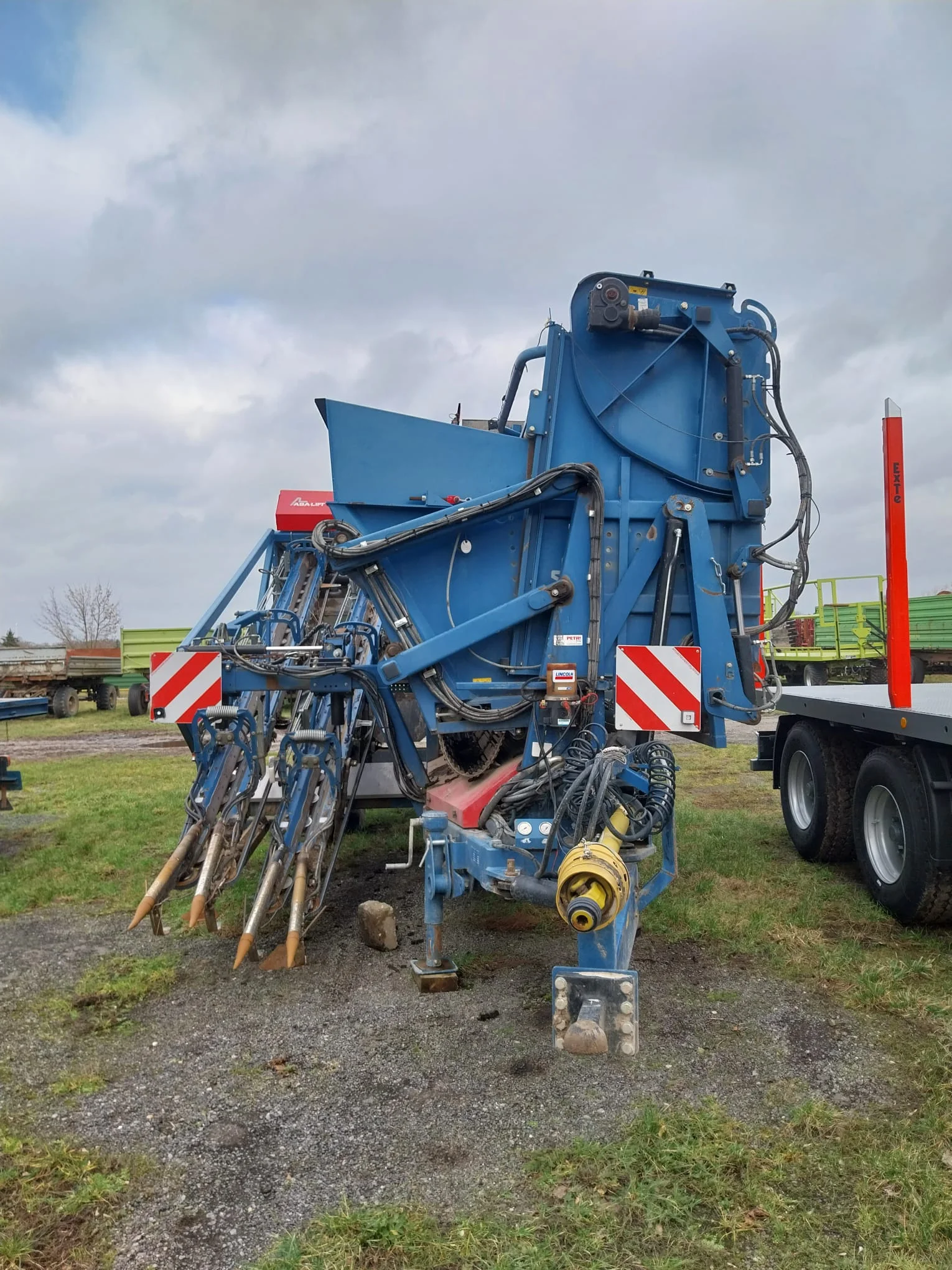

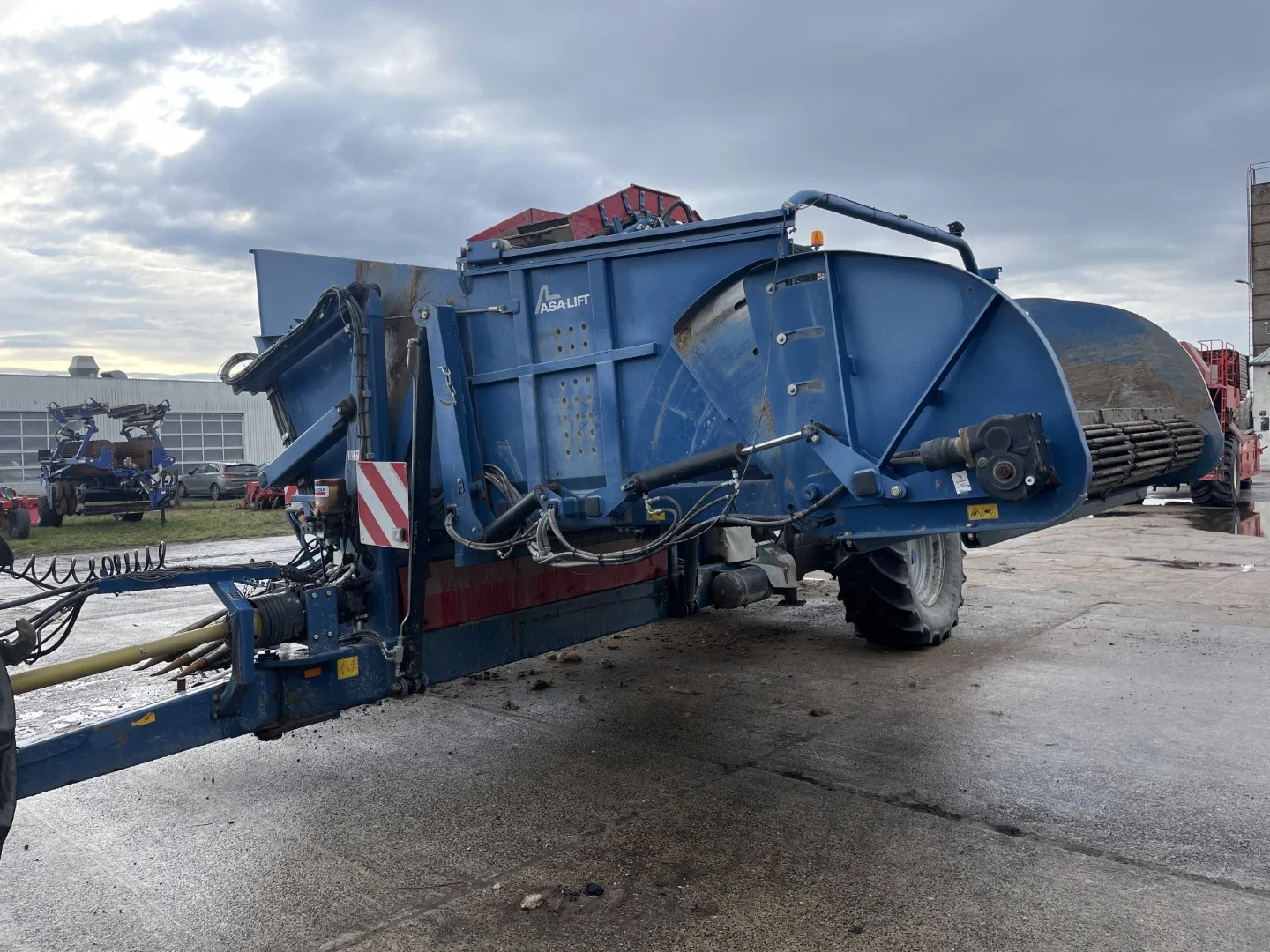

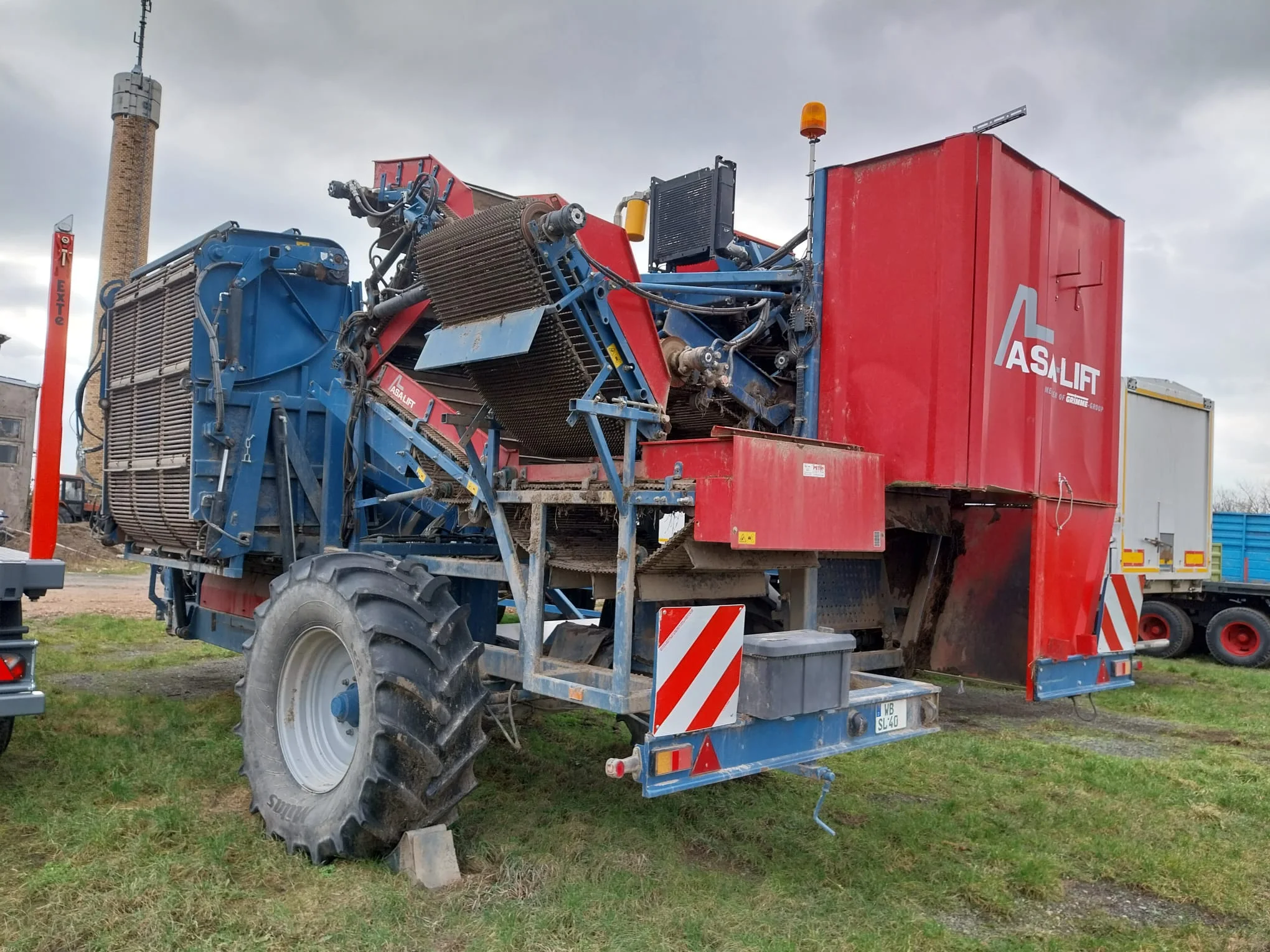

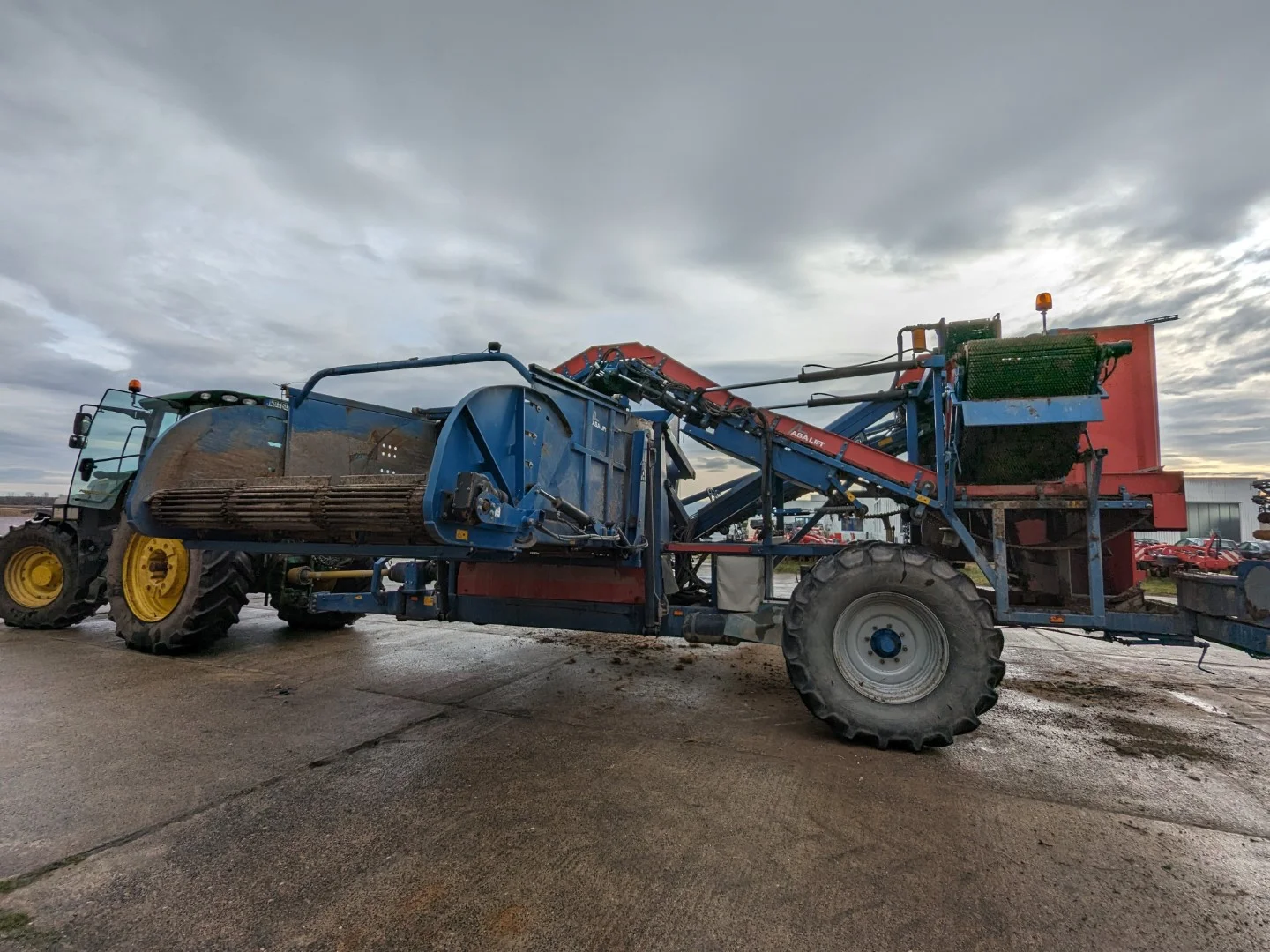

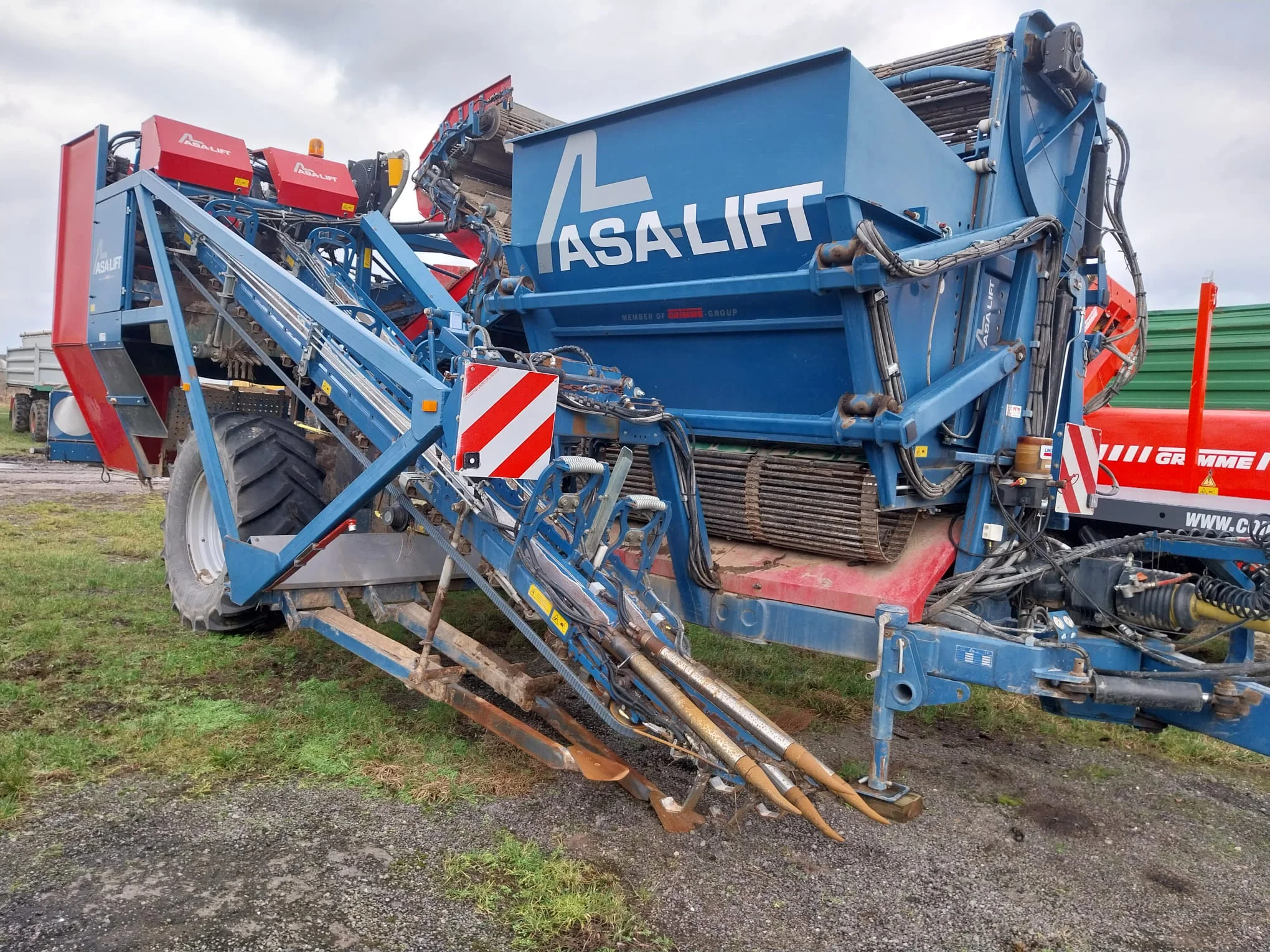

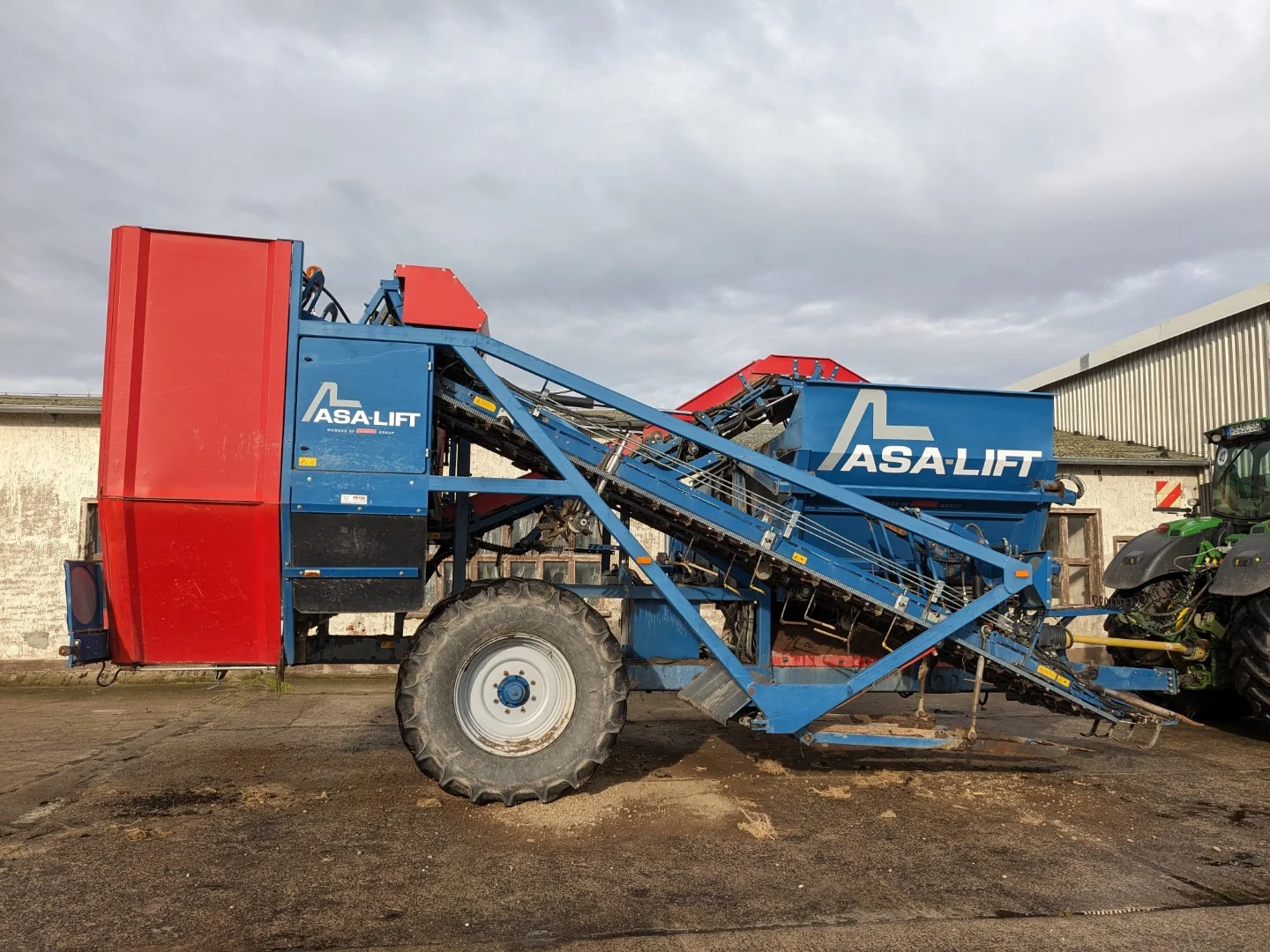

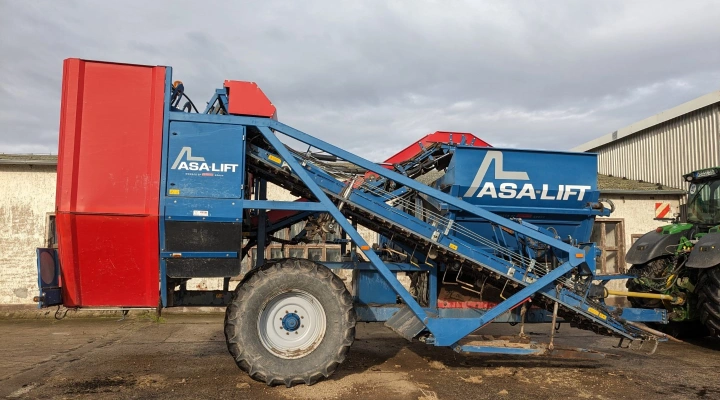

Asa Lift T-260B towed harvesting machine for carrots with 6 tonnes bunker

- 2-Rh. trailed machine with bunker
- Pick-up section type 550"
- Cutter system with gear drive
- Normal smooth pick-up belts
- Automatic height and side steering at the pick-up section
- Speed of pick-up belts is electrically adjustable in the tractor
- 350 mm drive discs

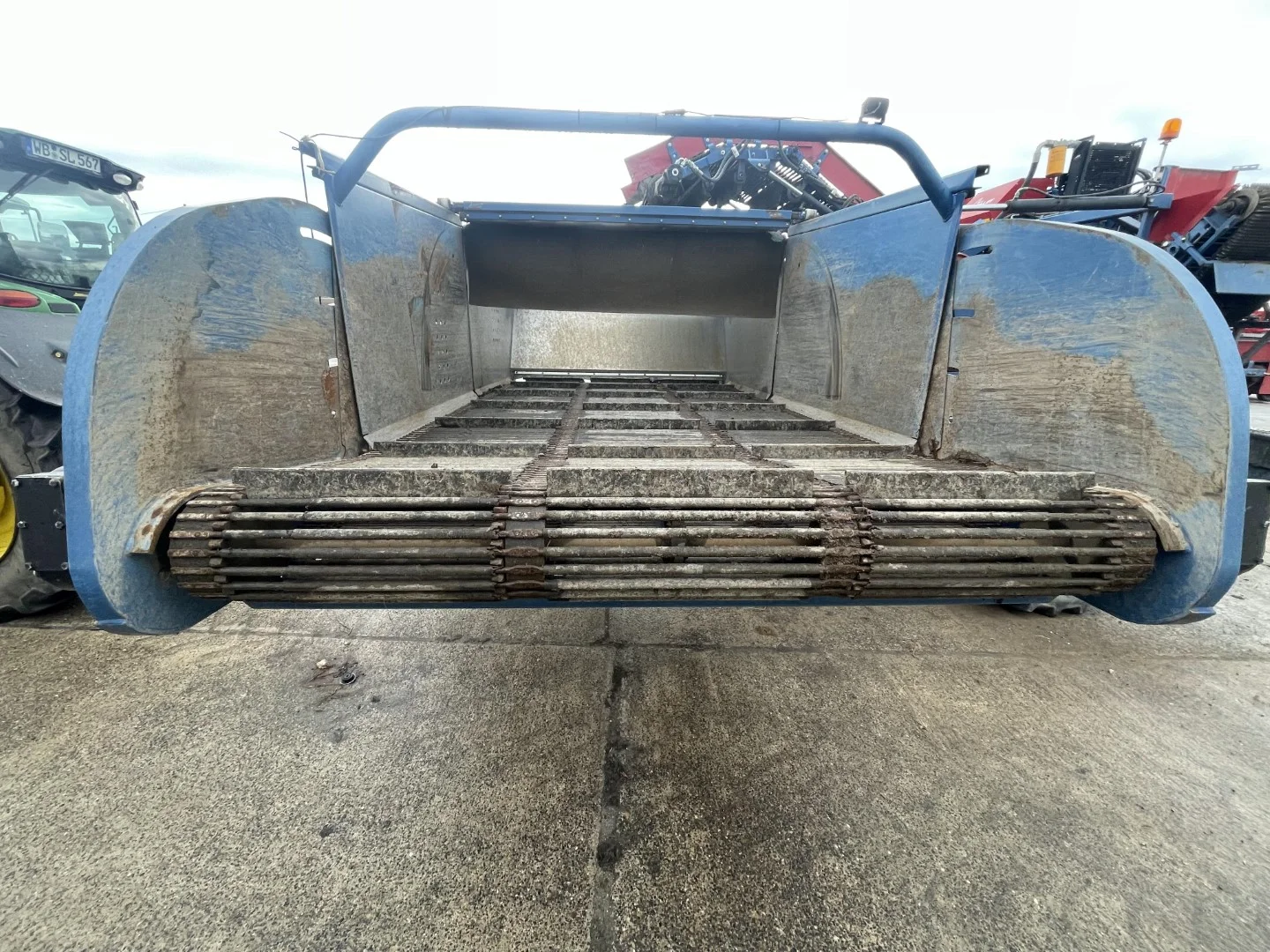

- 70 cm wide cross belt at the bottom knives, 28 mm pitch and PVC at the bars

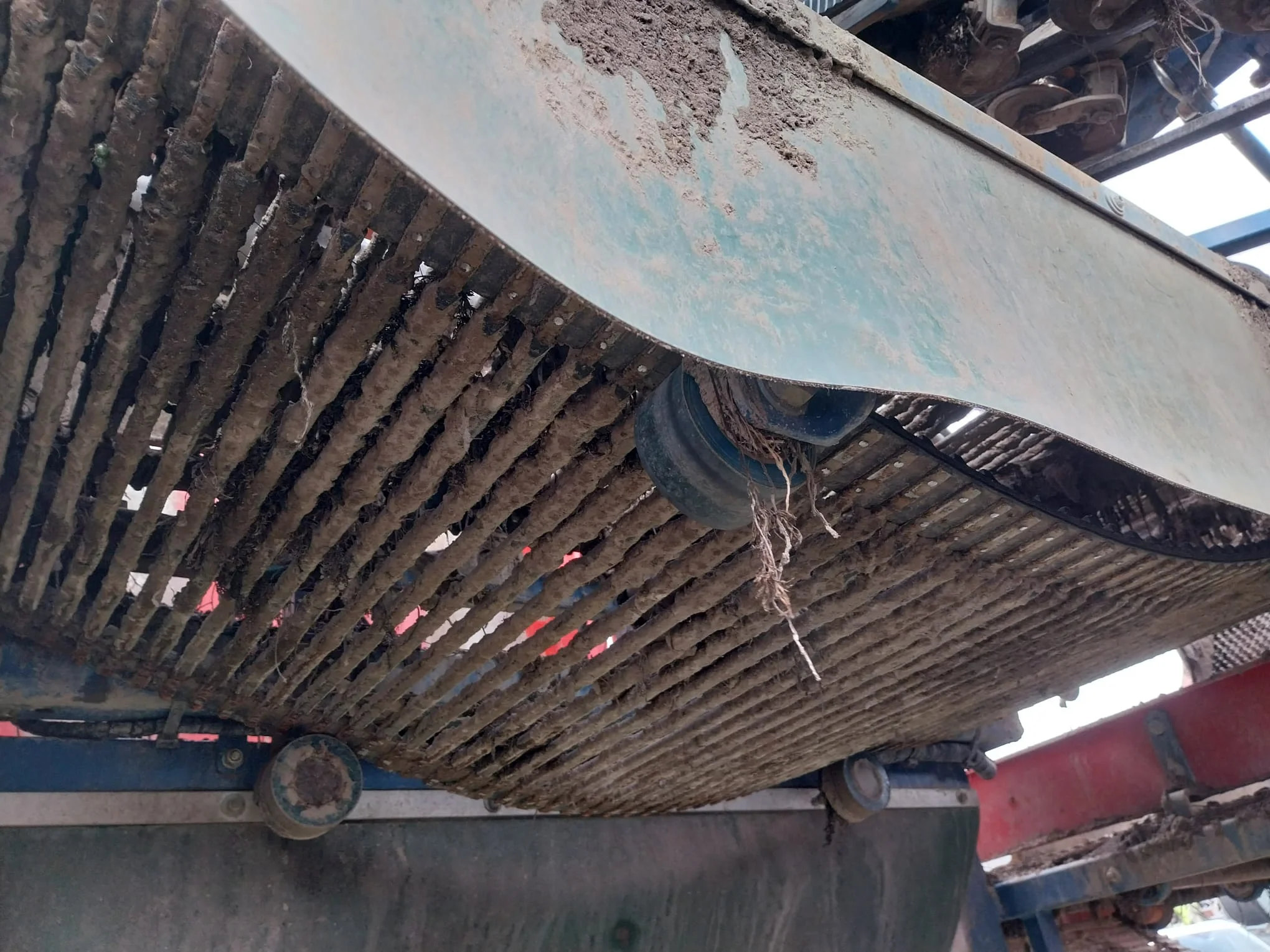

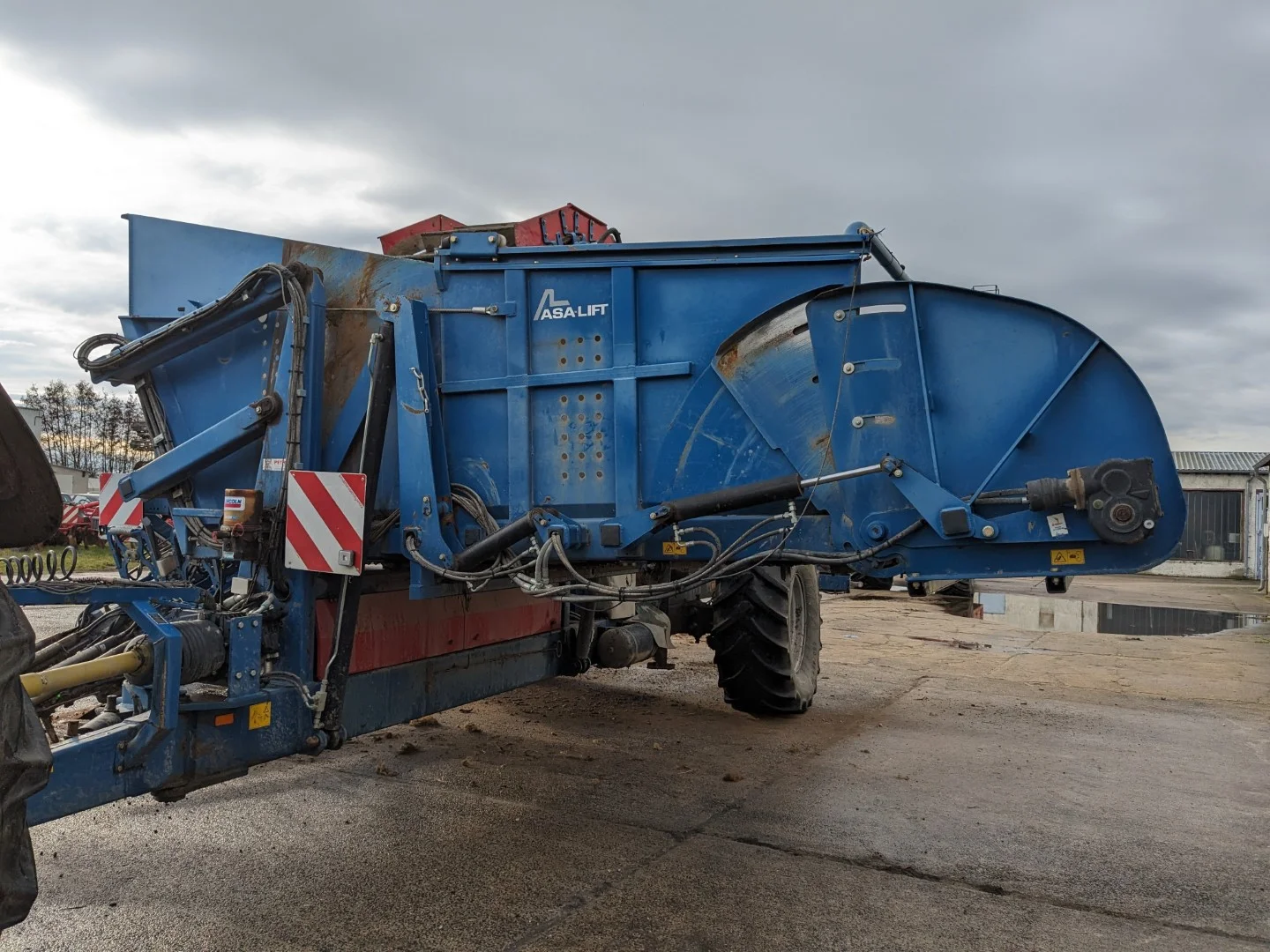

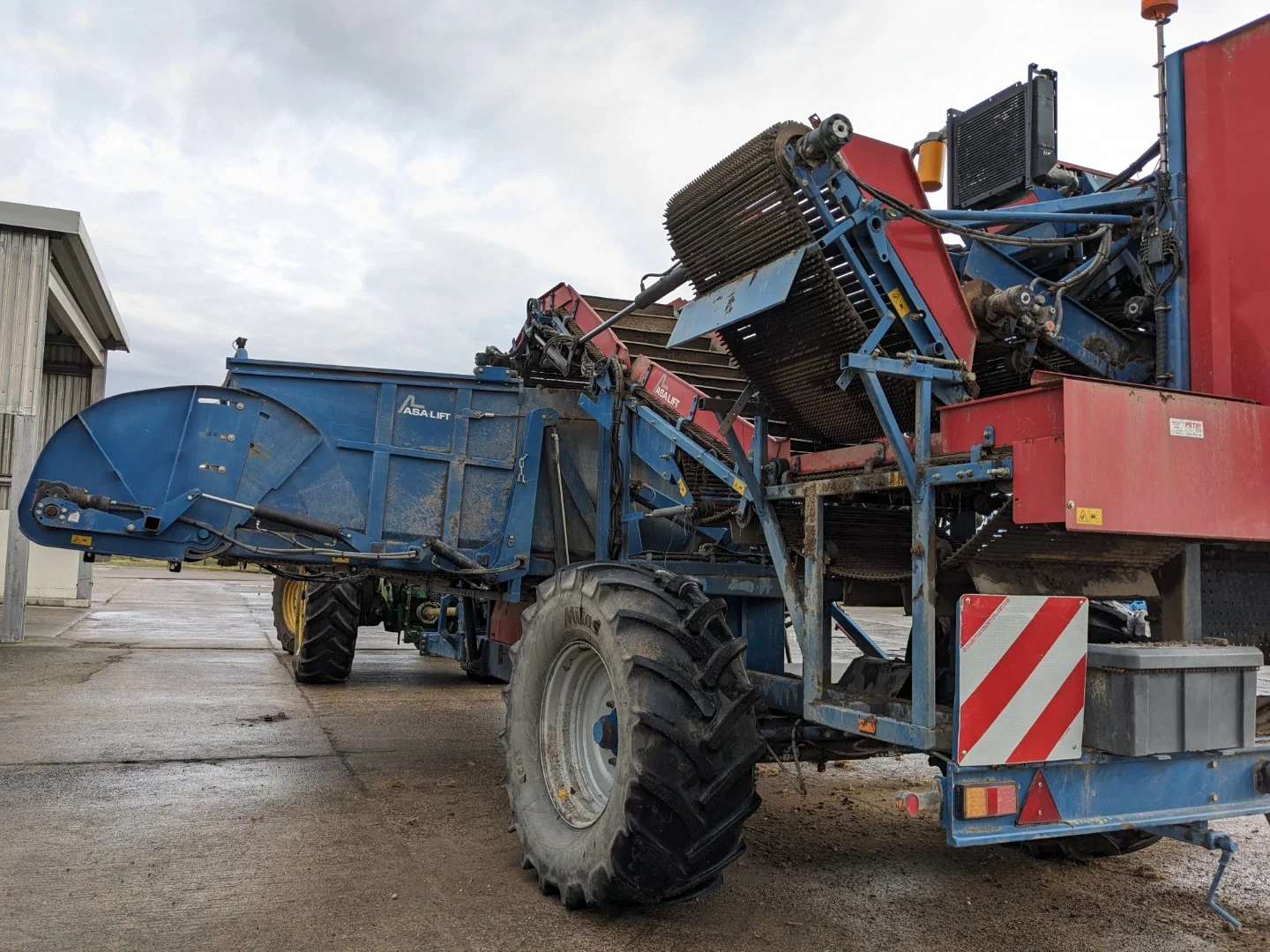

- 100 cm wide elevator for transport to the bunker, 28 mm pitch, PVC on bars
- Belt chain on elevator has 125 mm high flights
- Low angle on the elevator - 30 degrees.

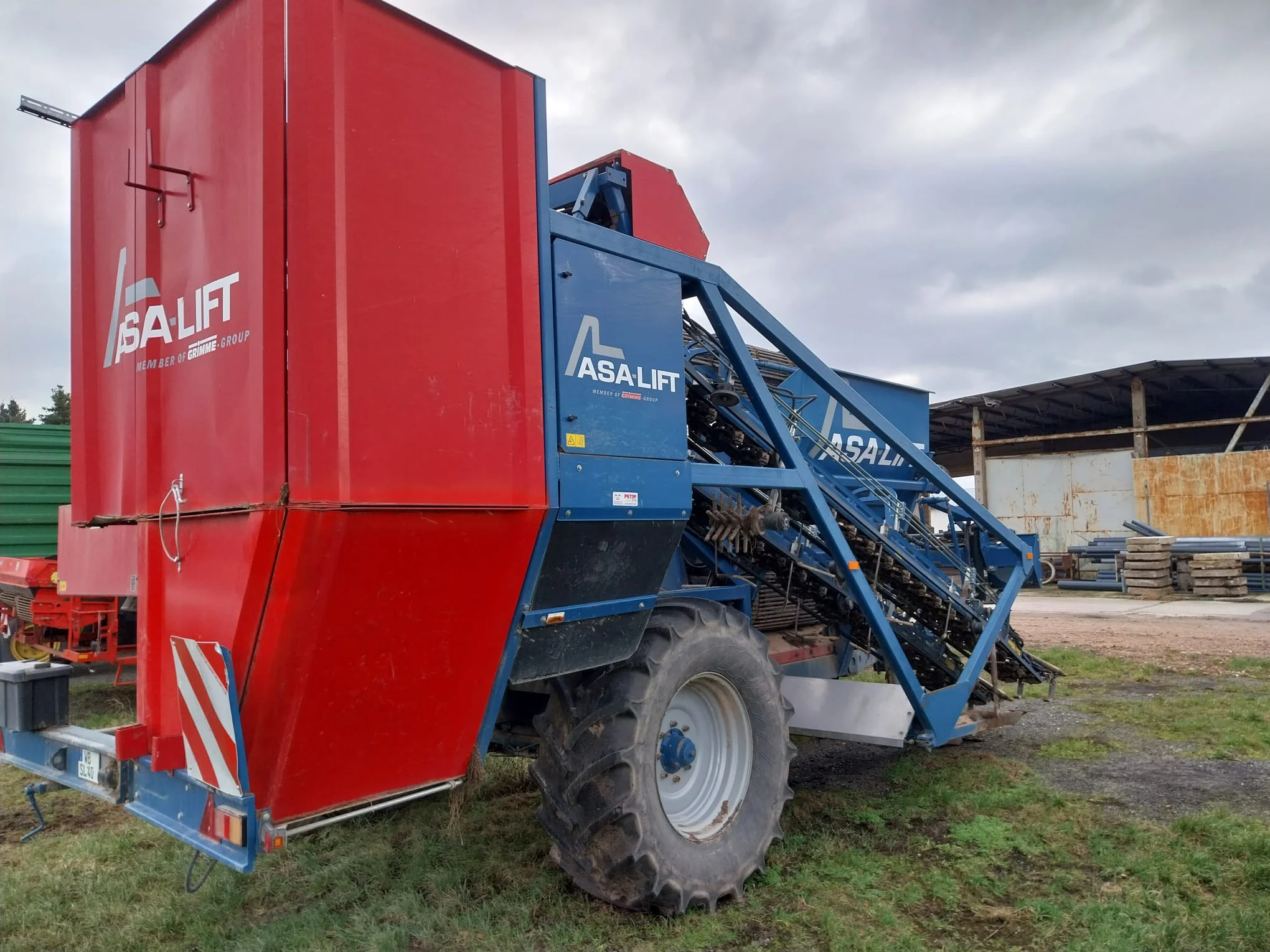

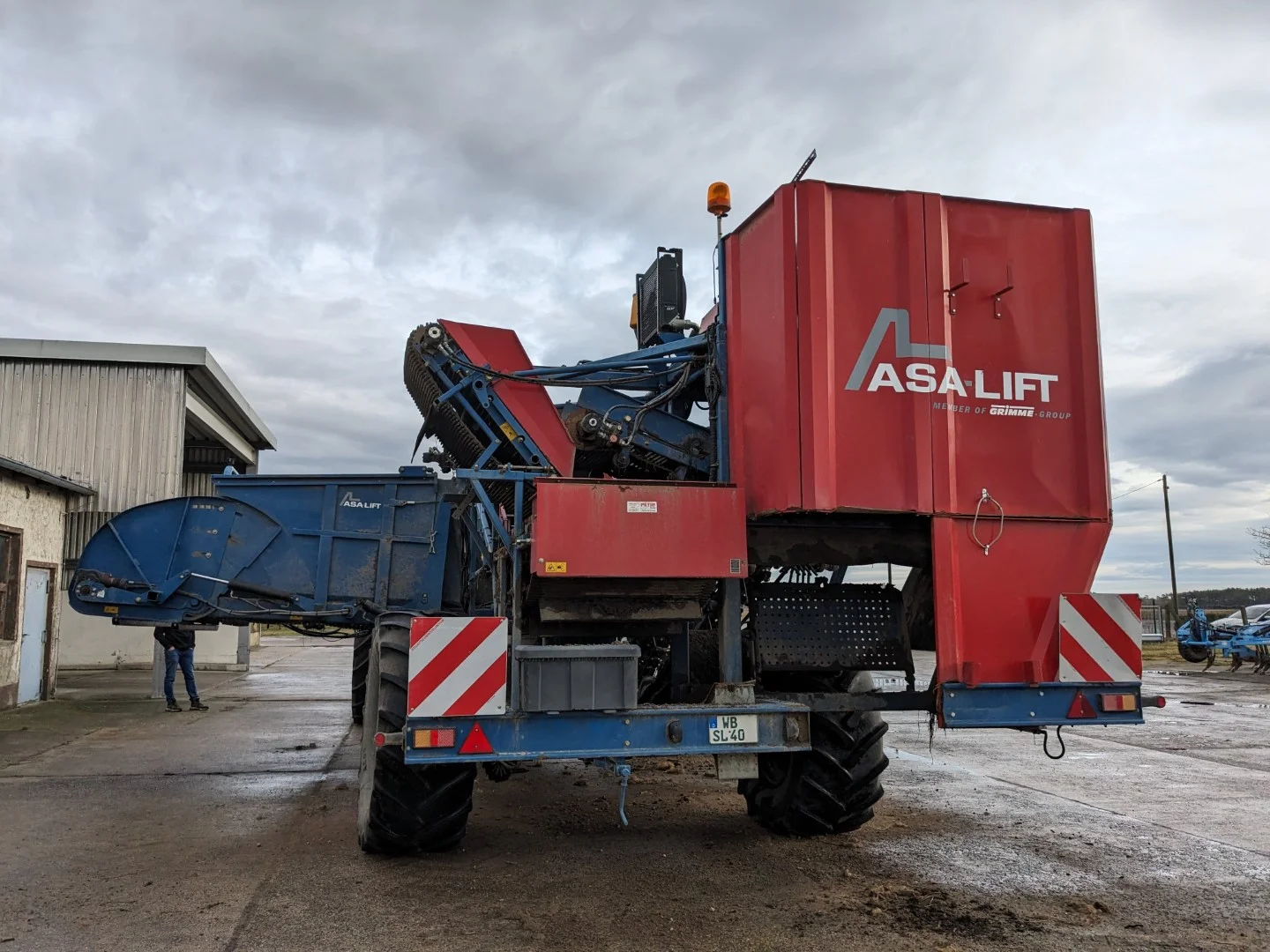

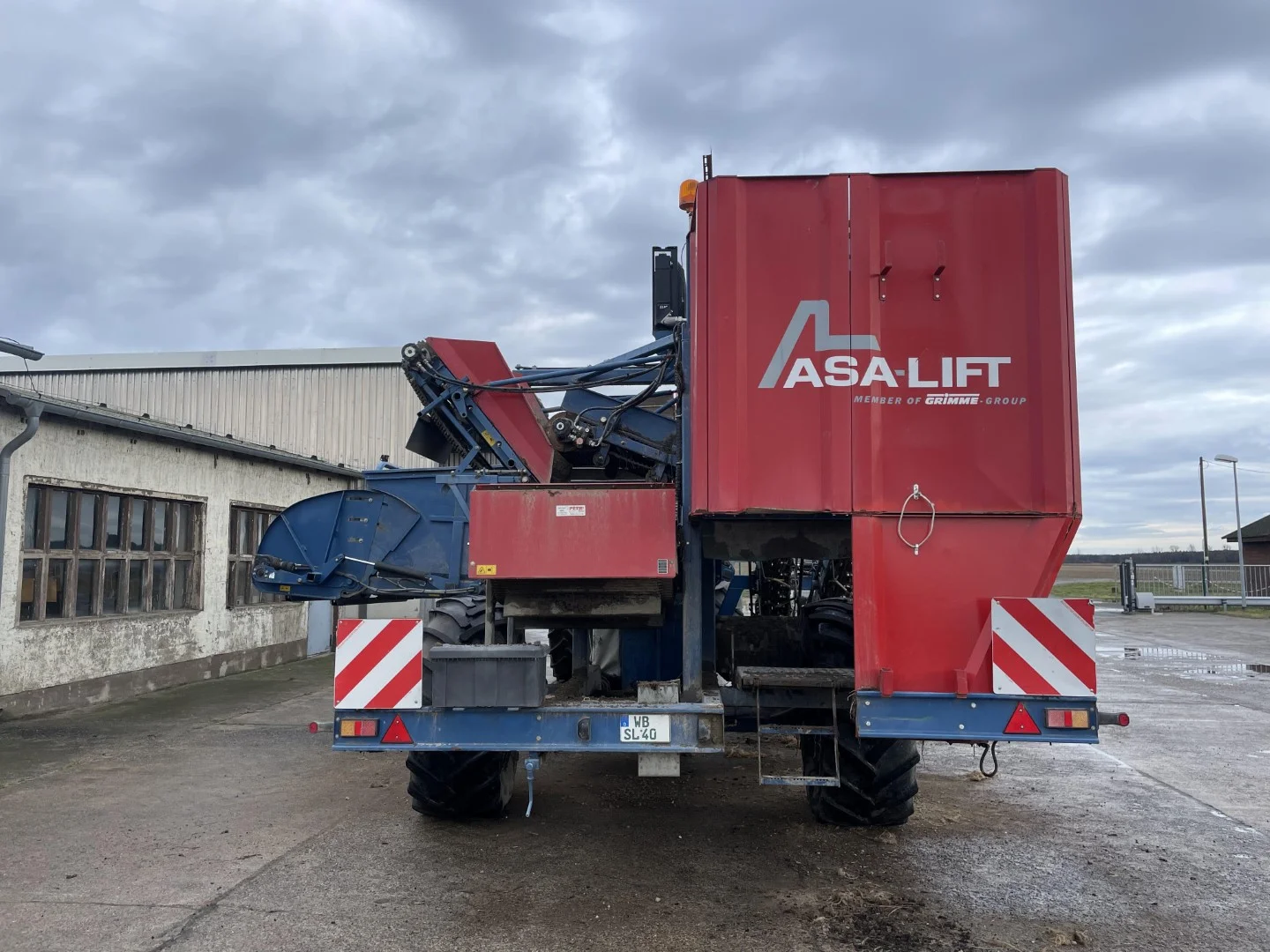

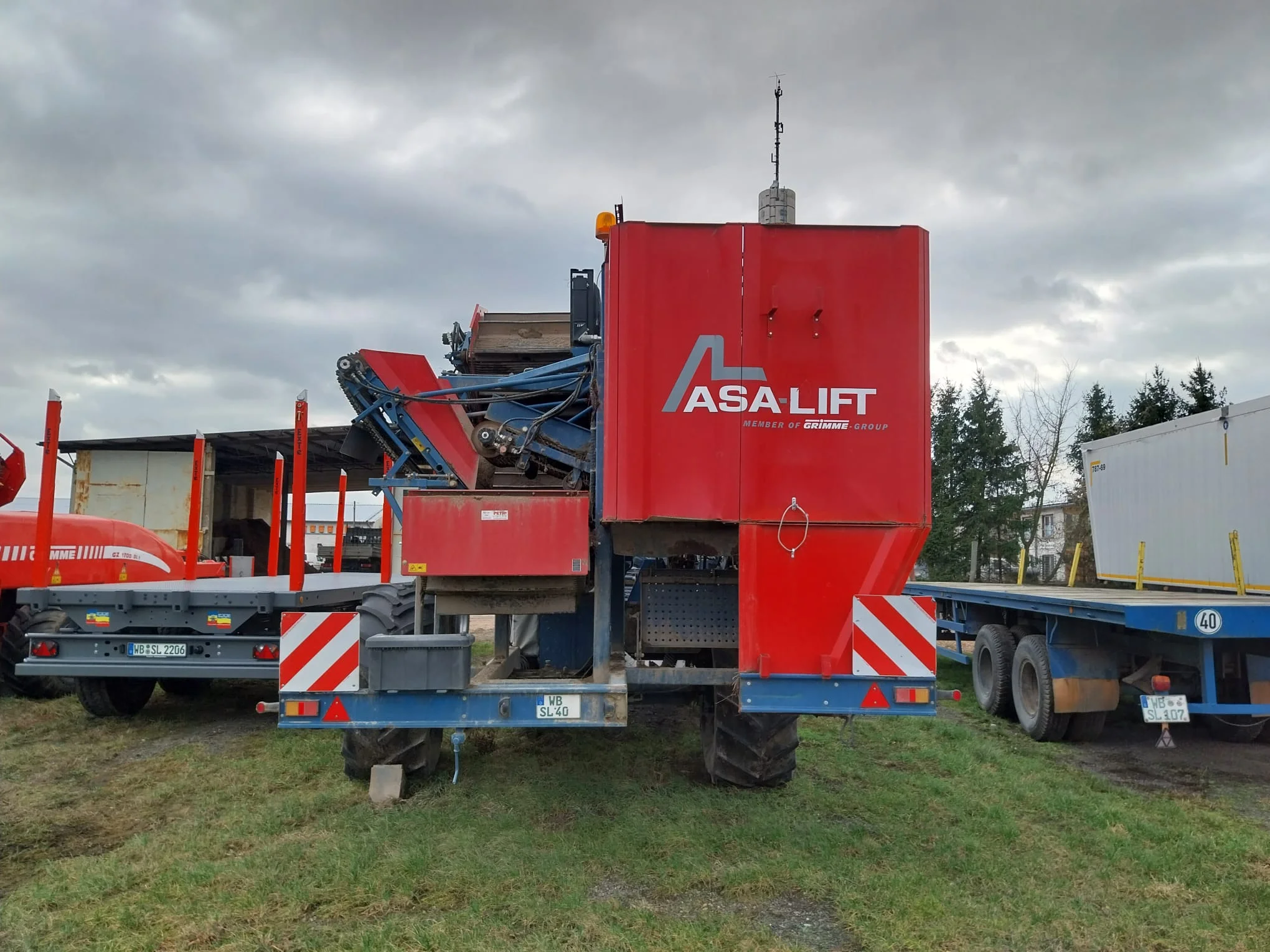

- 6 tone hopper with belt chain
- Hopper has 3 sections
- Parallel lifting of hopper
- Max. Unloading height is 4.2 metres - Max. Max. height of trailer is 3.5 - 3.8 metres
- PVC cloth in bunker for optimum filling

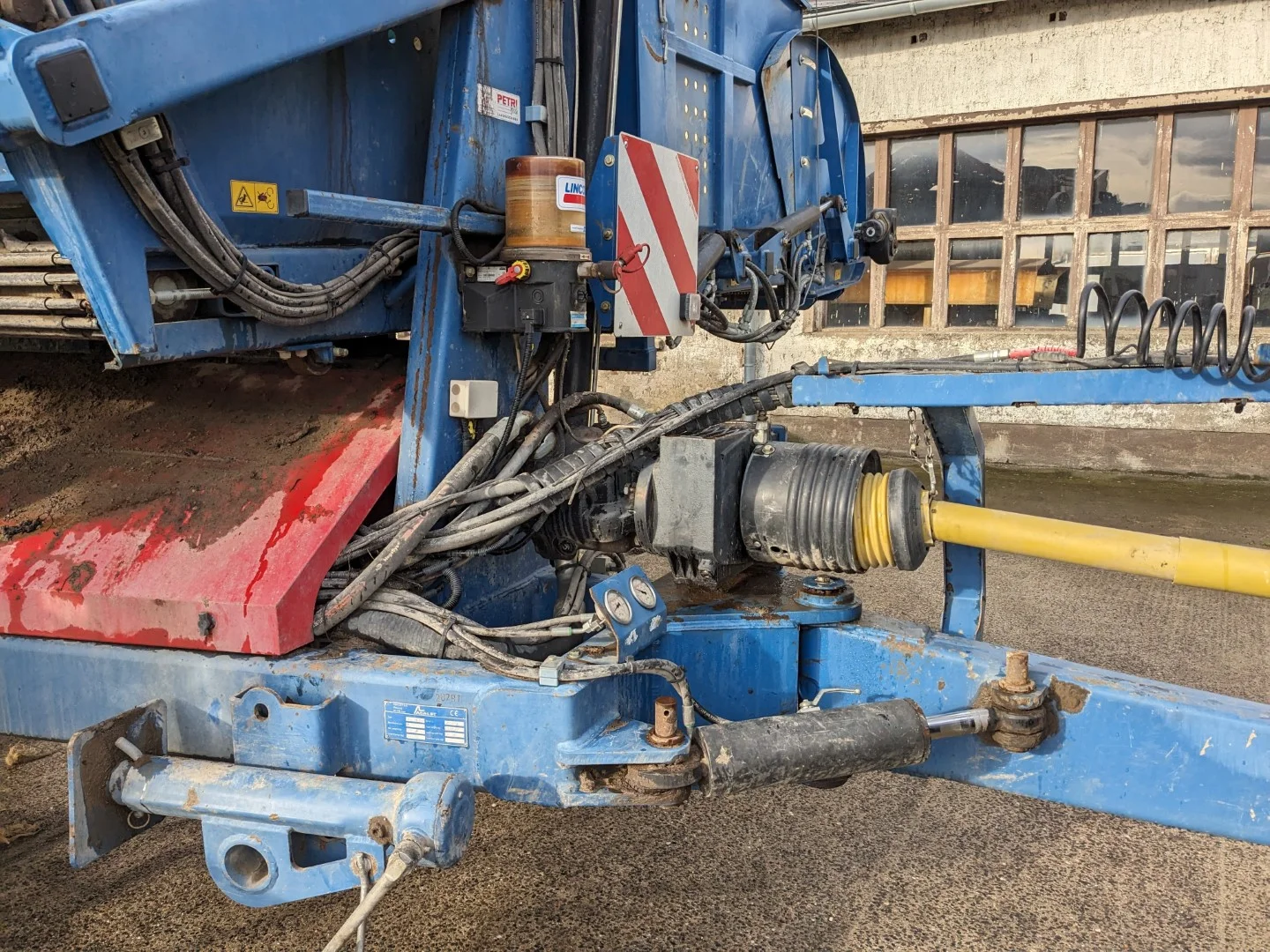

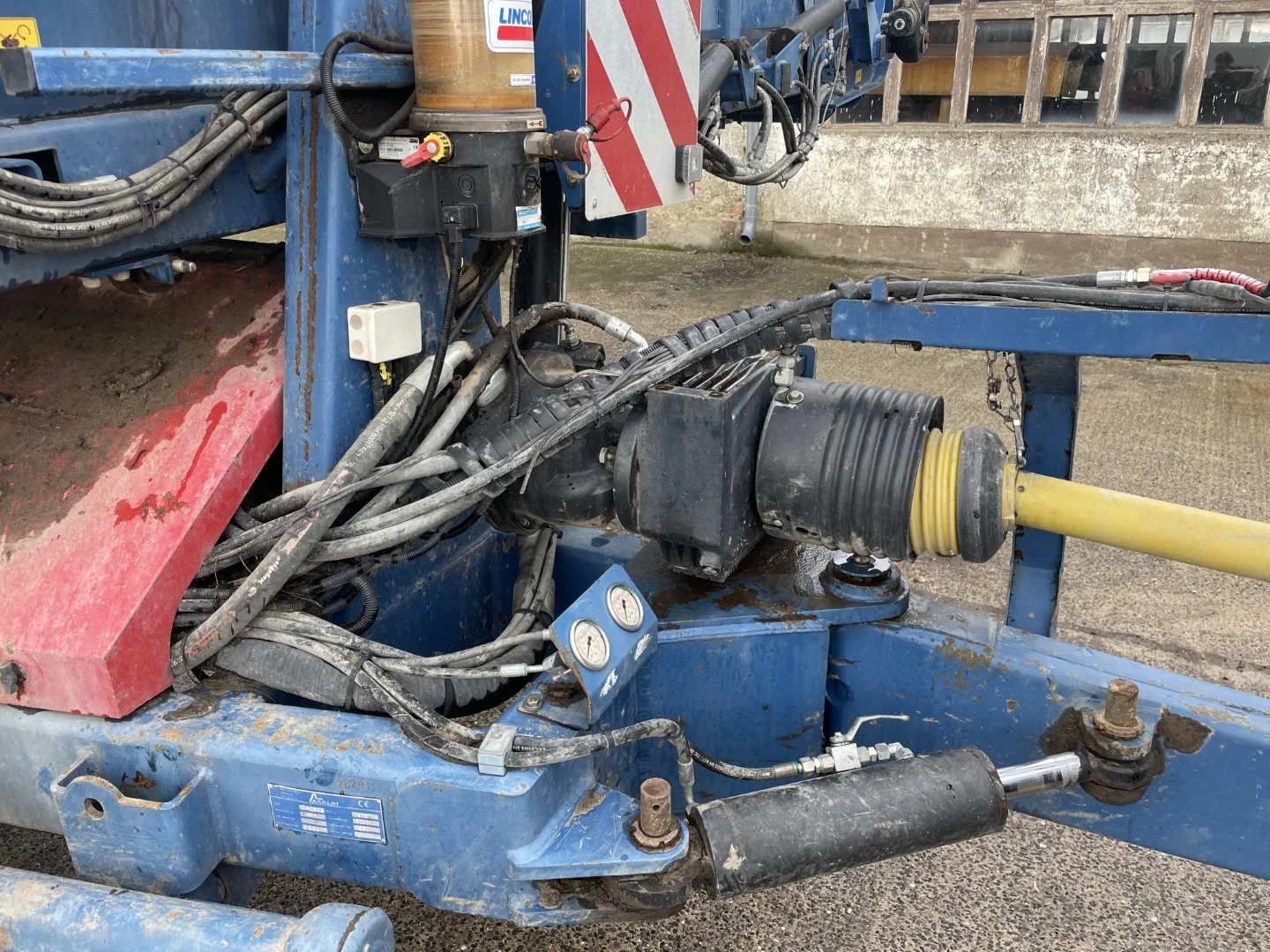

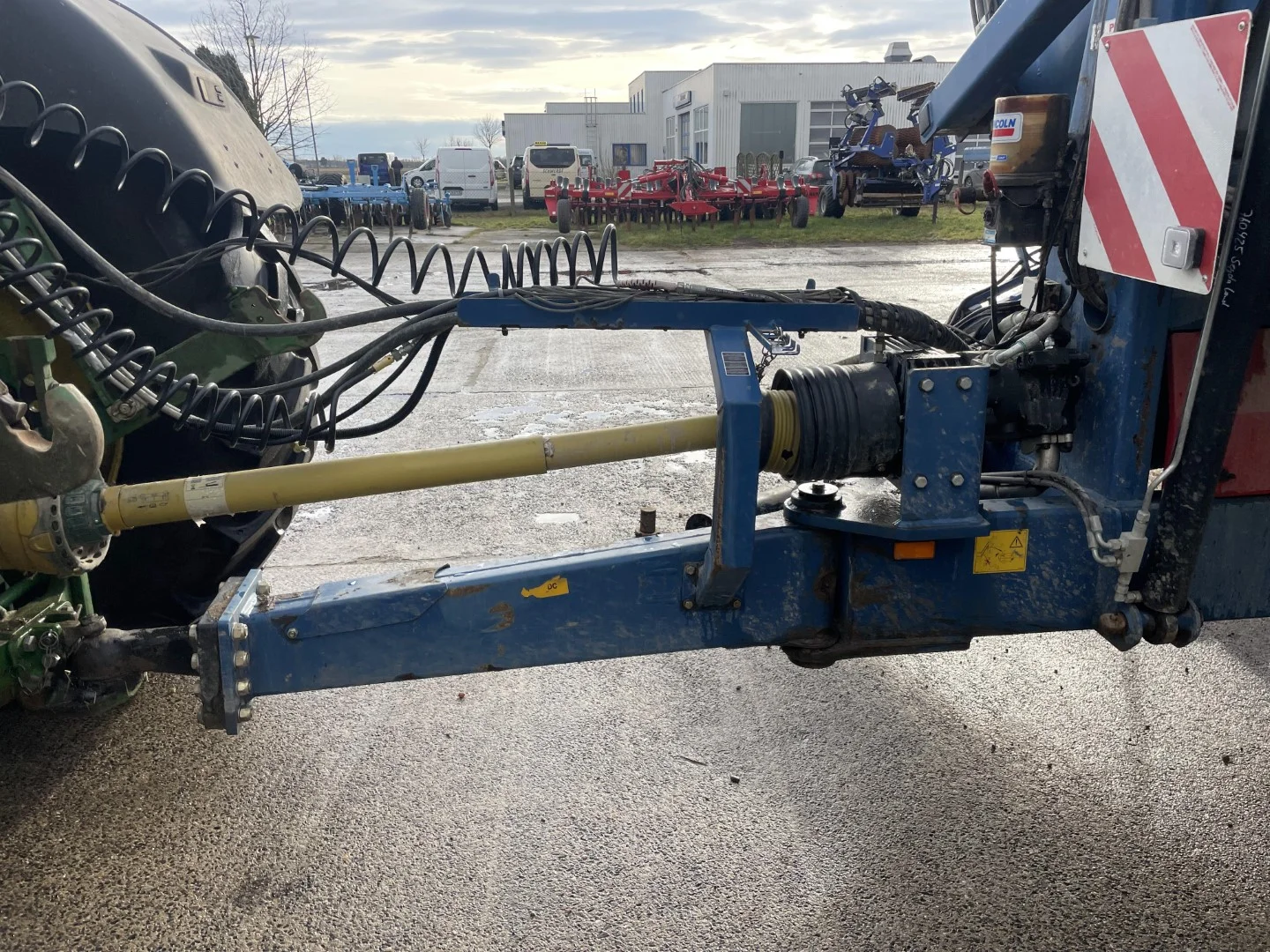

- Hydraulic system with Vario (LS pump) operated at PTO
- All rotating functions are operated via hydraulic system
- All cylinder functions and bunker emptying are operated via tractor hydraulics
- Specifications:
- 4.0 metres high
- 3.5 metres wide
- 9.5 metres long

Blades:
The machine is equipped with the new super gearbox for the knives.
- Direct gear transmission - no chain extension - hardly any wear.
1 i-2 New ASA-BUS system.

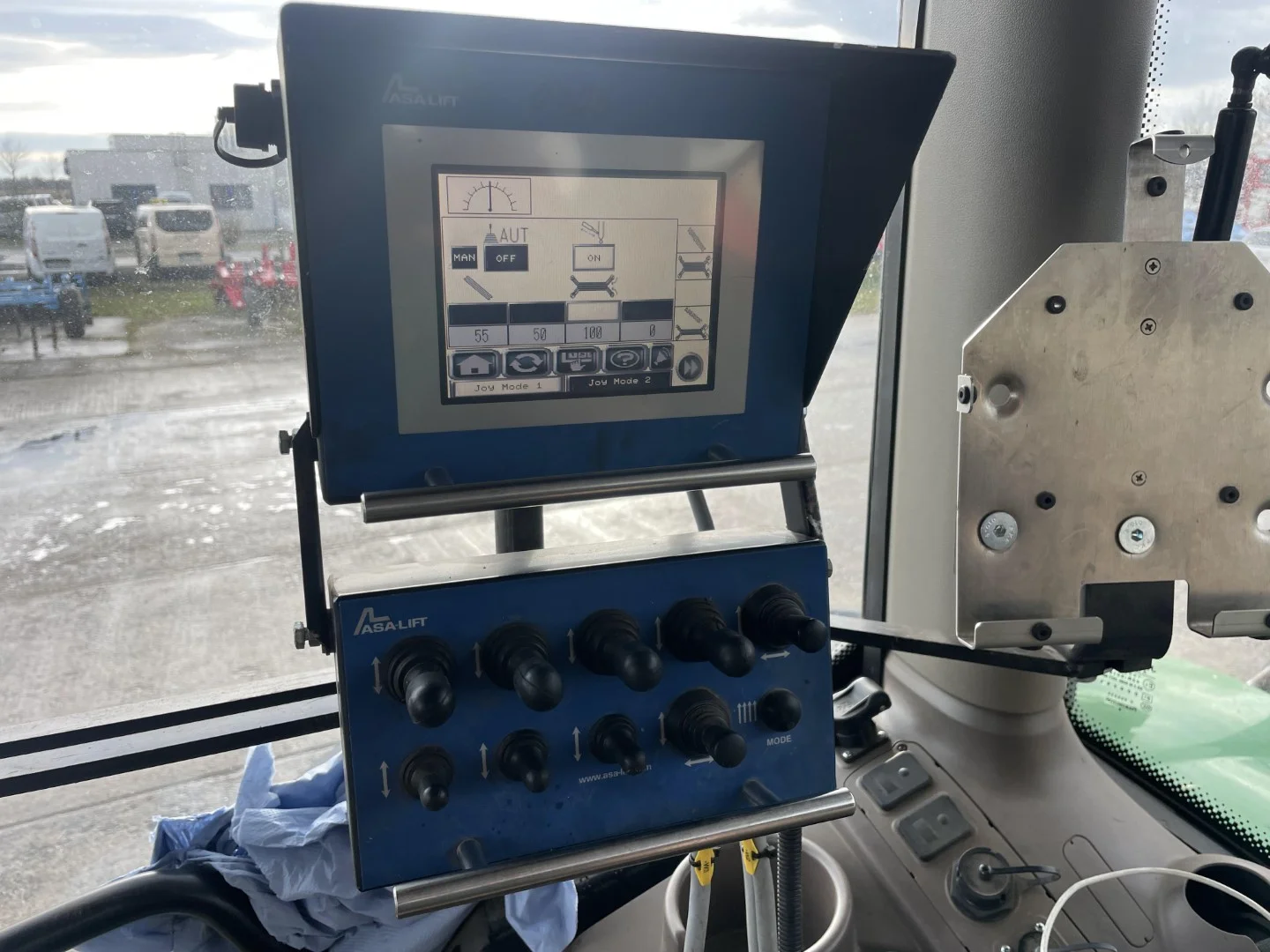

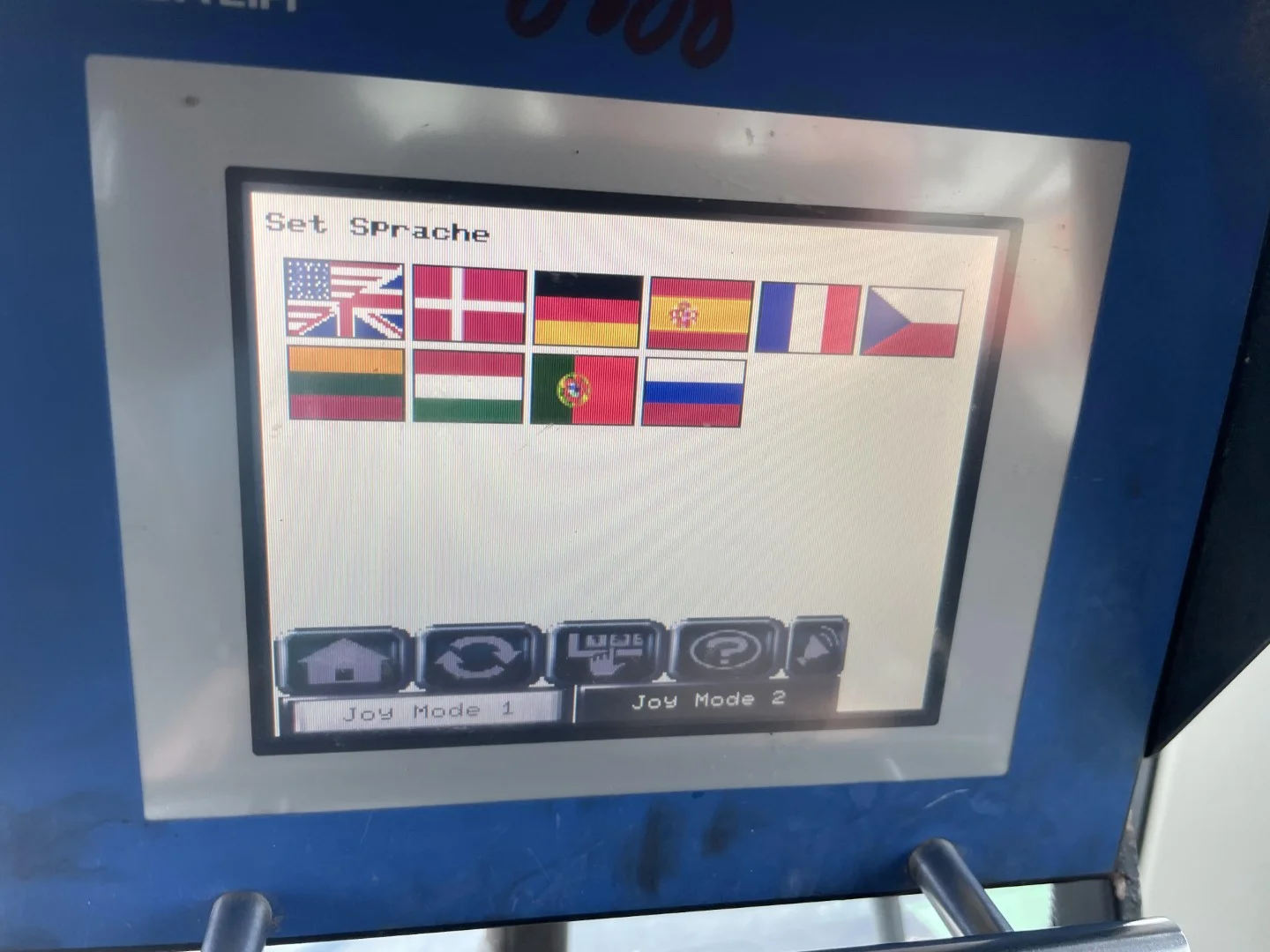

- Main control panel with main screen.
- Touch screen.

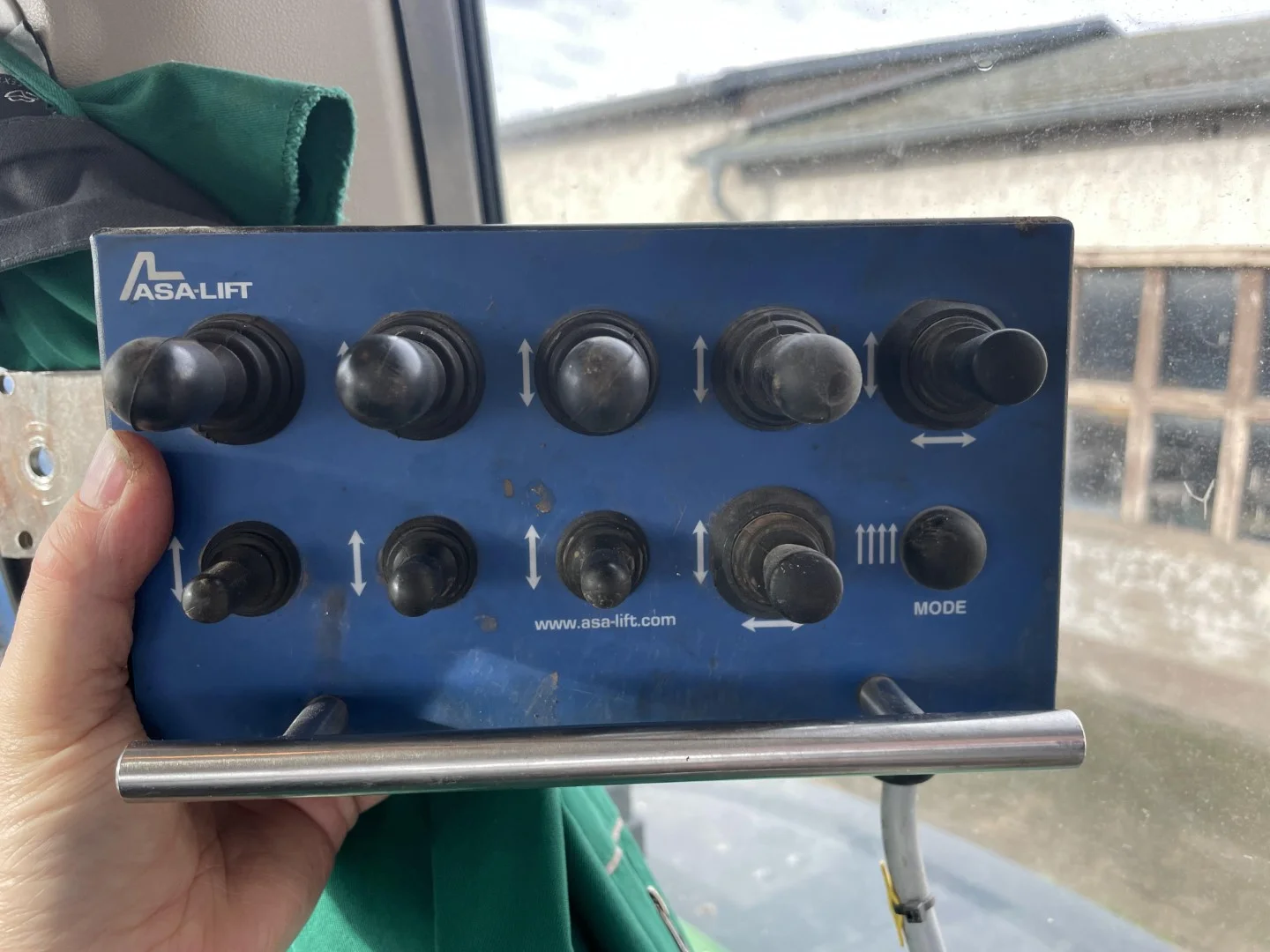

- Separate control box with joysticks and control handles.
- Electronic control system specially designed for ASA-BUS
- Supervision control - operator friendly

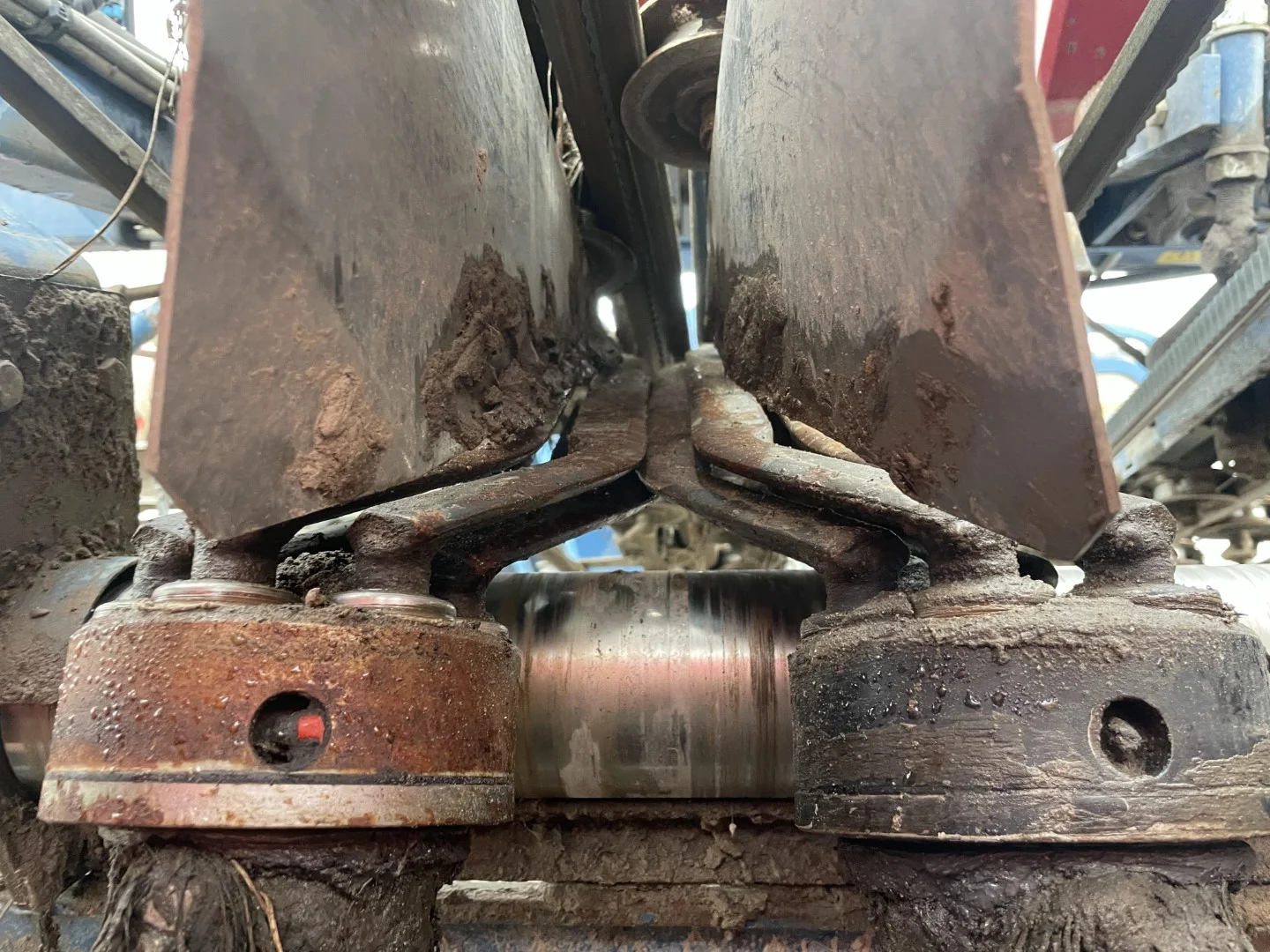

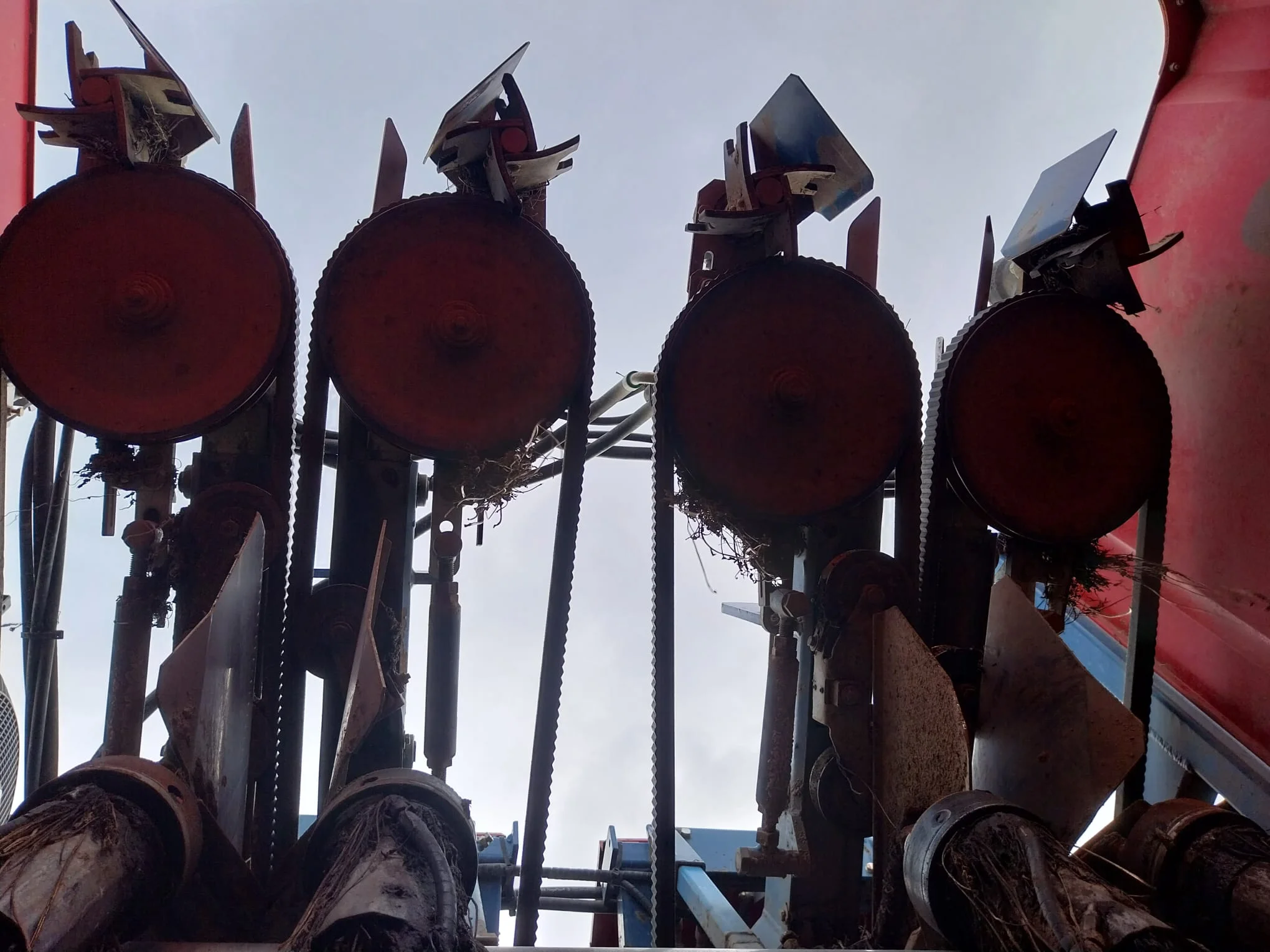

Super blade system.
- Customised ASA bearings.
- Double and labyrinth sealed.
- Longlife

Super grip harvesting section.
- No lubrication points - less wear parts.
- profiles with fixed spacing.
- Multiple idlers with higher load capacity.

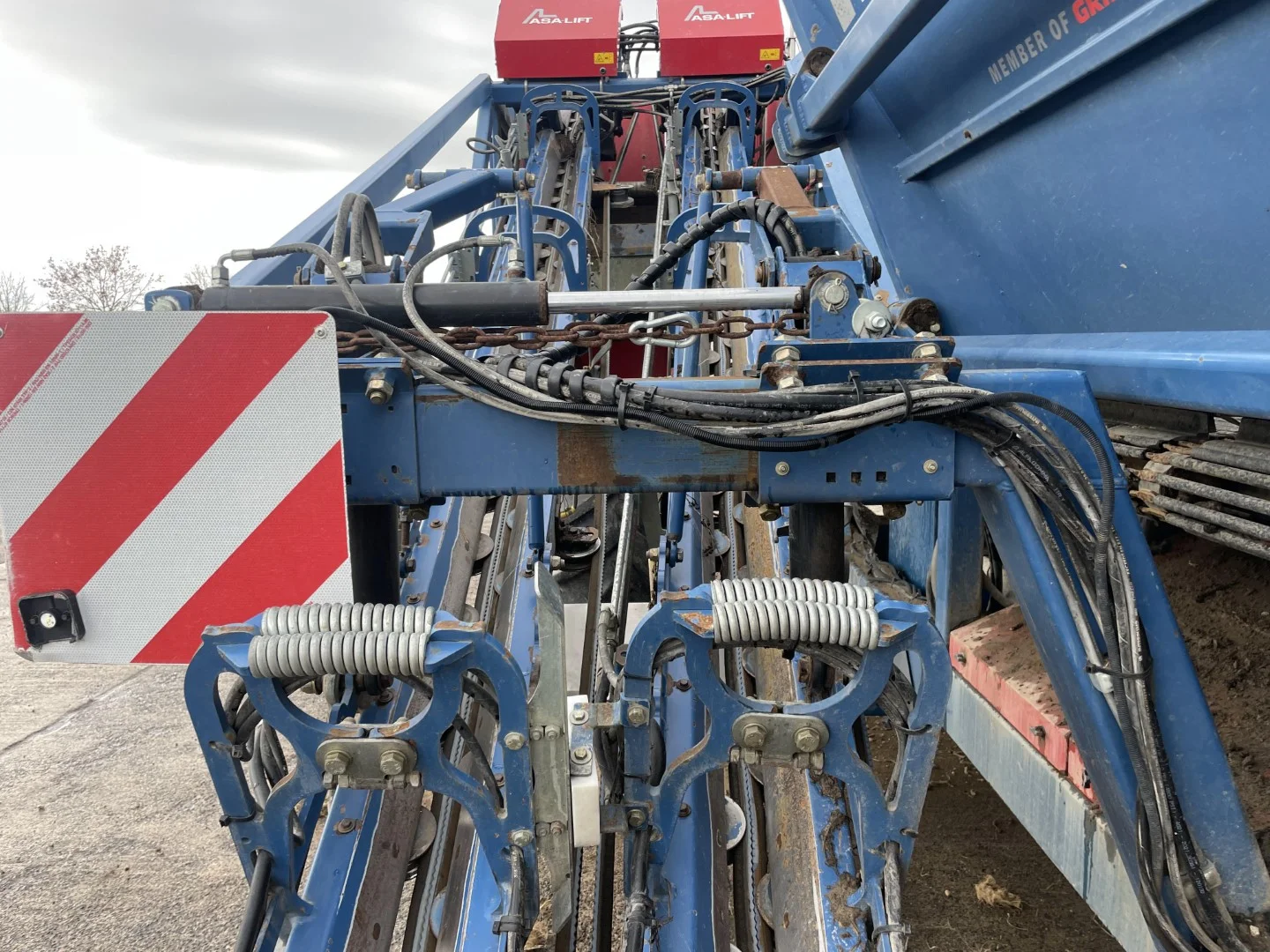

- Carrying rollers mounted on spring-loaded fittings - adjustable holding force.
- boomerang with self-adjusting fitting.
- Quick opening of the support rollers.

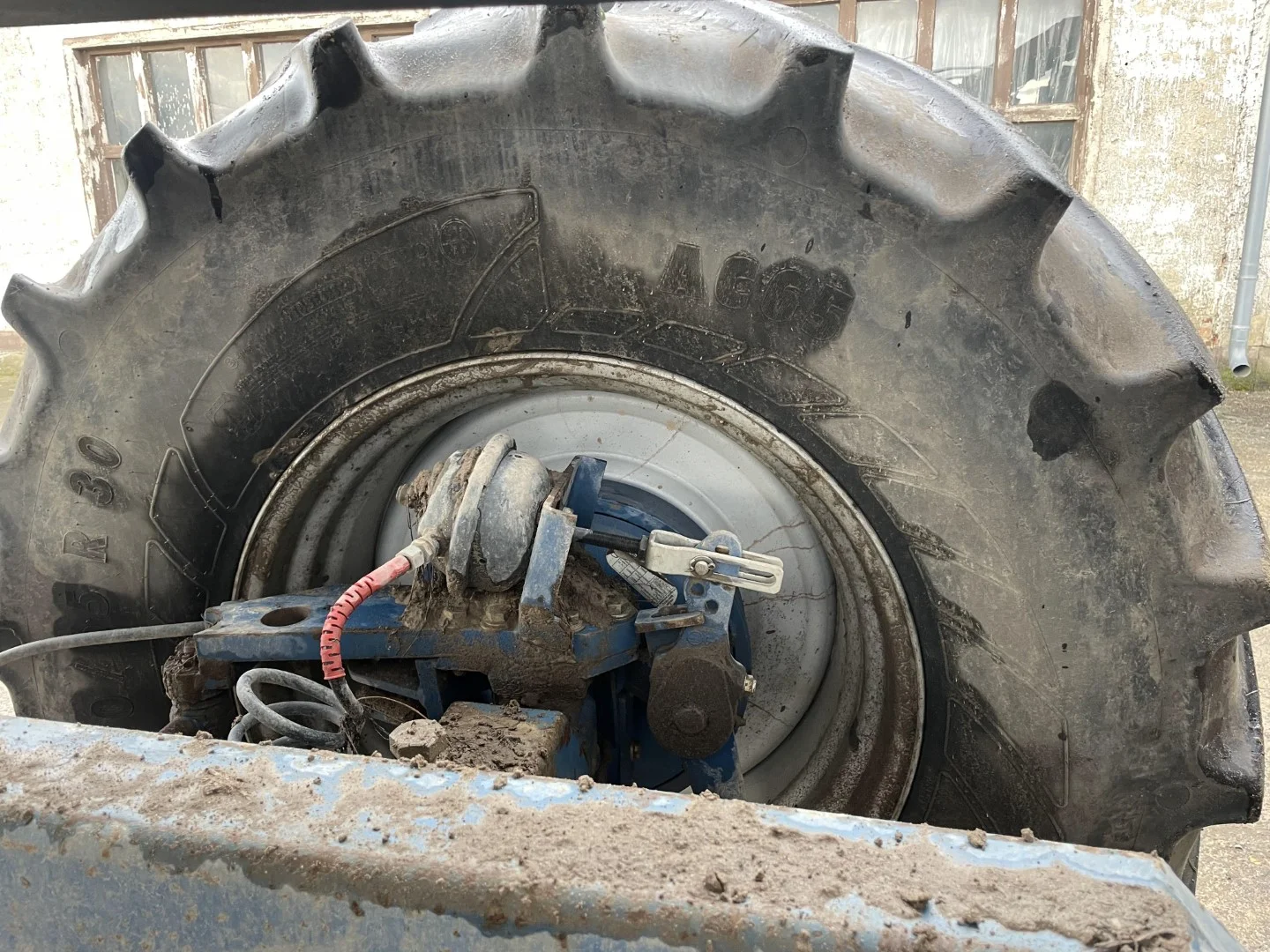

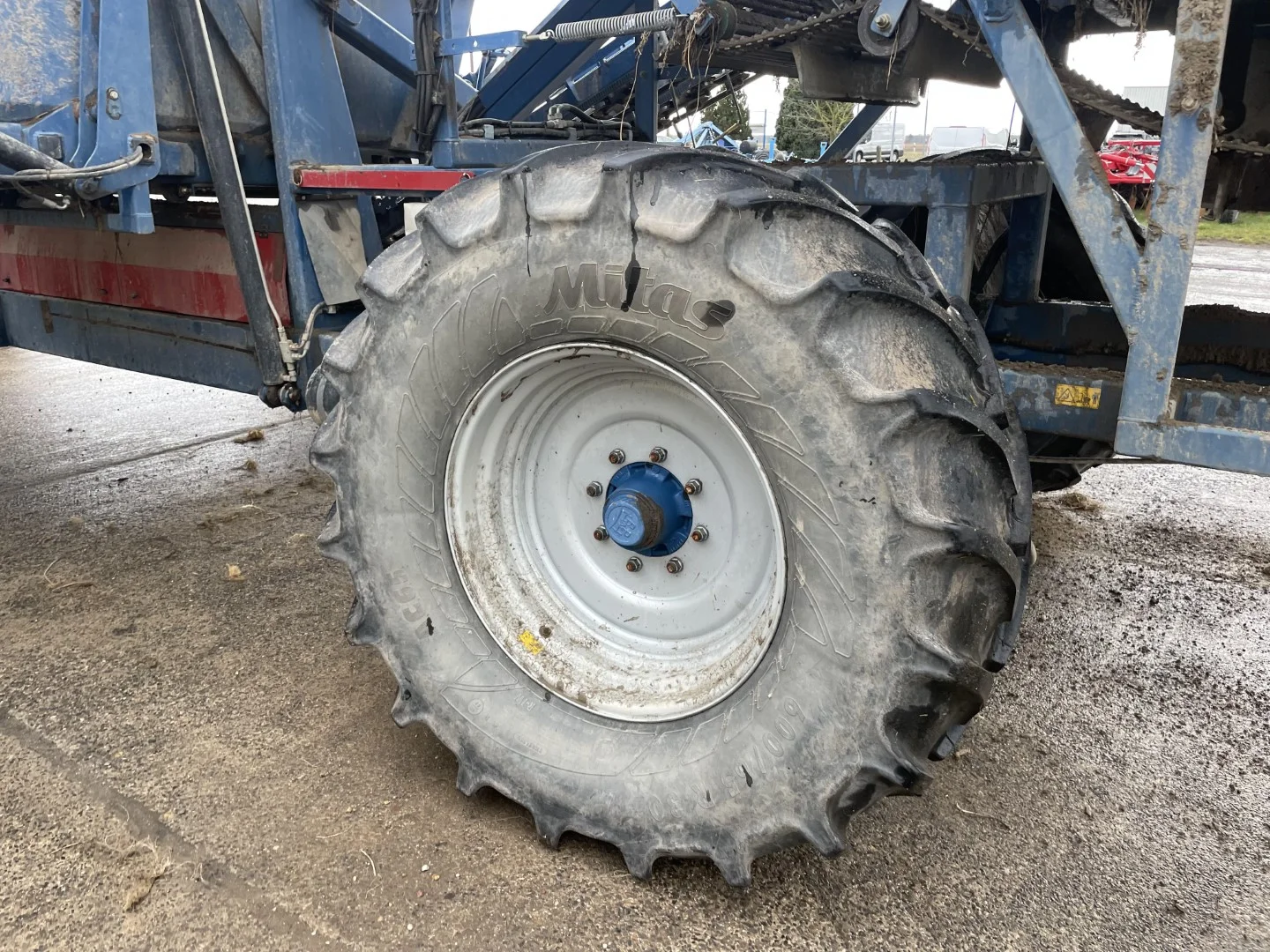

- Hydraulically steerable wheels. Including automatic centre alignment.
- Wheel brake on rear wheels. With pneumatic operation

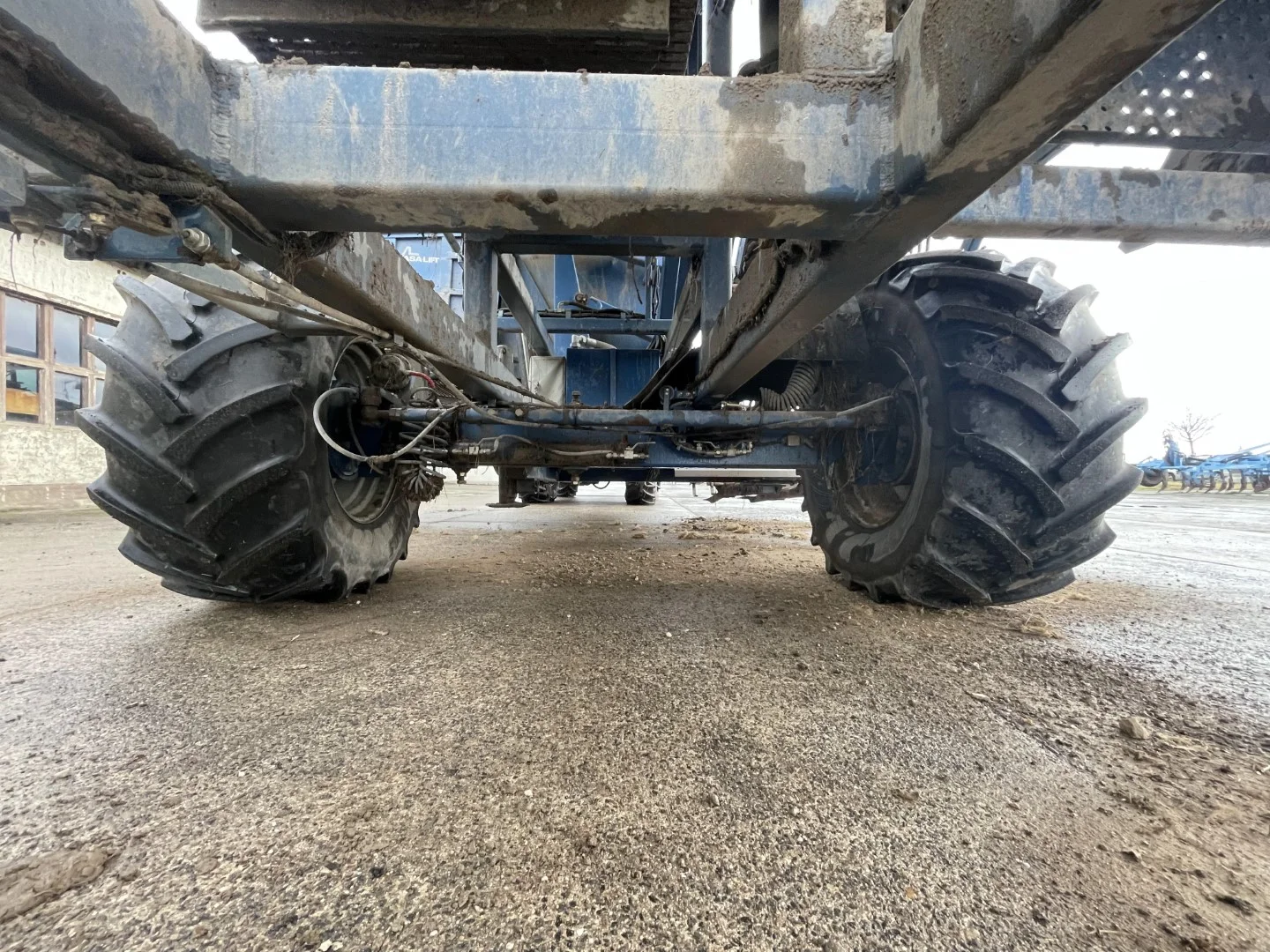

- Hydraulic telescopic axle (left side). Incl. hydraulic support leg
- Complete lighting for road traffic, including rotating beacon
- Large oil cooler with electric fan for 1 & 2-row machine
- Start/stop function via thermostat
- Pressure filter for tractor hydraulics

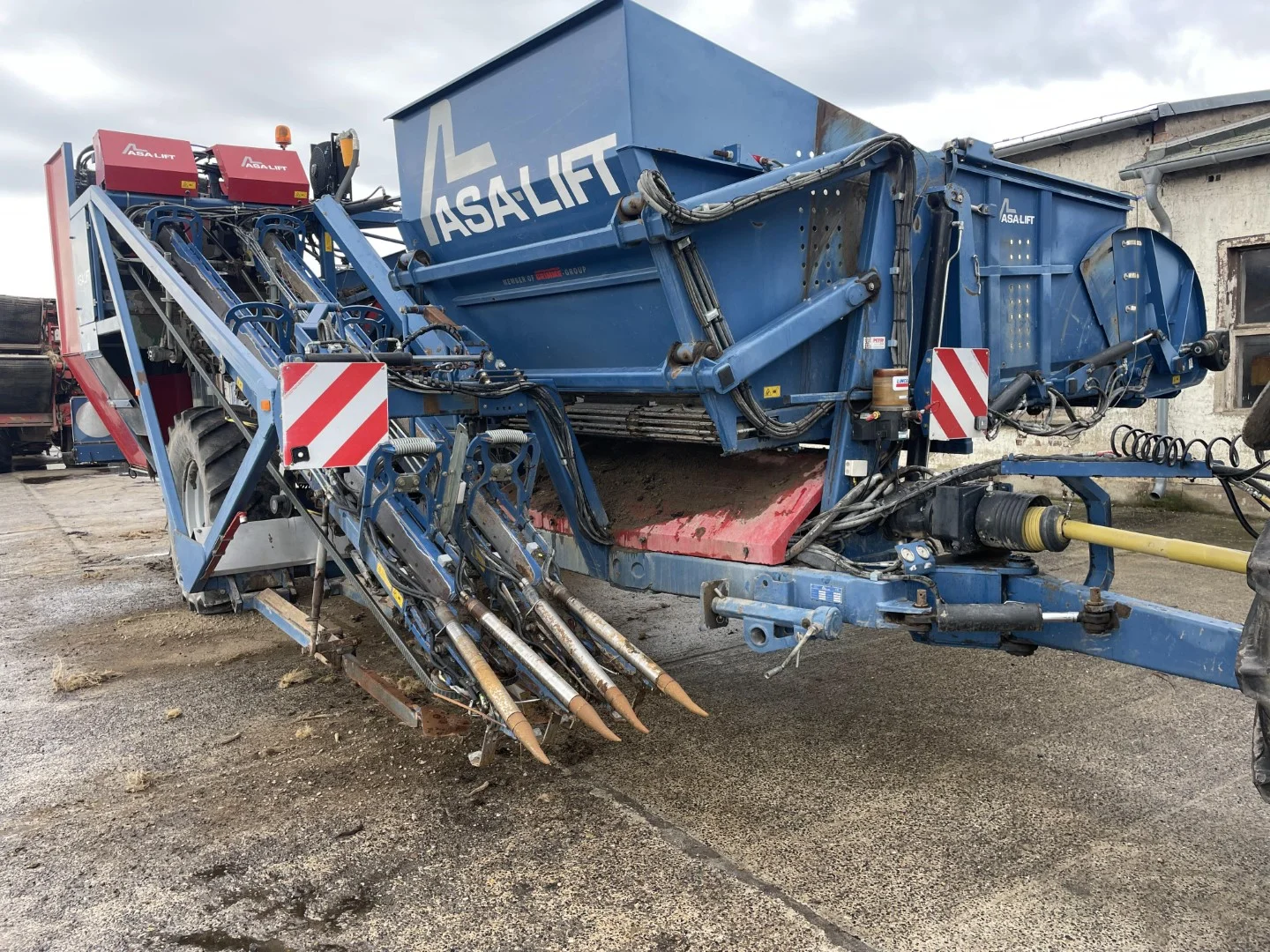

- Harvesting units:

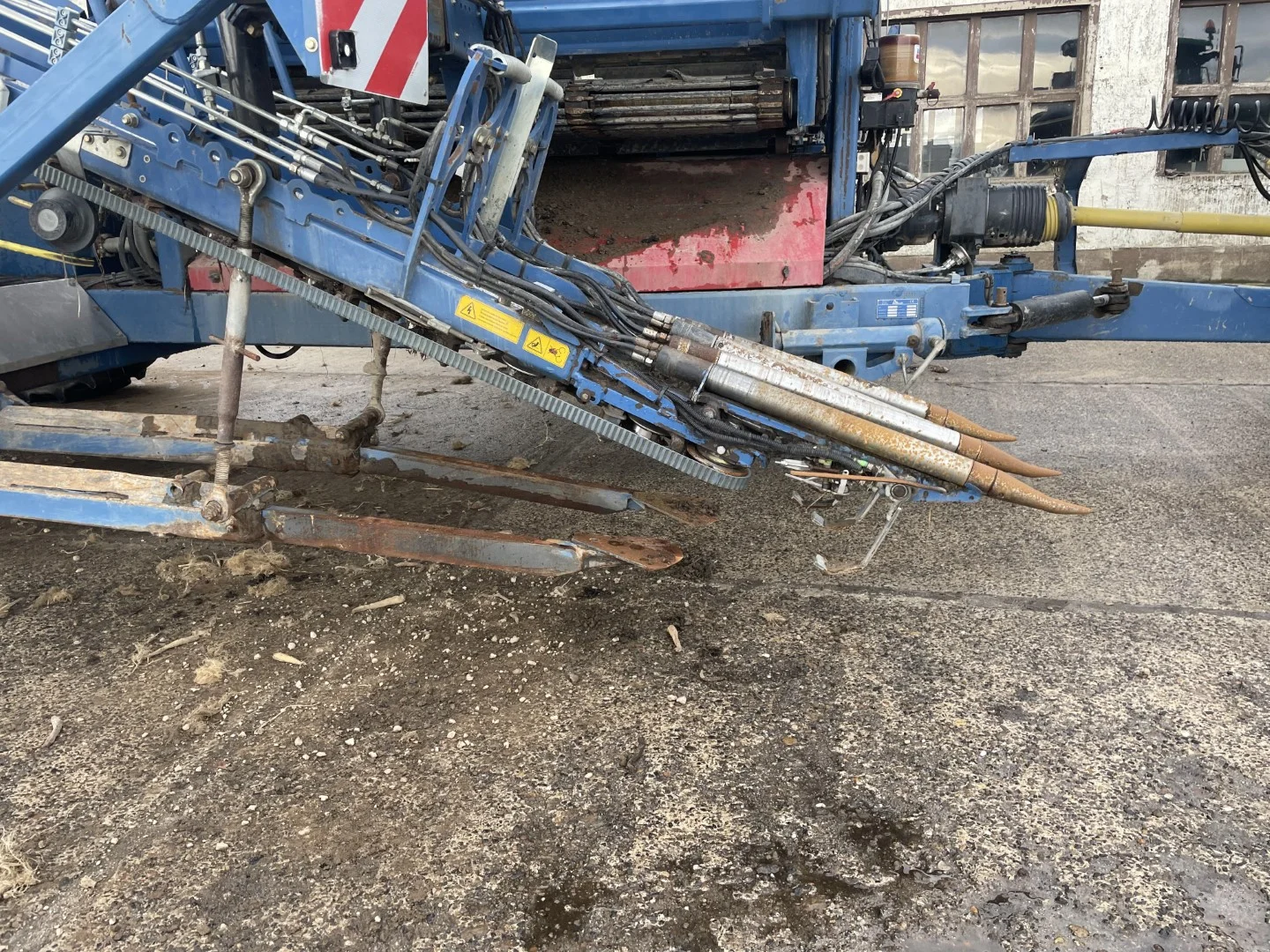

Coulter system with shear pins
- Straight coulter arm with offset plate
- 150mm coulter point

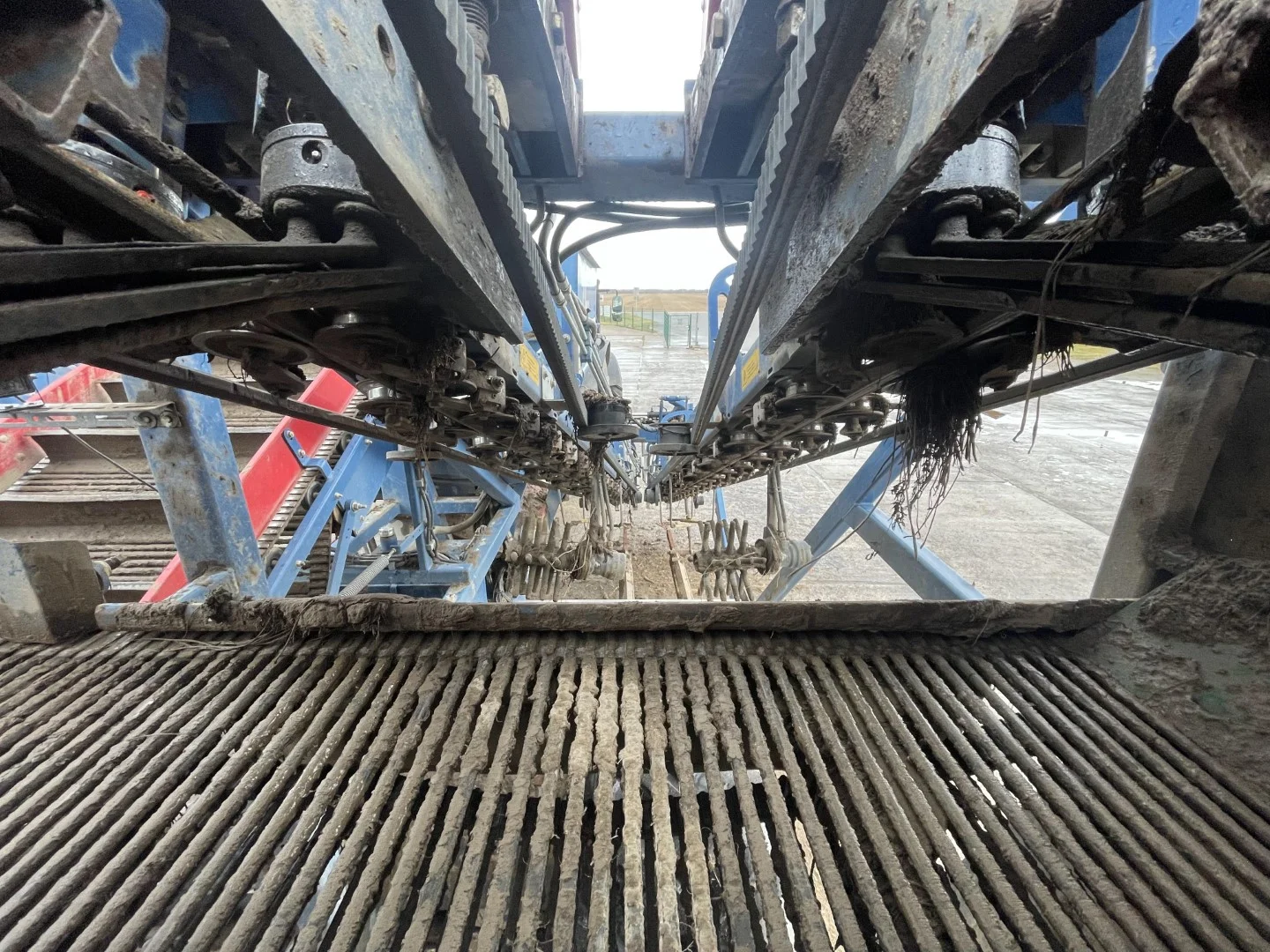

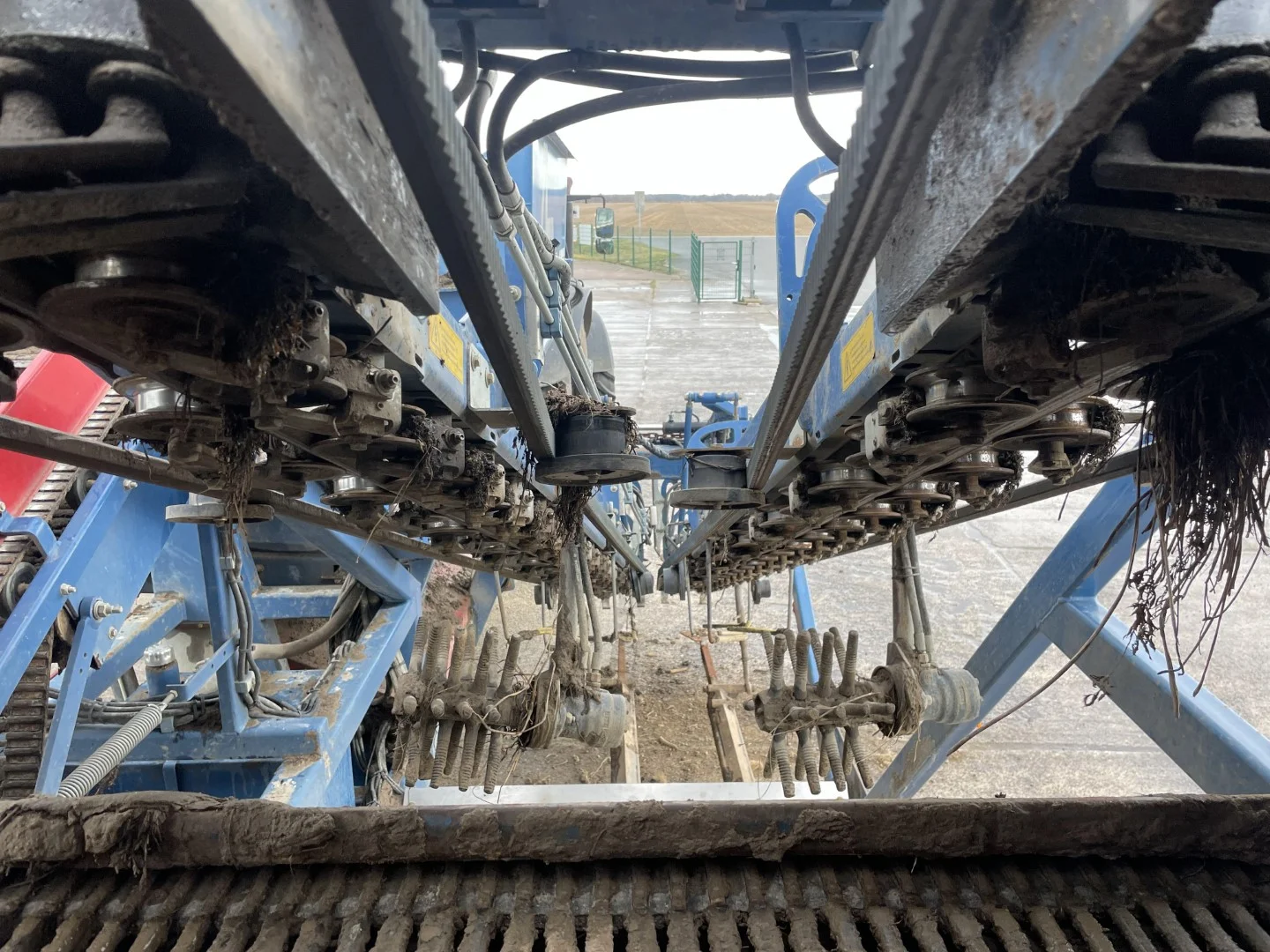

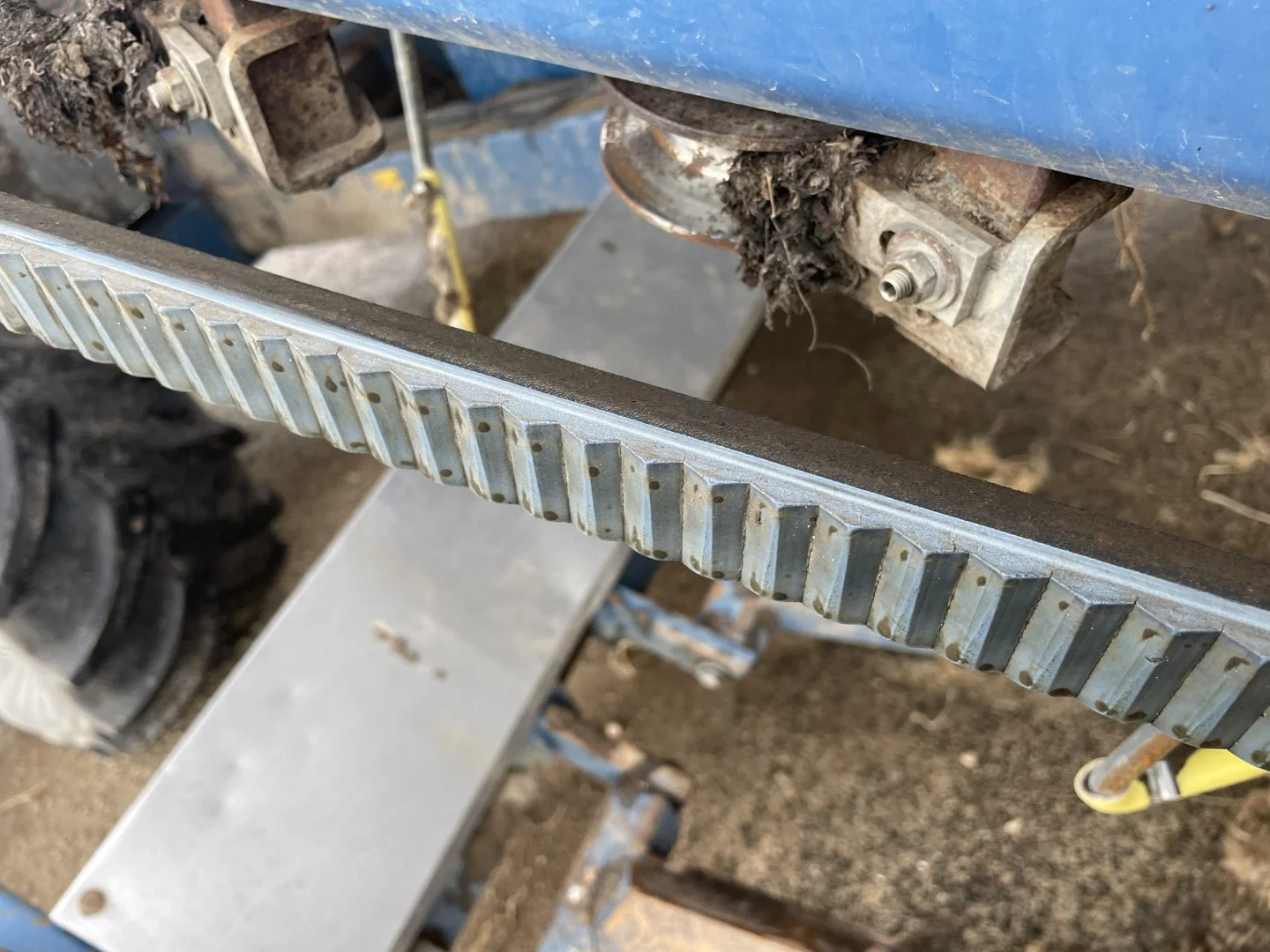

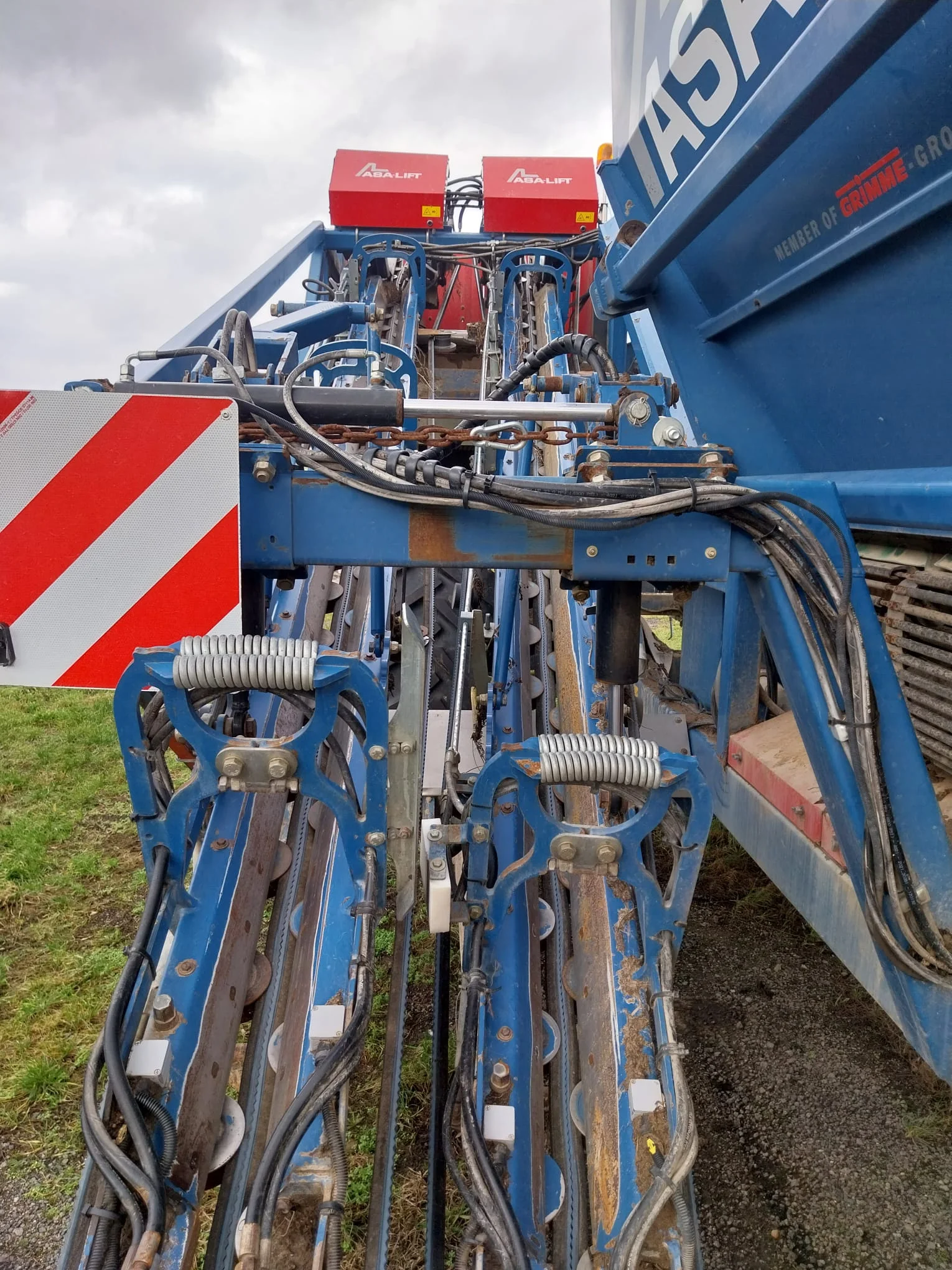

550" type pick-up belts with PK-5 profile (with teeth). 2 rows

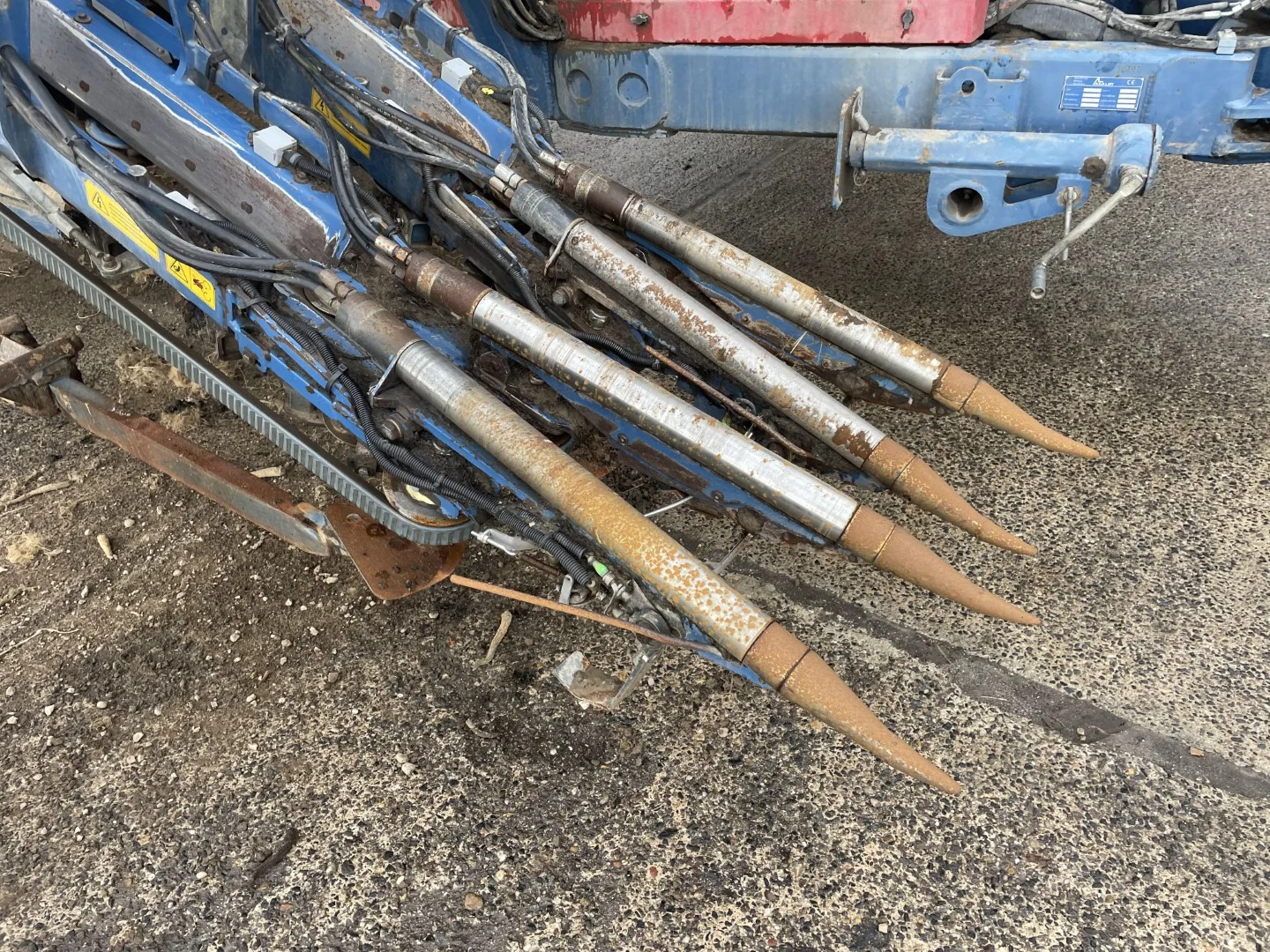

- Hydraulically driven torpedoes for smooth insertion of haulm. With dip protection.
- 2 rows

- Synchronised control on pick-up belts adapted to the forward speed.
- Manual override of belts via control panel in tractor

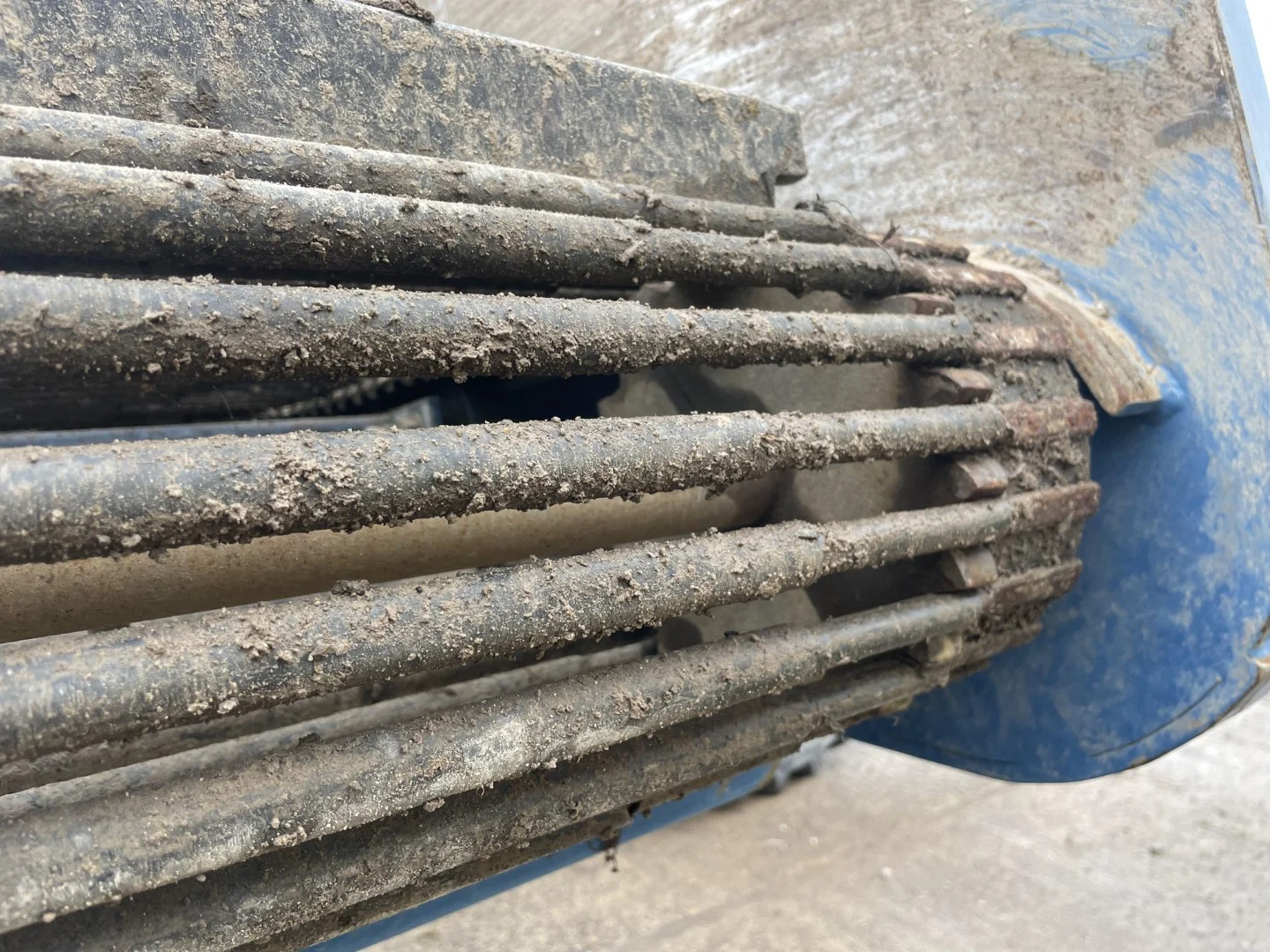

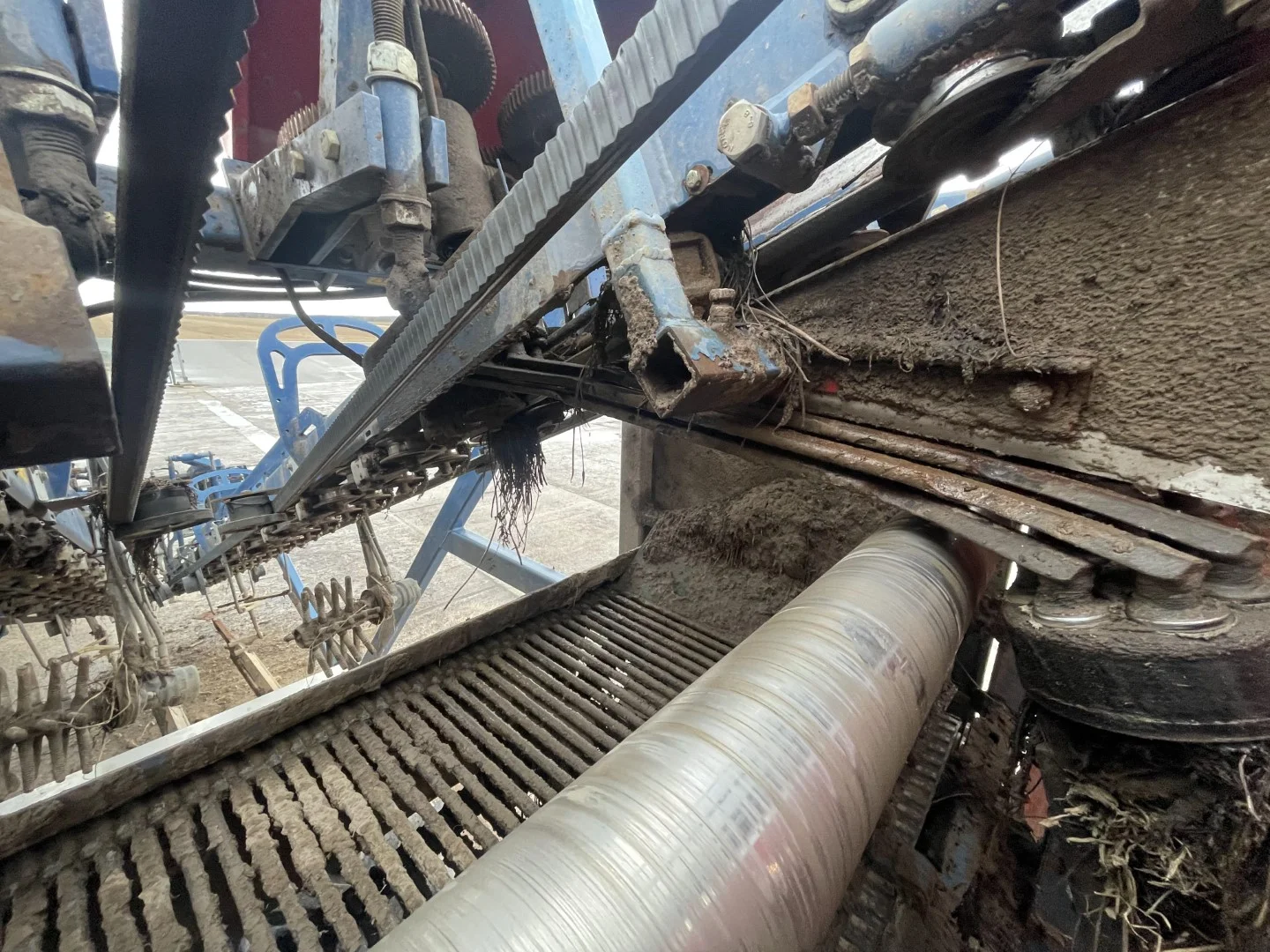

- Hydraulically driven cleaning roller mounted under the knives - 2 rows
- Reverse function on the knives, including speed adjustment via control panel in the tractor.

* Pick-up location: Jessen, Germany
