Description:

Tumoba harvester for Brussels sprouts 2 row

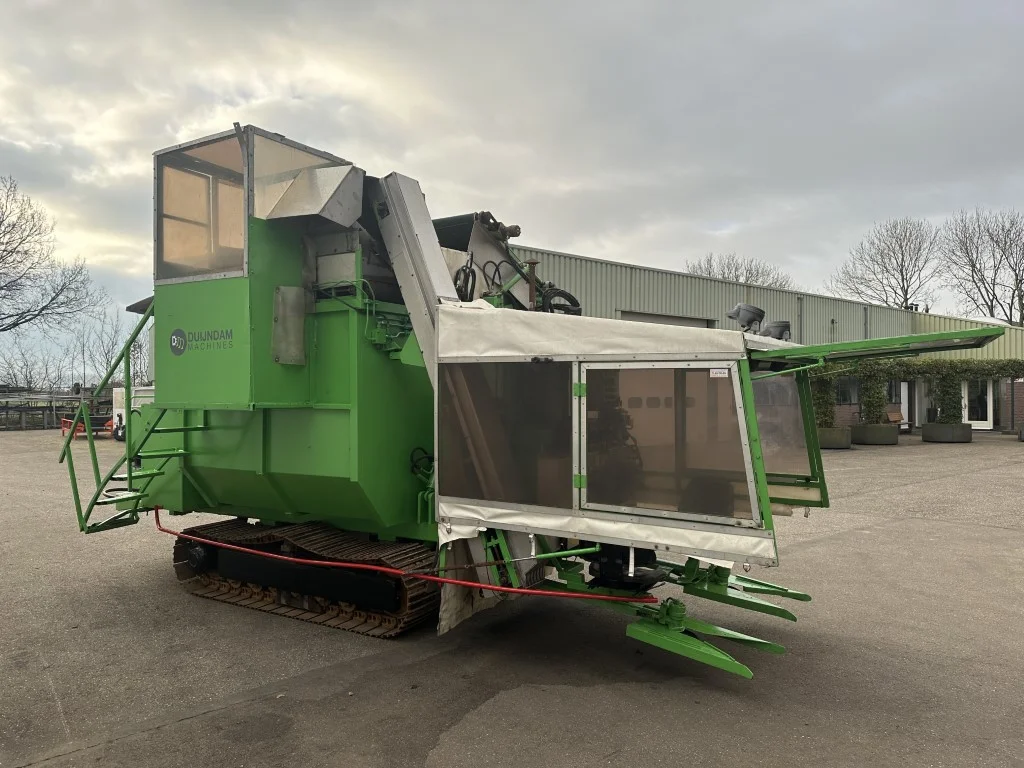

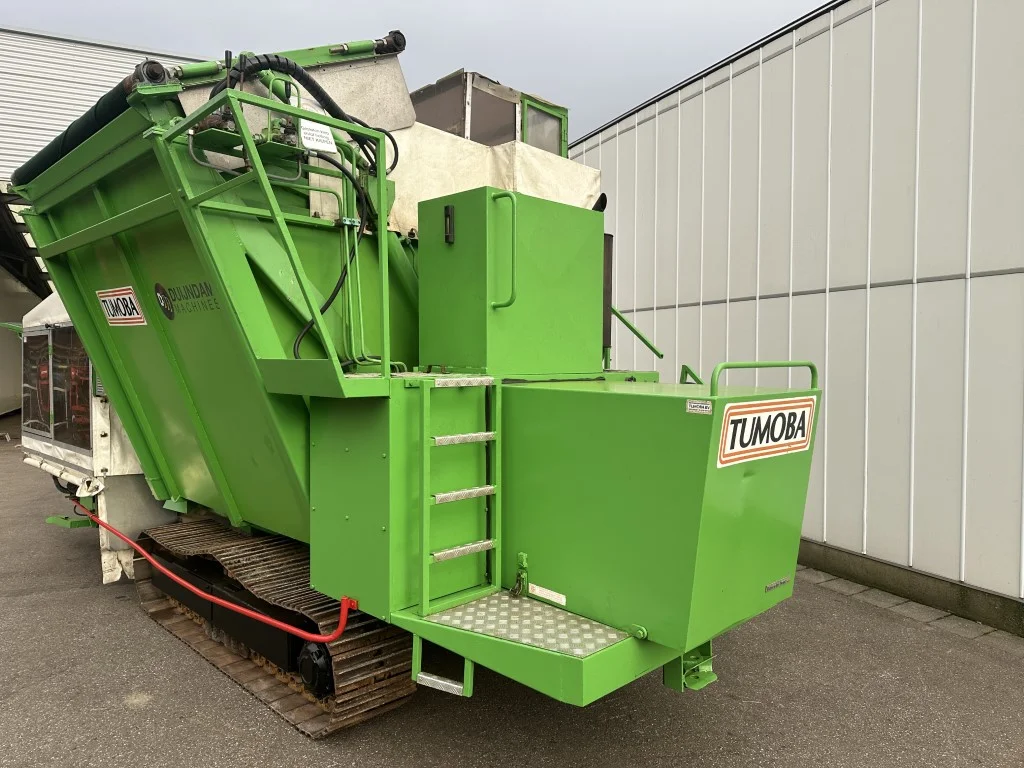

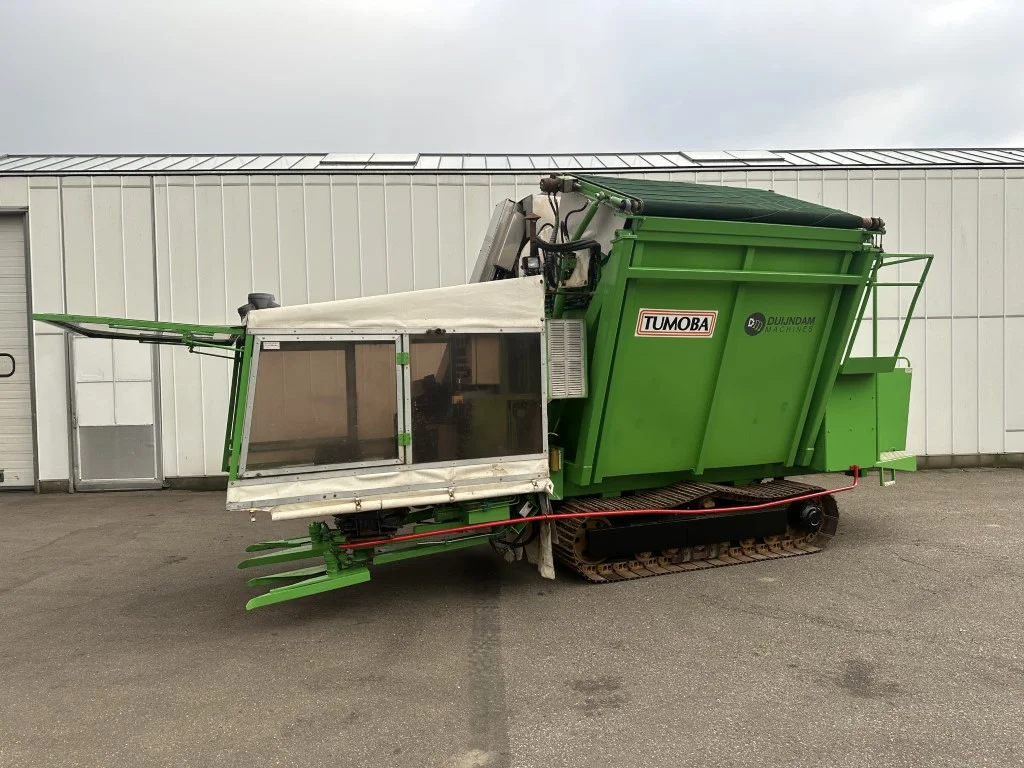

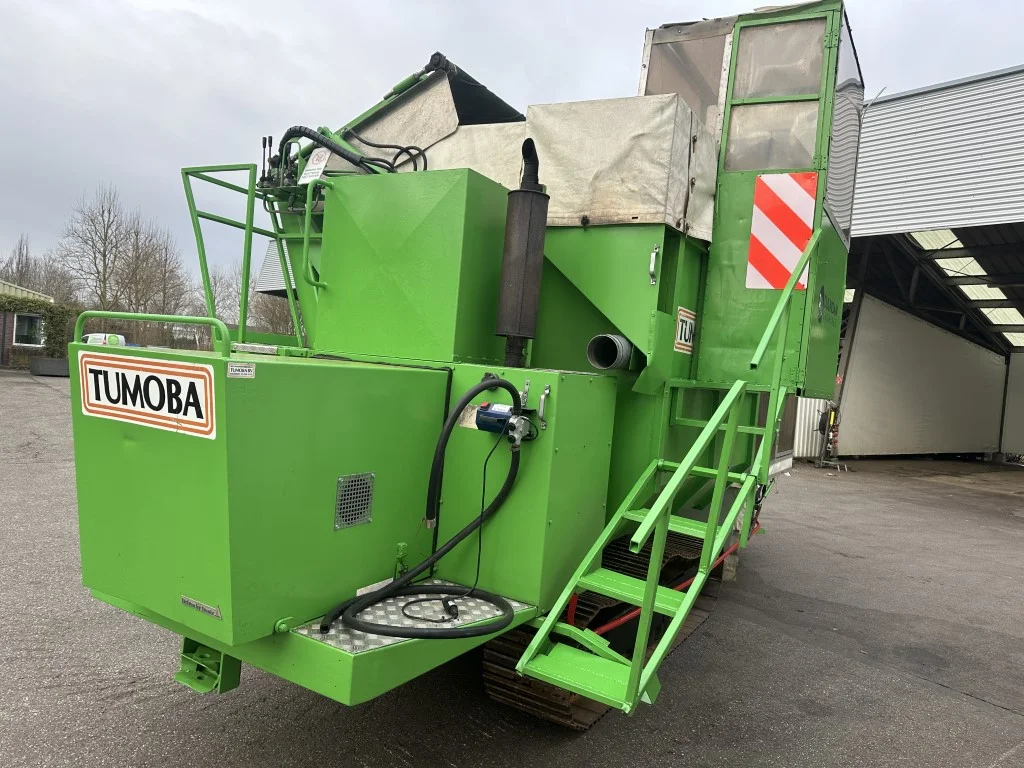

Tumoba SP2 harvester for brussels sprouts

• 2 row
• 6 Knive cutting heads ( overhauled /reconditioned)
• 1 side blind insertion

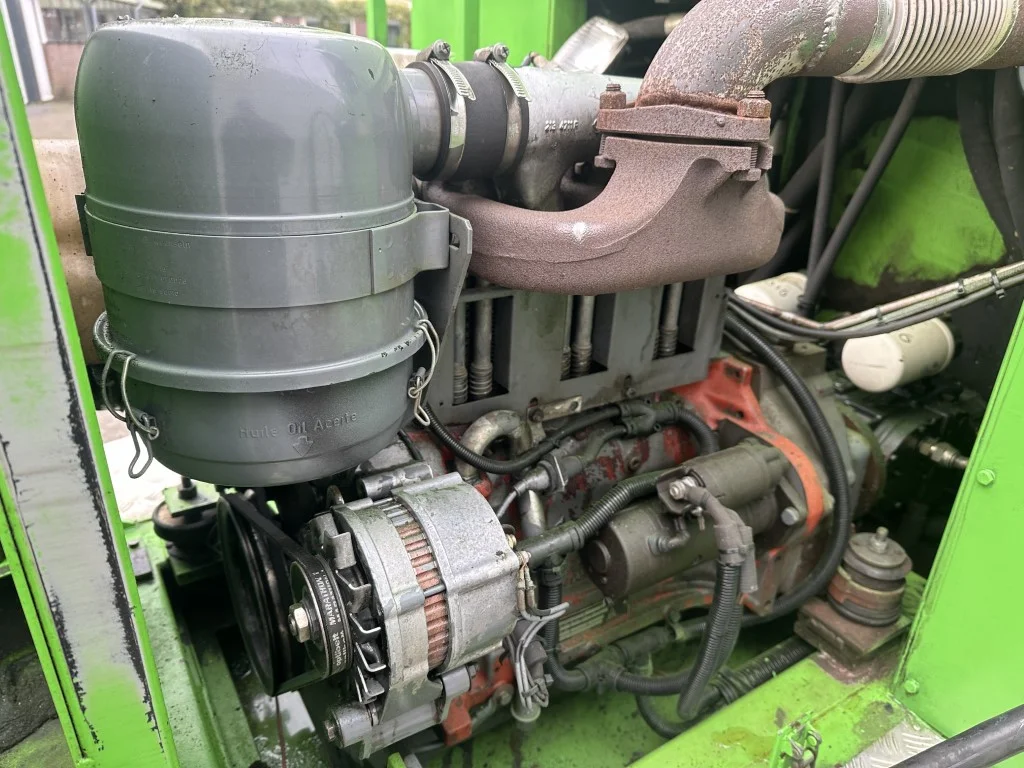

• Deutz 3 cylinder Diesel engine
• Discharge conveyor on top of the bunker

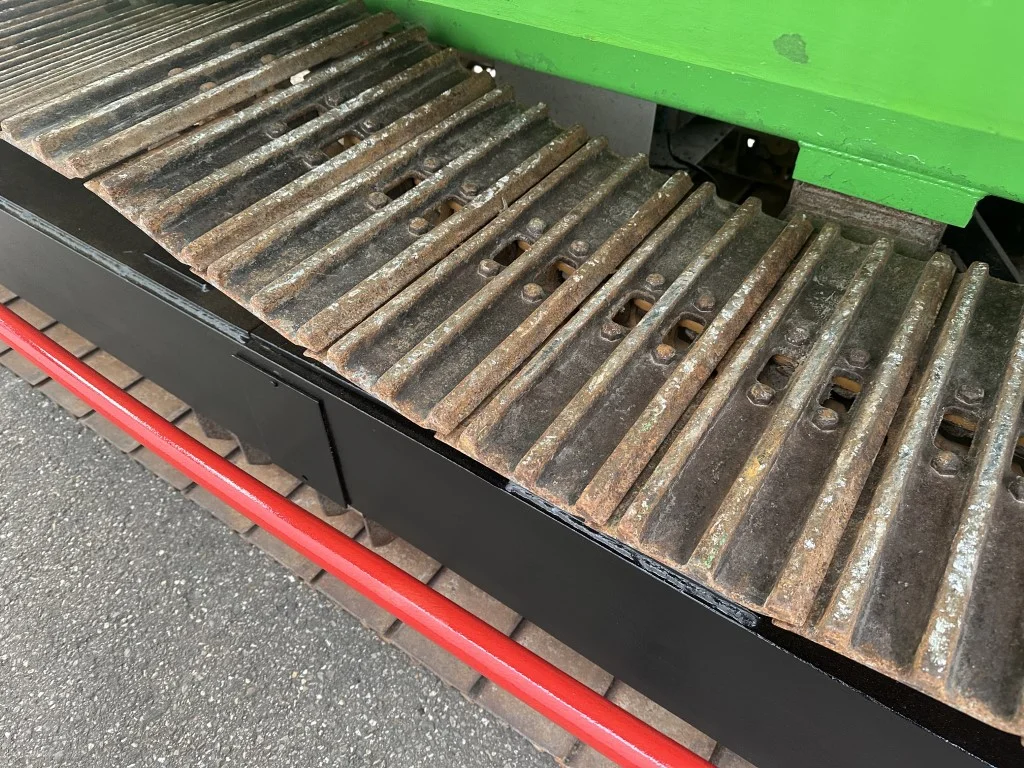

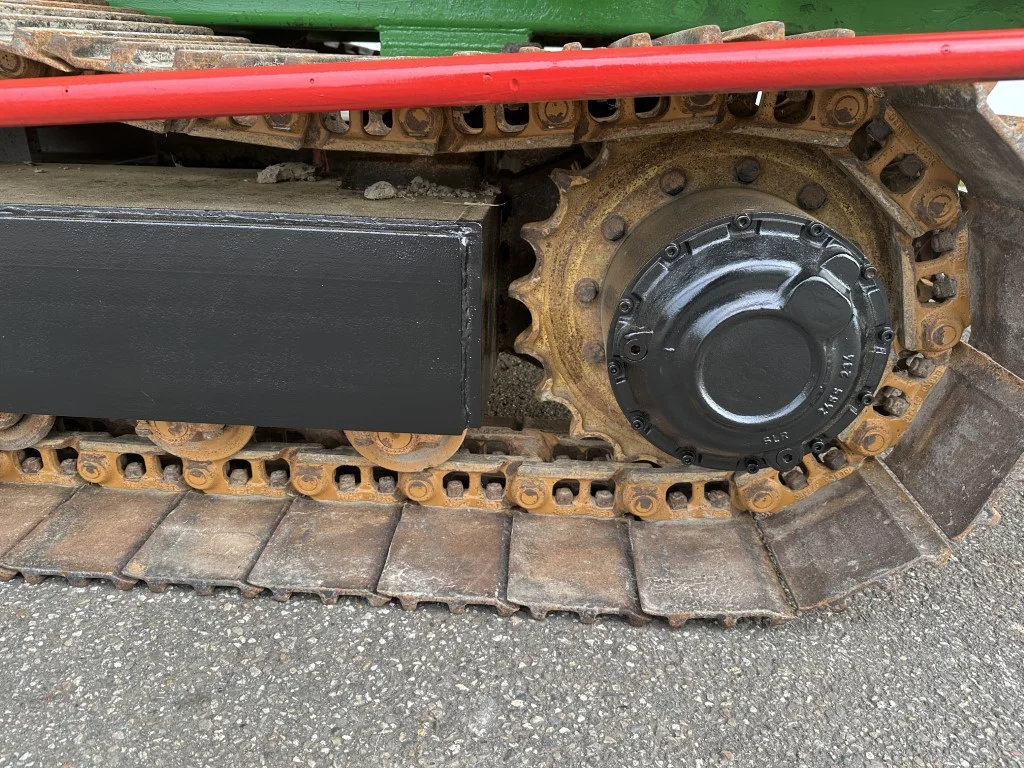

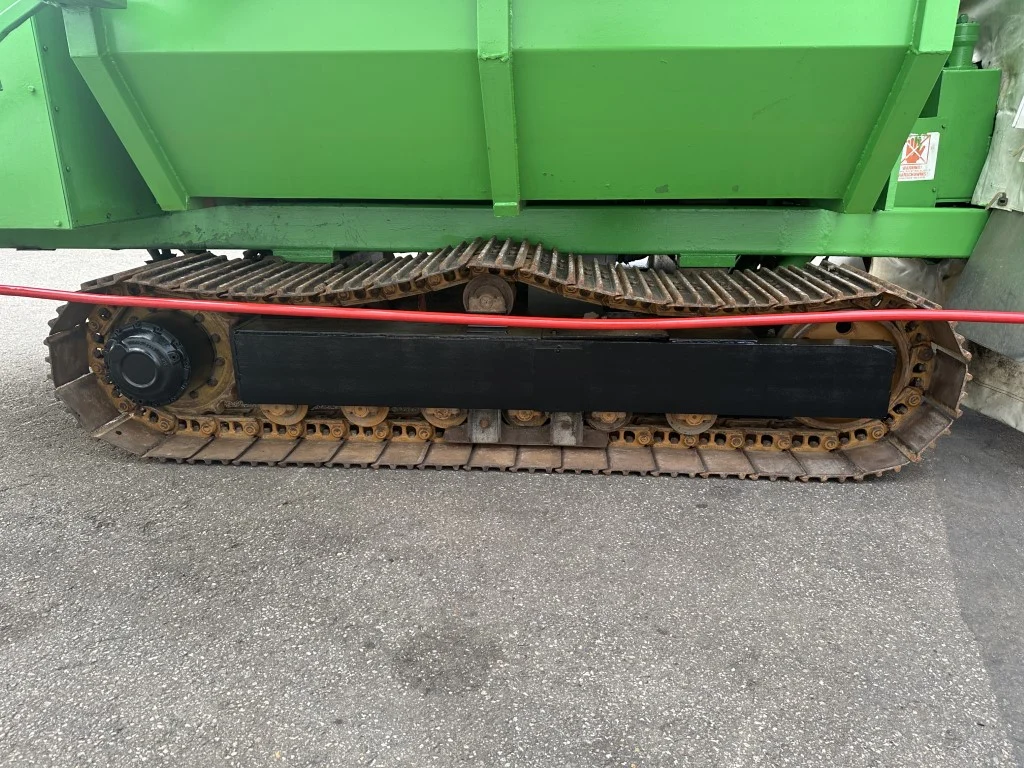

• Tracks 45 cm wide

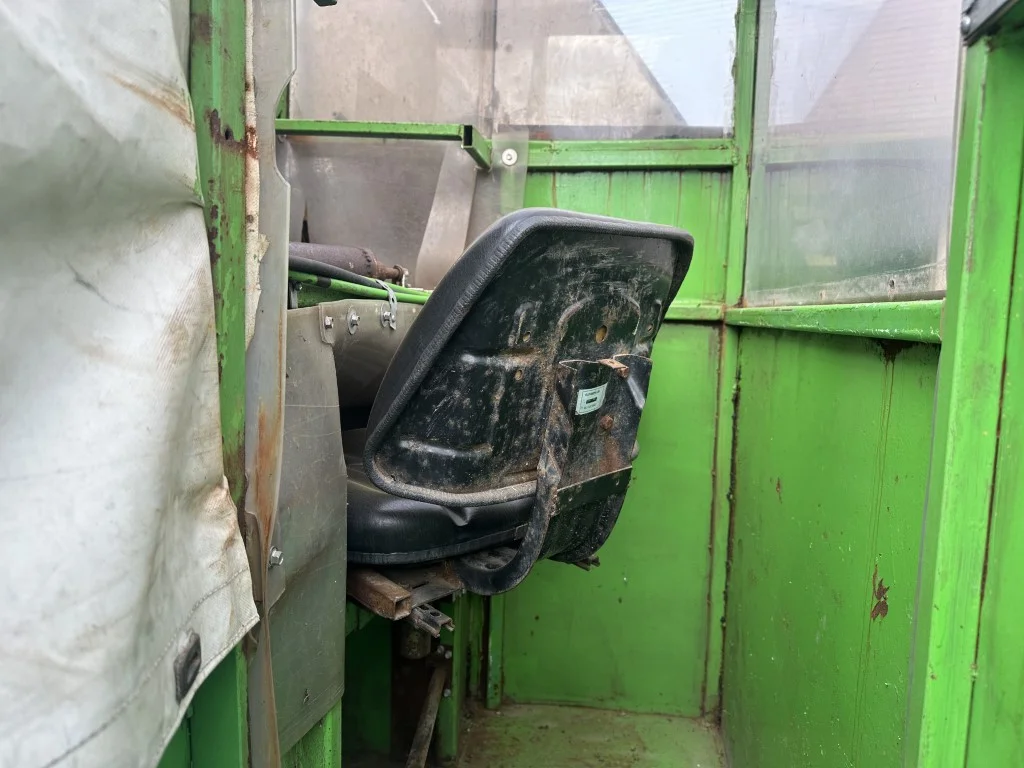

• With attached inspection cabin to do some pre inspection

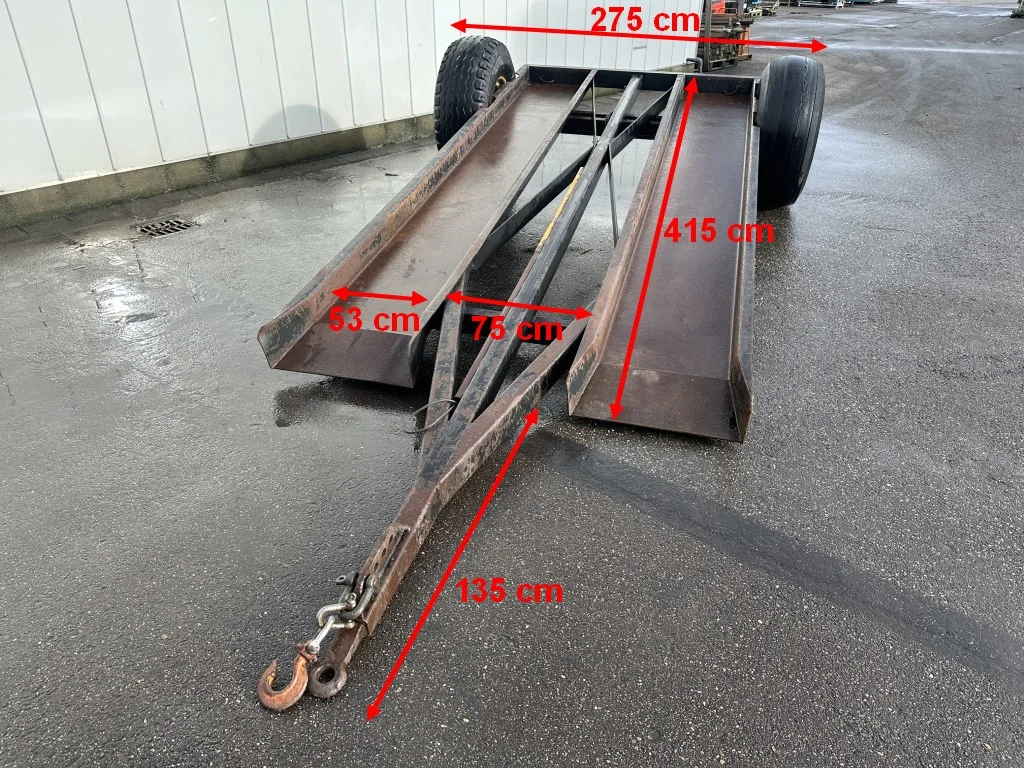

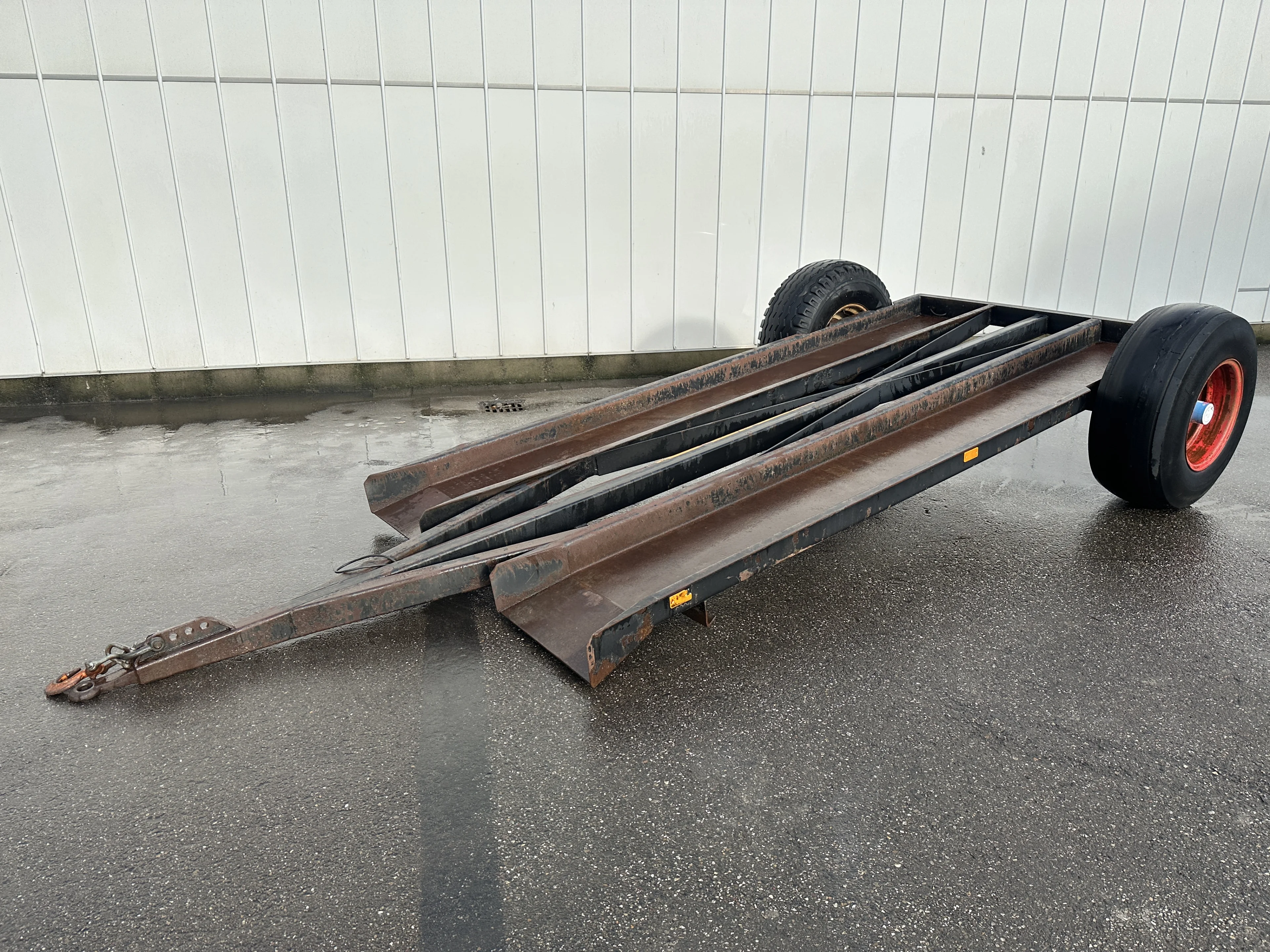

• With transport trailer  L x B x H 550 x 275 x 110 cm

Machine is modified by manufacturer with various safety measures

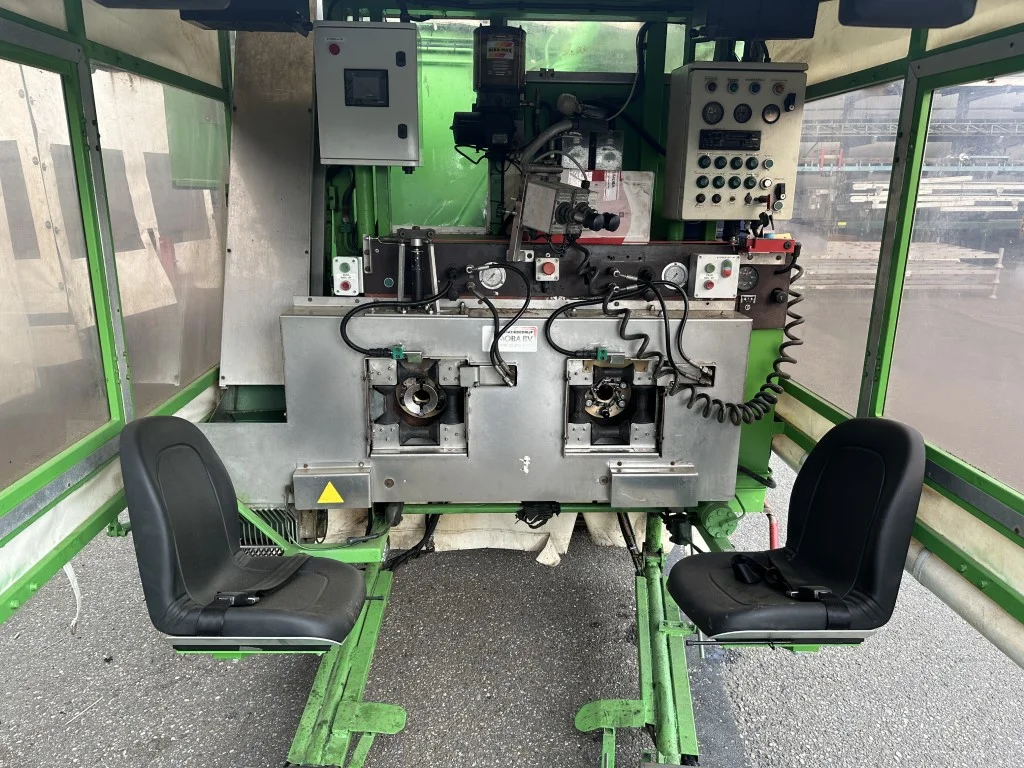

Safety system consisting of:

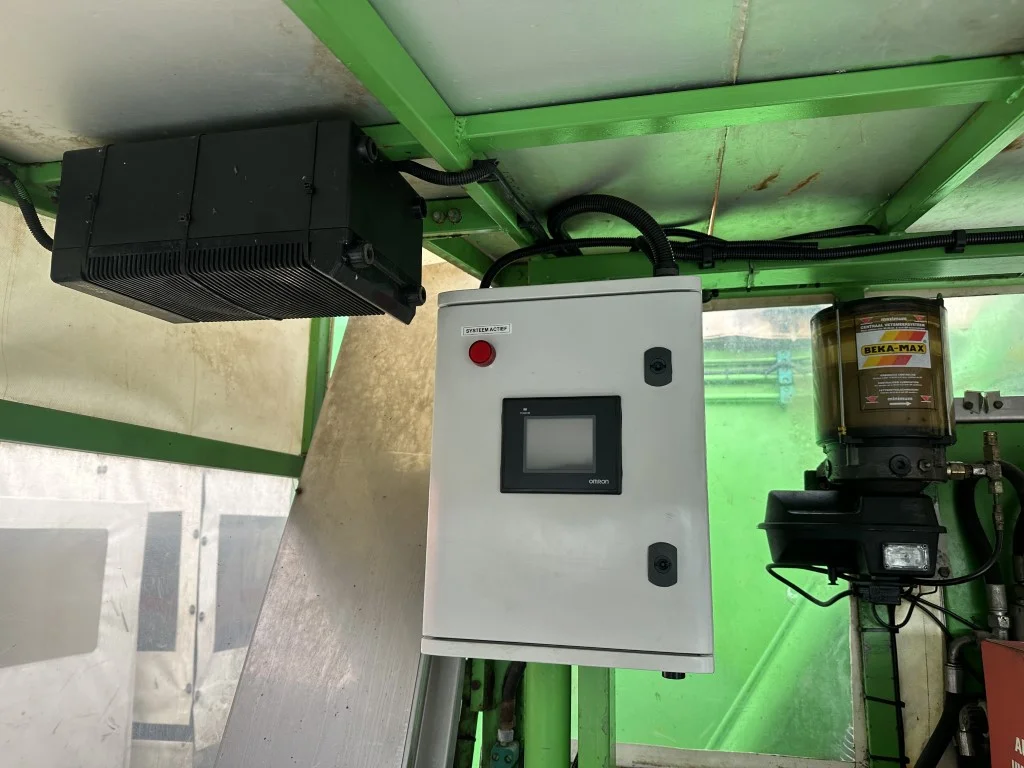

1 x electrical cabinet vzv PLC and required switching relays
2 x Reset / start-stop safety device above the picking heads
1 x System switch
2 x Electric/hydraulic saw safety devices (via PLC)
2 x Seat protection switches in seat leg construction (via PLC)
2 x Saw valves for the saw.
1 x Dead man's handle under the joysticks (via PLC)
1 x Start protection under the joysticks  (via PLC)
1 x Emergency stop cord
1 x Electric stop magnet on the Diesel engine

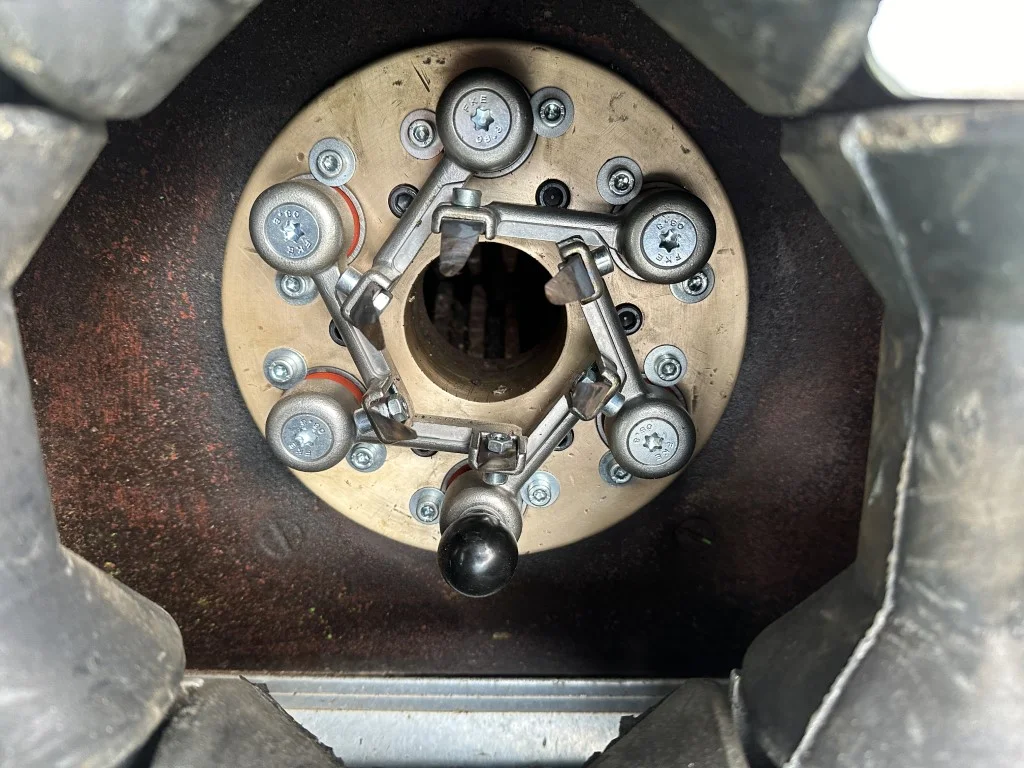

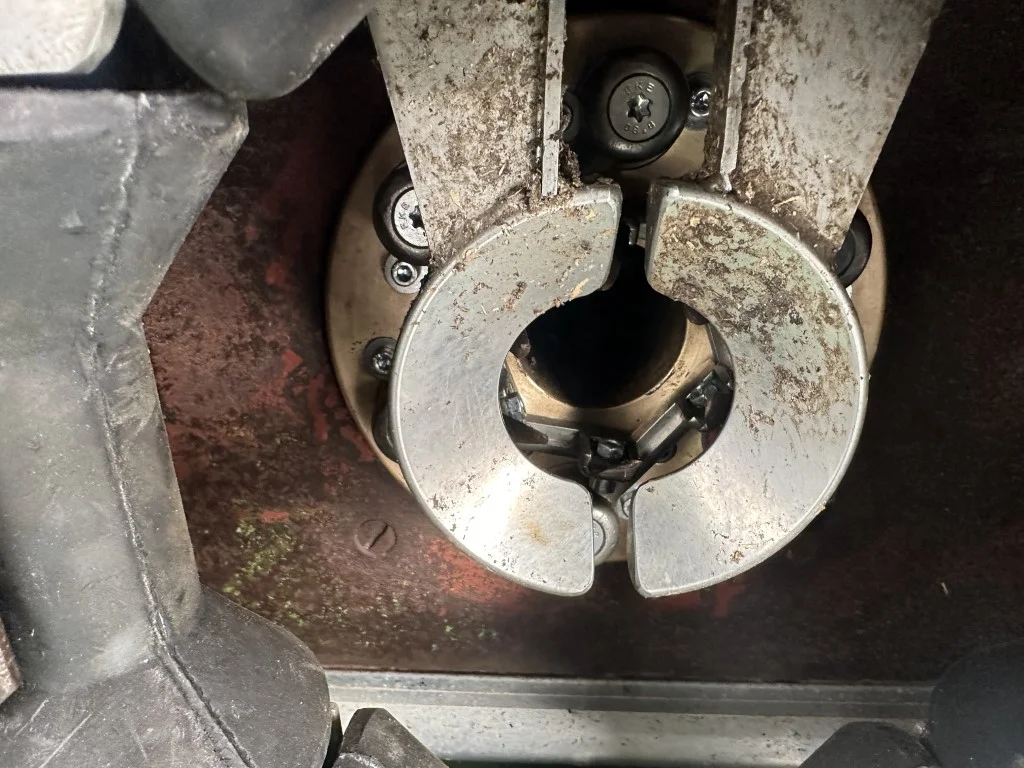

Complete overhaul of the picking heads

The Tumoba SP2 are harvesters designed to enable the larger sproutgrower to obtain high output and minimise labour requirements, whilst protecting the condition of the soil, even under the most adverse conditions.

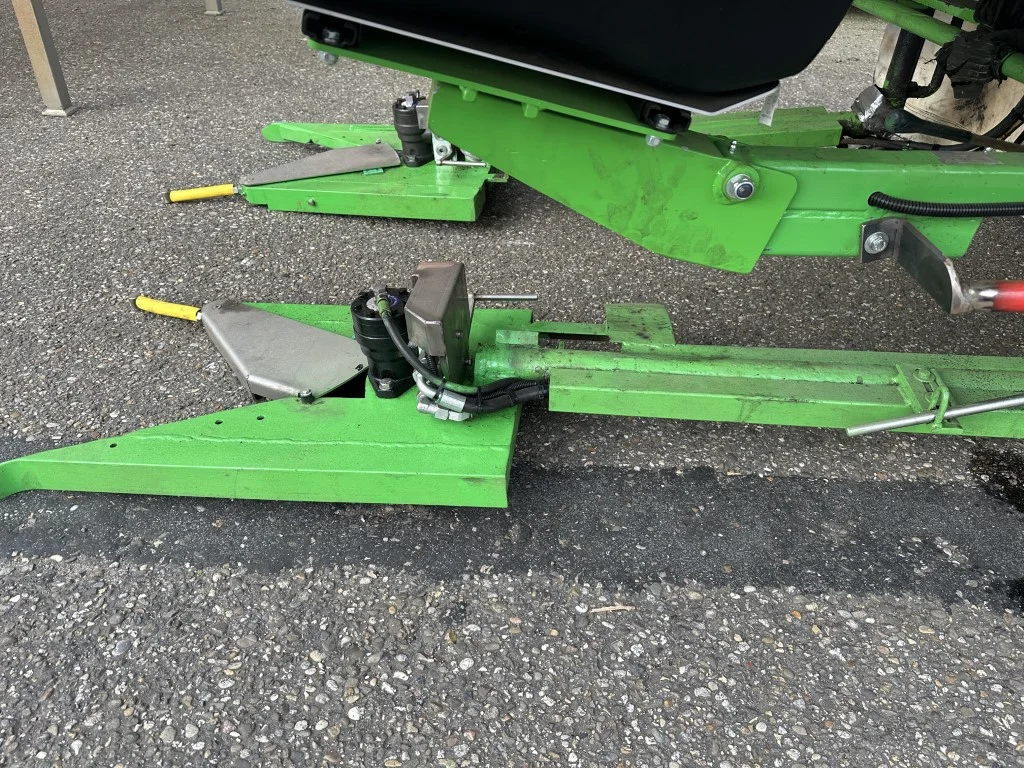

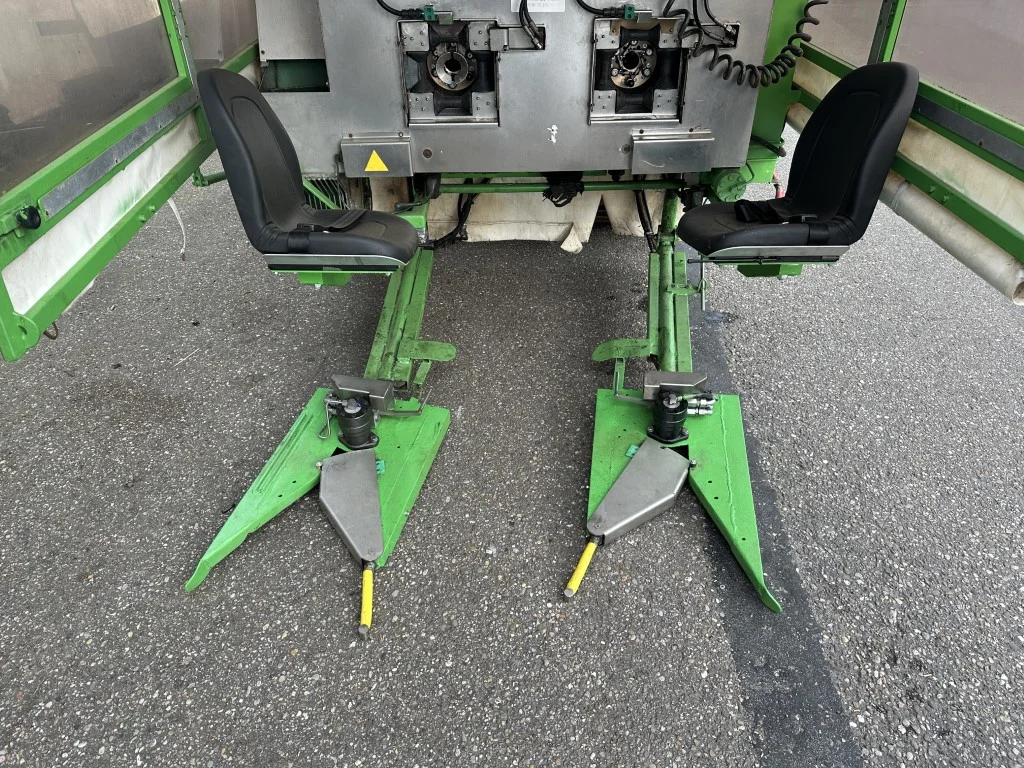

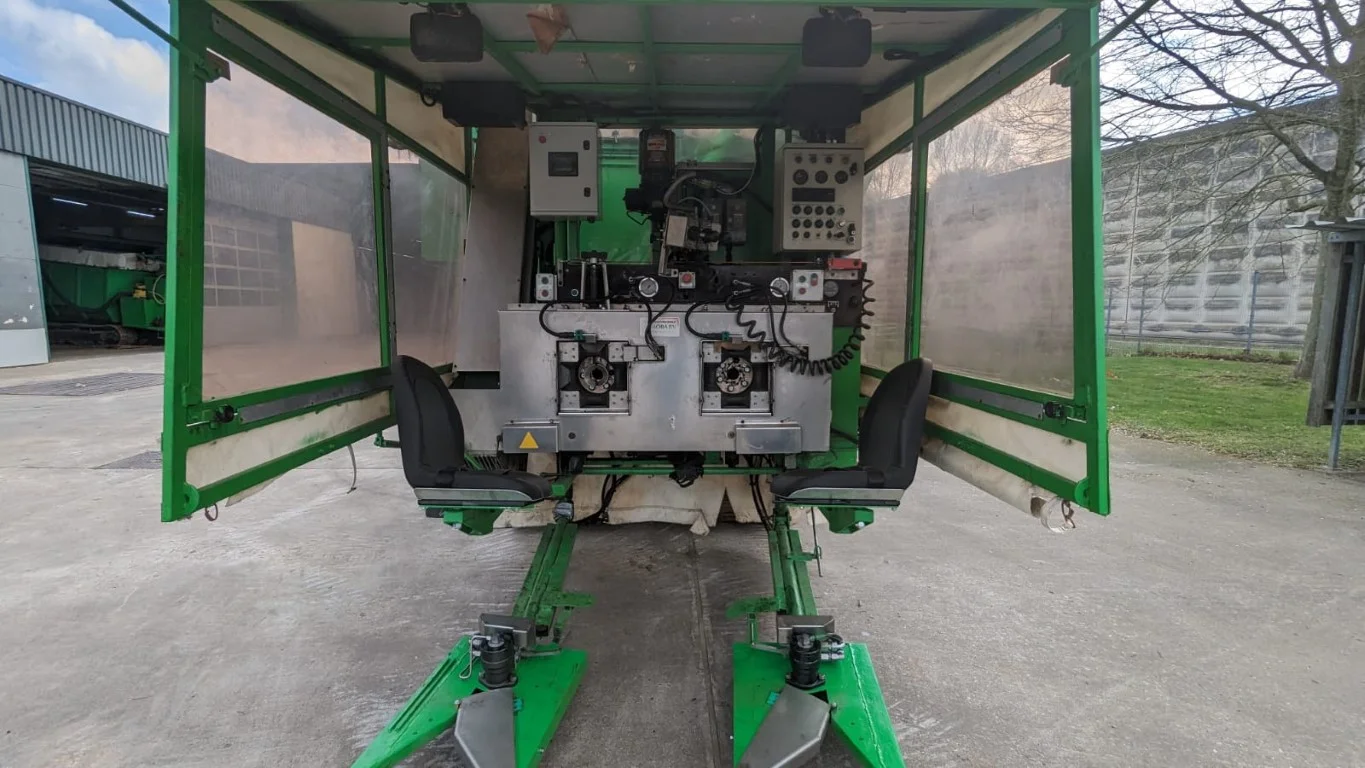

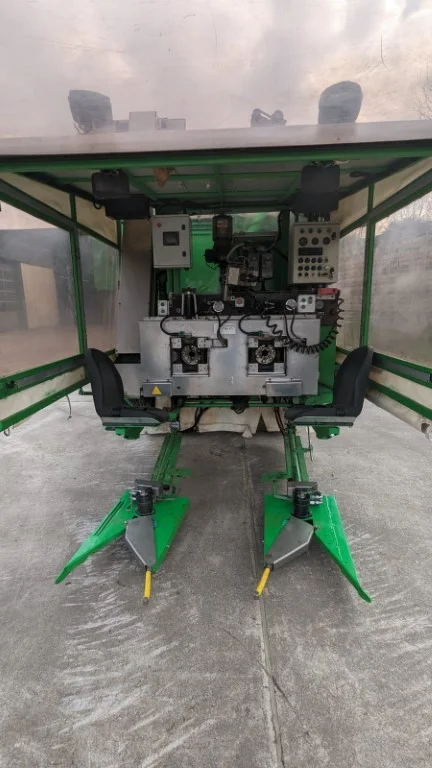

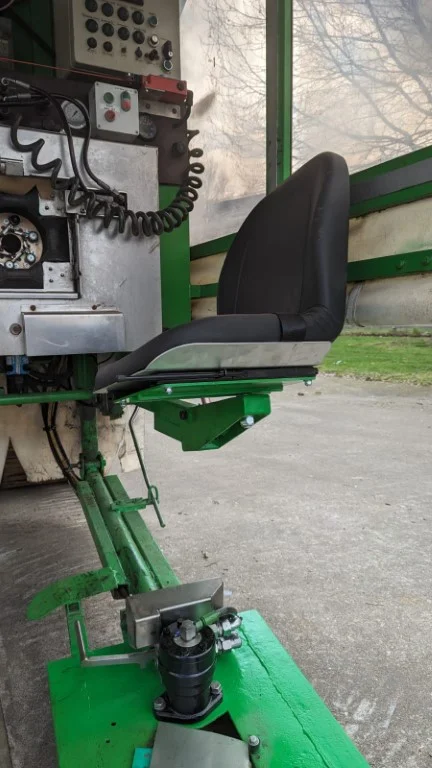

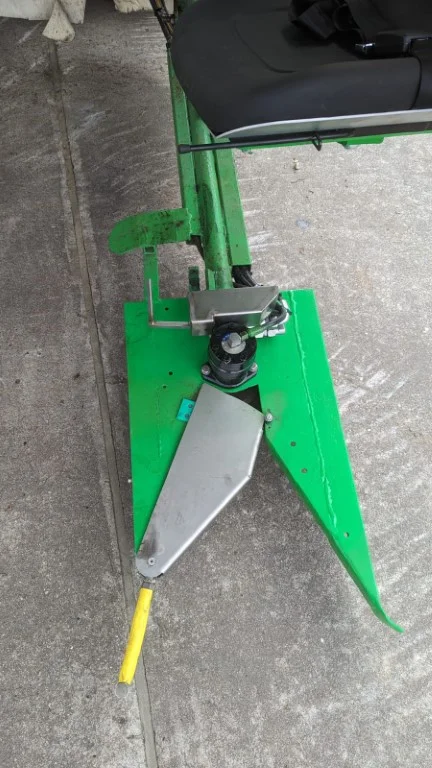

The operators are seated at the front of the machine, one for each row to be harvested. A foot controlled arm with a stalkcutter attached is provided for each row. As the machine progresses through the crop, stalks are cut and hand-fed into the stripping heads adjacent to each operator.The buttons and leaves are stripped from the stalk and separated, the leaves returning to the ground and the trimmed buttons being conveyed by an elevator, are delivered into a bulkhopper mounted in the centre of the machine. Each model is built on a track laying chassis and powered by a dieselengine mounted at the rear of the machine and driven hydraulically.
