JJ Broch Arat-2 garlic harvester binder

Price per piece
Top occasion

Pros and cons

  • Top occasion

Description:

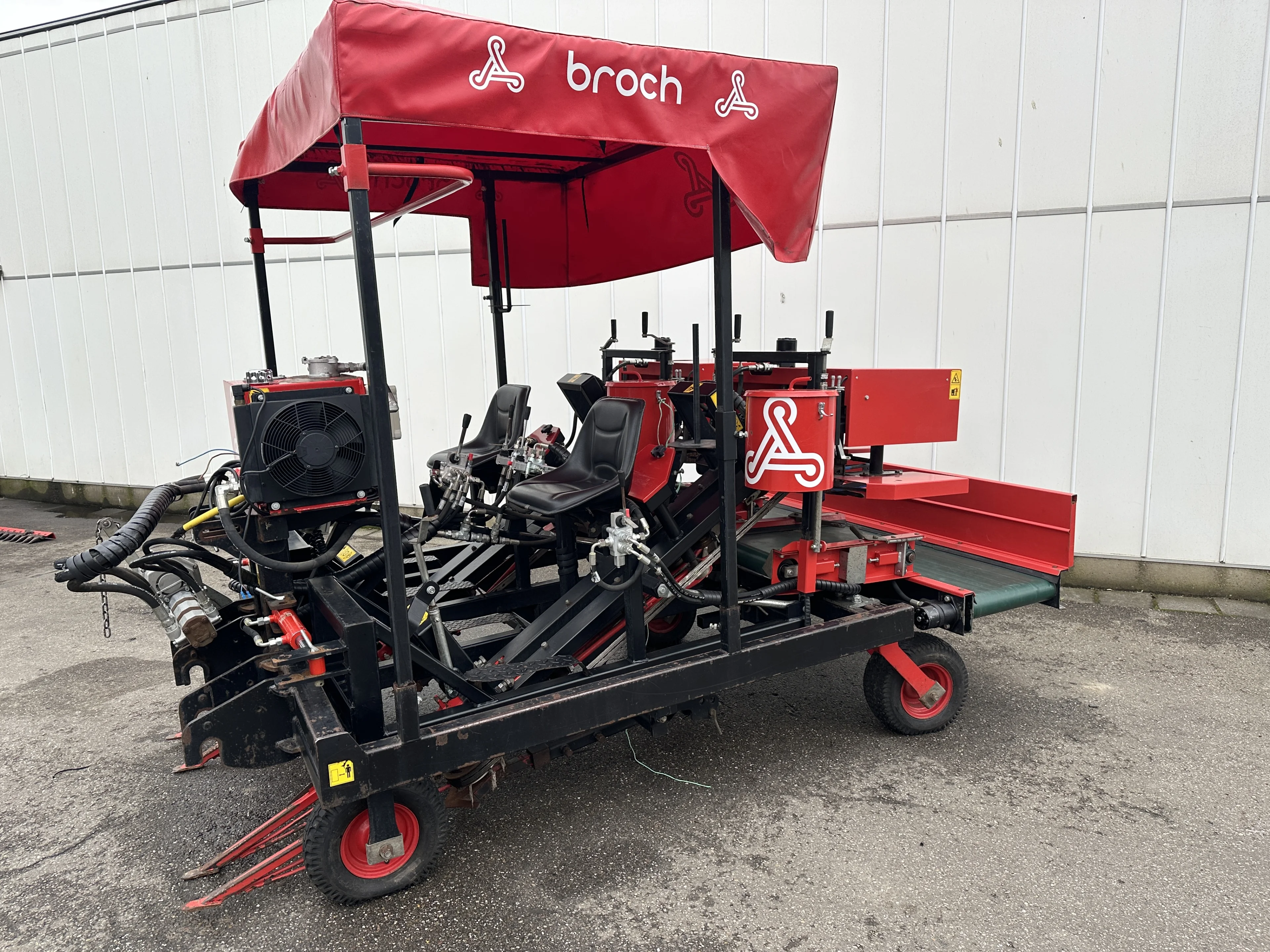

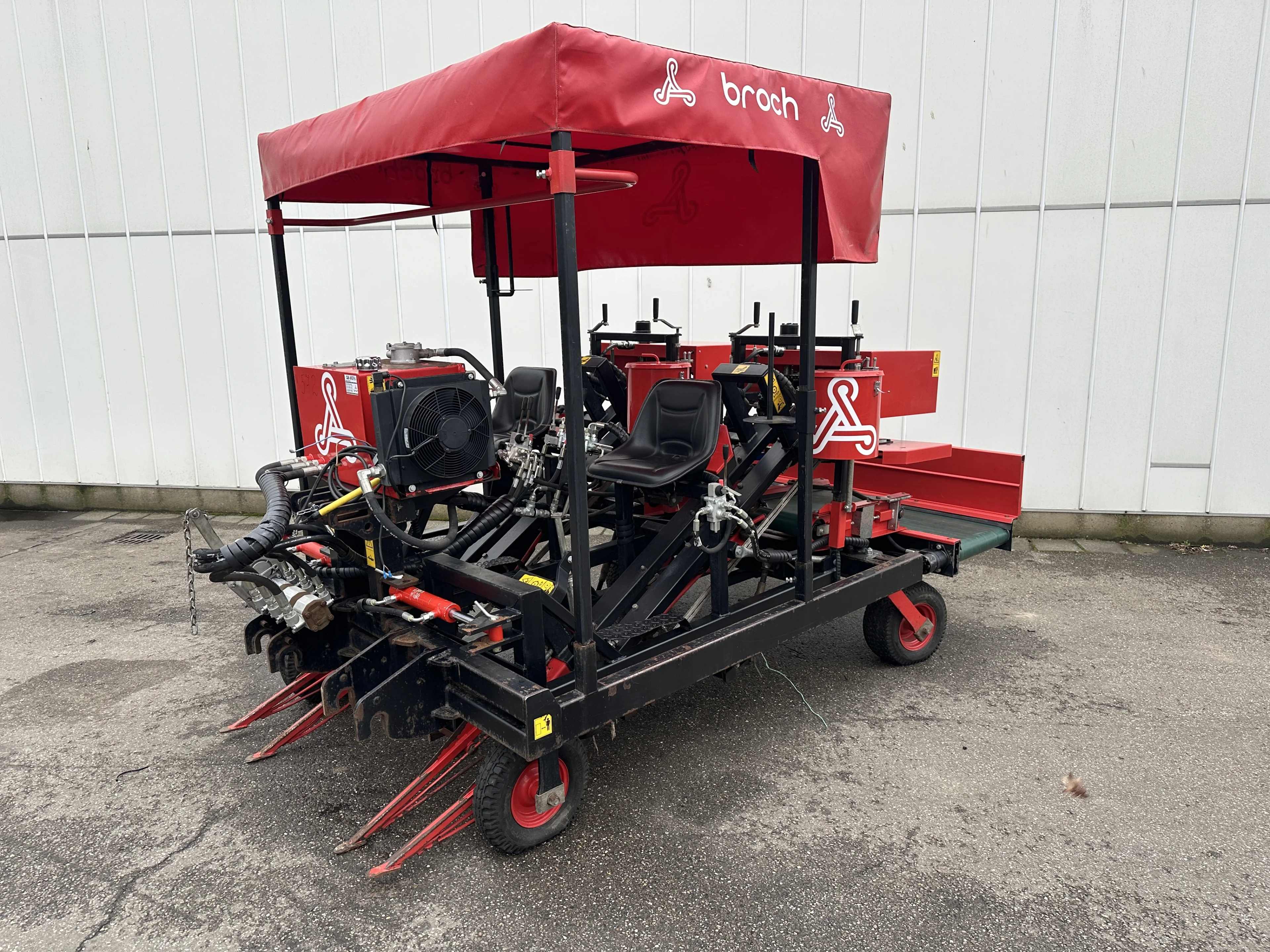

JJ Broch Arat-2 garlic harvester binder

JJ Broch Arat-2 garlic harvester binder

The garlic harvester-binder removes the bulbs
of garlic from the soil, eliminating part of the
soil, maintaining the leaves for greater
preservation and grouping the harvest together
to make collection easier.

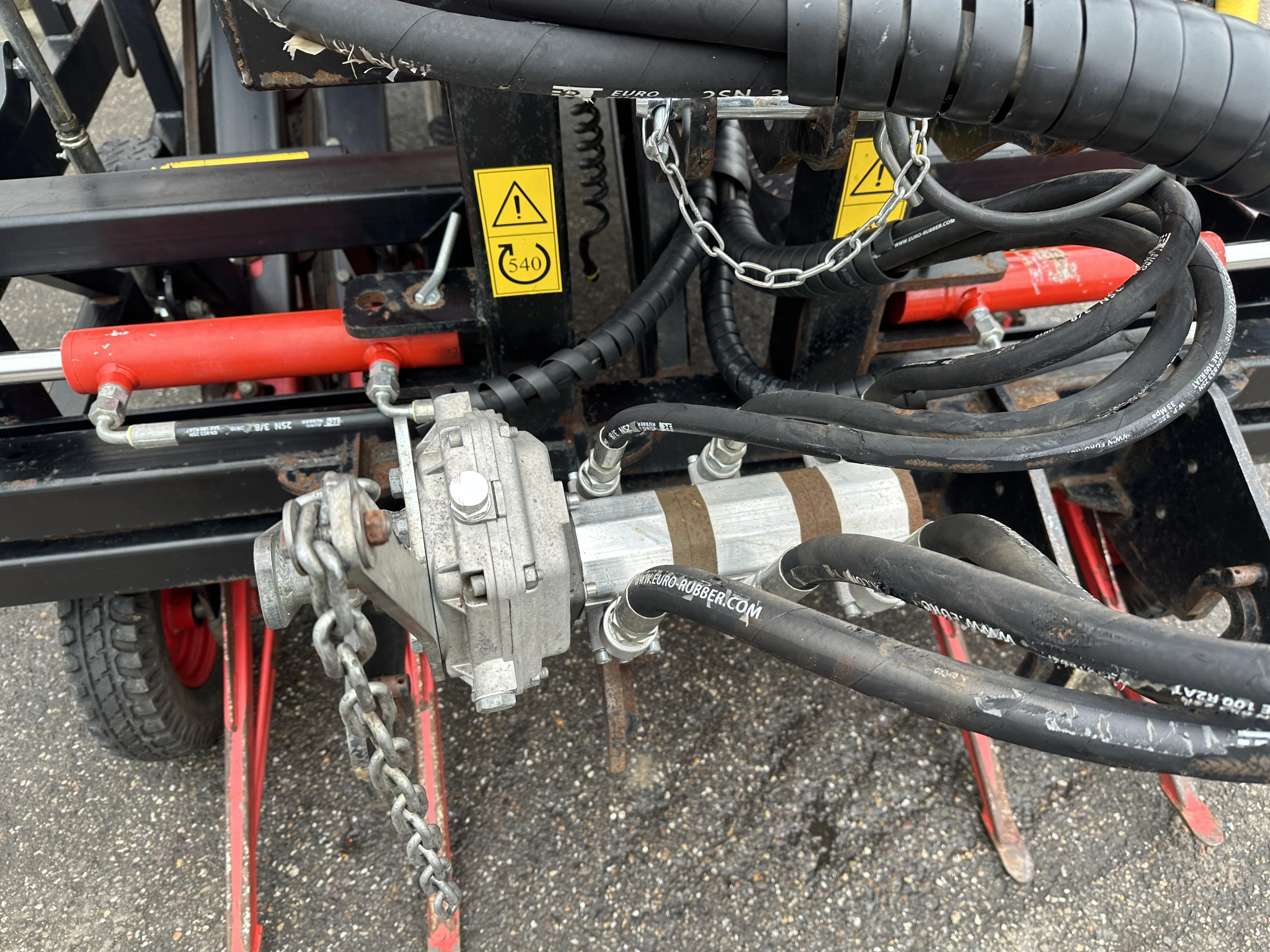

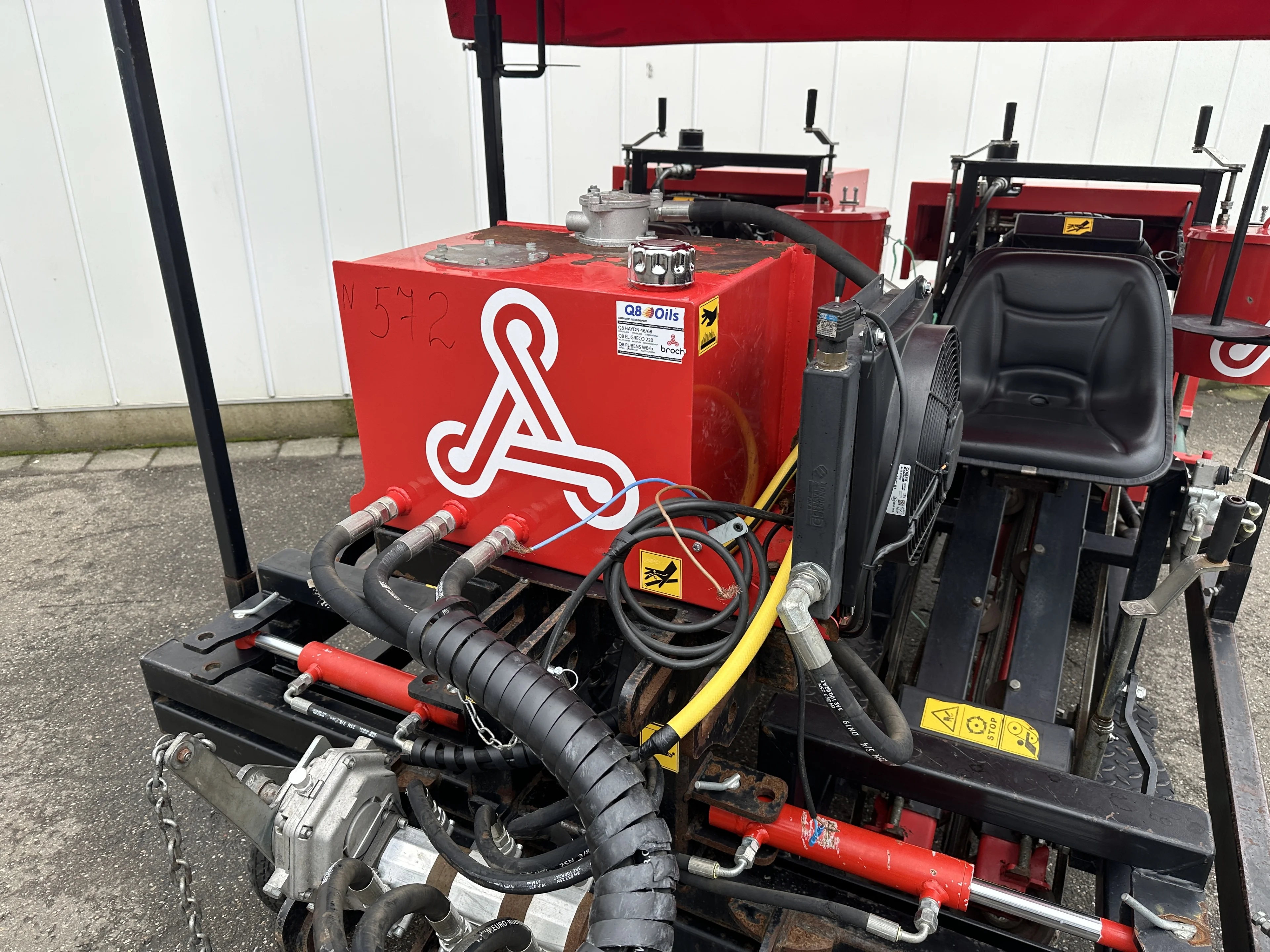

HYDRAULIC DRIVE

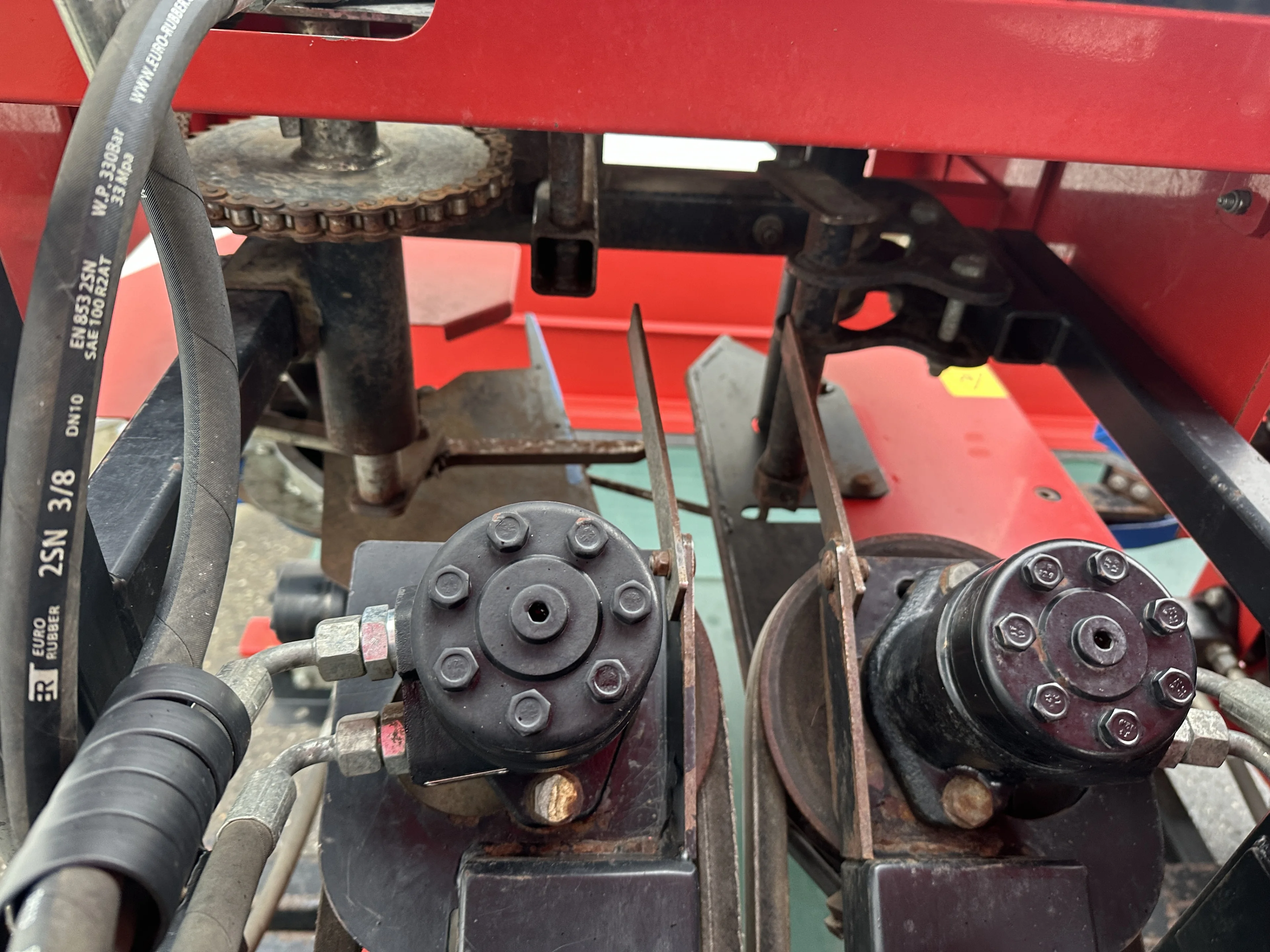

All of the picking mechanisms are driven by hydraulic motors enabled by the tractor s PTO.

FRONT PULLING UP SHARE
A share is used to cut the radicular system of the garlic and then lift it gently to be collected by the belt system. The position and depth of the share can be adjusted.

BUNCH BINDER
The automatic binder adjusts the binding height, the string pressure and the size of the bunches, forming groups of garlic bulbs bound by the leaves for better collection and subsequent processing.

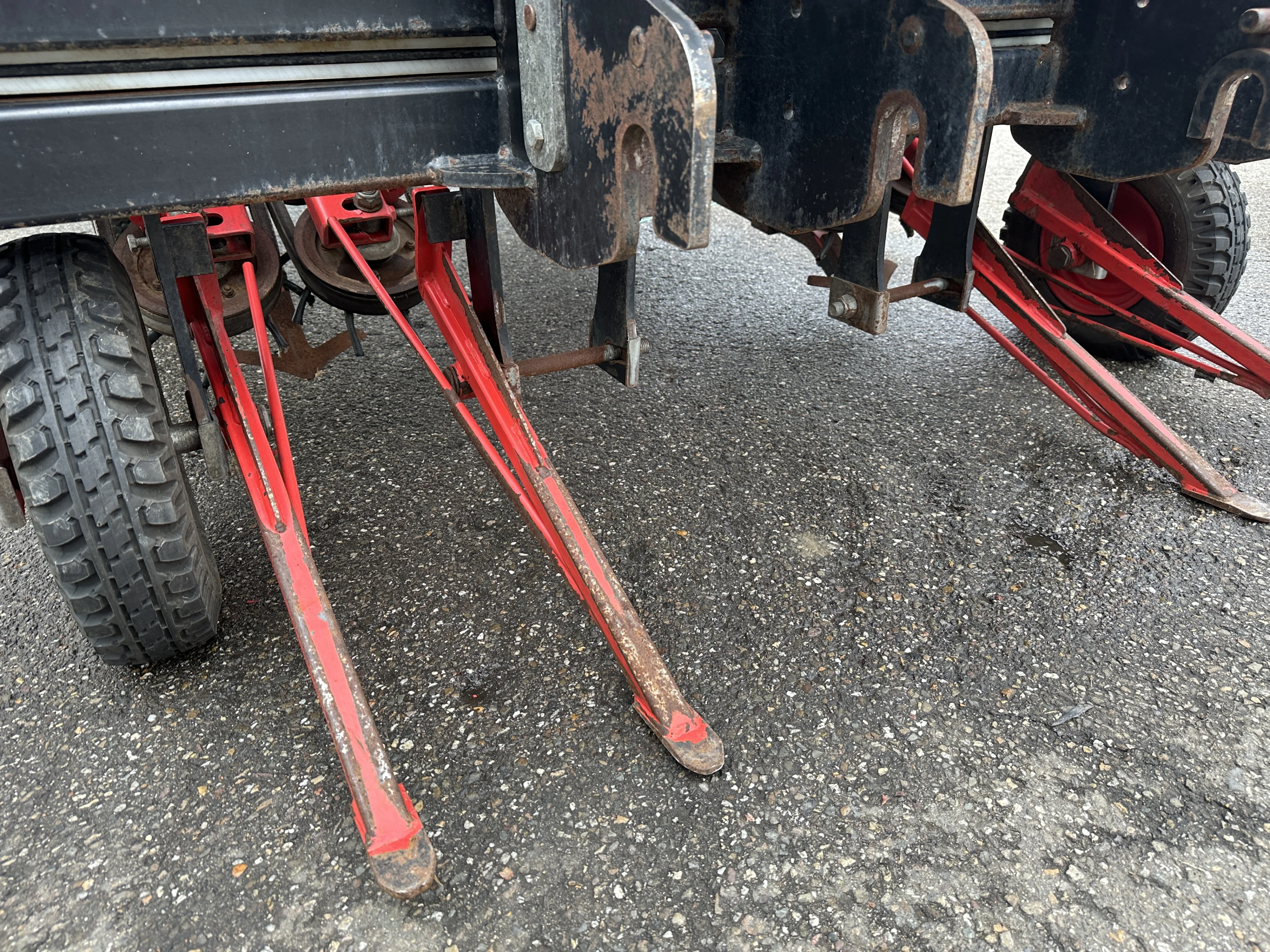

LEAF ALIGNMENT GUIDES

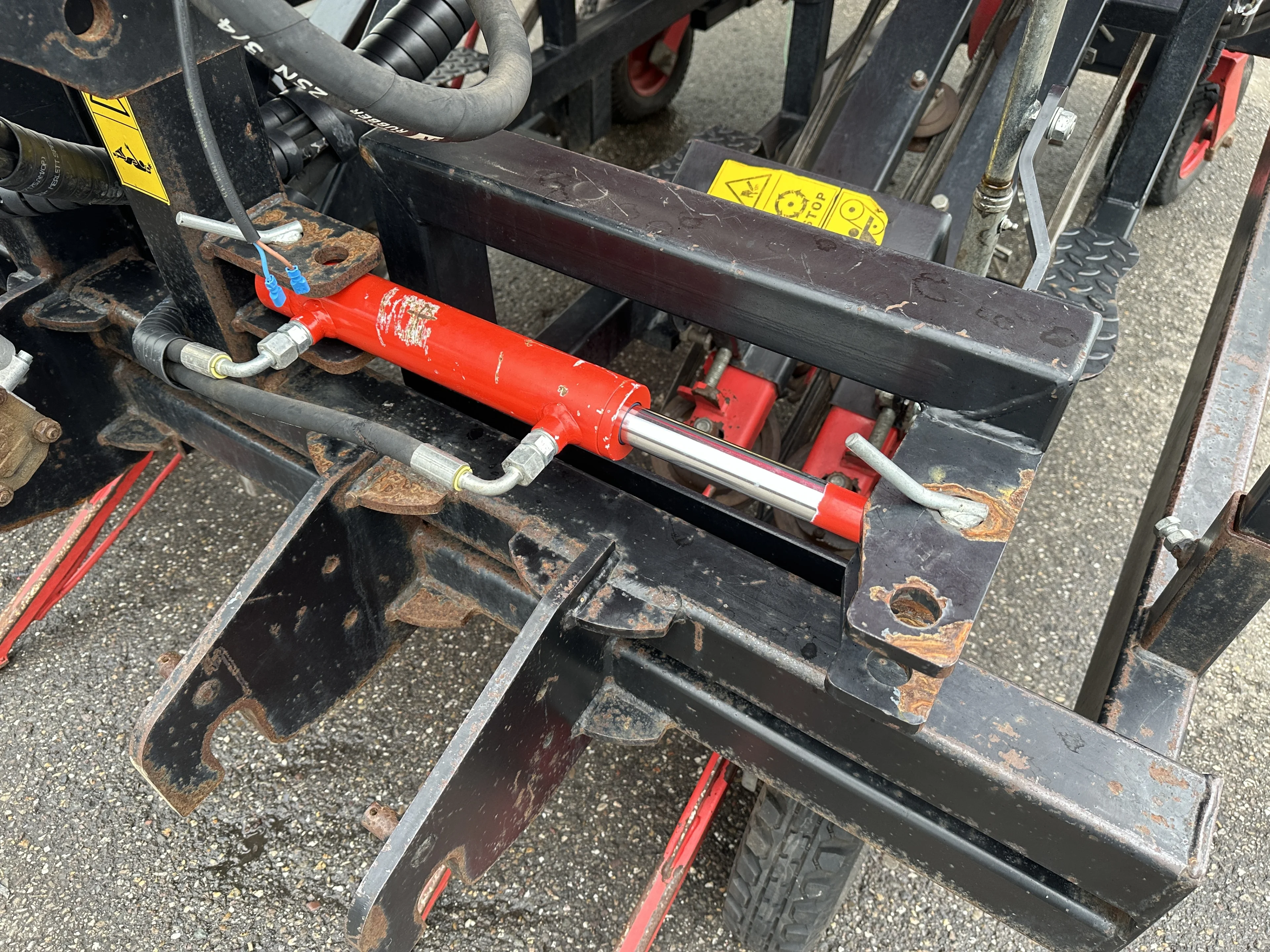

Two front guides lift any fallen leaves and align the garlic plants to make picking and collection along the conveyor belts easier. The alignment guides are controlled hydraulically by the operator.

CONVEYOR AND CLEANING BELTS
Some of the remains of the soil is removed using a vibration system along the conveyor belts driven by hydraulic motors, keeping the leaves for better preservation.

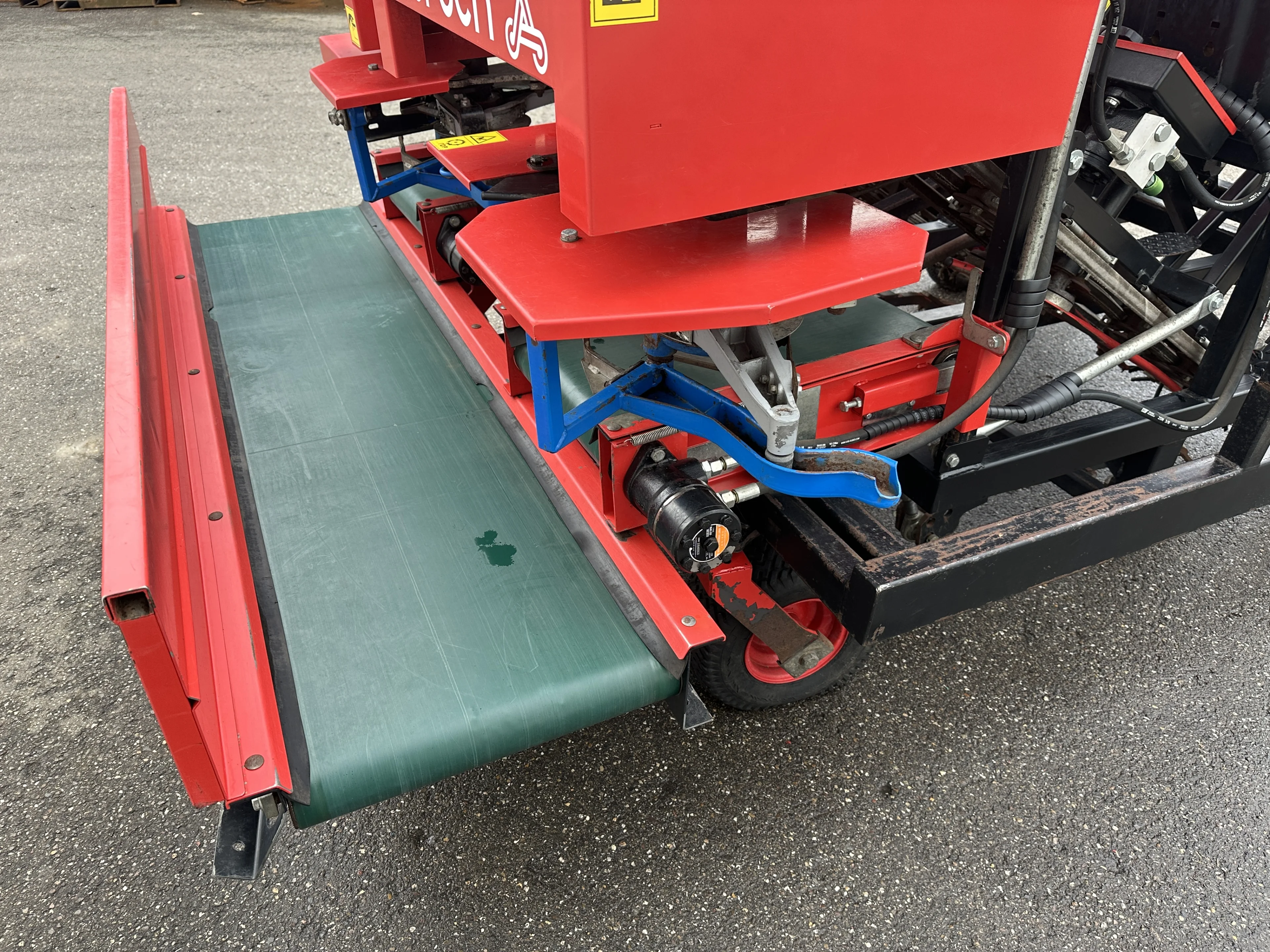

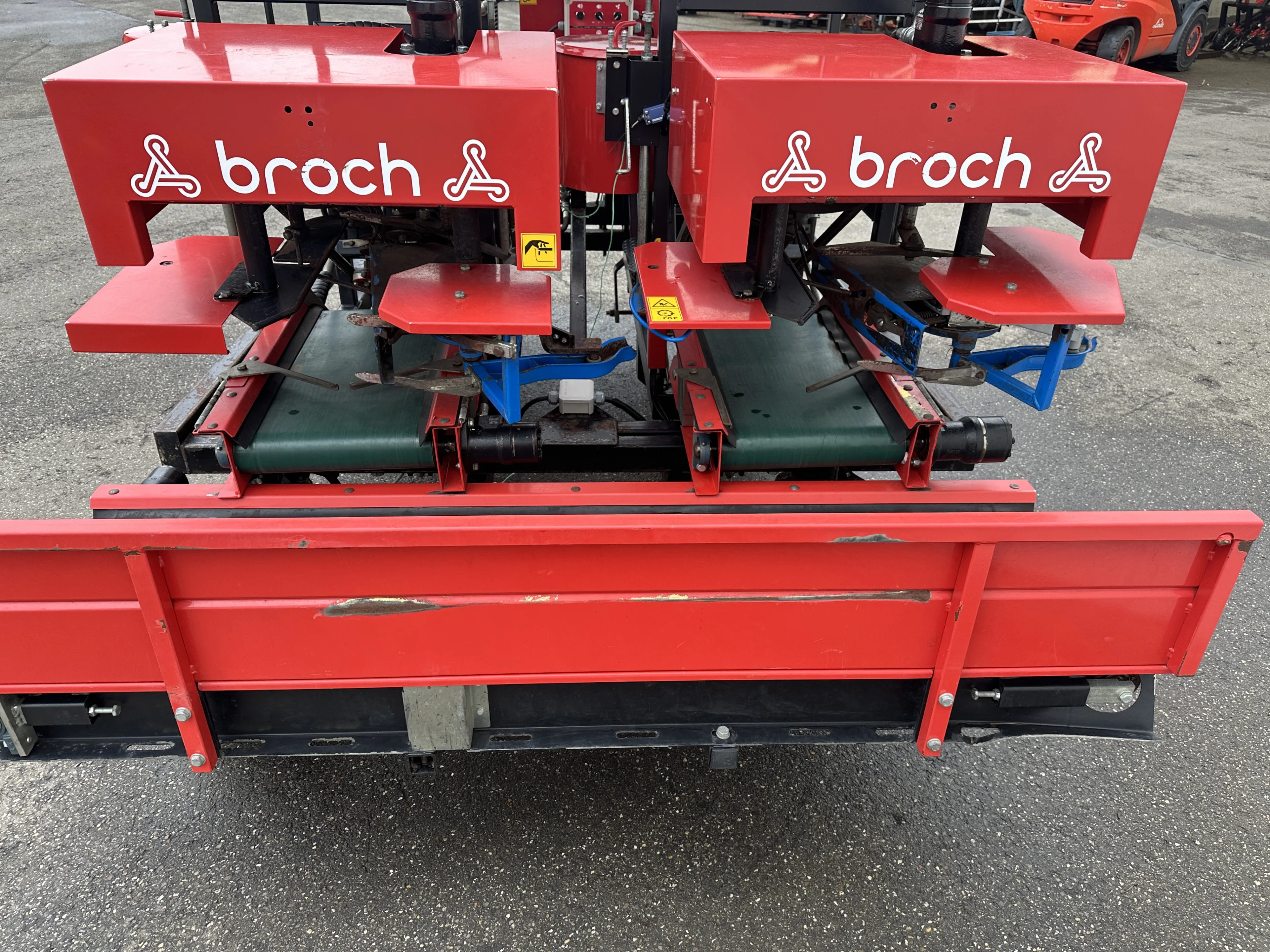

OUTPUT BELT
The rear belt, driven continuously or by hydraulic motors depending on the operator, unloads the bunches of garlic vertically onto the ground, the bulbs being protected by the leaves. Their position at a low height avoids knocks and damage to the bulbs.

J.J. Broch

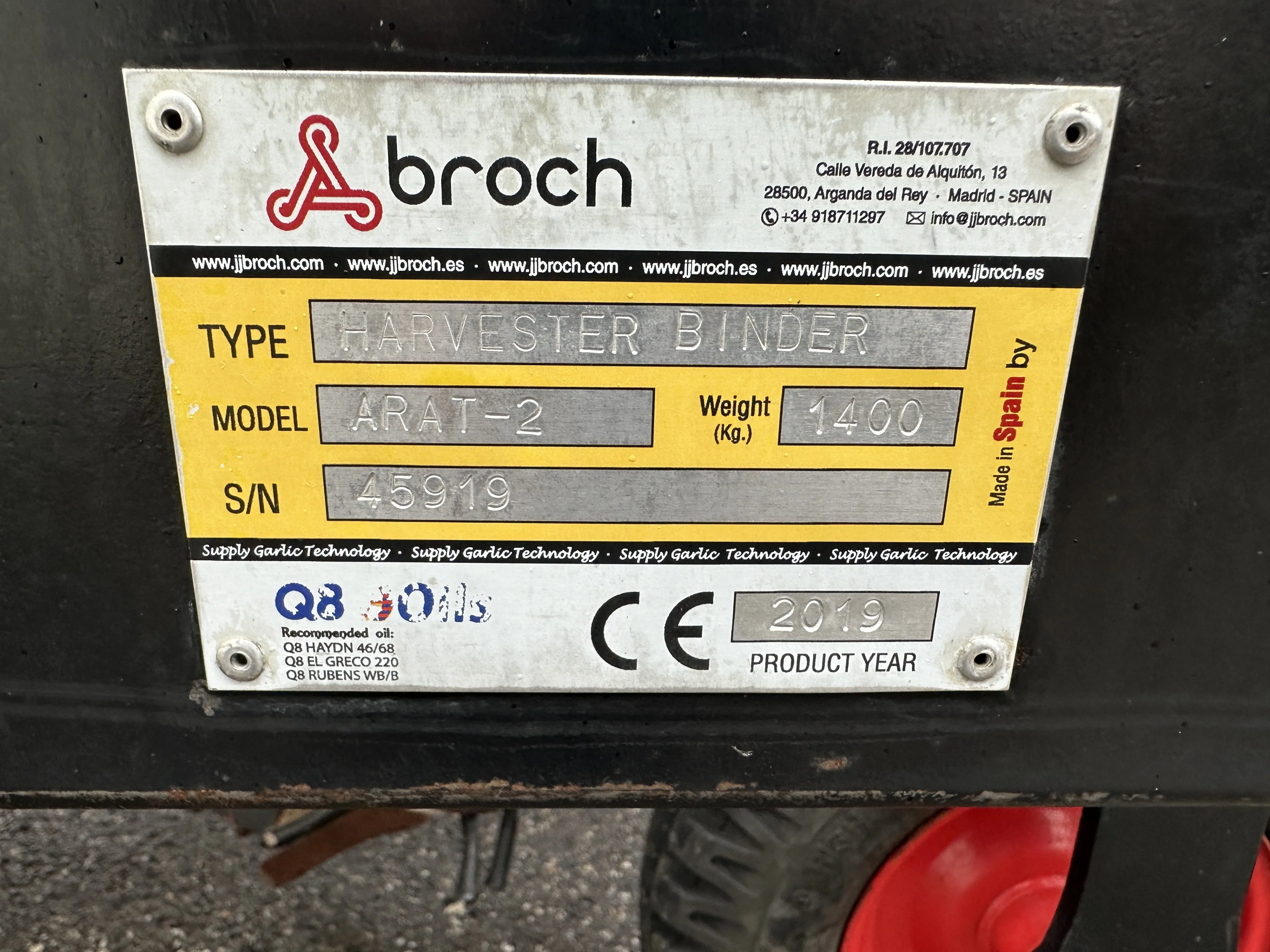

Technical specifications:

Model:Arat-2
ConditionUsed, checked by own mechanics
Year:2019
Number of rows:2
Transport dimensions:350 cm x 220 cm x 240 cm (length x width x height)
Transport weight:1210kg

JJ Broch Arat-2 garlic harvester binder

Price on request

Available
1 units
Brand
Product group
Produce
Model
Arat-2
Number
2330231123B
Year
2019
Add to quotationOrder this machine
Order this machine

Please contact Tatiana

We are happy to help. Our consultants are now waiting for you.

Direct ContactCall us: +31 180 632 088
