Description:

ABL AP15 + GTF pineapple and melon peeler(AP15) and slicer(GTF)

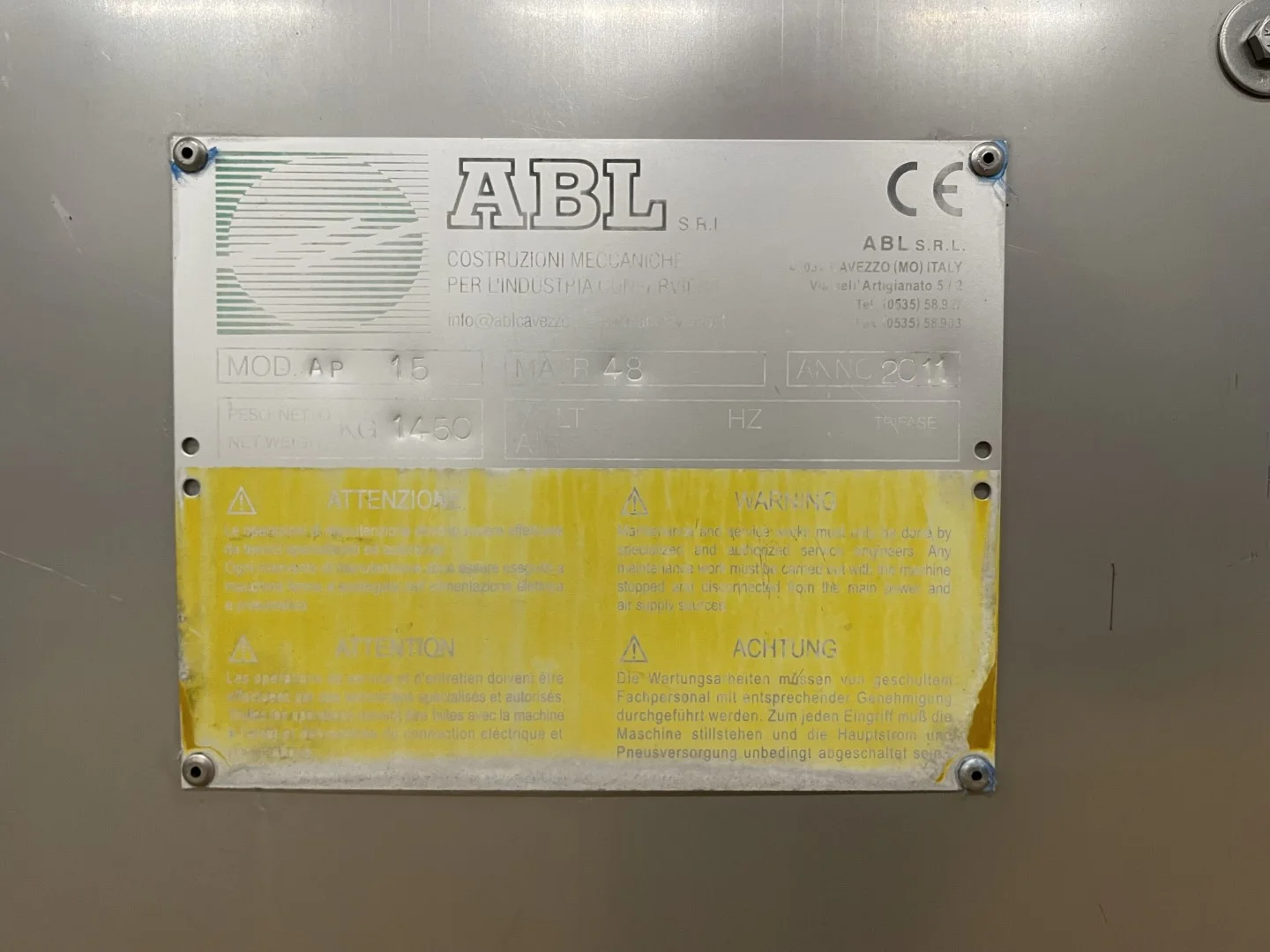

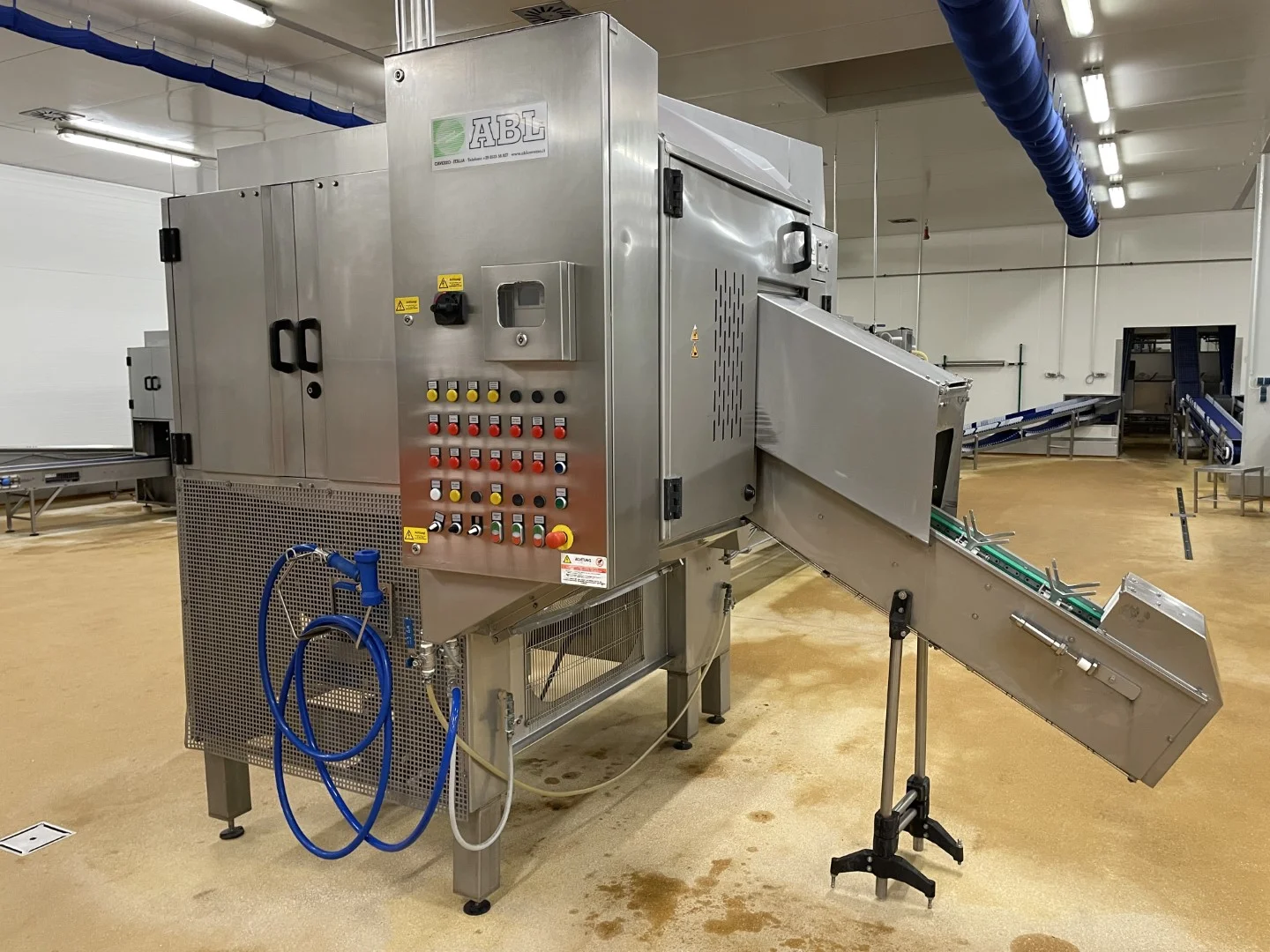

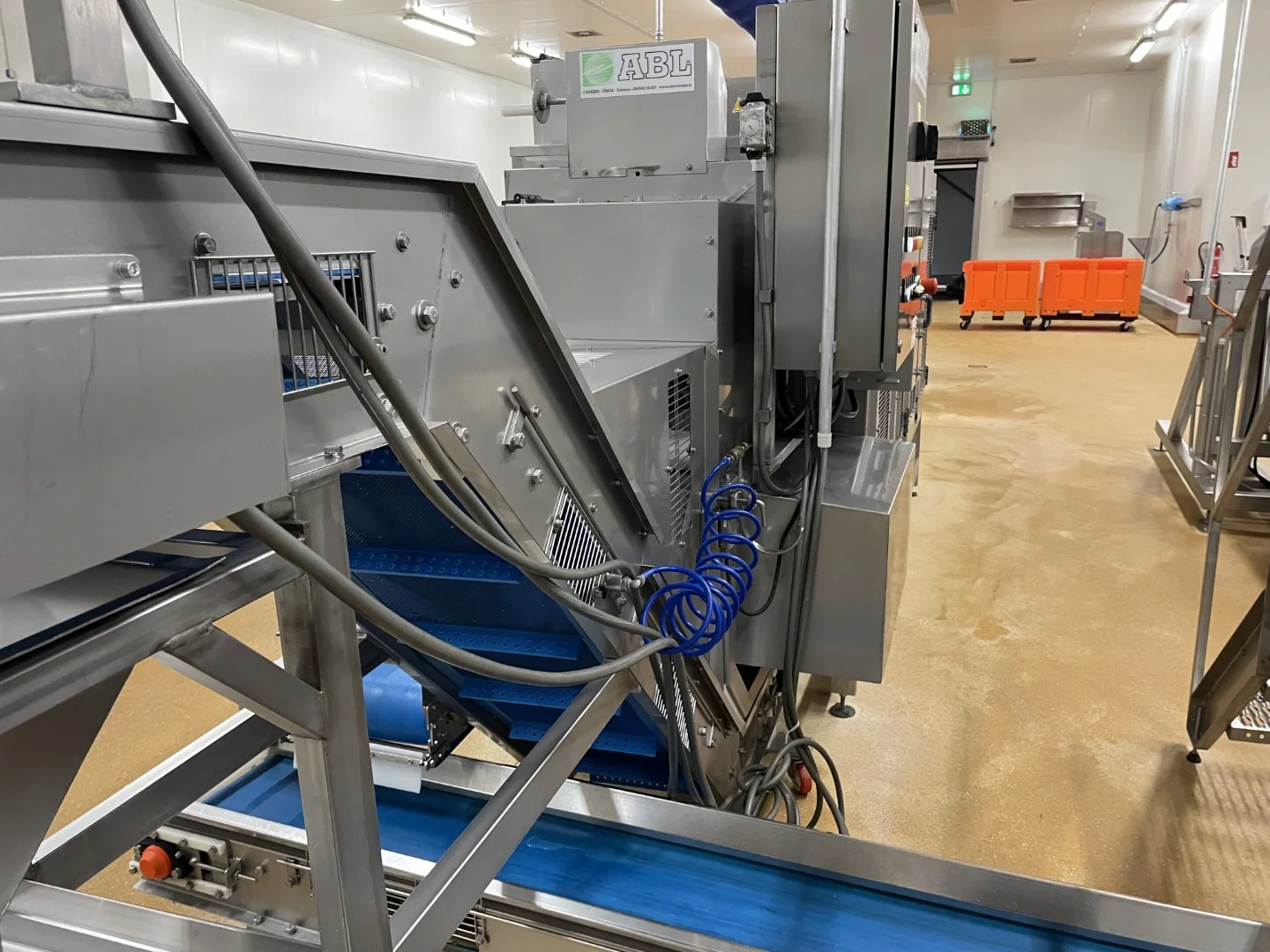

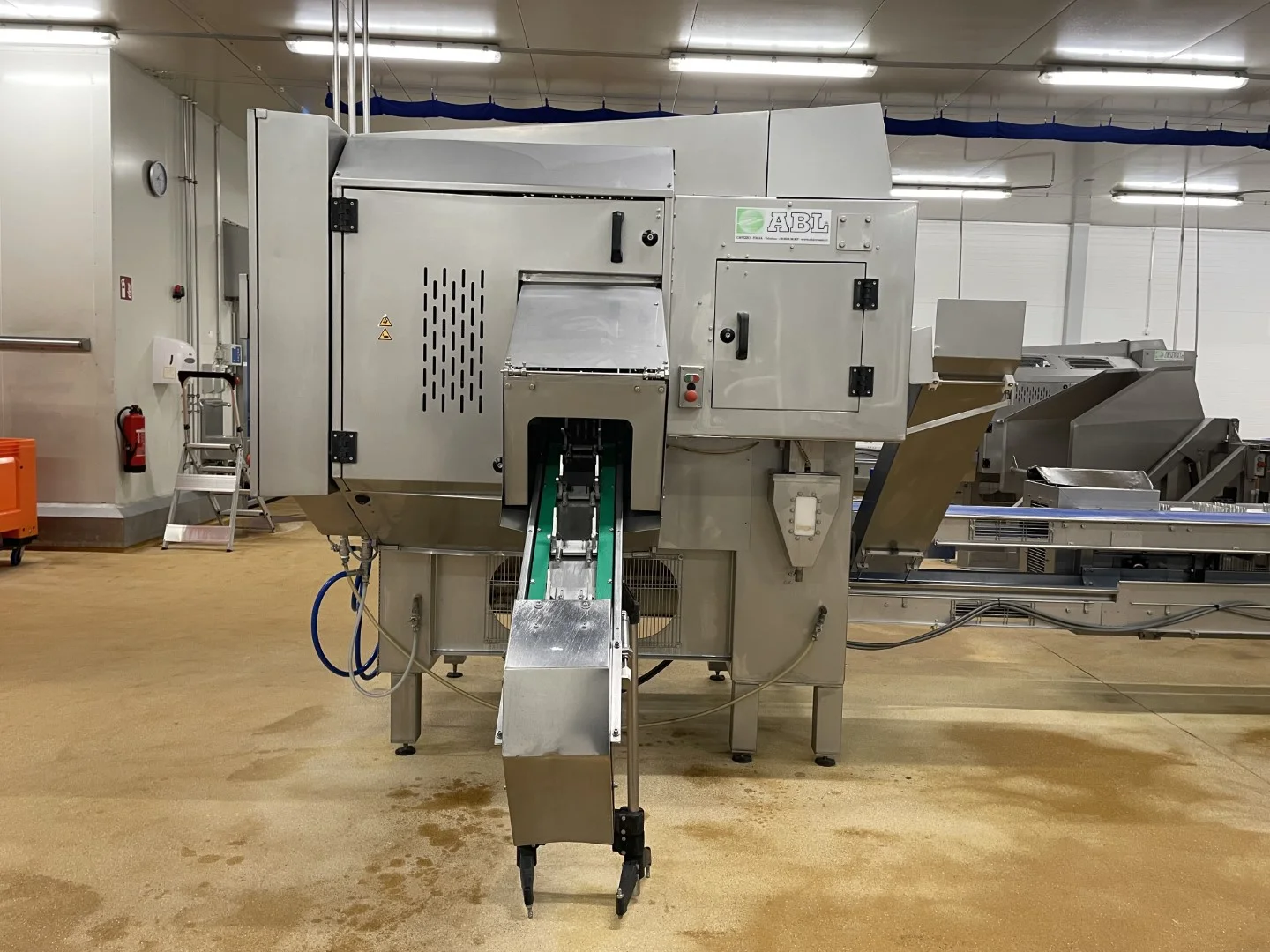

ABL AP15 pineapple and melon peeler

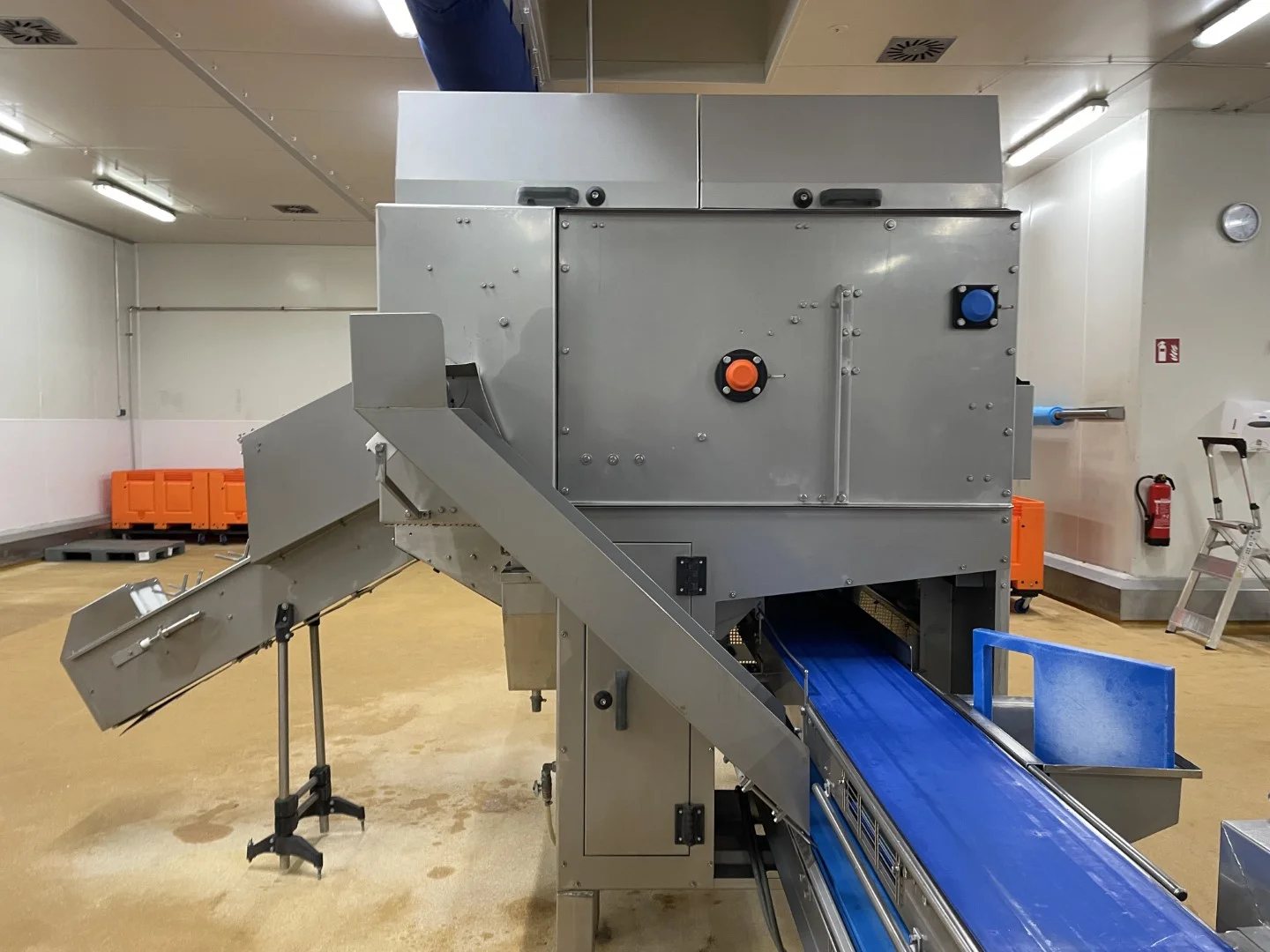

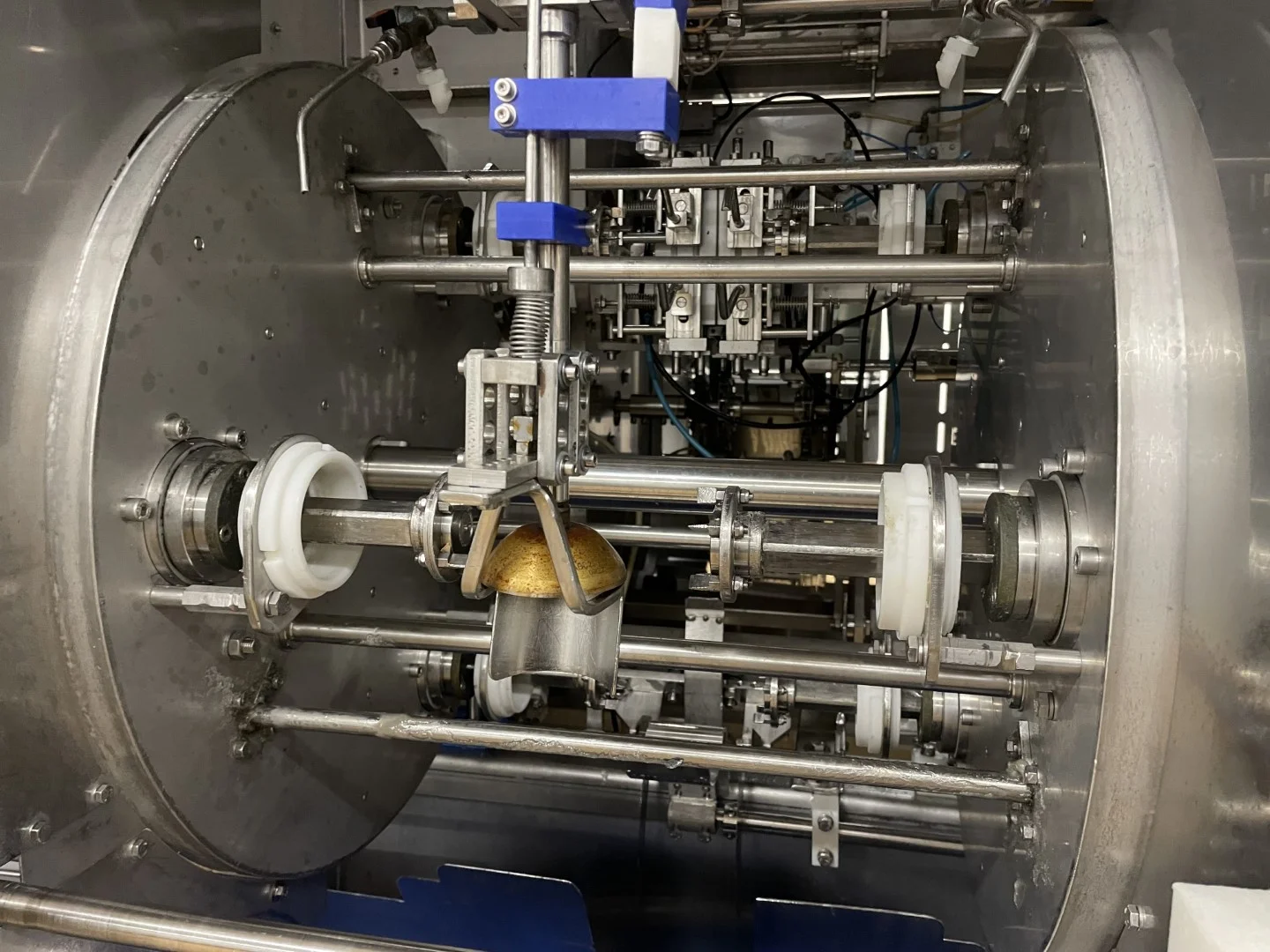

The AP15 Industrial Fruit Peeler and Corer can be used to process pineapple, melon, and papaya. The AP15 Industrial Fruit Peeler and Corer, with capacity of 12/13 fruits per minute. This machinery for the processing of pineapples, melons and papaya is extremely simple to use and offers high reliability. In combination with the GTF it provides chunked or sliced fruit. The peeling depth is adjustable according to the fruit being processed, turning a simple knob in a few seconds and without having to stop the machine.

• Processes up to 13 pieces/minute

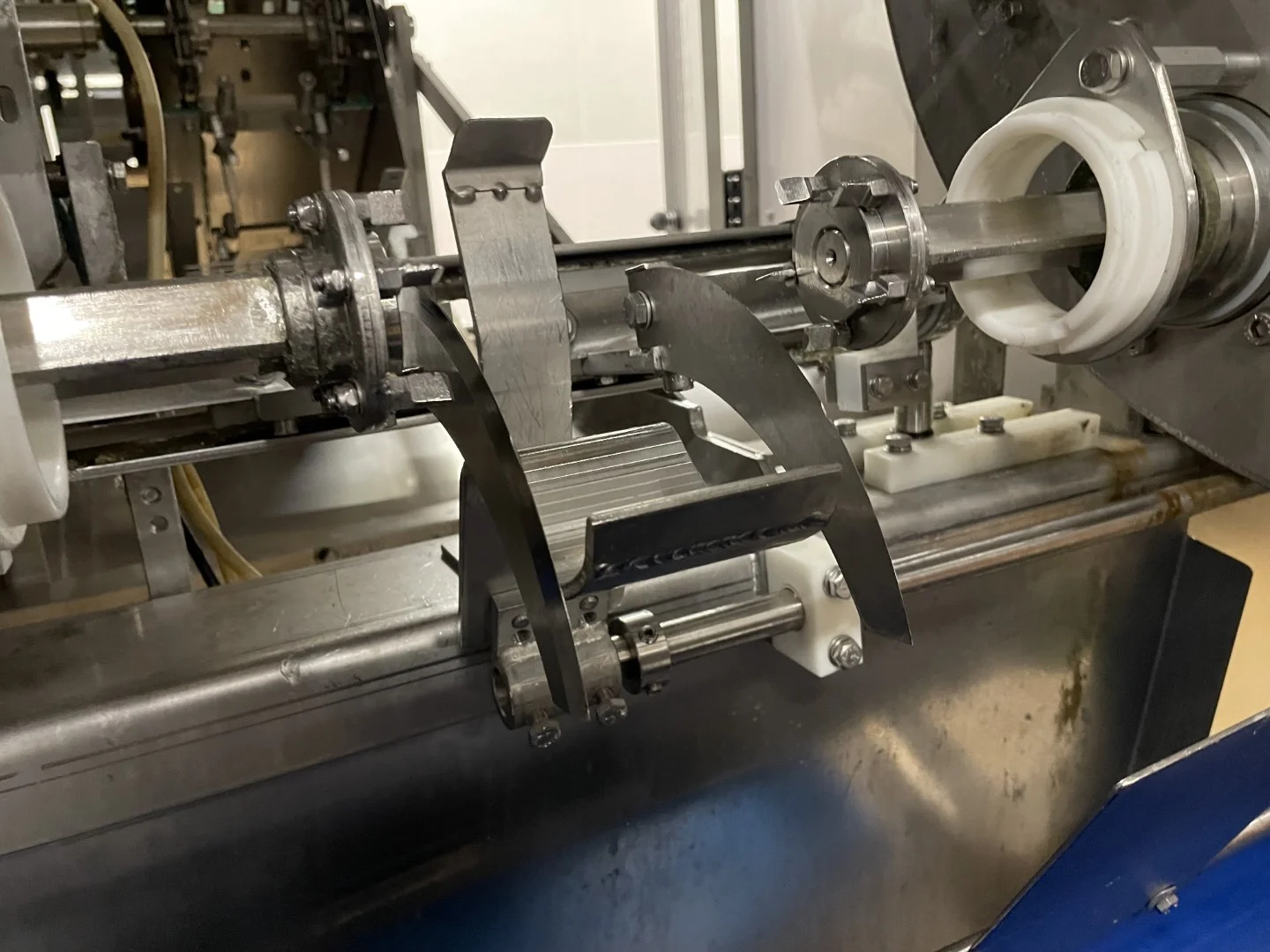

• Adjustable peeling depth using ABL patented peeling system
• Self-adjusts for different fruit shapes/types
• High yield rate: 50% and up on fully peeled fruit
• Reliable and robust performance for industrial and non-industrial processes
• Maximizes productivity while reducing production costs
• Can be used as a pineapple peeler or corer, melon peeler or corer, and papaya peeler for the fresh-cut, IQF, drying, or canning industries.

+ABL GTF Slicing machine

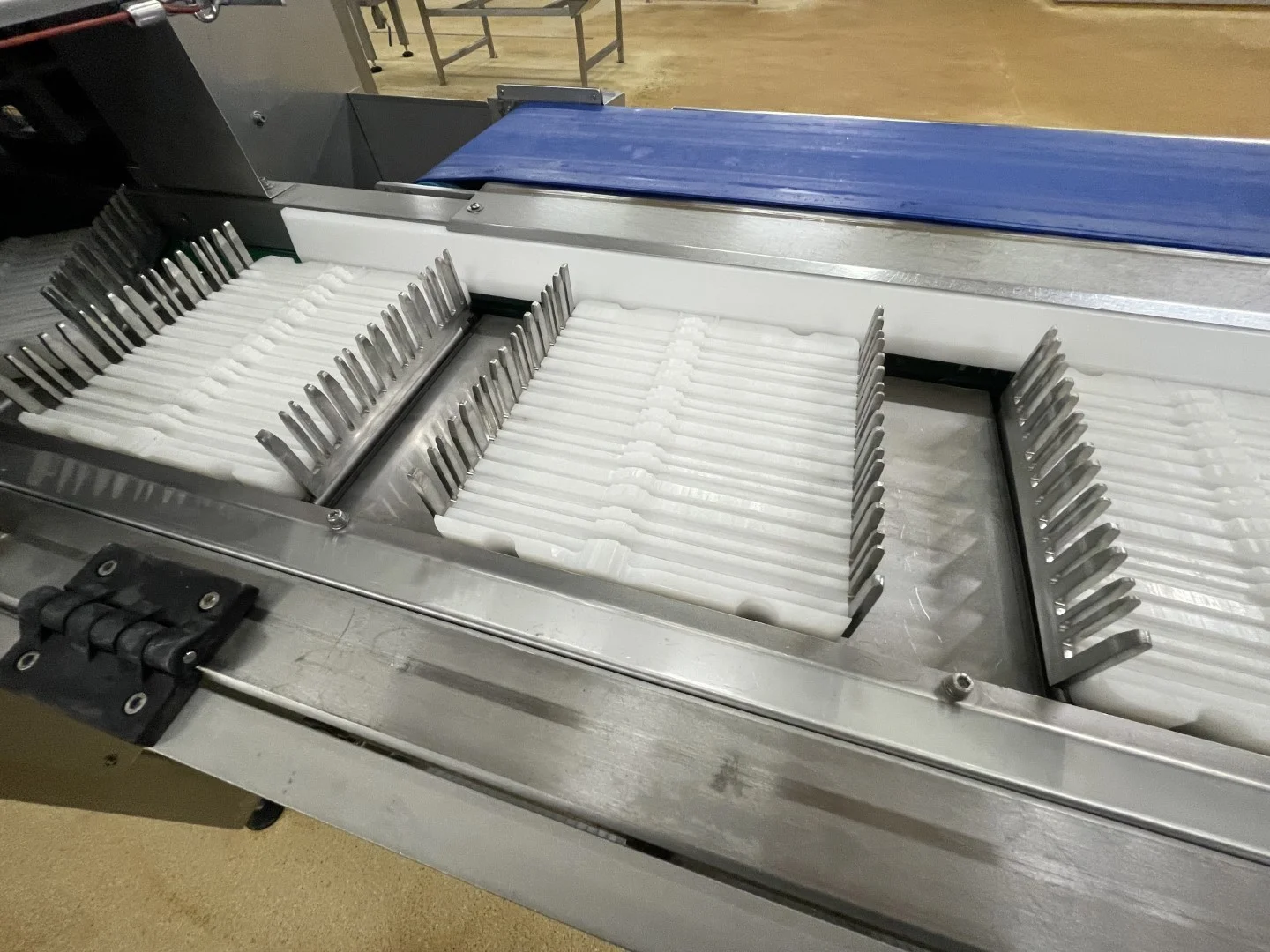

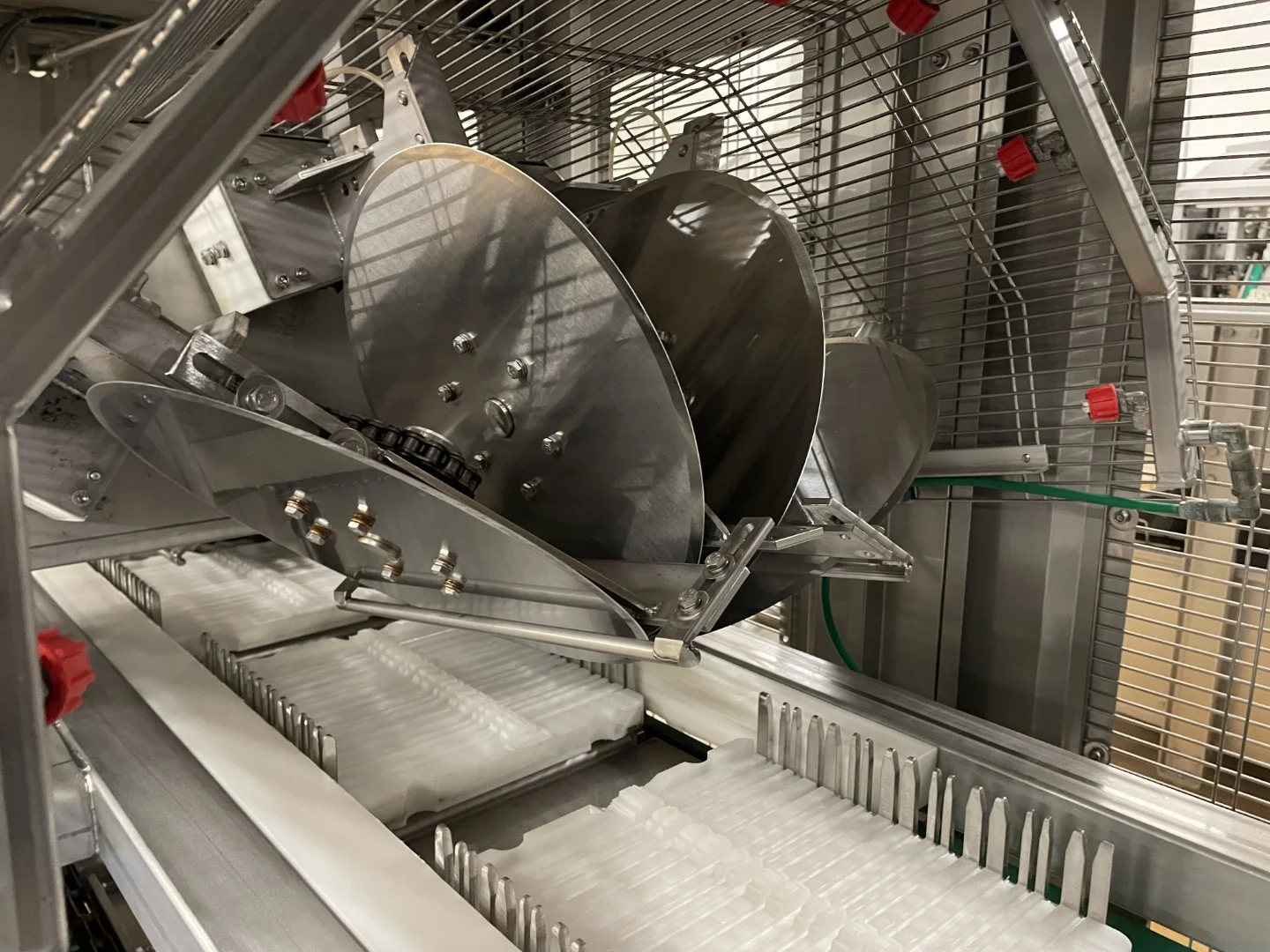

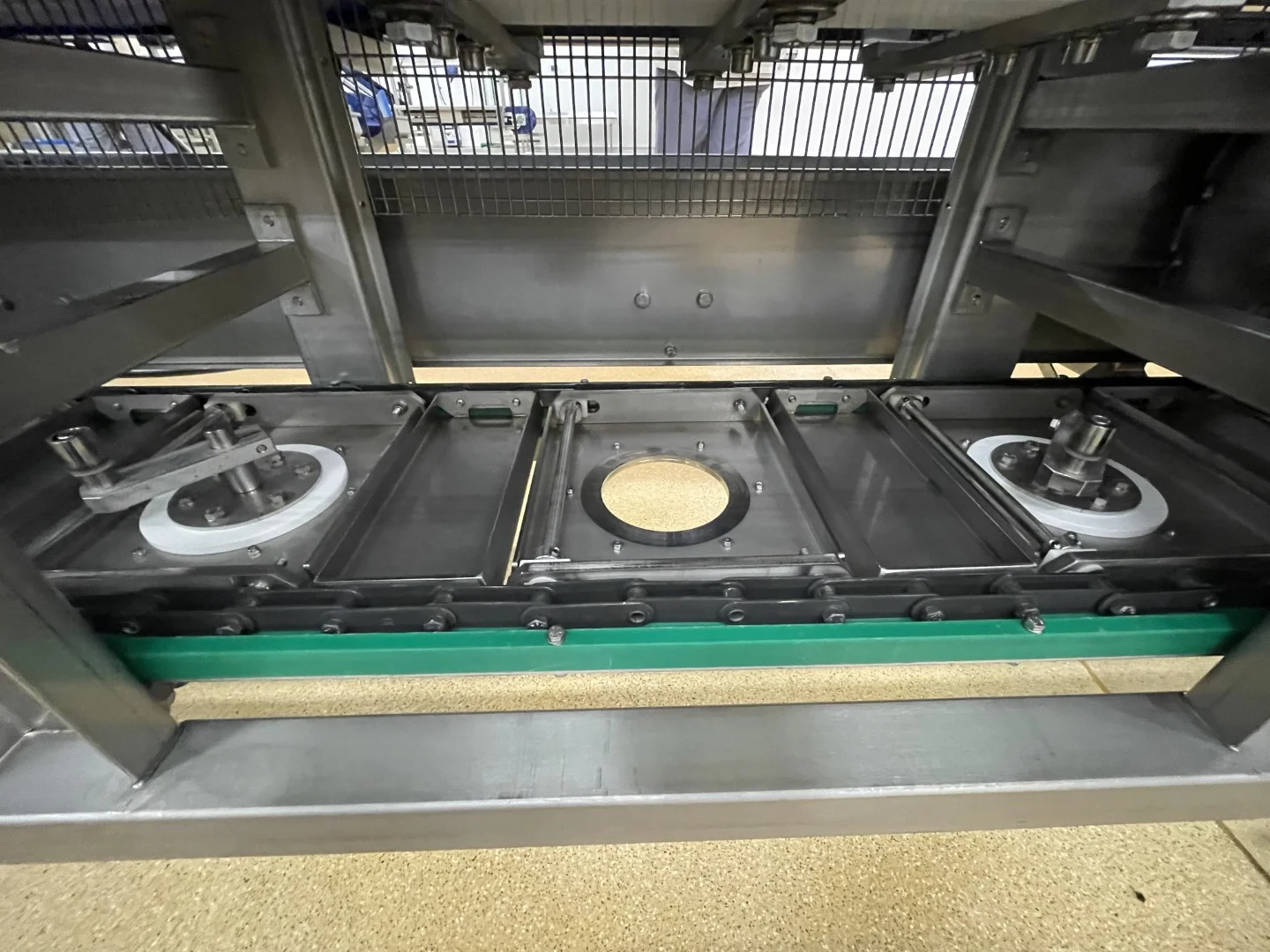

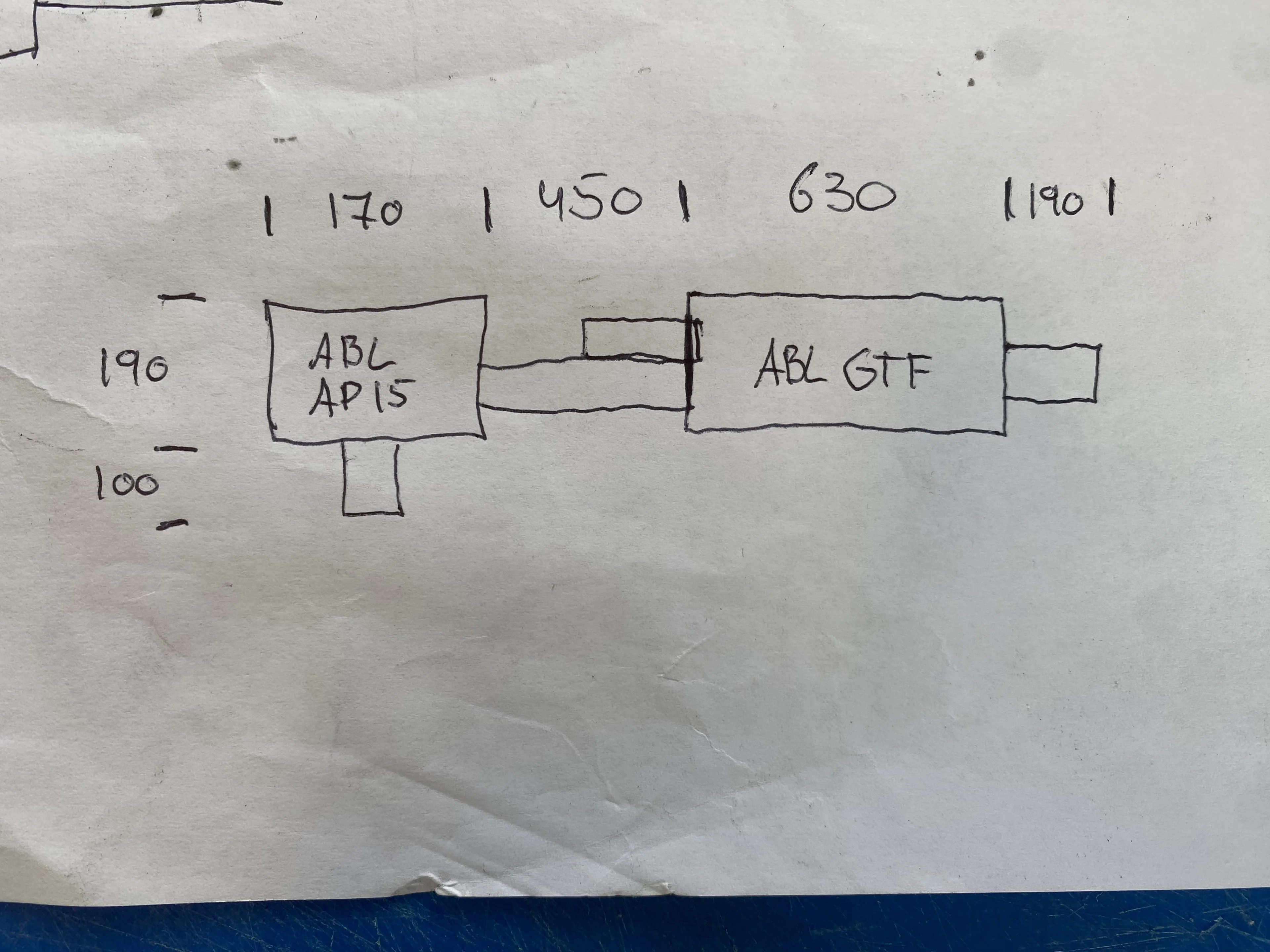

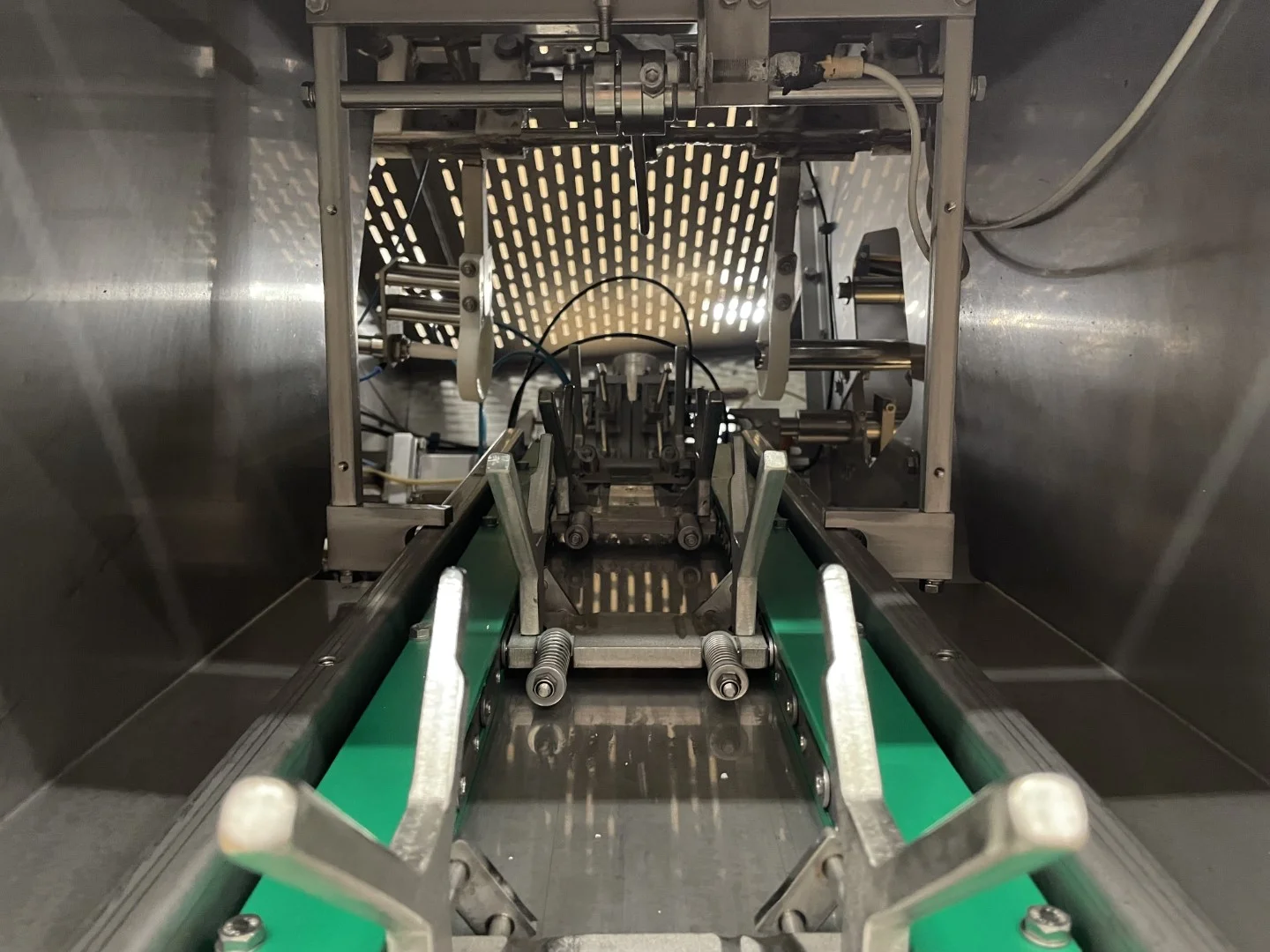

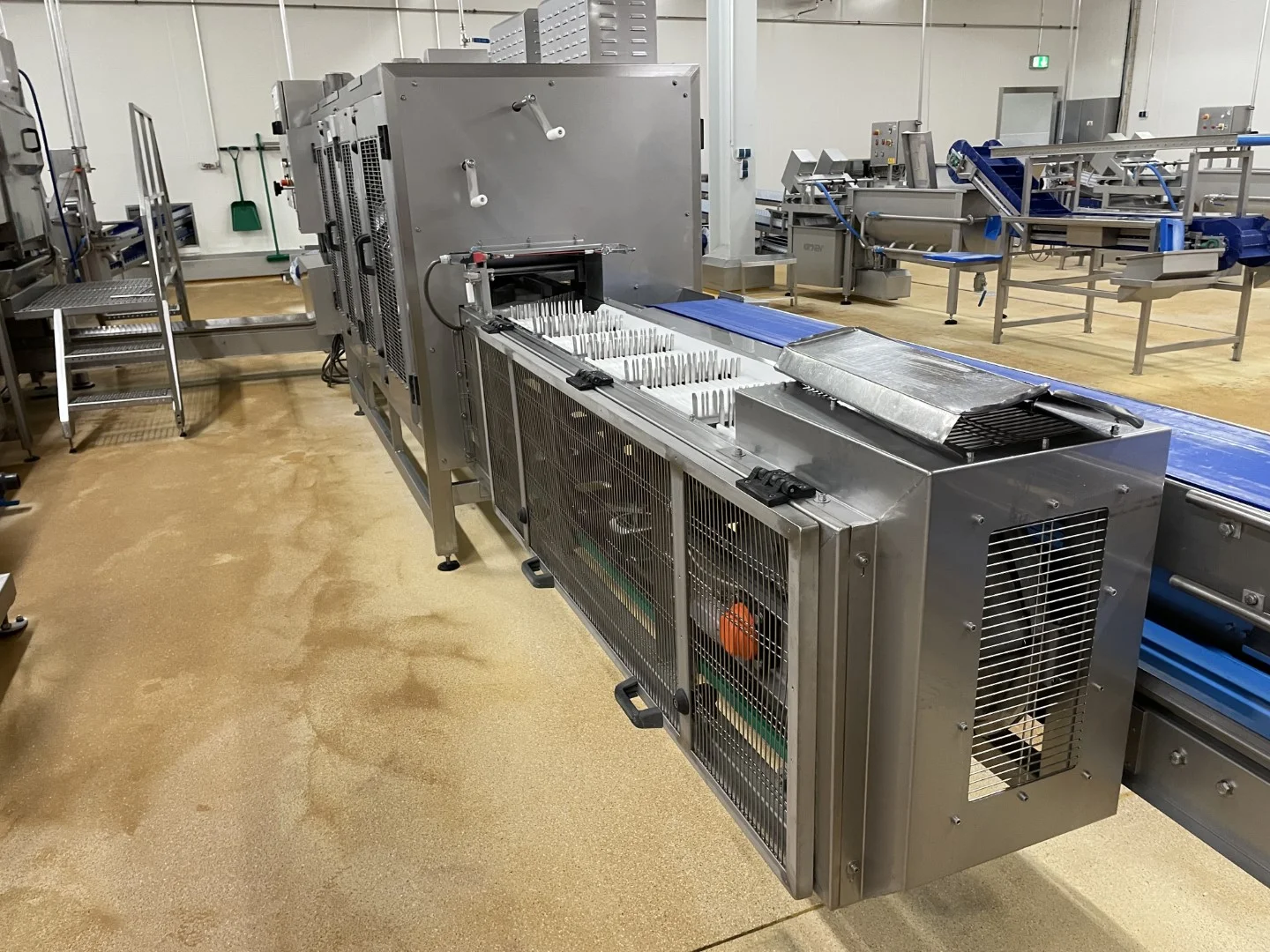

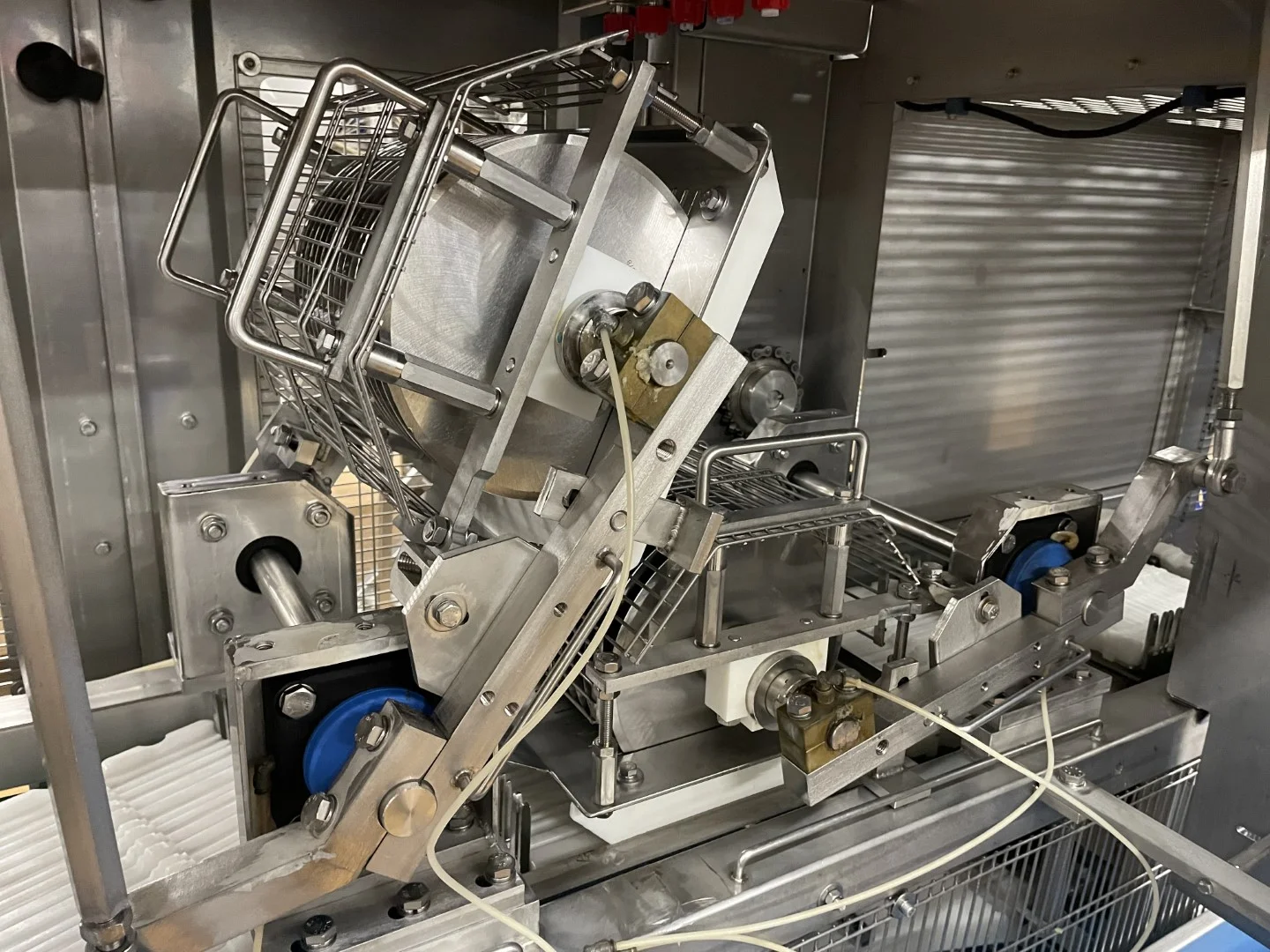

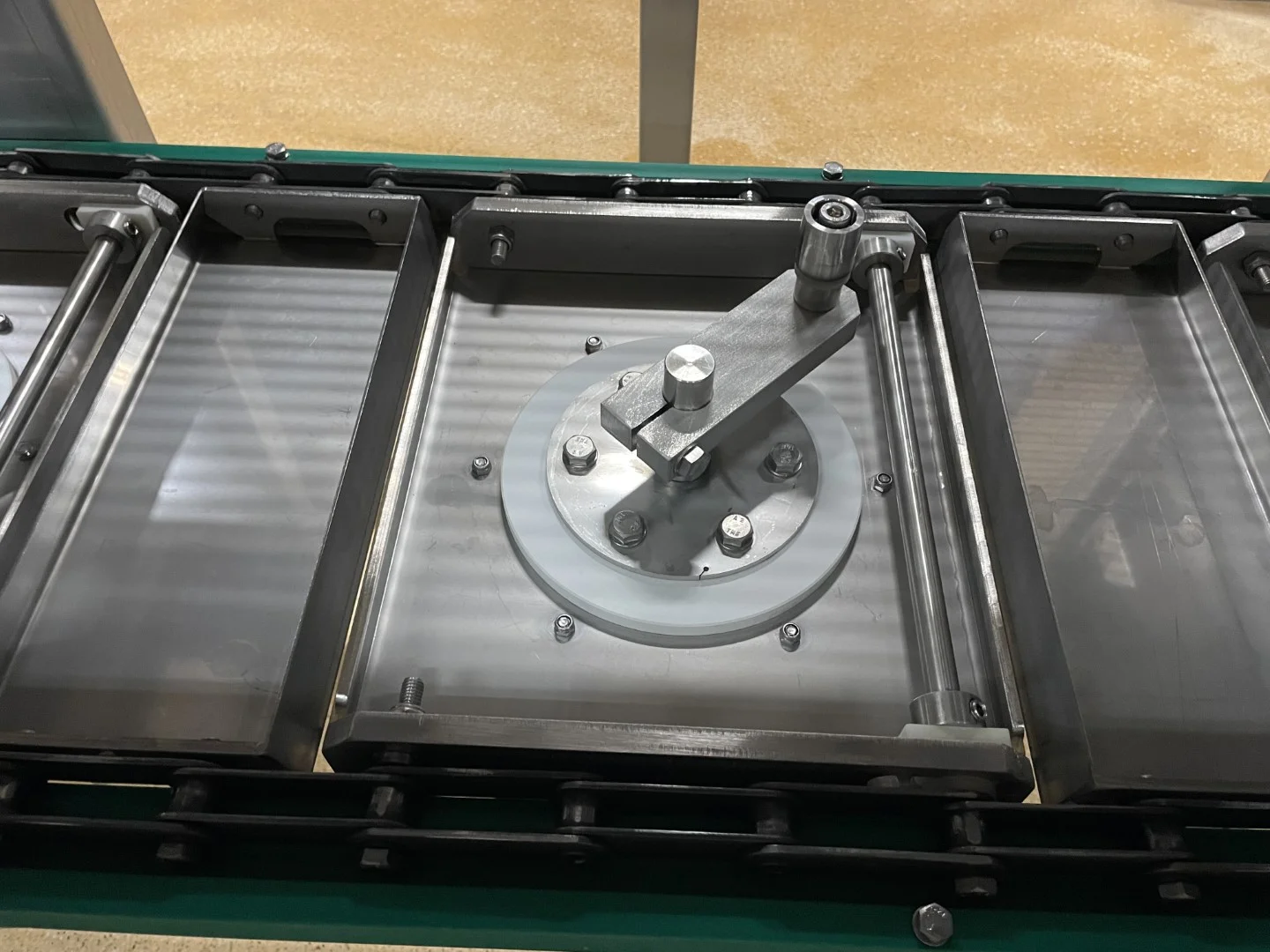

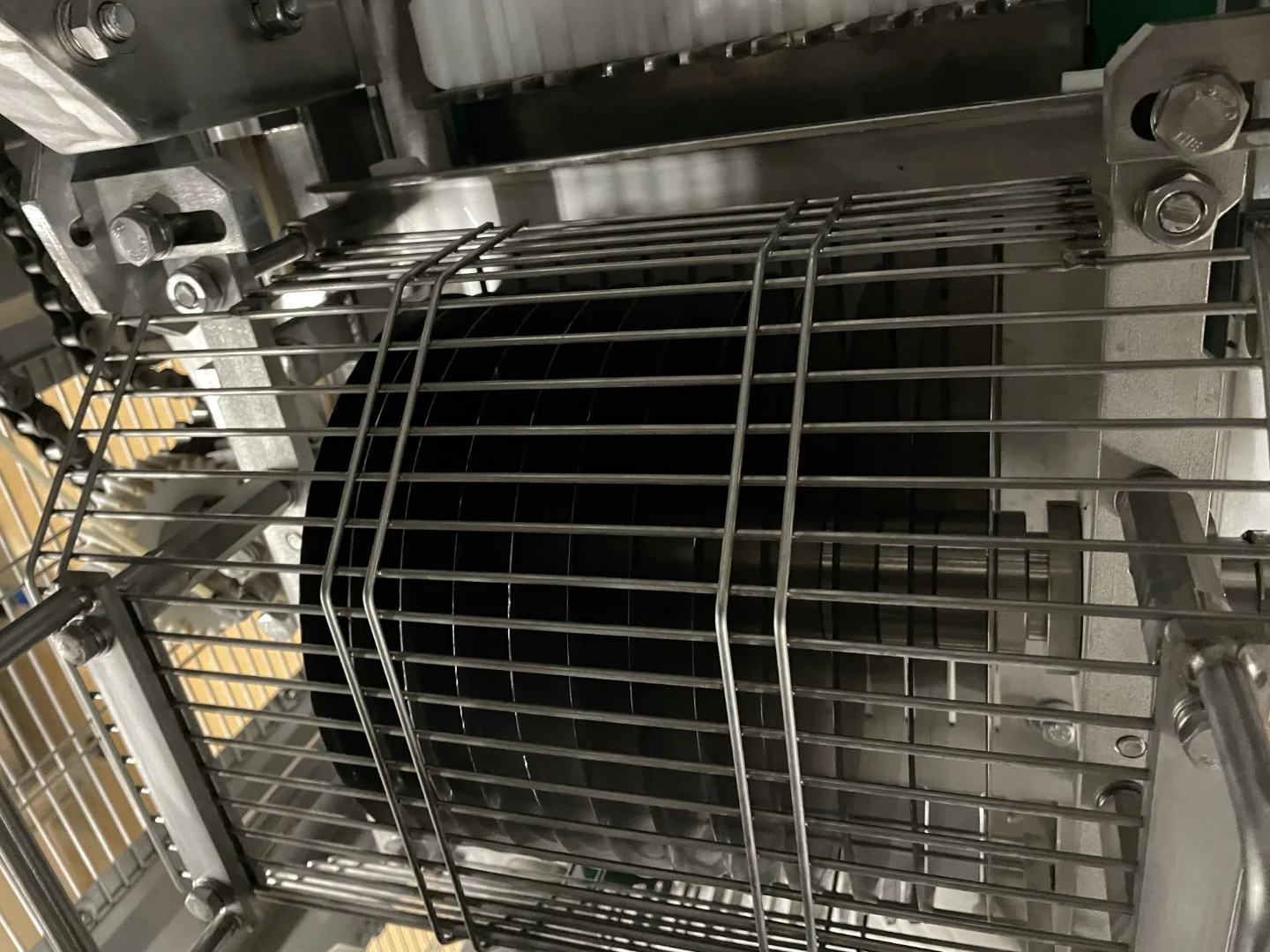

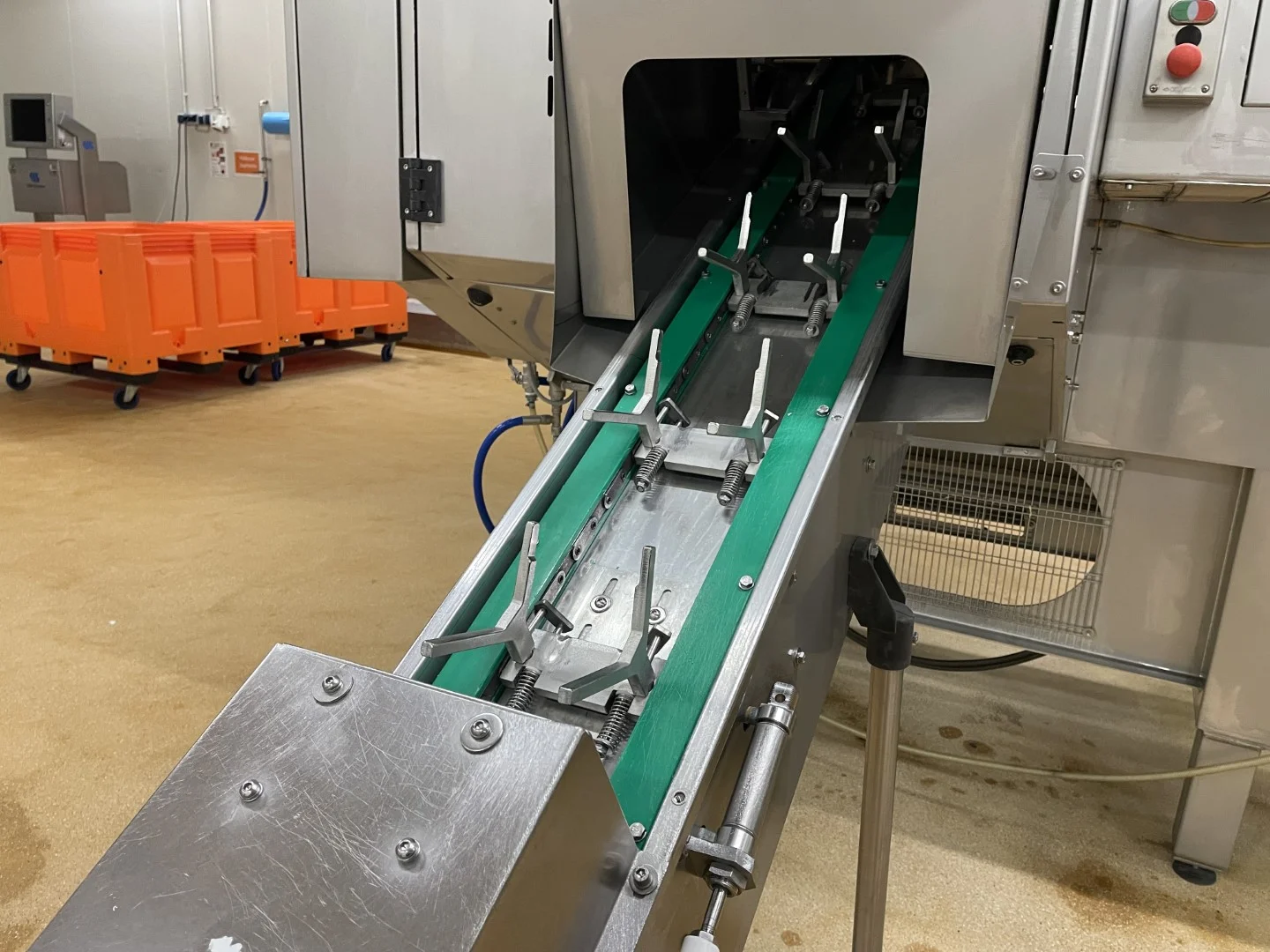

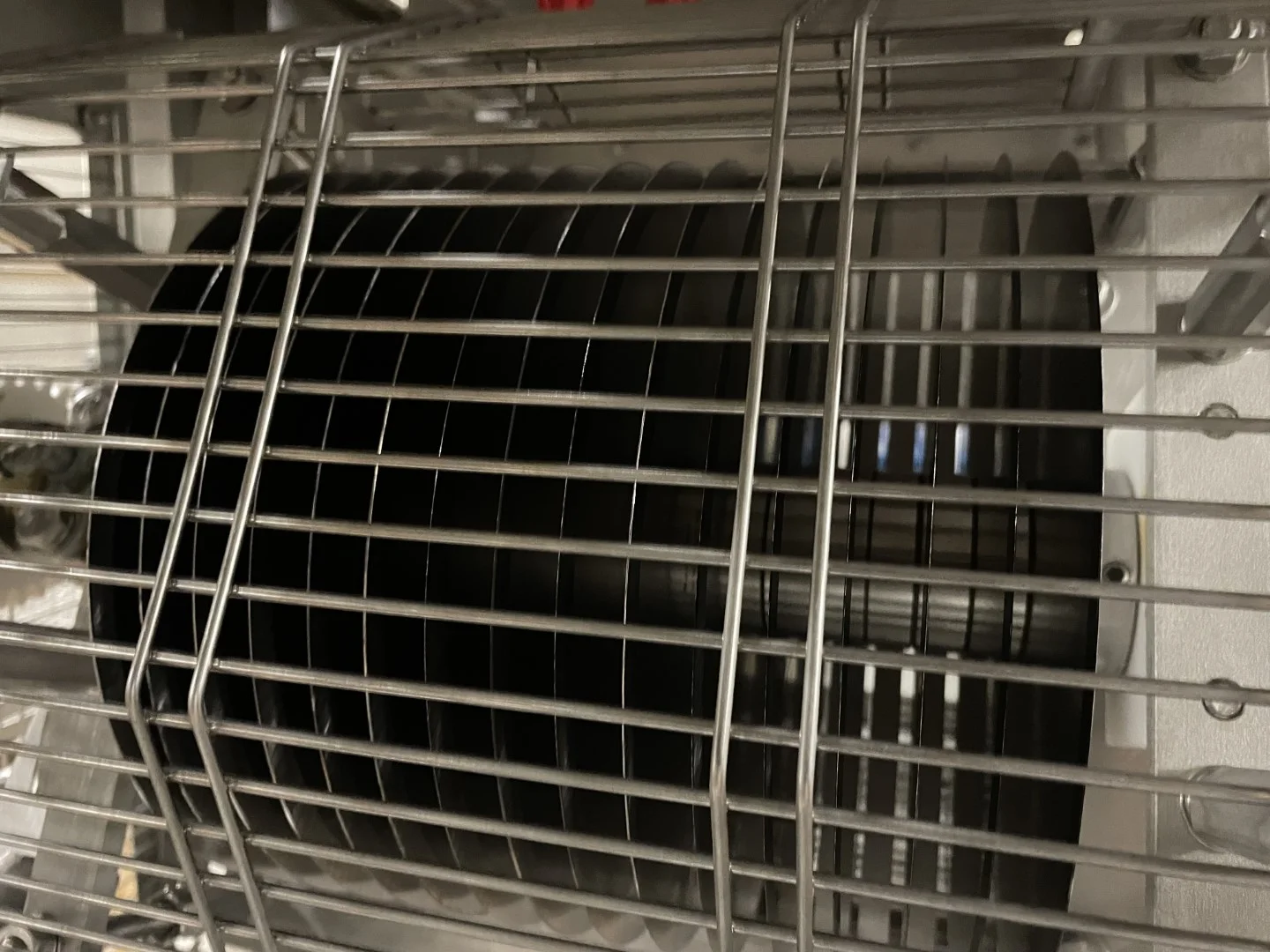

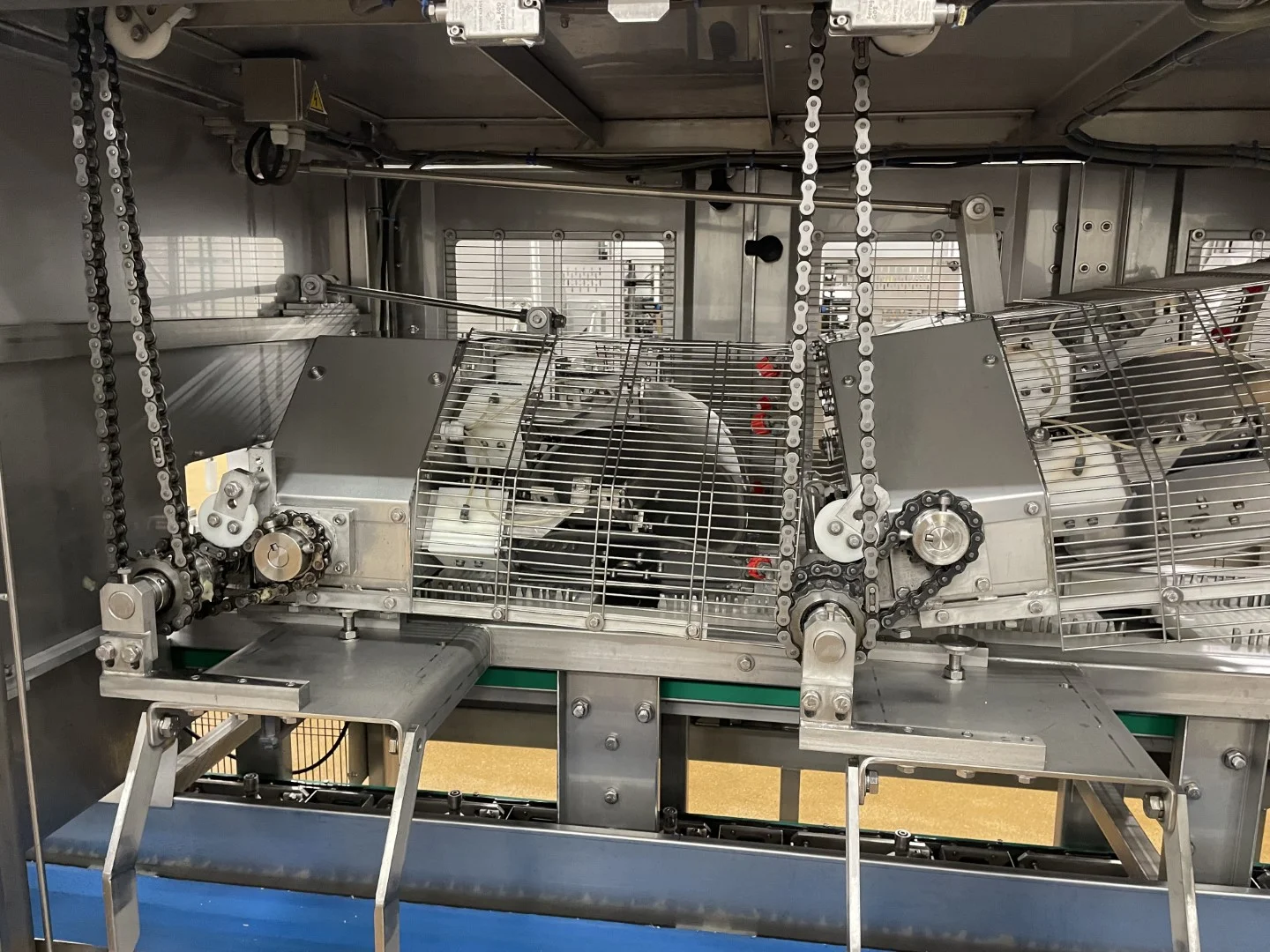

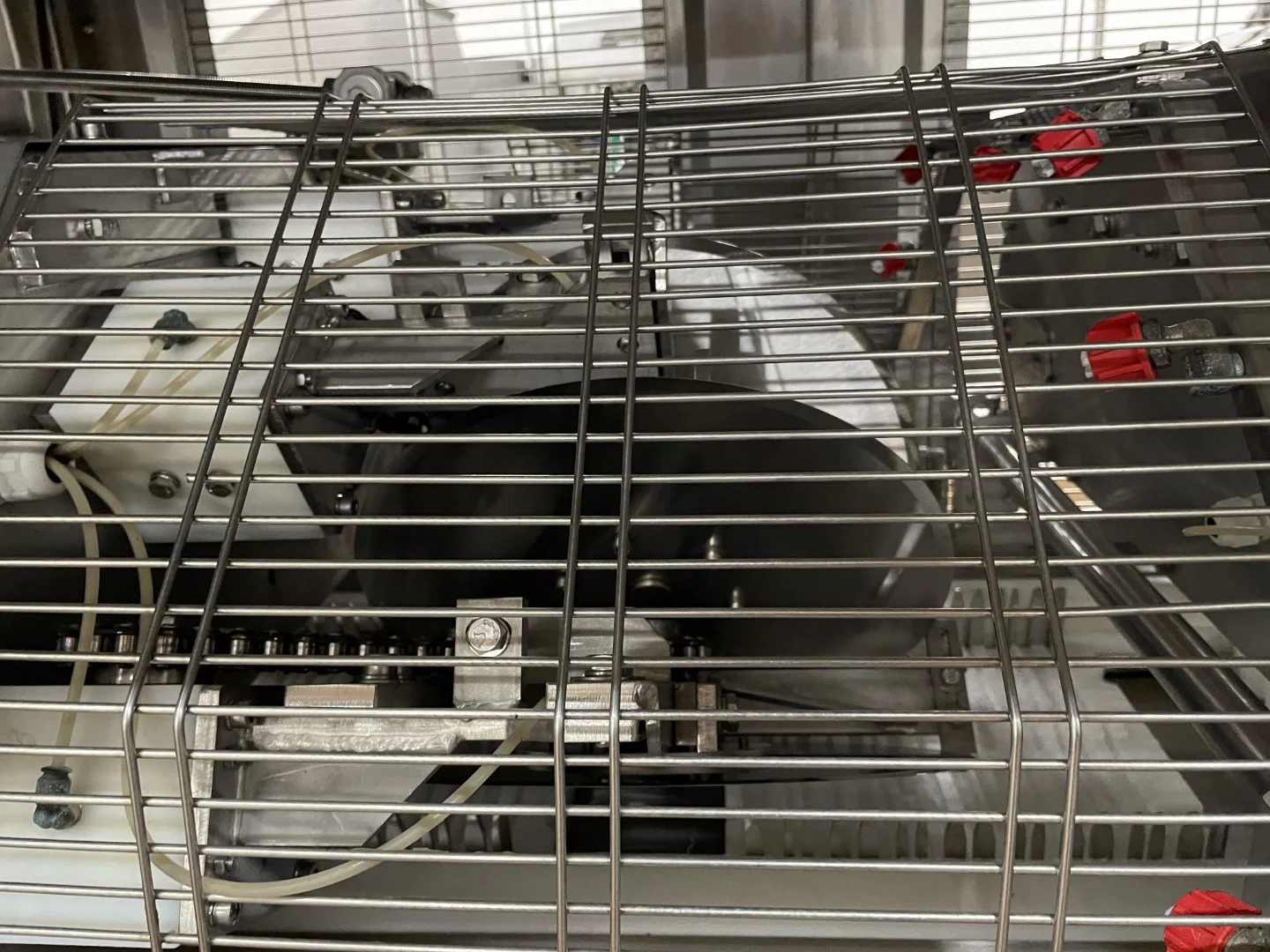

The GTF Slicing and Chunking Machine can be used to process pineapple, melon, and papaya. The machine is positioned in line after the AP15 Industrial Fruit Peeler and Corer. The fruit chunking machine is equipped with 4 cutting devices, two packs of radial blades two packs of parallel blades. Both systems utilize rotating blades technology to reduce pressure into the fruit while cutting. The halved fruit are manually placed onto special designed cups, that advance on a continues cycle. The combination of one radial blade assembly as well a parallel blade assembly will determine a chunk cut style. The use of only one cut assembly will determine if the halved fruit will be cut in half rings or spears. Easy and quick changeover from one blade assembly to another thanks to lifting cranks.

•  Processes up to 50 half pieces peeled fruit/minute
• Designed for quick format changeoverCan be uses as a melon, pineapple, or papaya chunker for the fresh-cut, IQF, drying, or canning industrie
• Offers customized cut size
• Can be uses as a melon, pineapple, or papaya chunker for the fresh-cut, IQF, drying, or canning industries

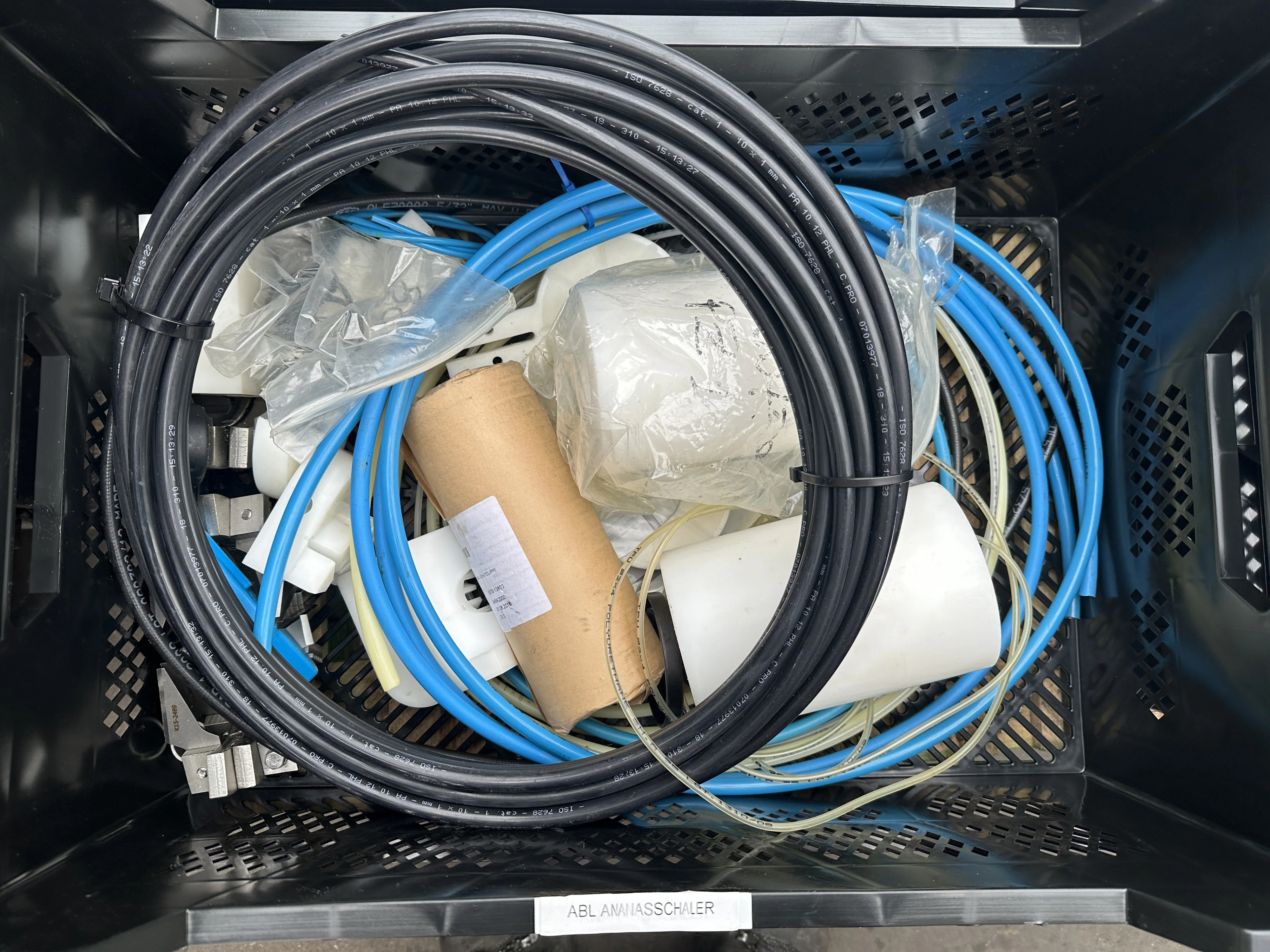

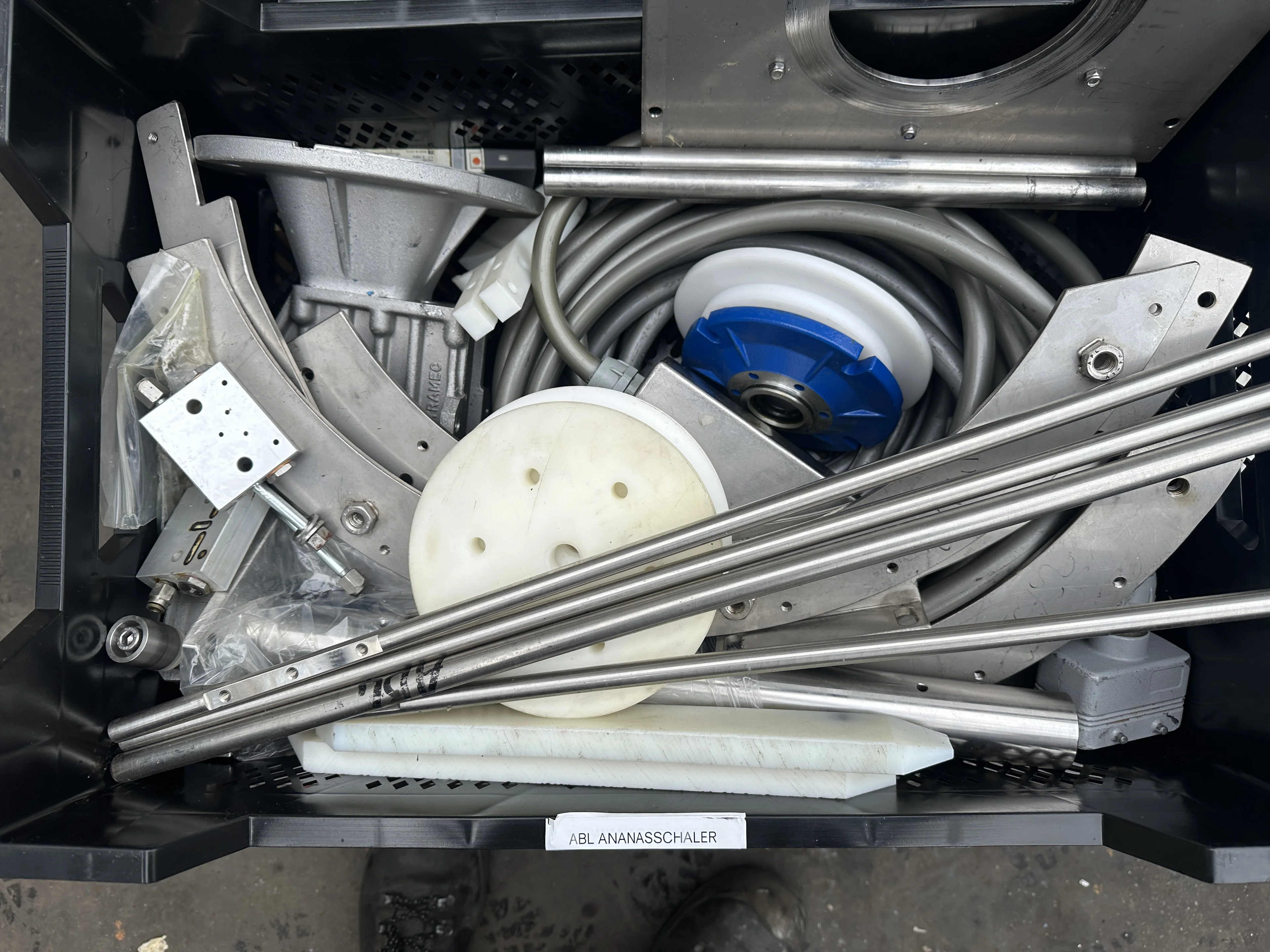

*optionally available: large stock of new parts for peller and cutter estimated value of €15,000. Can be bought with machine for a reduced price of €7500,-
