Description:

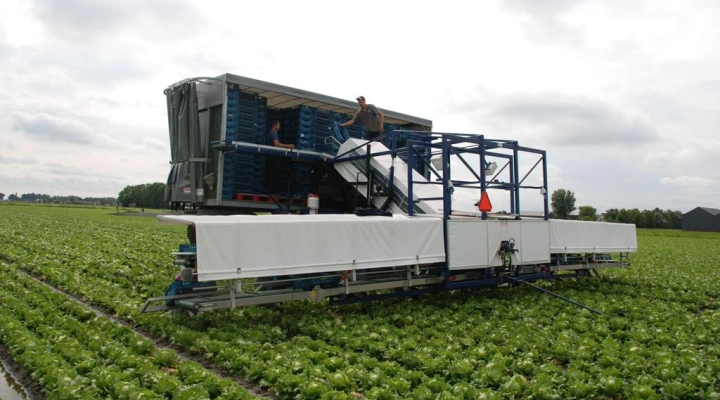

Harvesting machine on caterpillar with 1600 cm box harvesting belt with lifting system for trailers

3 x Van der Sluis harvesters on tracks for lettuce in boxes
Optional with 8 x Mulder harvesting trailers 660 x 250 cm

This machine was used for harvesting iceberg lettuce. In addition, the machine can also be used for harvesting in crates other types of lettuce and vegetables, such as cauliflower and white cabbage.

Harvester on caterpillar undercarriage with various infeed and outfeed conveyors for crates:

• Aluminium harvesting belts with a total width of 16 metres
• Harvesting under half cover
• Harvesting belt full boxes 45 cm wide
• Supply conveyor empty box (on harvesting belt) 29 cm wide
• Elevator conveyor 68 cm wide
• Conveyor belt and running board along entire length of harvesting trailer
• Hydraulic driven
• Rear view camera
• Year of construction harvesting belts and lift for harvesting trailers: 2012-2016
• Transport dimensions of harvester: 850 x 305 x 365 cm

The harvester is built on a Yanmar crawler chassis with Diesel engine:

• Construction year of crawler and engine +/- 1998
• Drive part; i.e. engine, cab, drive control, automatic steering, etc.
• Which are hydraulically driven and electronically controlled by electronic sensors.
• Caterpillar 370 x 60 cm. Running surface 260 cm
• Lift width 336 cm
• Hydraulically foldable wheel set and removable tow bar to transport the machine by tractor on the road (from one field to another).
• With Dutch licence plate

Suitable for matching harvesting wagons that are integrated with the harvester during harvesting:

• Container dimensions 660 cm long x 250 cm wide x 260 cm high
• Capacity 17.000 kg, with sliding tarpaulins and a overhead door

Optional: Mulder 4-wheel drawbar trailers with sliding tarpaulins

• Net container dimensions: 660 cm long x 250 cm wide x 260 cm high
• Overhead door at rear of the trailer, net 250 x 260 cm, rails protected concealed.
• Unsprung chassis
• These trolleys are custom-made for this harvester in order to integrate it into the harvester.
• Ground clearance of the body 110 cm, over a length of 350 cm
• Top loading floor 125 cm high
• Total height 398 cm
• Axles with 10.000 kg load capacity per axle, total 20 tonnes, both axles hydraulically braked.
• Tyres 500 x 17, 18 Ply. (52.5 x 94 cm)
• Sliding tarpaulins on both sides, continuous past front of trailer, front coupled.
• Concrete plywood front with hooks to do the covers behind when they are open.
• Spring-loaded triangle adjustable in height.
• Grainboard loading floor with hardwood planking underneath.
• Walk-through brake for the second trailer behind, large automatic drawbar coupling for second trailer behind.
• Ironwork fully galvanised.
• Protective lighting with contour lighting, and plug for follow second trailer behind.
• Frame beams of the trolley placed on the track of the Linde E-20 forklift.
• Track-following operation when two trolleys are coupled together.
• Rail on side of wagon for harvesting conveyor system.
• Reinforced roof construction for harvesting conveyor system.
• Branch guide at the top of the wagon, on the upper right-hand corner between the top of the hood
• With Dutch licence plate
• Year of construction 2012-2016

The harvesters are sold with a minimum of 0 and a maximum of 3 of the following harvesting trailers.
