Description:

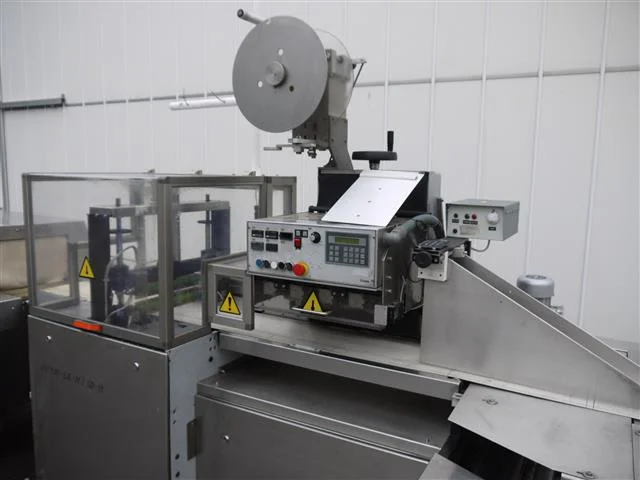

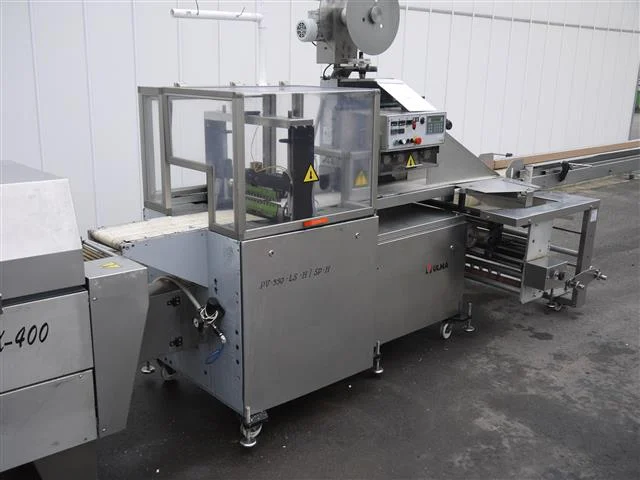

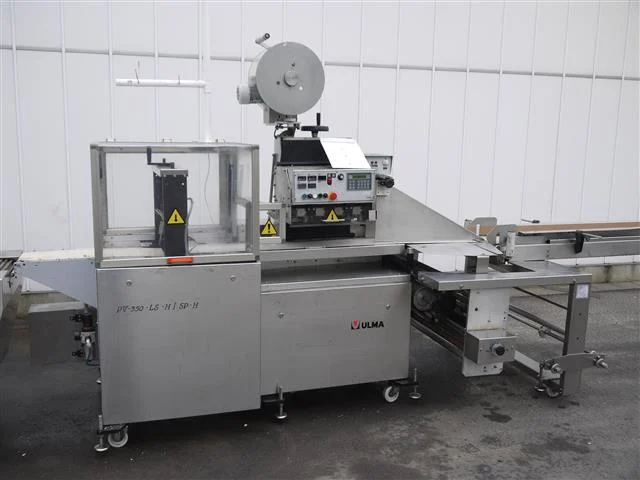

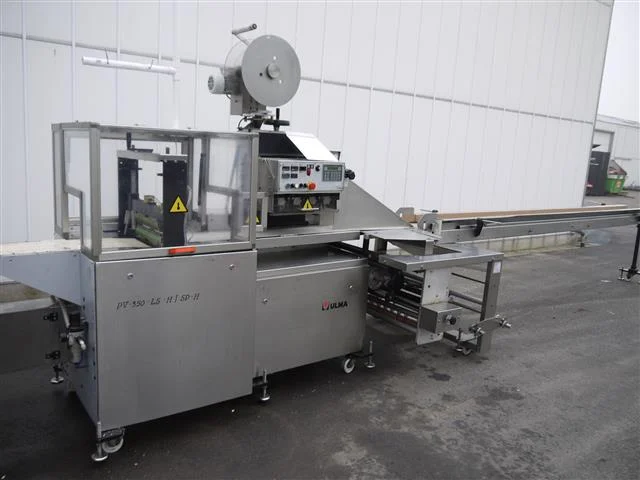

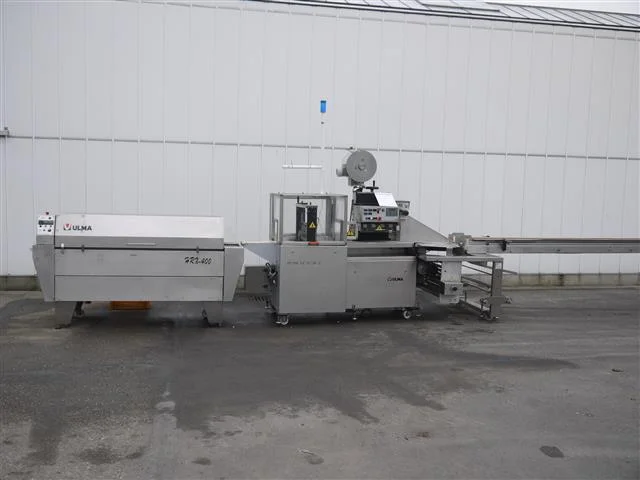

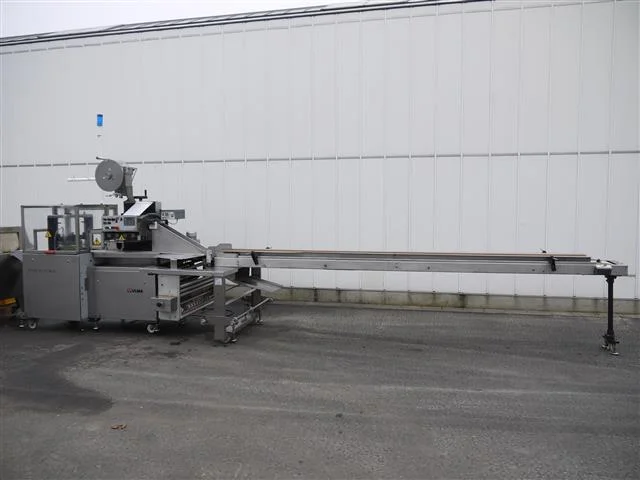

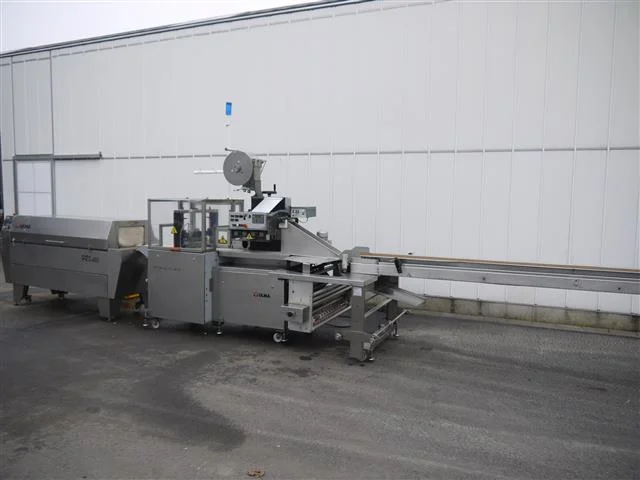

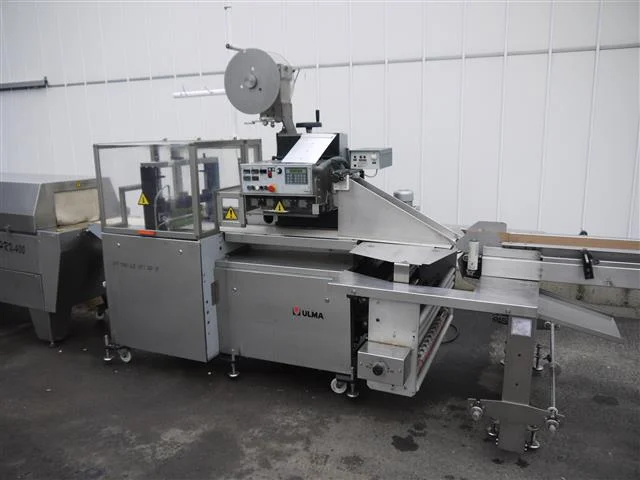

Ulma PV-350 LSH /SPH packing machine with shrink tunnel

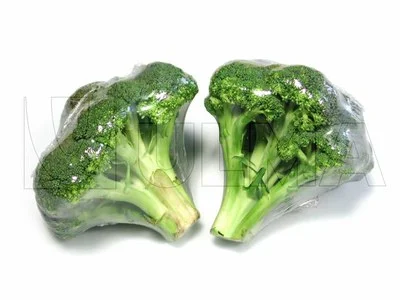

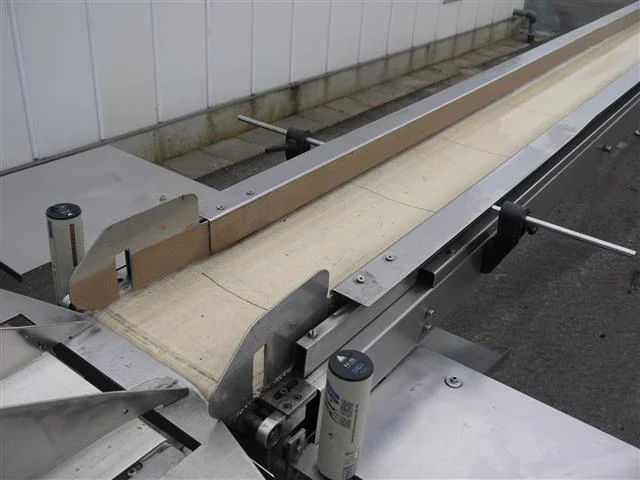

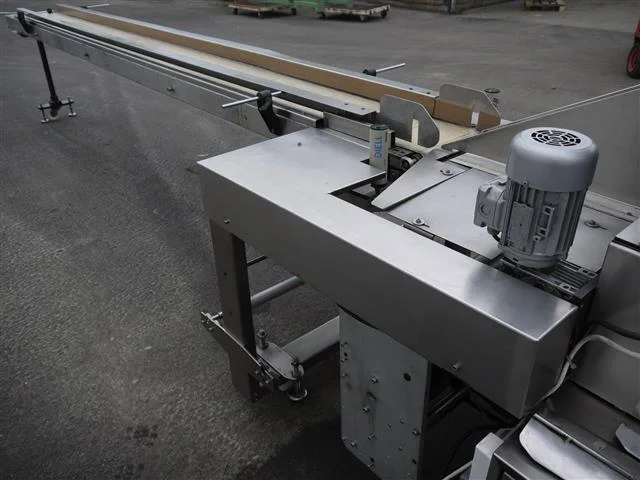

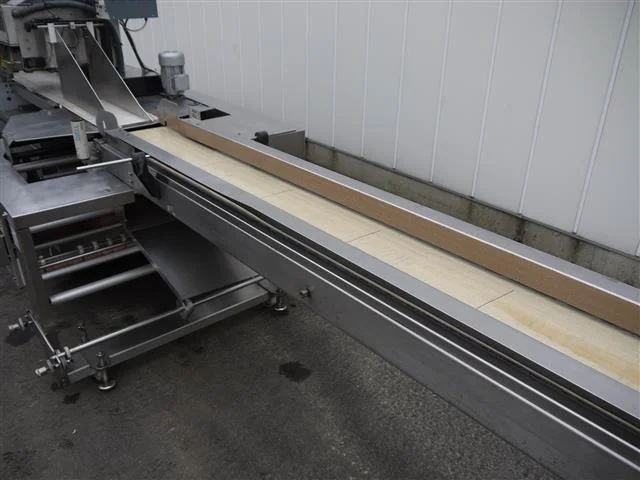

Ulma PV-350 LSH / SPH packing machine with shrink tunnel To (flow) pack different type of vegetables in shrink foil. Machines form a family of packing machines with a film coil at the lower part of the machine. This is the reason why they are specially recommended for irregular or difficult to drag products. This model is strong, easy to use and reliable, as all Ulma machines are, but it also is highly versatile in format change and has a wide range of versions which guarantee the perfect adaptation of the machine to the needs of each application, specially valuable in agriculture, meat processing, dairy sector, etc." • Made of stainless steel and materials protected with anticorrosive treatment. • Working sense : from right to left. • PV-350 LSH /SPH - Cross-welding with horizontal fillet clamp. - Longitudinal welding system with three pairs of rollers for welding and longitudinal film dragging •  feeding conveyor • Mould with stretchable former. • Package length adjustment according to product length. • "No product", "No package" and "Badly located product in clamps" functions. • Liquid crystal (LCD) screen for machine parameter adjustment, diagnosis and information of machine state. • Parameter memory storage : up to 20 products.

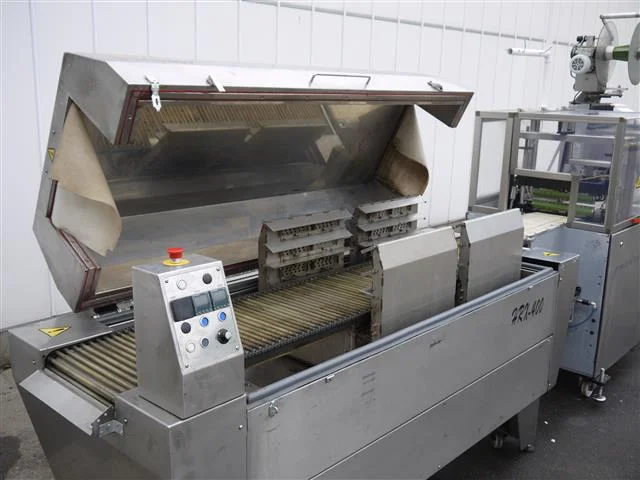

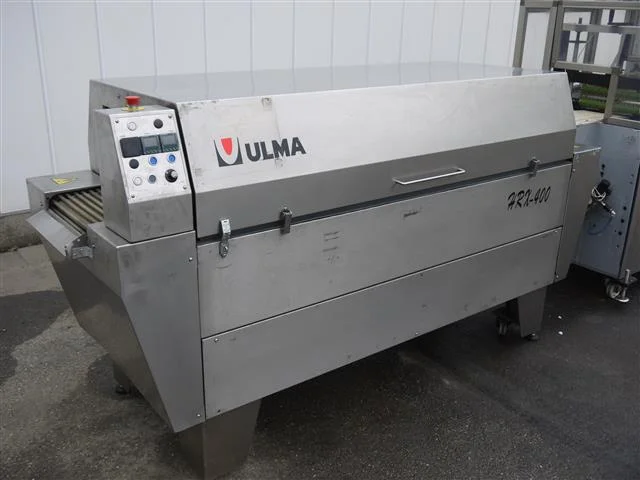

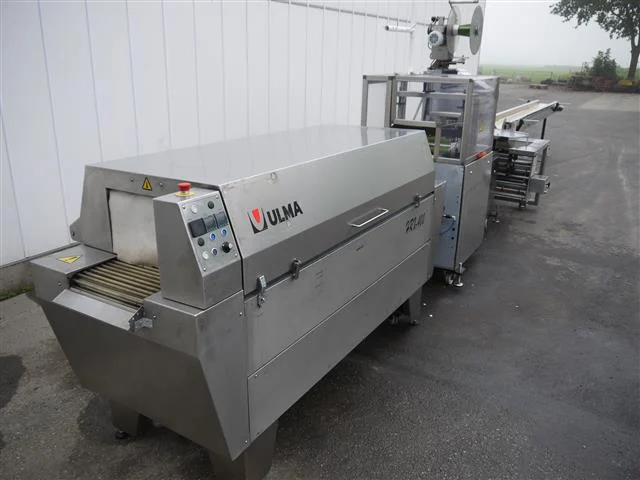

Shrink tunnel Ulma HRX - 400 Stainless version

L 2.420 mm. Chamber height         260 mm. Speed                      Up to 30 m / min. Working temperature      2500 max. Number of modules         2 (optional : 3) Product dimensions Width                 400 mm. Height                 220 mm. Electrical consumption  Voltage 220 / 380 V. 10 % Three phase + Neutral + Earth Max. consumption     16 kW at 380 V Approximate weight   550Kg.
