Description:

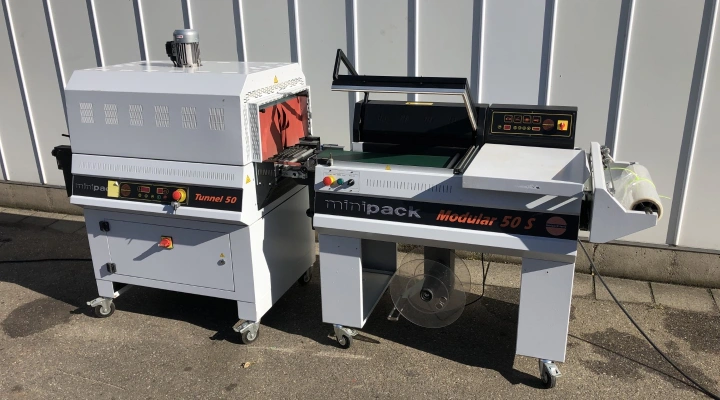

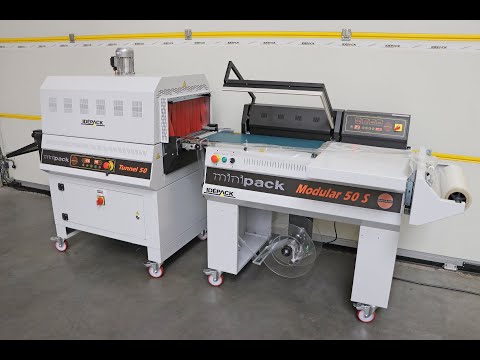

Minipack Modular 50S L-Sealer + Shrink tunnel

Minipack Modular 50S L-Sealer

Modular 50S:

• Seal dimension 540 x 400 mm
• Product dimension max. 500 x 380 x 100 mm
• Capacity 0-900 p/h
• Foil roll max. Ø250 x 600 mm
• Machine dimensions 1.590 x 750 x 1.110 mm, 151 kg

 Shrink tunnel: Tunnel 50 Digit

400 V - 50 Hz, 2,3 kW

The Minipack Modular 50S L-Sealer is a compact and economical corner sealer with an automatically closing sealing window and a flattened seal knife. The Modular has all the "high profile technological features"; the seal time is electronically adjustable and the cloned seal knife ensures a perfect seal seam. The Modular leaves nothing to be desired; the automatically closing sealing window (electric) and the residual film rewind system are standard.

The Minipack Modular 50S itself is perfect for clean and hygienic packaging of textiles, laundry and linen packages and flat packs.

With 50 Shrink tunnel for tightly shrinking the sealed film for, for example, printed matter, books or parts.

• Teflon coated sealing blade
• Double sealing bar with shock absorber
• Continuous cycle cooling system
• Manual or automatic mode
• Adjustable working plate
• Motor driven conveyor belt with adjustable speed
• Oversized waste film winder
• Integrated roll support
• Digital panel with 6 programs
• Product counter
• Lockable packaging plate
• Bar opening delay allows sealer to cool down
• Machine on wheels
• Emergency off switch.
