Description:

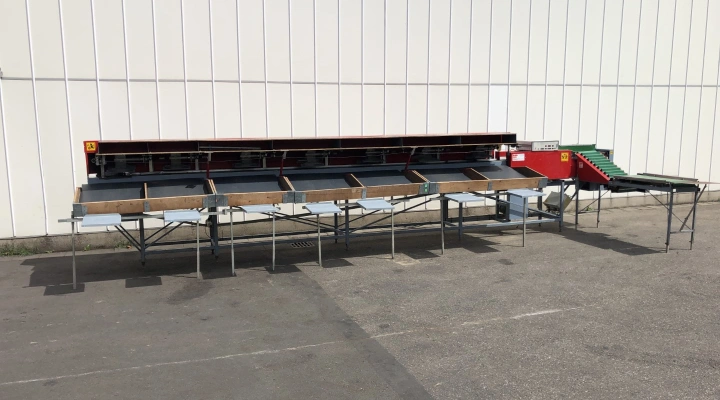

Aweta E7 cucumber sorting machine

Aweta E7 weight sorting machine for cucumbers

Weight grader for cucumbers.

• Before delivery takes place, this cucumber grader will be serviced

About Aweta E7

The Aweta E7 electronic grading machine is a straight machine with the feed elevator at one end (optional left or right handed). The machine grades the cucumber by weight into a maximum of seven classes. The distance between the feed elevator discharge and the grader conveyor is only 4 cm and the cucumbers can't fall from the machine during the production run. A unique system of rotating paddles gently sweeps the cucumbers from the moving conveyor into the appropriate grade collection table

The Aweta E7 has been designed with very few moving parts, is extremely quiet in operation, and has the minimum maintenance requirement.

Specifications of Aweta E7

• Capacity per hour: Max. 5500 pieces
• Length of cucumbers: Max. 50 cm
• Sorting system / range: Electronic weighing / 20 - 1500 grammes
• Accuracy: To within +/- 3 grams

Dimensions of Aweta E7

• Machine: (L x W x H) 760 x 140 x 150 cm (without tables 85 cm wide)
• Working height: tables 85 cm
• Weight: 600 kg
