Description:

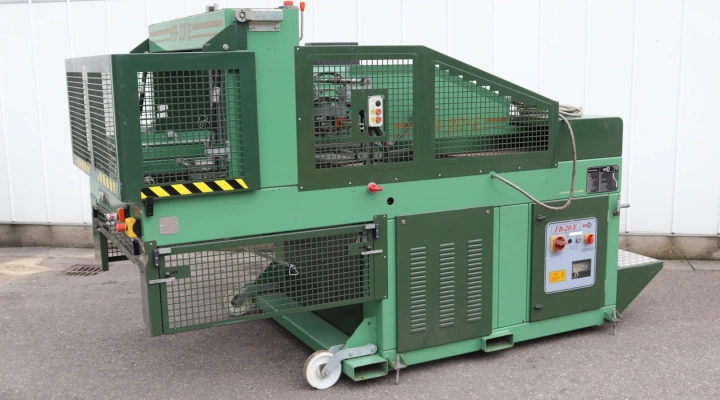

Boix FB-20 box folding machine

Boix FB-20/E box folding machine / erector

• Glue system by hot-melt injection. Nordson (capacity: 9 Kg)
• 1500 trays per hour
• 380 Volt
• 50 Hz
• Plano infeed system by vacuum
• Compressed air consumption: 80 Liter/Min (for glue injection)
• Min. air pressure: 6 Bar

This machine is only suitable for 4 point glued trays. Currently this machine is equipped for 60 x 25 cm trays.

New forming plates for other forms of trays can still be ordered at the manufacturer of this machine. (Costs +/- €950,-)

Dimensions unfolded trays:

• Length: Max 1200 mm / Min 320 mm
• Width: Max 950 mm / Min 320 mm

Dimensions folded trays:

• Length: Max 600 mm / Min 300 mm
• Width: Max 400 mm / Min 200 mm
• Height of raised edges: Max 250 mm / Min 70 mm

Characteristics:

• Fully mechanical machine, driven by 1 central motor, ensuring synchronisation of all movements.
• Equipped with timer for heating up the glue unit.
• Equipped with display with various control functions and warning messages concerning the maintenance to be carried out.
• Equipped with central oil pump for lubricating the push chains and telescopic guides of the forming sections.
