Ortomec 9000 self propelled leaf vegetable harvester

Sold
Ortomec spinach harvester

Description:

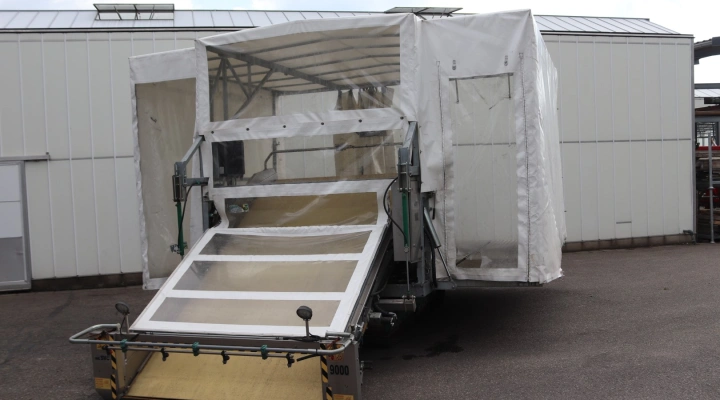

Ortomec 9000 self propelled leaf vegetable harvester

Ortomec 9000 self propelled leaf vegetable harvester on steel caterpillars.

The Ortomec 9000 is suitable for harvesting all green leafy vegetables such as baby leaf, rocket, spinach, basil, aromatic herbs, beets etc.

  • Harvest width 180 cm
  • Will be delivered with new blue harvesting conveyor belt
  • Caterpillar on tilting wheels
  • Caterpillar tracks made of steel, width 40 cm, length 270 cm
  • Track width outside 160 cm  H-H- 120 cm
  • Steering and forward with joystick
  • Flatbed / bed area aprox,400x420 cm
  • Lateral running boards, which can be opened and closed hydraulically
  • Machine frame hot-dip galvanized
  • Frame from the conveyor belt made of stainless steel
  • Cutting system with belt saw
  • Hydraulic oil tank and motor housing made of stainless steel
  • Control of cutting height from the driver's position
  • Regulation of the speed of the knife via hydraulic valve
  • Hydraulic drive from the conveyor belt
  • Setting the speed of the conveyor belt from the driver's station via manual valve
  • Ground clearance: 32 cm
  • Total weight of harvester: 3000 kg. Approximately
  • Sun roof with fixed height
  • Total hours ran: 550

The machine is with it's current belt saw very suitable for spinach, baby leaf and rock lettuce.

Ortomec

Technical specifications:

Model:SVC150B
Year:2014
Motor:Kubota diesel V2403M turbo, 4 cylinder - 44 kw
Capacity:6 km/h
Dimensions:180 cm (width)

Kubota 4 cylinder engine 49 HP

Ortomec 9000 self propelled leaf vegetable harvester


Unfortunately, this Ortomec 9000 self propelled leaf vegetable harvester has now been sold.

Would you like to be kept informed when a comparable Spinach harvesters becomes available? Fill in your details here.


Sold

Brand
Product group
Model
SVC150B
Number
2330210623
Year
2014

Please contact Reinier

We are happy to help. Our consultants are now waiting for you.

Direct ContactCall us: +31 180 632 088

Description:


Ortomec 9000 self propelled leaf vegetable harvester on steel caterpillars.

The Ortomec 9000 is suitable for harvesting all green leafy vegetables such as baby leaf, rocket, spinach, basil, aromatic herbs, beets etc.

  • Harvest width 180 cm
  • Will be delivered with new blue harvesting conveyor belt
  • Caterpillar on tilting wheels
  • Caterpillar tracks made of steel, width 40 cm, length 270 cm
  • Track width outside 160 cm  H-H- 120 cm
  • Steering and forward with joystick
  • Flatbed / bed area aprox,400x420 cm
  • Lateral running boards, which can be opened and closed hydraulically
  • Machine frame hot-dip galvanized
  • Frame from the conveyor belt made of stainless steel
  • Cutting system with belt saw
  • Hydraulic oil tank and motor housing made of stainless steel
  • Control of cutting height from the driver's position
  • Regulation of the speed of the knife via hydraulic valve
  • Hydraulic drive from the conveyor belt
  • Setting the speed of the conveyor belt from the driver's station via manual valve
  • Ground clearance: 32 cm
  • Total weight of harvester: 3000 kg. Approximately
  • Sun roof with fixed height
  • Total hours ran: 550

The machine is with it's current belt saw very suitable for spinach, baby leaf and rock lettuce.
