Description:

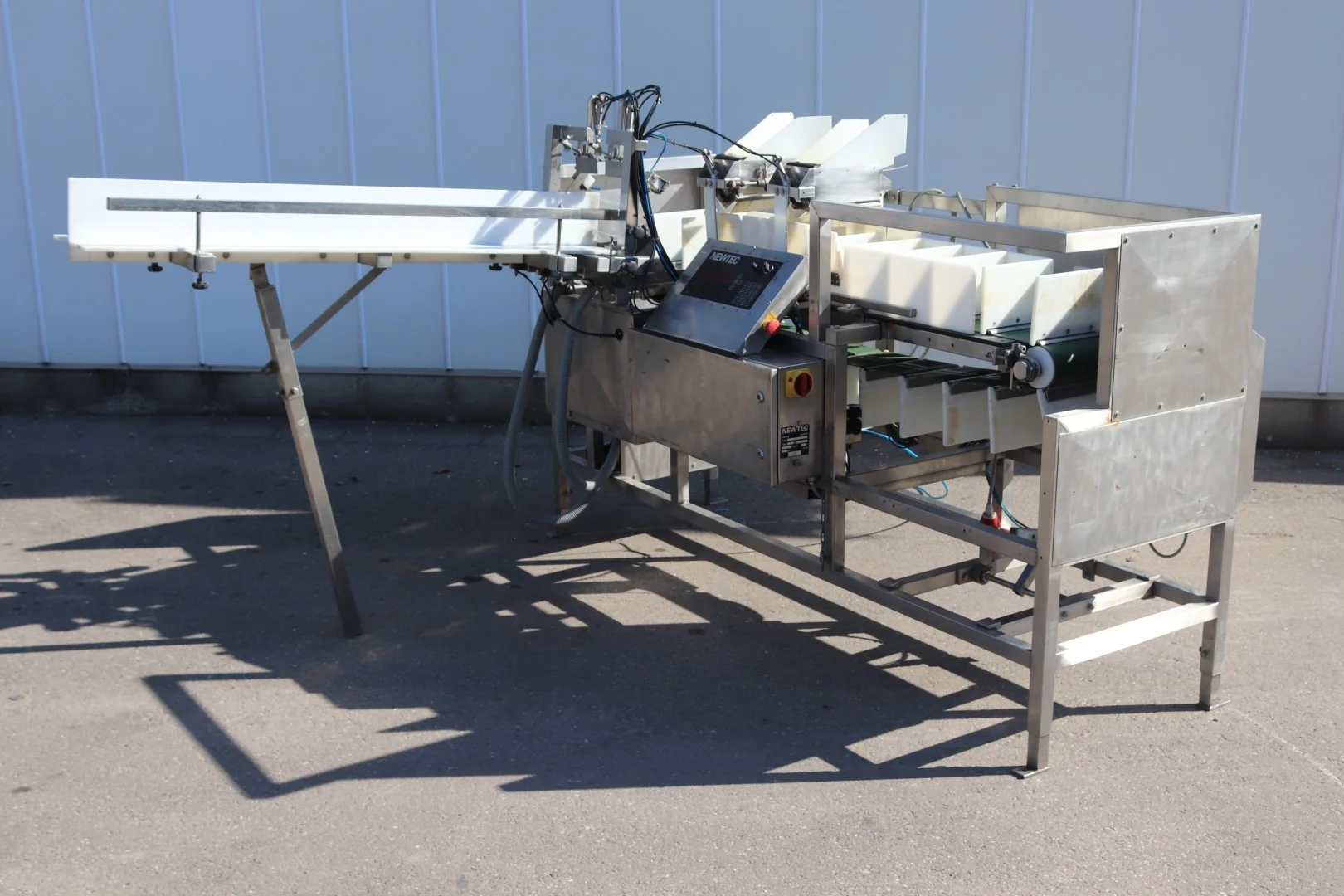

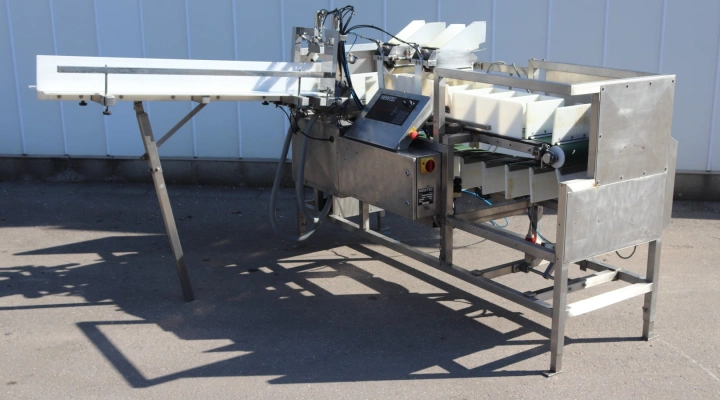

Newtec NBM50C punnet filling machine

Newtec NBM50C punnet / container feeding and filling machine

• Suitable for stone fruit (plums, necatrines, peaches), kiwi fruit, mandarijen tomatoes, cherrie tomatoes, carrots and similar products.
• Capable to connect with a weighing machine.

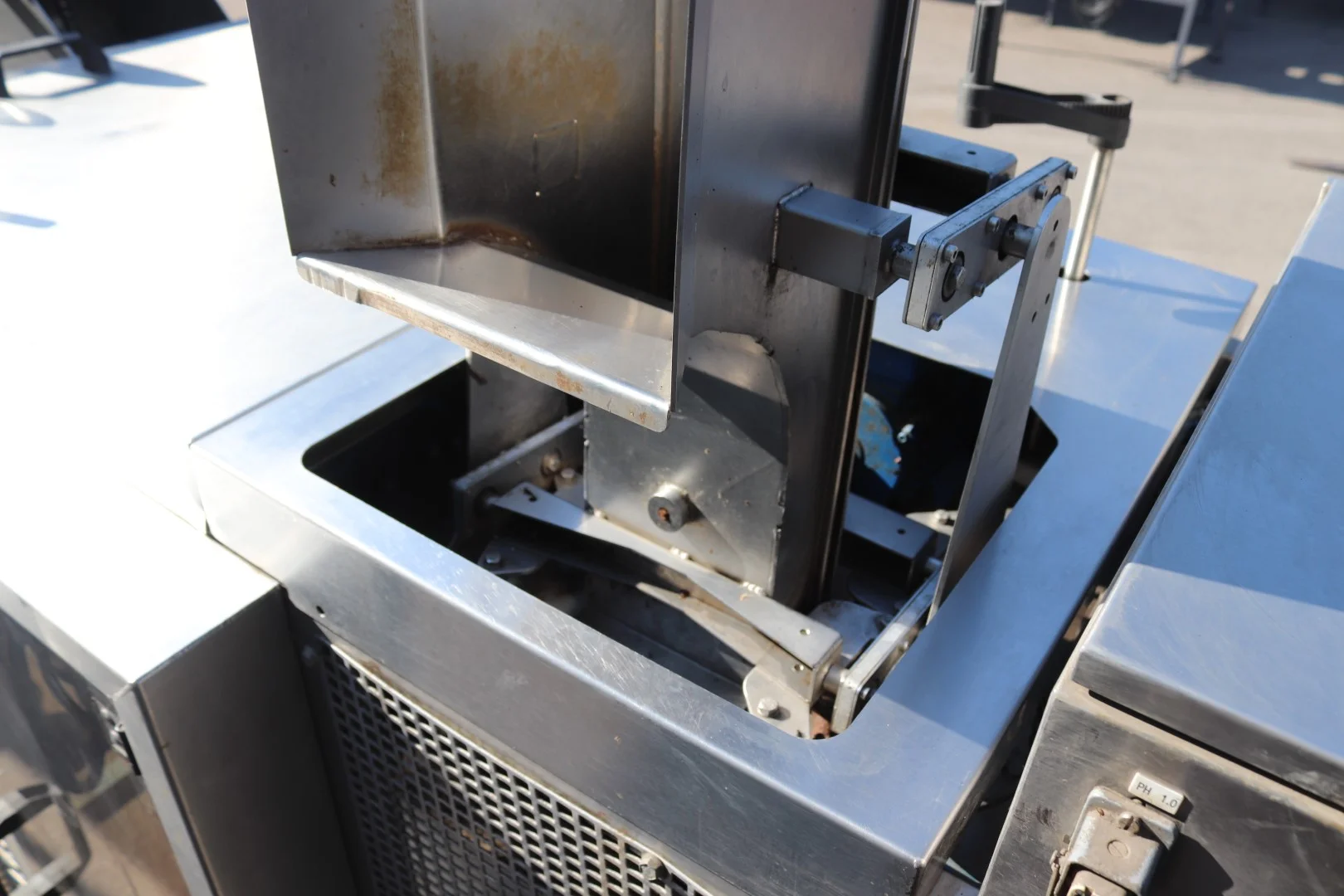

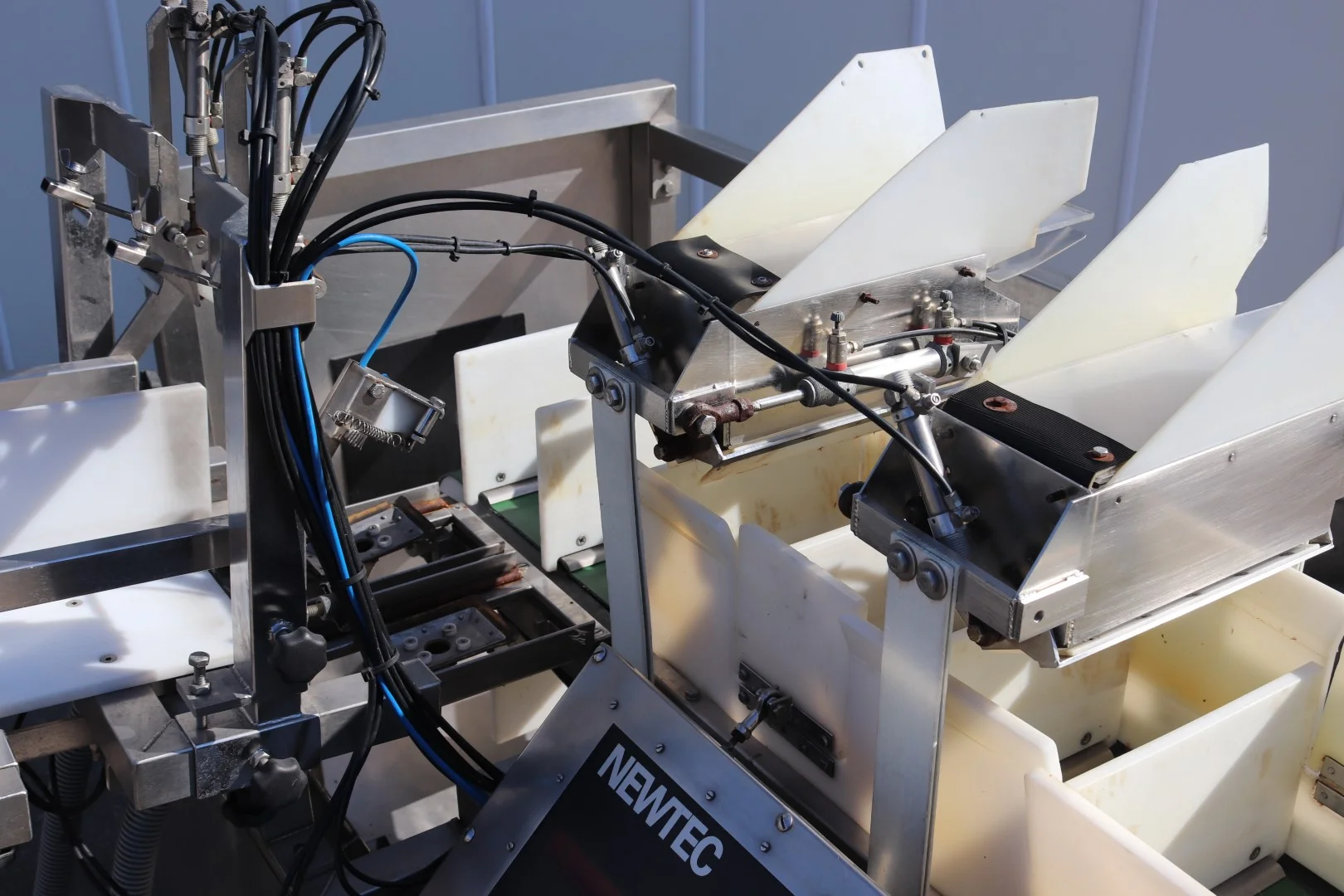

• Double dispenser / denester for punnets:
  • Punnet magazine, punnet separator, punnet stop plate, vacuum head, punnet sensor and transfer arm

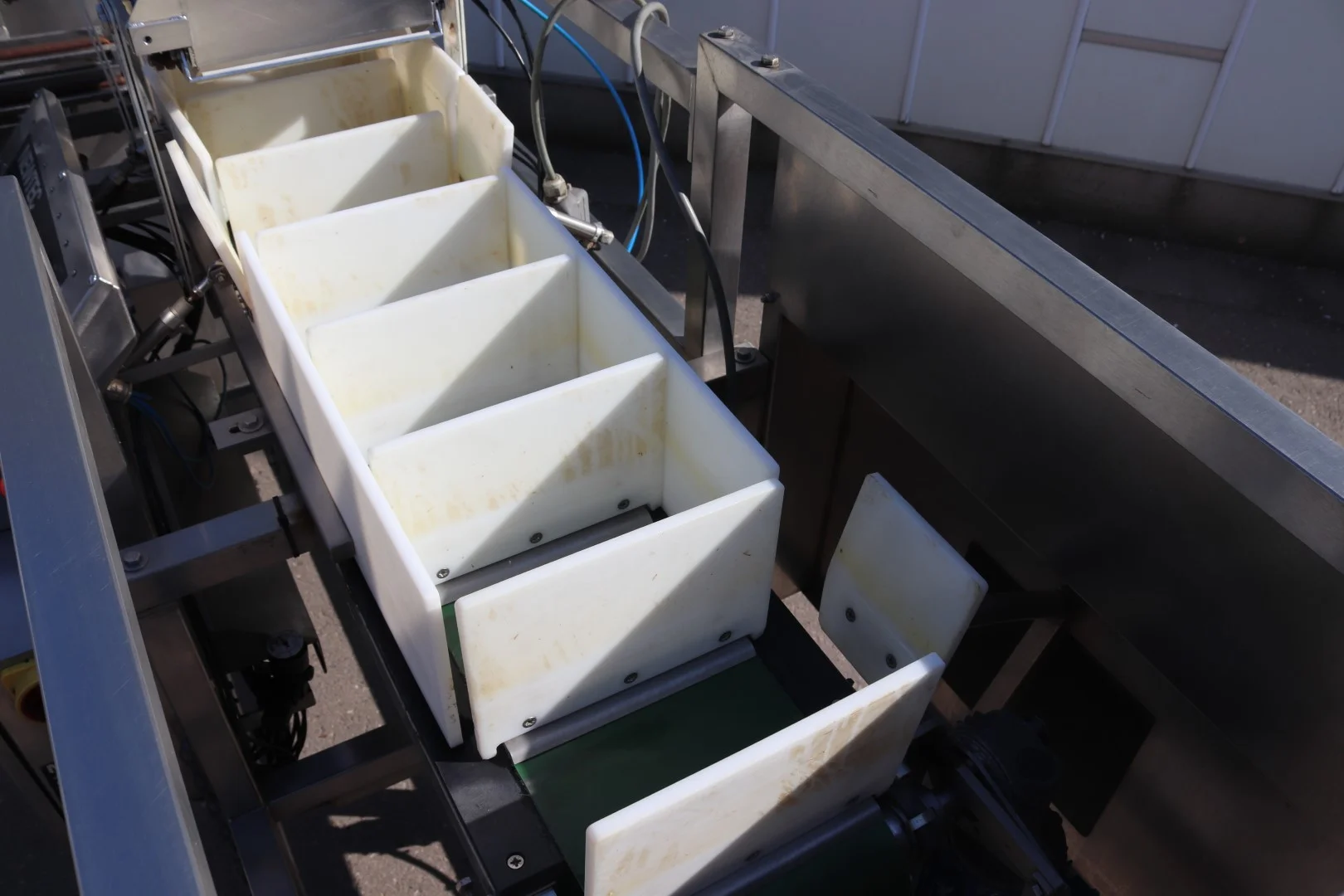

• Punnet conveyor:
  • Belt diveded with plates (vertical) as partitions for punnets.
• Automatic filling
• Capacity 45 punnets per minute

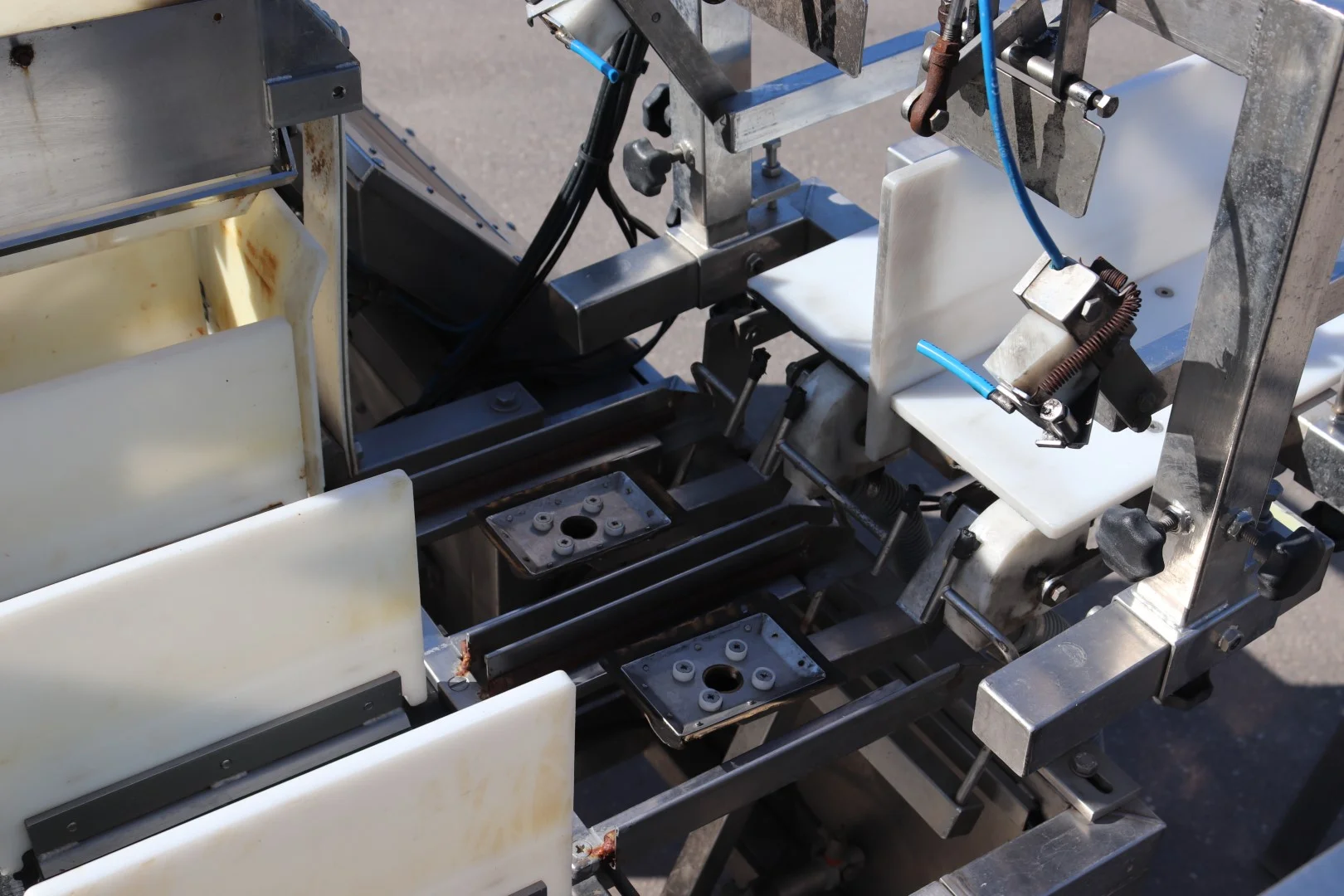

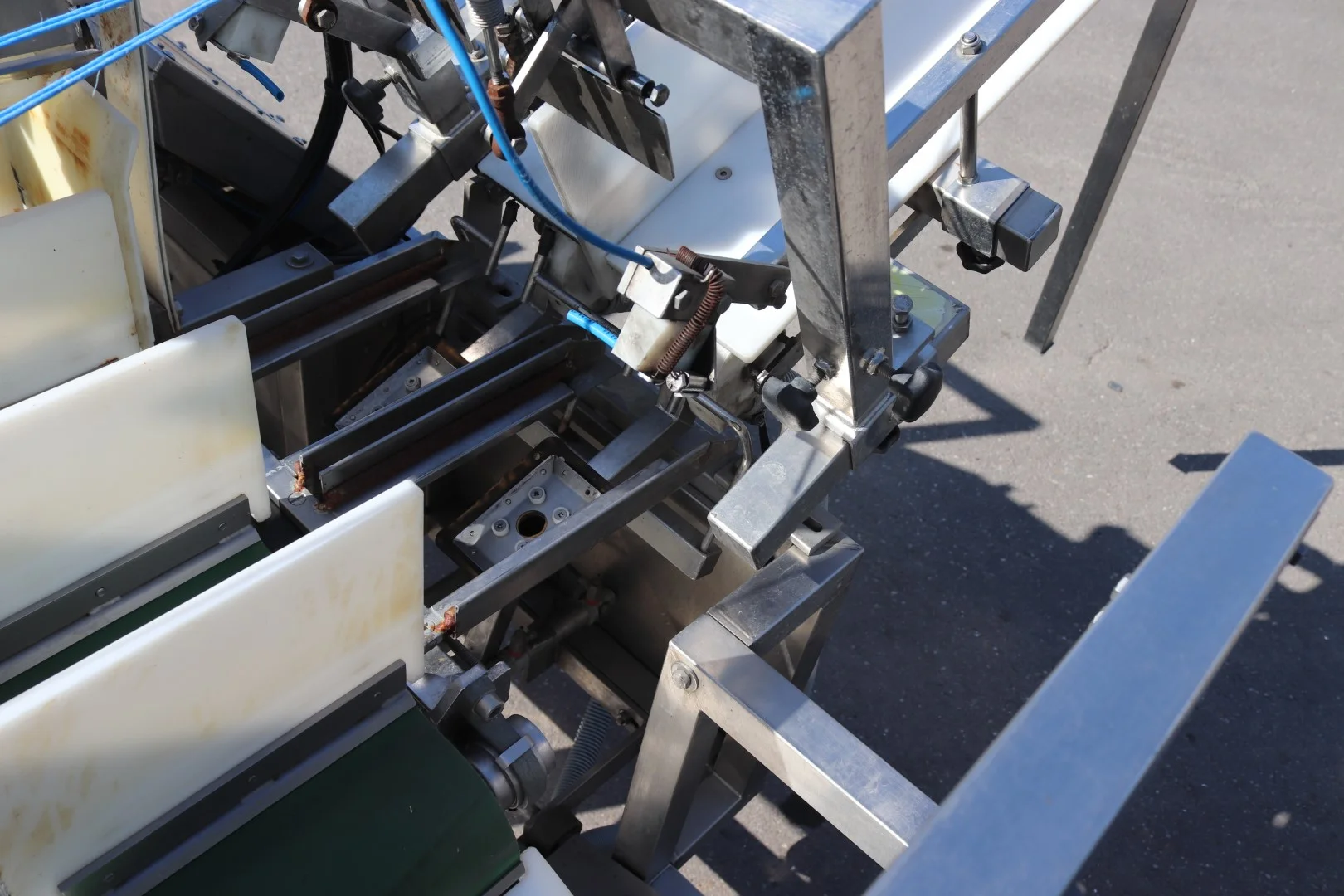

The punnet machine should be continously fed with punnets via the punnet magazine. These punnets are let to the punnet conveyor by the dispencer. In the dispencer a punnet separator is positioned which ensures that only one punnet is taken at a time. Together with the punnet separator there is a stop plate wich holds all the remaining punnets while the separator is working. The vacuum head brings the punnets down on a support plate, so that the transfer arm can dispense the punnet into position on the punnet conveyor.

The punnet machine controls the Optional weighing machine by signalling to it when ready to receive a portion. Then the conveyor dispenses the product into the collection conveyor that fills the punnet. When the punnet is filled the belt vibrates to settle the product.
Finally the transfer arm dispenses the filled punnet out of the machine on a conveyor. This conveyor can be connected to a packaging machine.

Optional: weighing machine
